AMiO 03625 Work Light Instruction Manual

1. ആമുഖം

This manual provides essential information for the safe and effective installation, operation, and maintenance of your AMiO 03625 Work Light. Please read this manual thoroughly before using the product and retain it for future reference. This work light is designed for universal vehicle service, providing powerful and reliable illumination.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

• ഇലക്ട്രിക്കൽ സുരക്ഷ: Ensure the power source matches the specified voltage range (9-36V DC). Incorrect voltage can damage the device or cause electrical hazards.
• ഇൻസ്റ്റലേഷൻ: Installation should be performed by a qualified professional if you are unsure about vehicle electrical systems. Ensure all connections are secure and insulated to prevent short circuits.
• മൗണ്ടിംഗ്: Mount the work light securely to a stable surface that can support its weight and withstand vibrations.
• ചൂട്: The work light may become hot during extended operation. Avoid touching the housing directly and ensure adequate ventilation around the unit.
• ജല പ്രതിരോധം: The product has an IP67 rating, indicating protection against dust and temporary immersion in water. However, avoid prolonged submersion or high-pressure water jets.
• നേത്ര സംരക്ഷണം: Do not stare directly into the light source when it is active, as it can cause eye strain or damage.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉണ്ടോ എന്ന് പരിശോധിക്കുക:

• AMiO 03625 Work Light Unit
• Mounting Bracket and Hardware (screws, nuts, washers)
• നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)

Figure 3.1: AMiO 03625 Work Light packaging.

This image shows the AMiO 03625 Work Light unit enclosed in its black retail packaging, indicating the product as it appears when unboxed.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps for proper installation of your AMiO 03625 Work Light:

1. മൗണ്ടിംഗ് ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select a suitable, stable location on your vehicle or equipment that provides optimal illumination and allows for secure mounting. Ensure the location does not obstruct other vehicle functions or lights.
2. ബ്രാക്കറ്റ് മൌണ്ട് ചെയ്യുക: Use the provided mounting bracket and hardware to securely attach the bracket to the chosen surface. Mark and drill holes if necessary.
3. Attach the Work Light: Fasten the AMiO 03625 Work Light to the mounted bracket using the supplied hardware. Adjust the angle of the light for desired illumination coverage.
4. വയറിംഗ്:
   • Connect the positive (+) wire from the work light to a switched 9-36V DC power source (e.g., a relay connected to the vehicle's battery).
   • Connect the negative (-) wire from the work light to a reliable ground point on the vehicle chassis.
   • Ensure all connections are tight and protected from moisture and abrasion.
5. ടെസ്റ്റ് പ്രവർത്തനം: Before finalizing the installation, briefly test the work light to ensure it powers on and off correctly.

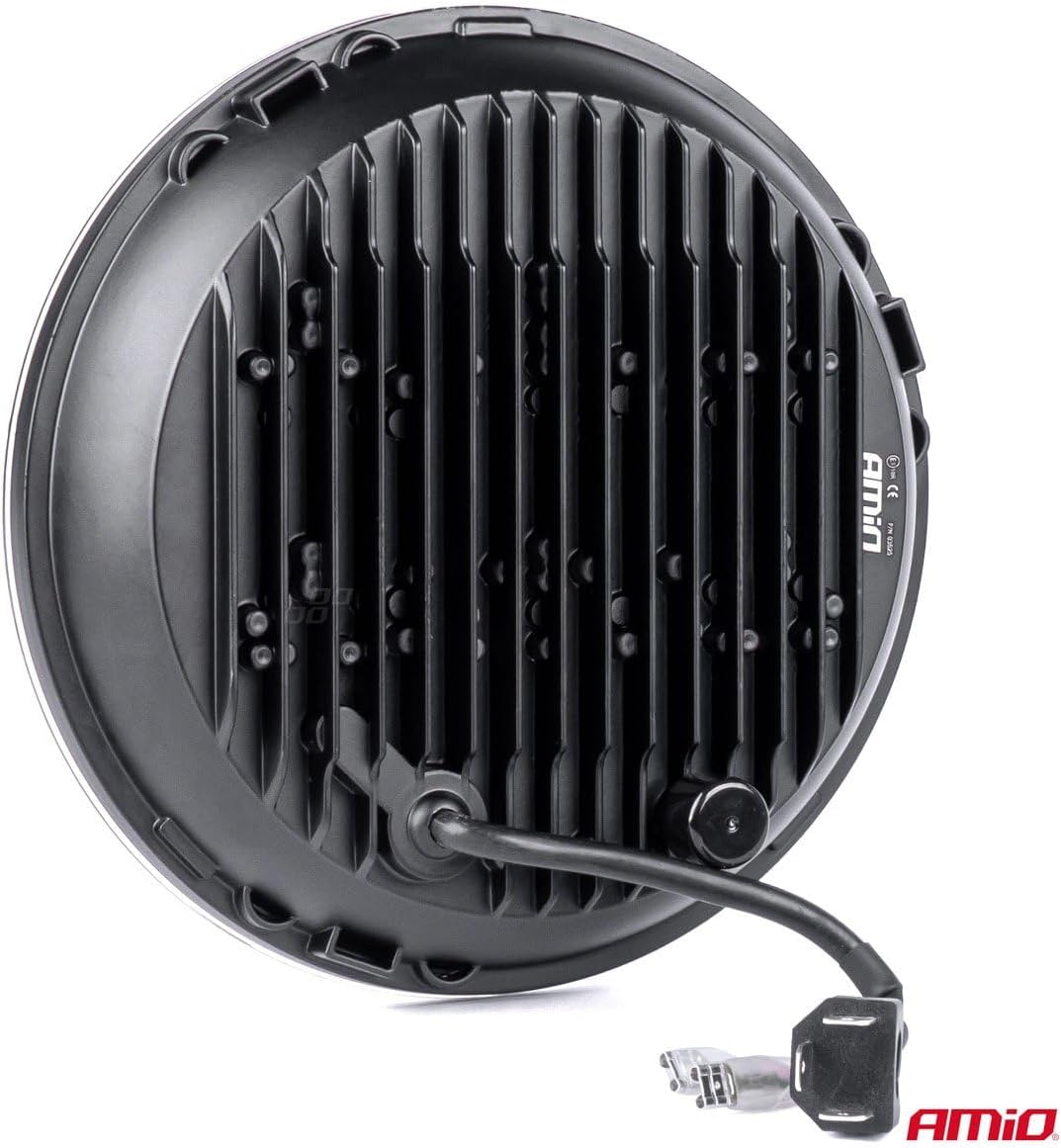

ചിത്രം 4.1: പിൻഭാഗം view വയറിംഗ് ഉപയോഗിച്ച്.

This image displays the rear of the AMiO 03625 Work Light, highlighting the robust aluminum housing with integrated cooling fins and the attached power cable, essential for heat dissipation and electrical connection.

ചിത്രം 4.2: മുൻഭാഗം view of the work light.

വ്യക്തമായ ഒരു മുന്നണി view of the AMiO 03625 Work Light, showcasing its circular design, prominent 'BOSS' branding, and the arrangement of its LED elements.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The AMiO 03625 Work Light is designed for straightforward operation:

• പവർ ഓൺ/ഓഫ്: Once properly wired, the work light is controlled by the switch connected to its power source. Activate the switch to turn the light on, and deactivate it to turn the light off.
• ബീം അഡ്ജസ്റ്റ്മെന്റ്: The light's angle can be adjusted by loosening the mounting bolts on the bracket, repositioning the light, and then securely tightening the bolts.
• മൾട്ടിഫങ്ഷണാലിറ്റി: This work light may feature multiple lighting modes (e.g., main beam, position light, flashing). Refer to your vehicle's wiring configuration or additional control modules for specific mode activation, if applicable.

Figure 5.1: Work light in operation.

This image shows the AMiO 03625 Work Light fully illuminated, featuring a distinctive amber outer ring and the 'BOSS' text glowing in red, demonstrating its operational appearance.

6. പരിപാലനം

To ensure the longevity and optimal performance of your AMiO 03625 Work Light, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: ഇടയ്ക്കിടെ ലെൻസും ഹൗസിംഗും ഒരു സോഫ്റ്റ്, ഡി-ടച്ച് ഉപയോഗിച്ച് വൃത്തിയാക്കുക.amp തുണി. ഫിനിഷിനോ ലെൻസിനോ കേടുവരുത്തുന്ന അബ്രസിവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഒഴിവാക്കുക.
• പരിശോധന: Regularly inspect the mounting hardware and wiring for any signs of wear, corrosion, or looseness. Tighten any loose fasteners.
• നാശം: If the housing or lens becomes damaged, consider replacing the unit to maintain its IP67 rating and light output.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your AMiO 03625 Work Light, refer to the following common problems and solutions:

• ലൈറ്റ് ഓണാകുന്നില്ല:
  • Check the power connection: Ensure the positive and negative wires are correctly connected and secure.
  • Verify power source: Confirm that the 9-36V DC power source is active and providing power.
  • Inspect fuse/breaker: Check if any inline fuse or circuit breaker in the wiring circuit has tripped or blown.
  • Examine switch: Ensure the control switch is functioning correctly.
• Light Flickers or is Dim:
  • Check for loose connections: Tighten all electrical connections.
  • വോളിയം പരിശോധിക്കുകtage: Ensure the input voltage is within the 9-36V range and stable.
  • Inspect wiring: Look for damaged or corroded wires.
• ലെൻസിനുള്ളിലെ ഈർപ്പം:
  • While rated IP67, extreme temperature changes or prolonged exposure to high-pressure water can sometimes cause condensation. If persistent, inspect the seals for damage.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

AMiO products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or contact your retailer. For technical support or inquiries, please reach out to your authorized AMiO dealer or visit the official AMiO webസൈറ്റ്.

കുറിപ്പ്: വാറന്റി ക്ലെയിമുകൾക്കുള്ള വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
