UHPPOTE HBK-RW01-280D WiFi Electromagnetic Double Door Lock Kit User Manual

1. ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of your UHPPOTE HBK-RW01-280D WiFi Electromagnetic Double Door Lock Kit. This system offers secure access control for residential and commercial doors, featuring remote and smartphone app control capabilities. Please read this manual thoroughly before installation and use to ensure proper function and safety.

ചിത്രം 1.1: കഴിഞ്ഞുview of the UHPPOTE WiFi Electromagnetic Double Door Lock Kit with smartphone app interface.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview ഘടകങ്ങളും

The UHPPOTE HBK-RW01-280D kit is designed for convenient and secure door access. It integrates a powerful electromagnetic lock with a versatile control system that supports both wireless RF remote and Wi-Fi smartphone app control.

2.1 പ്രധാന സവിശേഷതകൾ

• Wireless RF Remote Control: Open the door by pressing the wireless RF remote. The receiver can program up to 40 remotes and has a range of 164 feet.
• Smartphone App Control (Tuya App): Remotely control the lock via the free Tuya App, available for iOS and Android. Requires a 2.4GHz Wi-Fi connection.
• പങ്കിടൽ നിയന്ത്രണം: Share device control with family and friends through the Tuya App.
• സമയക്രമീകരണ പ്രവർത്തനങ്ങൾ: Set timing schedules for automatic lock/unlock operations, including countdown, scheduled on/off, and loop timing.
• പുറത്തുകടക്കുക ബട്ടൺ: An included exit button allows for easy egress from indoors.
• ഗ്രൂപ്പിംഗ് പ്രവർത്തനം: Organize multiple devices into groups within the Tuya App for easier management.
• സ്മാർട്ട് സീൻ: Configure smart scenes to automatically trigger lock actions based on other smart devices.

2.2 ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ

കിറ്റിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉൾപ്പെടുന്നു:

• Electromagnetic Lock (600lb Double Door)
• Remote Receiver (HBK-RW01)
• Remote Transmitter (RF Remote)
• Exit Button (PBK-814A)
• Power Adapter (DC12V)

Image 2.1: The 600lb electromagnetic double door lock.

Image 2.2: The included push-to-exit button.

Image 2.3: The DC12V power adapter.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installation of the UHPPOTE HBK-RW01-280D kit is designed to be straightforward. It is recommended to review all diagrams and instructions before beginning. Ensure all power is disconnected during installation.

3.1 Electromagnetic Lock Installation

Mount the electromagnetic lock and armature plates according to the provided diagram. Ensure proper alignment for secure locking.

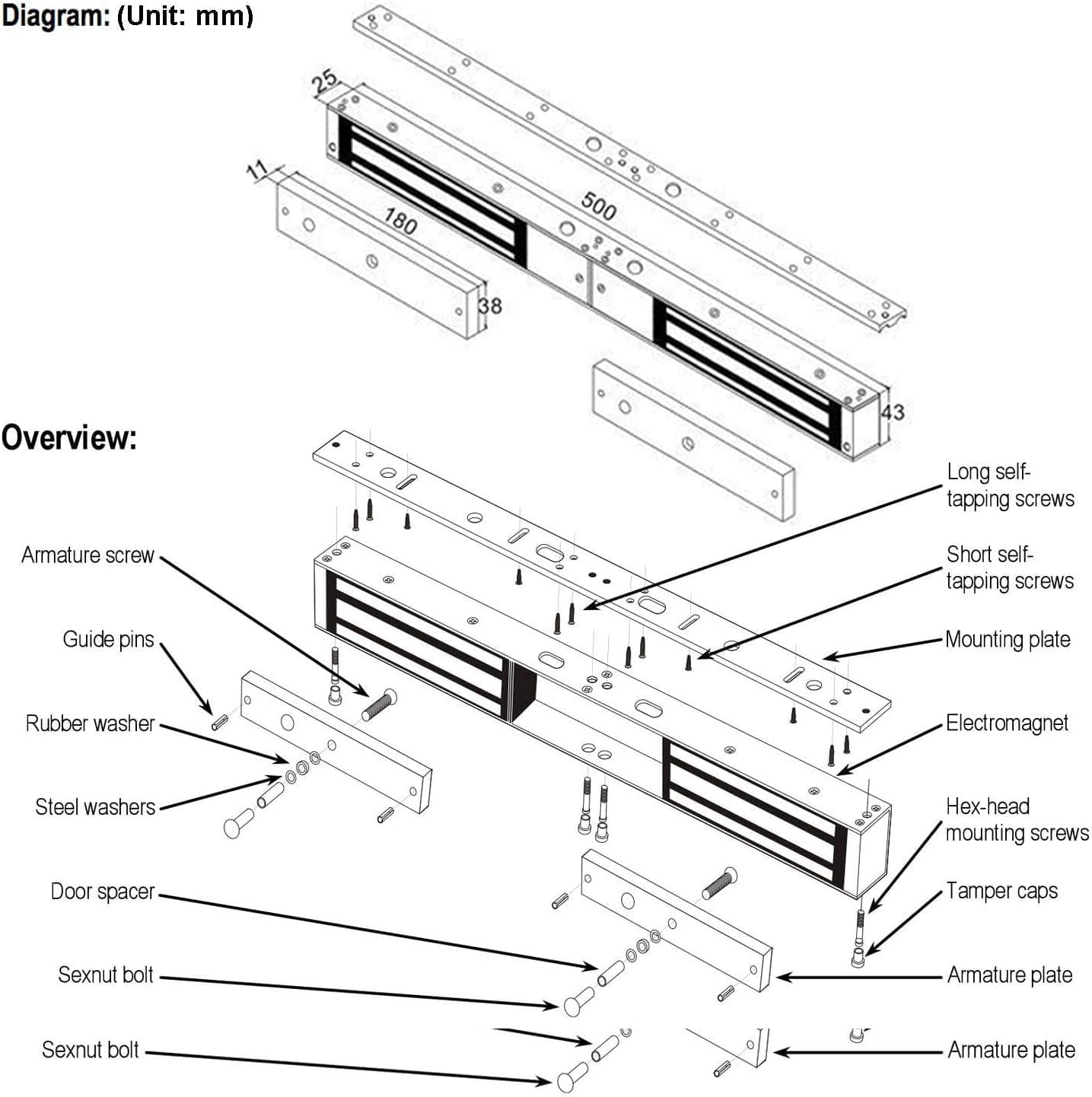

ചിത്രം 3.1: എക്സ്പ്ലോഡഡ് view diagram of the electromagnetic lock components.

3.2 വയറിംഗ് ഡയഗ്രം

Connect the components as shown in the wiring diagram. Pay close attention to the polarity and correct terminals for the electromagnetic lock, exit button, and power adapter. The receiver unit (HBK-RW01) acts as the central control point.

Image 3.2: Wiring diagram for the access control system.

3.3 Remote Receiver Settings (HBK-RW01)

The remote receiver has external function keys for easy configuration. These include settings for buzzer, mode, and time delay (0, 5, 10 seconds).

Image 3.3: Remote receiver (HBK-RW01) with external setting keys.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Using the RF Remote Control

The wireless RF remote allows you to unlock the door from a distance. Press the button on the remote to temporarily unlock the electromagnetic lock. The lock will re-engage after the set time delay (configured on the receiver).

Image 4.1: The wireless RF remote control.

4.2 Using the Exit Button

To exit from indoors, simply press the physical exit button. This will temporarily unlock the electromagnetic lock, allowing the door to be opened.

4.3 Smartphone App Control (Tuya App)

The Tuya App provides comprehensive control and management features for your lock system.

1. ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക: Download the free Tuya App from the App Store (iOS) or Google Play (Android).
2. വൈഫൈയിലേക്ക് കണക്റ്റുചെയ്യുക: Ensure your smartphone and the lock system's receiver are connected to a 2.4GHz Wi-Fi network. Follow the in-app instructions to add the device.
3. റിമോട്ട് കൺട്രോൾ: Once connected, you can remotely lock or unlock the door from anywhere with an internet connection.
4. പങ്കിടൽ നിയന്ത്രണം: Invite family members or colleagues to control the device by sharing access through the app.
5. സമയക്രമീകരണ പ്രവർത്തനങ്ങൾ: Set up schedules for automatic locking/unlocking. This includes:
   • Scheduled On/Off: Set specific times for the lock to engage or disengage daily.
   • കൗണ്ട്‌ഡൗൺ: Set a timer for the lock to change state after a specified duration.
   • Loop Timing: Configure the lock to cycle between locked and unlocked states at preset intervals.
6. ഗ്രൂപ്പിംഗ് പ്രവർത്തനം: If you have multiple Tuya-compatible devices, you can assign them to groups for easier management.
7. സ്മാർട്ട് സീൻ: Create automated scenarios where the lock interacts with other smart devices. For example, unlock when a specific sensor is triggered.

5 സ്പെസിഫിക്കേഷനുകൾ

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your UHPPOTE lock kit, please refer to the following common solutions:

• ലോക്ക് ഇടപഴകുന്നില്ല/വിച്ഛേദിക്കുന്നു:
  • എല്ലാ വയറിംഗ് കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും ശരിയായി പോളറൈസ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കാൻ അവ പരിശോധിക്കുക.
  • Verify the power adapter is plugged in and supplying power.
  • Ensure the electromagnetic lock and armature plates are properly aligned and free of obstructions.
• റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല:
  • Check the battery in the remote transmitter.
  • Ensure the remote receiver is powered and within range (164 feet).
  • Re-pair the remote with the receiver if necessary (refer to receiver instructions for pairing mode).
• Smartphone App Control Issues:
  • Confirm your Wi-Fi network is 2.4GHz. The device does not support 5GHz Wi-Fi.
  • നിങ്ങളുടെ സ്മാർട്ട്‌ഫോണിന് സ്ഥിരമായ ഇന്റർനെറ്റ് കണക്ഷൻ ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
  • Restart the Tuya App and try again.
  • Check if the receiver's Wi-Fi indicator light is active and connected.
  • If the device is offline in the app, try re-adding it or restarting your Wi-Fi router.
• Exit Button Not Functioning:
  • Verify the wiring of the exit button to the receiver.
  • Ensure the button itself is not physically stuck or damaged.

7. പരിപാലനം

To ensure the longevity and optimal performance of your UHPPOTE Electromagnetic Double Door Lock Kit, follow these maintenance guidelines:

• പതിവ് വൃത്തിയാക്കൽ: Keep the electromagnetic lock and armature plates clean and free of dust or debris. Use a soft, dry cloth.
• കണക്ഷനുകൾ പരിശോധിക്കുക: Periodically inspect all wiring connections for looseness or corrosion. Tighten as needed.
• Armature Plate Alignment: Ensure the armature plate remains properly aligned with the electromagnet for maximum holding force. Adjust if necessary.
• റിമോട്ട് ബാറ്ററി: Replace the remote control battery when its performance degrades.
• സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ: Keep the Tuya App updated to the latest version for new features and bug fixes.

8. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please contact UHPPOTE directly through their official webനിങ്ങൾ ഉൽപ്പന്നം വാങ്ങിയ സൈറ്റ് അല്ലെങ്കിൽ റീട്ടെയിലർ. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
