Seplos 2A Active Balance Board User Manual

1. ആമുഖം

The Seplos 2A Active Balance Board is designed to enhance the performance and longevity of LFP (Lithium Iron Phosphate) and LiFePO4 lithium energy storage battery packs. It can operate independently or in conjunction with the Seplos BMS 3.0 system. Its primary function is to maintain cell consistency within the battery pack by actively balancing individual cell voltages, ensuring optimal charge and discharge cycles.

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Seplos 2A Active Balance Board.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Seplos 2A Active Balance Board is a sophisticated electronic circuit board engineered for precise battery cell balancing. It features multiple balancing circuits, each capable of providing a 2A balance current. The board draws power directly from the battery pack it monitors.

ചിത്രം 2.1: മുകളിൽ നിന്ന് താഴേക്ക് view of the Seplos 2A Active Balance Board, showing its compact design and various electronic components.

ചിത്രം 2.2: വിശദമായി view of the balance board with key connection points labeled, including dry contact port, power switch connector, power supply connector, and data collecting cables A and B.

പ്രധാന സവിശേഷതകൾ:

• സജീവ ബാലൻസിങ്: Provides up to 2A balance current per circuit to quickly equalize cell voltages.
• അനുയോജ്യത: Can be used as a standalone unit or integrated with Seplos BMS 3.0 systems.
• യാന്ത്രിക പ്രവർത്തനം: Initiates balancing when cell voltage thresholds are met, often triggered by a compatible BMS.
• ഊർജ്ജ കാര്യക്ഷമത: Draws minimal power directly from the battery pack for operation.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the safe and effective operation of the Seplos 2A Active Balance Board. Ensure all connections are secure and correct before powering on the system.

3.1 സുരക്ഷാ മുൻകരുതലുകൾ

• Always disconnect the battery pack from any loads or chargers before installation.
• ഇൻസുലേറ്റഡ് കയ്യുറകൾ, കണ്ണ് സംരക്ഷണം എന്നിവയുൾപ്പെടെ ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക.
• ജോലിസ്ഥലം വരണ്ടതും ചാലക വസ്തുക്കളിൽ നിന്ന് മുക്തവുമാണെന്ന് ഉറപ്പാക്കുക.
• Verify correct polarity for all connections to prevent damage to the board or battery.

3.2 കണക്ഷൻ ഘട്ടങ്ങൾ

1. Prepare the Battery Pack: Ensure all individual cells in your LiFePO4 battery pack are at a safe voltage level and are properly arranged.
2. ബാലൻസ് വയറുകൾ ബന്ധിപ്പിക്കുക: Connect the provided balance wires from each cell tap point to the corresponding ports on the active balance board. Refer to Figure 3.1 for a visual guide. Ensure the wires are connected in the correct sequence (e.g., B-, B1, B2, ..., B+).
3. പവർ സപ്ലൈ ബന്ധിപ്പിക്കുക: Connect the main power supply wires from the battery pack to the designated power supply connector on the balance board.
4. Integrate with BMS (Optional): If using with a Seplos BMS 3.0, connect the data collecting cables (A and B) and the dry contact port as per the BMS manual's instructions. This allows the BMS to signal the balance board to begin operation.
5. Power Switch Connection (Optional): If desired, connect an external power switch to the power switch connector for manual control.
6. Secure the Board: Mount the balance board securely within your battery enclosure or system, ensuring adequate ventilation and protection from environmental factors.

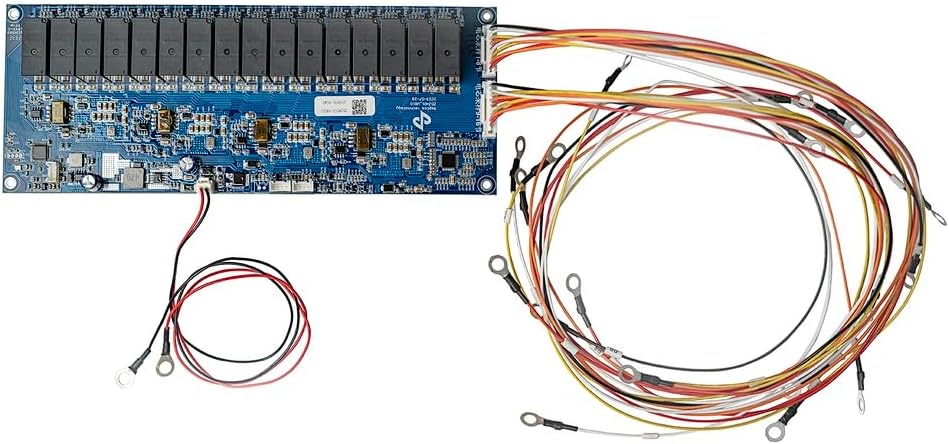

Figure 3.1: The Seplos 2A Active Balance Board shown with its accompanying connection wires, illustrating the numerous cell tap points.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Seplos 2A Active Balance Board operates largely automatically once properly installed and connected. Its primary function is to equalize the voltage of individual cells within a battery pack.

4.1 Automatic Balancing

When connected to a battery pack, the balance board continuously monitors the voltage of each cell. If a voltage difference between cells exceeds a predefined threshold, the active balancing process will automatically initiate. The board will draw energy from higher-voltage cells and transfer it to lower-voltage cells until all cells are within an acceptable voltagഇ ശ്രേണി.

If integrated with a Seplos BMS 3.0, the BMS will send a signal to the balance board when balancing is required, optimizing the balancing process based on the overall battery management strategy.

Figure 4.1: Conceptual diagram showing how the active balance board equalizes cell voltages by transferring energy from higher voltage സെല്ലുകൾ വോളിയം കുറയ്ക്കുന്നുtagഇ കോശങ്ങൾ.

4.2 Indicators (if applicable)

Some versions of the board may include LED indicators to show balancing status or power. Refer to the specific product documentation for your board model for details on indicator behavior.

5. പരിപാലനം

The Seplos 2A Active Balance Board is designed for minimal maintenance. However, periodic checks can help ensure its long-term reliability.

• വിഷ്വൽ പരിശോധന: Periodically inspect the board for any signs of physical damage, loose connections, or corrosion.
• ശുചിത്വം: Keep the board free from dust, dirt, and moisture. Use a soft, dry brush or compressed air to gently clean the surface if necessary. Do not use liquid cleaners.
• വെൻ്റിലേഷൻ: Ensure the board is installed in an area with adequate airflow to prevent overheating, especially during active balancing.
• കണക്ഷൻ സമഗ്രത: Verify that all wire connections remain secure and have not loosened over time due to vibration or temperature changes.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Seplos 2A Active Balance Board, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Seplos customer support for further assistance.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

വാറന്റി വിവരങ്ങൾക്കും സാങ്കേതിക പിന്തുണയ്ക്കും, നിങ്ങളുടെ വാങ്ങലിനൊപ്പം നൽകിയിരിക്കുന്ന ഡോക്യുമെന്റേഷൻ പരിശോധിക്കുകയോ നിർമ്മാതാവിനെ നേരിട്ട് ബന്ധപ്പെടുകയോ ചെയ്യുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.

Manufacturer: seplos
