Reality Leuchten LED Floor Lamp MORENO R44561132 User Manual

ആമുഖം

The Reality Leuchten MORENO LED Floor Lamp (Model R44561132) is a versatile lighting solution designed for modern living spaces. It features a matte black metal finish, flexible joints for adjustable light direction, and an integrated rechargeable battery with a charging station. The lamp offers continuous brightness adjustment and tunable white light, allowing you to customize the ambiance from warm white to cool white.

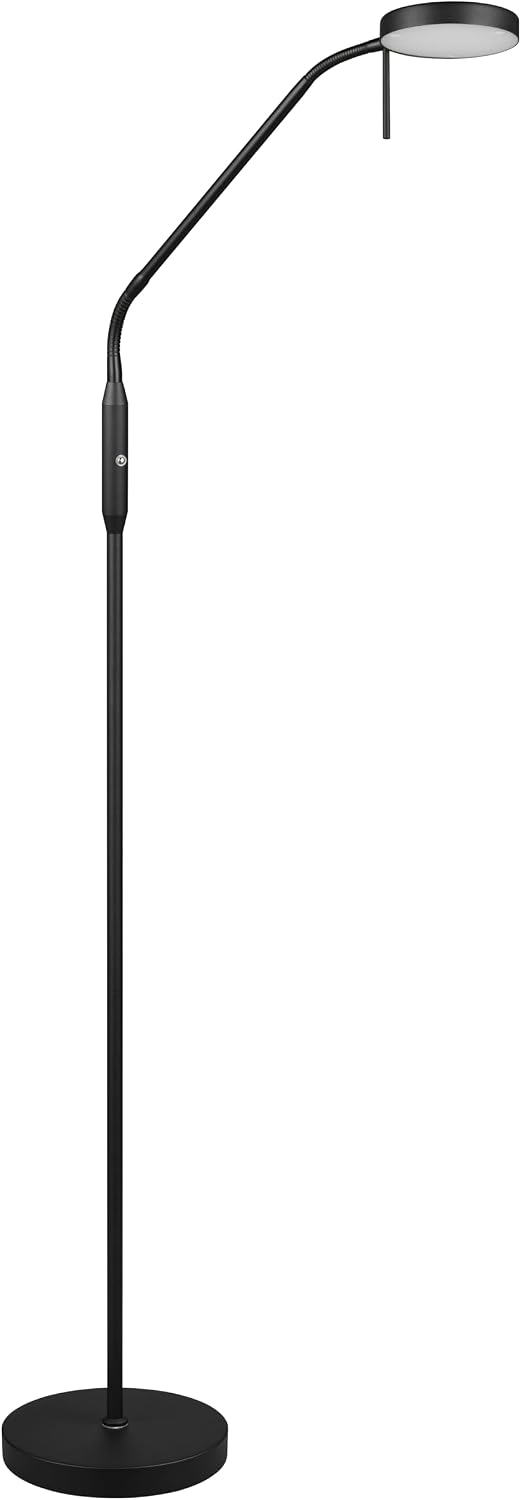

Figure 1: The Reality Leuchten MORENO LED Floor Lamp.

സജ്ജീകരണവും അസംബ്ലിയും

Your MORENO LED Floor Lamp comes partially assembled and requires minimal setup. Please follow these steps carefully to ensure proper installation and functionality.

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove all components from the packaging. Verify that all parts listed in the packing list (if provided) are present and undamaged.
2. അടിസ്ഥാന അസംബ്ലി: എൽ ഉറപ്പാക്കുകamp pole is securely attached to the round base. The lamp is designed for floor mounting.
3. സ്ഥാനനിർണ്ണയം: തറ എൽ സ്ഥാപിക്കുകamp on a stable, flat surface in your desired location. Ensure there is enough space around the lamp to adjust the head.
4. എൽ ക്രമീകരിക്കുന്നുamp തല: എൽamp features two flexible joints. Gently bend these joints to position the lamp head and direct the light as needed. The maximum height is 160 cm, and the maximum display (reach) is 51 cm.

ചിത്രം 2: എൽamp positioned in a living room setting.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The MORENO LED Floor Lamp is equipped with intuitive controls for brightness and light color adjustment.

പവർ ഓൺ/ഓഫ്, തെളിച്ച നിയന്ത്രണം

എൽamp is controlled via a touch sensor located on the lamp pole. A short touch will turn the lamp on or off. To adjust the brightness, touch and hold the sensor. The brightness will continuously dim or brighten. Release your finger when the desired brightness level is reached.

Figure 3: Location of the touch sensor for control.

ഇളം വർണ്ണ ക്രമീകരണം

In addition to brightness, the lamp allows you to adjust the light color temperature. This can be set from 2700 Kelvin (warm white) to 4000 Kelvin (neutral white) to 6000 Kelvin (cool white). The method for adjusting color temperature is typically integrated with the touch sensor, often requiring a specific tap sequence or a different touch gesture than brightness control. Refer to the quick start guide or packaging for exact instructions if not immediately apparent.

Figure 4: Visual representation of key features including touch control and color temperature adjustment.

ബാറ്ററി ചാർജിംഗ്

എൽamp is equipped with a rechargeable Lithium-ion battery and comes with a dedicated charging station. To charge the lamp, place it onto the charging station. The charging station features a USB-C port for connection to a power source (adapter not always included). A full charge takes approximately 6 hours and provides about 8 hours of illumination.

ചിത്രം 5: എൽamp base and its separate charging station.

ചിത്രം 6: എൽamp base placed on the charging station, indicating charging status.

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and optimal performance of your MORENO LED Floor Lamp.

• വൃത്തിയാക്കൽ: വൃത്തിയാക്കാൻ എൽamp, wipe it with a soft, dry cloth. For stubborn marks, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
• ബാറ്ററി കെയർ: To prolong battery life, avoid completely draining the battery frequently. Charge the lamp regularly, especially if it will not be used for an extended period. Store the lamp തണുത്ത, ഉണങ്ങിയ സ്ഥലത്ത്.
• LED ഉറവിടം: The integrated LED light source is designed for long-term use and is not user-replaceable. This product contains a light source of energy efficiency class F.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your MORENO LED Floor Lamp, ഇനിപ്പറയുന്ന പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും കാണുക:

സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the Reality Leuchten MORENO LED Floor Lamp R44561132:

ചിത്രം 7: l ന്റെ ഡൈമൻഷണൽ ഡ്രോയിംഗ്amp.

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or service inquiries regarding your Reality Leuchten MORENO LED Floor Lamp, please refer to the official documentation provided with your purchase or visit the manufacturer's webസൈറ്റ്.

While specific details on spare parts availability and software updates are not readily available, RL LIVE YOUR LIGHT is committed to providing quality products. For any issues not covered in the troubleshooting section, please contact their customer service department.

You can typically find contact information on the RL LIVE YOUR LIGHT brand page or by searching for "Trio Leuchten customer support" online.
