Generic Portable Camping സ്റ്റൗ യൂസർ മാനുവൽ

ആമുഖം

This manual provides essential information for the safe and efficient use of your Generic Portable Camping Stove. Designed for outdoor use, this wood-burning stove offers a reliable cooking and heating solution for camping, backpacking, and other outdoor activities. Its portable and disassembled design ensures easy transport and setup.

സുരക്ഷാ വിവരങ്ങൾ

• ഔട്ട്ഡോർ ഉപയോഗത്തിന് മാത്രം: This stove is designed for outdoor use in well-ventilated areas. Never use it inside tents, enclosed spaces, or near flammable materials.
• അഗ്നി അപകടം: Always operate the stove on a stable, non-combustible surface, away from dry grass, leaves, or other flammable objects. Keep a fire extinguisher or water readily available.
• ചൂടുള്ള പ്രതലങ്ങൾ: The stove becomes extremely hot during operation and remains hot for a significant period after use. Do not touch hot surfaces without protective gloves. Keep children and pets away from the stove.
• ഇന്ധനം: Use only recommended fuels such as wood, charcoal, or solid biomass. Do not use gasoline, kerosene, or other volatile liquids as fuel.
• ചാരം നീക്കം ചെയ്യൽ: Allow the stove to cool completely before handling or disposing of ashes. Dispose of ashes in a metal container, away from combustible materials.
• വെൻ്റിലേഷൻ: Ensure proper airflow around the stove for efficient burning and to prevent smoke buildup.

പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലിക്ക് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.

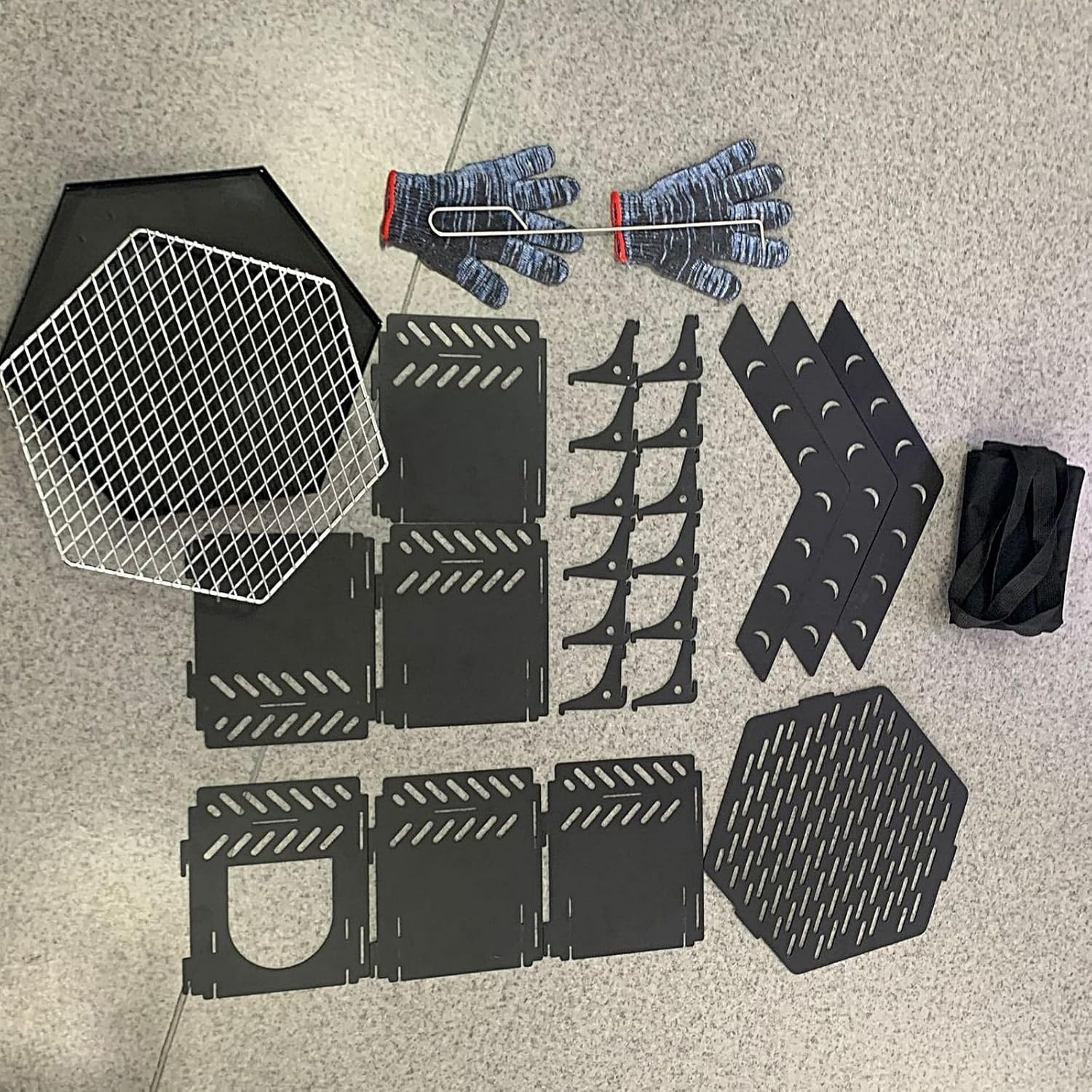

ചിത്രം 1: All disassembled components of the camping stove, including side panels, bottom grate, top grate, legs, and accessories like gloves and a carrying strap.

• Main body panels (various shapes for sides and base)
• Hexagonal cooking grate
• Internal fuel grate
• Folding legs (4 units)
• ചുമക്കുന്ന ബാഗ്
• Protective gloves (optional accessory)

സജ്ജീകരണവും അസംബ്ലിയും

The stove is designed for quick and easy assembly and disassembly for portability.

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Carefully remove all parts from the carrying bag and lay them out on a clean, flat surface. Refer to Figure 1 for a visual guide of all components.
2. അടിസ്ഥാനം കൂട്ടിച്ചേർക്കുക: Interlock the main body panels to form the hexagonal base structure of the stove. Ensure all slots and tabs are securely engaged.
3. കാലുകൾ അറ്റാച്ചുചെയ്യുക: Securely attach the four folding legs to the designated points on the bottom of the assembled base. Ensure they are fully extended and locked into place for stability.
4. Insert Internal Grate: Place the internal fuel grate inside the stove body, resting it on the internal supports. This grate holds the fuel and allows ash to fall below.
5. Place Cooking Grate: Position the hexagonal cooking grate on top of the stove body. Ensure it sits securely on the upper edges.

ചിത്രം 2: Assembled Generic Portable Camping Stove from an angled front view, showing the hexagonal shape, cooking grate, and sturdy legs.

ചിത്രം 3: Assembled Generic Portable Camping Stove with dimensions overlaid, showing a height of 33cm and a top width of 47cm.

ചിത്രം 4: ടോപ്പ് ഡൗൺ view of the assembled Generic Portable Camping Stove, highlighting the hexagonal cooking surface and the surrounding support structure.

ചിത്രം 5: ക്ലോസ് അപ്പ് view of the metal cooking grate on the Generic Portable Camping Stove, showing its fine mesh pattern.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Fueling the Stove

This stove is designed to use natural fuel sources. Avoid using processed fire starters or accelerants.

• Acceptable Fuels: Wood (twigs, small branches, wood chips), charcoal, and solid biomass.
• ഇന്ധനം നിറയ്ക്കുന്നു: Open the side access door (if applicable) or carefully place fuel onto the internal fuel grate. Do not overfill; allow space for airflow.

ചിത്രം 6: വശം view of the Generic Portable Camping Stove, showing the opening for adding fuel and the ventilation slots.

ചിത്രം 7: ആന്തരികം view of the Generic Portable Camping Stove, showing the perforated bottom grate where fuel rests and ash collects below.

അടുപ്പ് കത്തിക്കുന്നു

1. Place a small amount of tinder (e.g., dry leaves, paper) and kindling (small twigs) on the fuel grate.
2. Carefully ignite the tinder.
3. Once the kindling is burning steadily, gradually add larger pieces of fuel.
4. Ensure adequate airflow through the stove's ventilation openings for efficient combustion.

പാചകം

The hexagonal top is compatible with various sizes of round or square cooking utensils.

• Place your pot, pan, or kettle directly on the cooking grate.
• Adjust fuel input to control heat intensity.
• The stove's design helps retain and transfer maximum heat to your cooking utensils, promoting fuel efficiency.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

• വൃത്തിയാക്കുന്നതിന് മുമ്പ് സ്റ്റൗ പൂർണ്ണമായും തണുക്കാൻ അനുവദിക്കുക.
• Remove the cooking grate and internal fuel grate.
• Carefully empty any remaining ash from the stove body.
• Wipe down all carbon steel components with a damp cloth. For stubborn residue, a mild abrasive pad can be used, but avoid harsh chemicals that may damage the spray plastic coating.
• Ensure all parts are dry before reassembly or storage to prevent rust.

സംഭരണം

• Disassemble the stove into its individual components.
• Store all parts in the provided carrying bag.
• Store the stove in a dry, cool place to prevent corrosion and damage.

ട്രബിൾഷൂട്ടിംഗ്

• അമിതമായ പുക: Ensure fuel is dry. Check for adequate airflow; clear any blockages in ventilation slots. Do not overfill the stove.
• Poor Burn/Low Heat: Ensure fuel is dry and properly sized. Check for sufficient airflow. Add more fuel if necessary.
• Stove Instability: Ensure legs are fully extended and locked. Place the stove on a flat, stable surface.
• കൂട്ടിച്ചേർക്കൽ/വേർപെടുത്തൽ ബുദ്ധിമുട്ട്: Ensure all slots and tabs are aligned correctly. Do not force components; check for any obstructions.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For any questions, concerns, or support regarding your Generic Portable Camping Stove, please contact the retailer or manufacturer directly. Please refer to your purchase documentation for specific warranty terms and contact information.
