ELENKER Electric Stand Up Patient Lift

ആമുഖം

The ELENKER Electric Stand Up Patient Lift is designed to provide safe, comfortable, and stable assistance for users requiring rehabilitation support or partial weight-bearing capabilities. It facilitates easy transfers between sitting and standing positions, enhancing mobility and daily living for both patients and caregivers.

സുരക്ഷാ വിവരങ്ങൾ

• Always ensure the patient is securely fastened in the sling before operation.
• Verify all locking mechanisms (casters, knee pad) are engaged before transferring or moving the lift.
• പരമാവധി ഭാരം ശേഷി 400 പൗണ്ട് കവിയരുത്.
• Use the manual lowering device in case of battery depletion or power failure.
• Ensure clear surroundings to prevent collisions during movement.
• Always have a caregiver present during patient transfers.

ഉൽപ്പന്ന സവിശേഷതകൾ

• ബഹുമുഖത: Ideal for everyday handling of users needing rehabilitation support or partial weight-bearing. Features 4.4" clearance for accessibility to most homecare beds.
• ഉപയോഗിക്കാൻ എളുപ്പമാണ്: Foam armrests for better grip and comfort. Handheld remote control for convenient operation. Quick and simple clip-free hook connection for improved safety.
• Manual Lowering Device: Equipped for use when the battery is low.
• ക്രമീകരിക്കാവുന്ന: Leg support height adjustable (11.2-13.3" L x 18.8-21.6" H). Base width adjustable (26.3-42.3"). Overall height adjustable (35.5-67.1").
• Support Gait Training: Quick-release removable foot platform encourages rehab therapy or mobility maintenance.

സജ്ജീകരണവും അസംബ്ലിയും

Follow these steps to assemble your ELENKER Electric Stand Up Patient Lift. Ensure all components are present before beginning.

Step 1: Attach Upright Frame to Base

Align the holes of the upright frame with the base. Insert the screw into the hole and secure it with the nut. Tighten with a wrench.

Image: A person aligning and securing the upright frame to the base of the patient lift with a screw and wrench.

Step 2: Install Knee Pad Holder

Insert the knee pad holder into its designated slot. Lock it securely with the locking screw.

Image: Close-up of the adjustable knee pads on the patient lift.

Step 3: Attach Knee Pad

Pull open the screw fixed on the upright frame and insert the knee pad. Lock it with the tool provided.

Image: A person attaching the knee pad to the patient lift frame.

Step 4: Install Electric Push Rod

Align the electric push rod with the hole and insert it. Insert the screws and washers into the holes, then screw on the nut and lock it with a tool.

Image: A person installing the electric push rod component onto the patient lift.

Step 5: Attach Hanger Rod

Attach the two plastic round covers to the hanger rod hole. Insert the hanger rod into the upright frame. Insert the screws and washers into the holes, screw on the nut, and tighten with a wrench.

Image: A person attaching the hanger rod to the top of the patient lift frame.

Step 6: Install Electric Push Rod Screw

Install the screw of the electric push rod. Screw on the nut and tighten it with a wrench.

Image: A close-up of a person installing and tightening a screw for the electric push rod.

ഘട്ടം 7: ബാറ്ററി ചേർക്കുക

Open the battery box and insert the battery inside. Push the battery box downwards to the position of the battery box holder.

Image: A rechargeable battery being inserted into its compartment on the patient lift.

Step 8: Connect Remote Control and Motor Plugs

Insert the remote control and motor connecting plugs into ports 1 and 2 on the battery box (based on arrow signs).

Image: A person connecting the remote control and motor plugs to the battery box of the patient lift.

അസംബ്ലി വീഡിയോ

Video: A step-by-step guide demonstrating the assembly process of the ELENKER Electric Patient Lift.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

പവർ ഓൺ/ഓഫ്

Rotate the battery switch to the right to turn it on. The battery panel will show the power level. To turn off, press the knob.

Image: Close-up of the control panel with power switch and battery indicator.

Patient Transfer (Sit to Stand)

1. Position the patient lift close to the patient. Ensure the base is 4.4 inches off the ground to slide under beds.
2. Fasten the patient's straps securely around their waist and under their arms.
3. Hang the sling straps onto the hooks of the hanger rod, ensuring they are secure with the pull rings.
4. Use the remote control or battery panel buttons to slowly lift the patient to a standing or desired position.
5. Unlock the casters to move the patient lift.
6. Once in the desired location (e.g., near a wheelchair), lock the casters.
7. Use the remote control to slowly lower the patient into the wheelchair.
8. Open the straps and remove the sling.

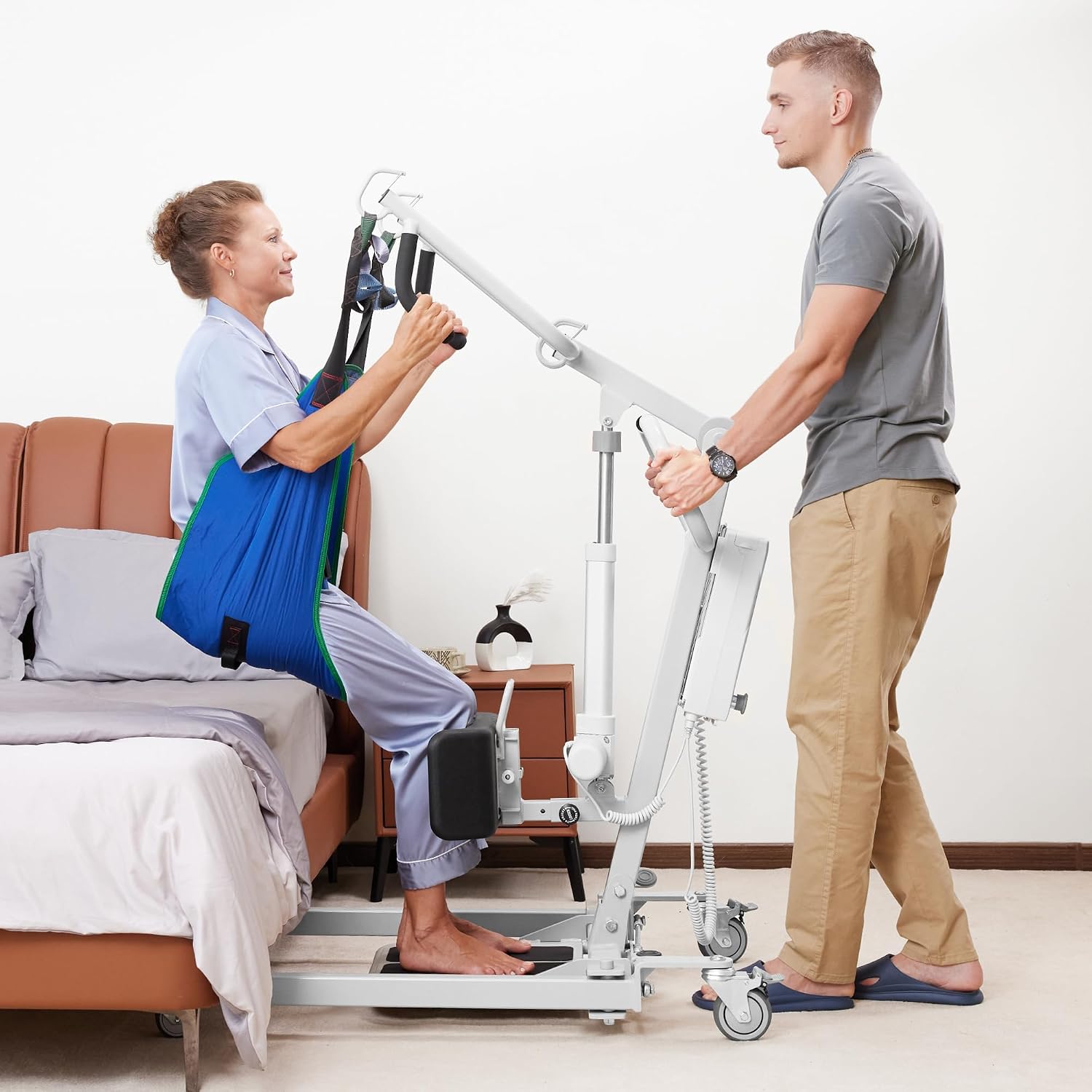

Image: A caregiver assisting a patient from a sitting position to a standing position using the ELENKER Electric Patient Lift.

പ്രവർത്തന വീഡിയോ

Video: Demonstration of operating the ELENKER Stand Up Patient Lift for safe patient transfers.

ക്രമീകരണങ്ങൾ

മുട്ട് പാഡ് അഡ്ജസ്റ്റ്മെൻ്റ്

The knee pad can be adjusted vertically from 18.8 to 21.6 inches and horizontally from 11.2 to 12.3 inches to accommodate different patient heights and comfort levels. Loosen the locking screw, adjust, and then tighten.

Image: Close-up of the adjustable knee pads on the patient lift, showing adjustment mechanism.

അടിസ്ഥാന വീതി ക്രമീകരണം

The base width is adjustable from 26.3 to 42.3 inches, allowing for easy maneuverability around furniture and accessibility to various chairs or beds. Use the foot pedal to adjust the base width.

Image: The patient lift demonstrating its adjustable base width for improved stability and access.

ഉയരം ക്രമീകരിക്കൽ

The overall height of the lift is adjustable from 35.5 to 67.1 inches, providing flexibility for various transfer scenarios. Use the remote control to adjust the lifting arm height.

Image: The patient lift showing its adjustable height range.

മെയിൻ്റനൻസ്

• Regularly inspect all nuts, bolts, and screws for tightness. Tighten as needed.
• Check the sling for any signs of wear, tears, or damage before each use. Replace if necessary.
• Keep the battery charged. Avoid fully depleting the battery to prolong its lifespan.
• Clean the lift frame with a damp തുണിയും മൃദുവായ ഡിറ്റർജന്റും. ഉരച്ചിലുകൾ ഉള്ള ക്ലീനറുകൾ ഉപയോഗിക്കരുത്.
• Ensure casters are clean and free of debris for smooth movement.

ട്രബിൾഷൂട്ടിംഗ്

• Lift not operating: Check if the battery switch is turned on. Ensure the remote control and motor plugs are securely connected. Verify battery charge level.
• Lift moving slowly or weakly: Recharge the battery. Check for any obstructions preventing smooth movement.
• അസാധാരണമായ ശബ്ദങ്ങൾ: Stop operation immediately. Inspect for loose parts or damage. Contact customer support if the issue persists.
• Casters not locking/unlocking: Ensure the locking mechanism is fully engaged or disengaged. Clean any debris from the casters.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or replacement parts, please contact ELENKER customer service. Refer to your purchase documentation for specific warranty terms and contact details.
