YL81C ഇ-ബൈക്ക് LCD ഡിസ്പ്ലേയ്ക്കുള്ള ഉപയോക്തൃ മാനുവൽ

ആമുഖം

The YL81C E-bike LCD display is designed to provide comprehensive functionality for your riding needs. It offers a range of features including power display, power gear adjustment, headlight indication, various speed measurements (real-time, maximum, average), mileage tracking (total and single trip), error code display, and parameter setting capabilities. This display is built with durable ABS and LCD housing, a tempered glass screen, and a nylon bracket, ensuring robust performance in diverse conditions.

ഉൽപ്പന്നം കഴിഞ്ഞുview

ചിത്രം 1: ഫ്രണ്ട് view of the YL81C E-bike LCD Display. This image highlights the display screen and the integrated control buttons for power, menu navigation, and adjustment.

ചിത്രം 2: പിൻഭാഗം view of the YL81C E-bike LCD Display. This view shows the robust mounting bracket and the attached waterproof cable with a 5-hole female connector.

ചിത്രം 3: Key dimensions of the YL81C display. The display measures approximately 70mm in length, 47mm in height (including the mounting bracket), and 49mm in depth.

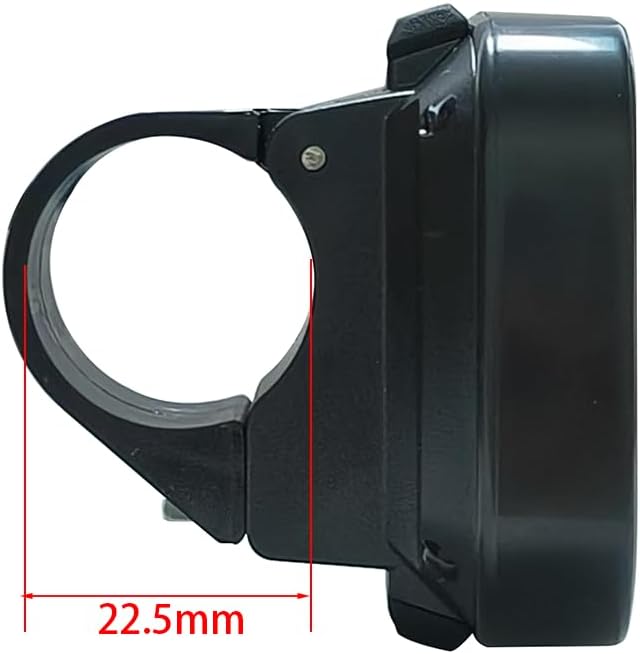

ചിത്രം 4: വശം view illustrating the handlebar clamp. The flexible bracket is designed to fit handlebar sizes of 22.2 mm, 25.4 mm, and 31.8 mm, with a visible clamp diameter of 22.5mm in this specific view.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The YL81C display is designed for straightforward installation. Ensure your e-bike's battery voltage is compatible (24V, 36V, 48V, or 60V).

അനുയോജ്യത പരിശോധന

• വാല്യംtage: The YL81C display is compatible with 24V, 36V, 48V, and 60V e-bike battery systems.
• കണക്റ്റർ തരം: The display features a female 5-hole waterproof connector. Verify that your e-bike's wiring harness has a compatible male connector.
• ആശയവിനിമയ പ്രോട്ടോക്കോൾ: The YL81C LCD monitor utilizes various communication protocols. To ensure plug-and-play functionality, it is highly recommended to contact customer service after purchase and provide the serial number from your old monitor. This allows for verification of protocol compatibility.

ചിത്രം 5: Location of the serial number on the back of the YL81C display. This number is crucial for compatibility verification with customer service.

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. ഹാൻഡിൽബാർ മൗണ്ടിംഗ്: The flexible bracket accommodates handlebar sizes of 22.2 mm, 25.4 mm, and 31.8 mm. Securely attach the display to your desired position on the handlebar.
2. കേബിൾ കണക്ഷൻ: Connect the 5-pin waterproof cable from the display to the corresponding connector on your e-bike's wiring harness. The exposed cable length is 150mm. Ensure a firm and secure connection to maintain waterproofing.
3. കേബിൾ മാനേജുമെന്റ്: Route the cable neatly along your e-bike frame, securing it with cable ties if necessary, to prevent interference with moving parts and protect it from damage.

ചിത്രം 6: The YL81C display securely mounted on an e-bike handlebar, demonstrating its ergonomic fit.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The YL81C display provides intuitive controls for managing your e-bike's functions and monitoring ride data.

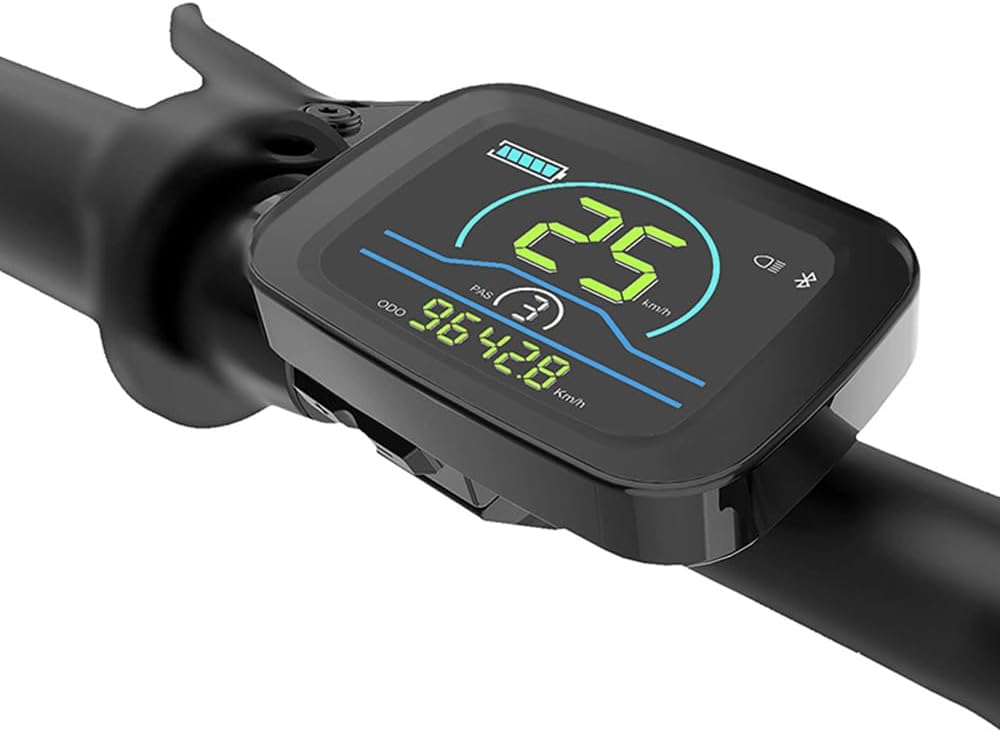

ചിത്രം 7: The YL81C display in operation, showing real-time data such as speed (25 km/h), pedal assist level (PAS 3), and total mileage (ODO 9642.8 km).

ബട്ടൺ പ്രവർത്തനങ്ങൾ

• Power Button (Top):
  • Hold for 2 seconds: Switches the display on or off.
  • Press briefly: Transitions between menu screens or display modes.
• Plus Button (+) (Bottom Left):
  • Hold for 2 seconds: Switches the e-bike's headlight on or off.
  • Press briefly: Increases values or navigates up in menus (e.g., increases pedal assist level).
• Minus Button (-) (Bottom Right):
  • Press briefly: Decreases values or navigates down in menus (e.g., decreases pedal assist level).

പ്രദർശന പ്രവർത്തനങ്ങൾ

• പവർ ഡിസ്പ്ലേ: നിലവിലെ ബാറ്ററി നില കാണിക്കുന്നു.
• Power Gear Adjustment and Display: Allows selection and shows the current pedal assist level.
• ഹെഡ്‌ലൈറ്റ് ഇൻഡിക്കേറ്റർ: Illuminates when the e-bike's headlight is active.
• സ്പീഡ് ഡിസ്പ്ലേ:
  • തത്സമയ വേഗത
  • Maximum Speed (MAXS)
  • Average Speed (AVG)
• മൈലേജ് ഡിസ്പ്ലേ:
  • Total Mileage (ODO)
  • Single Mileage (Trip)
• പിശക് കോഡ് ഡിസ്പ്ലേ: Indicates system malfunctions with specific codes.
• Parameter Setting Function: Allows modification of key bike parameters such as wheel diameter and speed limit.
• Bluetooth Connection Indication (Reserved): The display is pre-wired for a Bluetooth module; if installed, this indicator will show connection status.

പരിപാലനവും പരിചരണവും

Proper maintenance ensures the longevity and optimal performance of your YL81C display.

• വൃത്തിയാക്കൽ: ഒരു സോഫ്റ്റ് ഉപയോഗിക്കുക, ഡിamp cloth to wipe the display screen and housing. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the LCD or housing material.
• ജല പ്രതിരോധം: The display has an International Protection Rating of IPX65, meaning it is protected against low-pressure water jets from any direction. While it is waterproof for typical riding conditions, avoid submerging the display in water or exposing it to high-pressure water sprays.
• മെറ്റീരിയൽ ഈട്: The YL81C display is constructed with rugged ABS and LCD housing, a tempered glass screen, and a nylon bracket. These materials are chosen for superior durability and performance, designed to withstand harsh terrain and weather conditions.
• സംഭരണം: When not in use for extended periods, store the e-bike and display in a cool, dry place away from direct sunlight and extreme temperatures.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your YL81C display, refer to the following common solutions. For persistent problems or error codes not listed, please contact customer support.

• ഡിസ്പ്ലേ ഓണാക്കുന്നില്ല:
  • ഇ-ബൈക്ക് ബാറ്ററി ചാർജ്ജ് ചെയ്തിട്ടുണ്ടെന്നും ശരിയായി ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
  • Verify that the 5-hole waterproof connector between the display and the e-bike is securely seated.
  • Confirm you are holding the power button for at least 2 seconds to turn on the display.
• Incorrect Readings (Speed, Mileage):
  • Check the wheel diameter setting in the display's parameter settings. An incorrect setting will lead to inaccurate readings.
  • Ensure the speed sensor on your e-bike is clean and properly aligned.
• പ്രദർശിപ്പിച്ചിരിക്കുന്ന പിശക് കോഡുകൾ:
  • The display can show specific error codes. Consult your e-bike's main controller manual or contact customer service with the error code for diagnosis.
• Compatibility Issues (New Installation):
  • As the YL81C display supports various communication protocols, it is crucial to ensure compatibility with your e-bike's controller. If you did not provide your old monitor's serial number upon purchase, contact customer service immediately with this information to verify compatibility and receive guidance.
• Bluetooth Module Not Functioning (if applicable):
  • If you customized your display with a Bluetooth module and it's not working, ensure it was properly installed and configured. Contact customer service for assistance.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി വിവരങ്ങൾ

The YL81C E-bike LCD Display comes with a 1 വർഷത്തെ നിർമ്മാതാവിൻ്റെ വാറൻ്റി from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, or to initiate a claim, please contact the manufacturer or seller.

ഉപഭോക്തൃ പിന്തുണ

For any questions, technical assistance, or support regarding your YL81C E-bike LCD Display, please contact our online customer service. It is especially important to reach out for:

• Verifying communication protocol compatibility by providing the serial number of your old monitor.
• Customizing production for a Bluetooth module (if required).
• Troubleshooting specific error codes or operational issues.
• General inquiries about product features or usage.

We are committed to ensuring you have the best possible experience with your new display.
