1. ഉൽപ്പന്നം കഴിഞ്ഞുview
This manual provides detailed instructions for the ANCEL FX2000-US OBD2 Scanner Diagnostic Tool and the ANCEL PB600 Power Circuit Probe Tester. These devices are designed to assist in automotive diagnostics and electrical system testing.
1.1 പാക്കേജ് ഉള്ളടക്കം
- 1x ANCEL FX2000-US OBD2 Scanner Diagnostic Tool
- 1x ANCEL PB600 Automotive Power Circuit Probe Tester

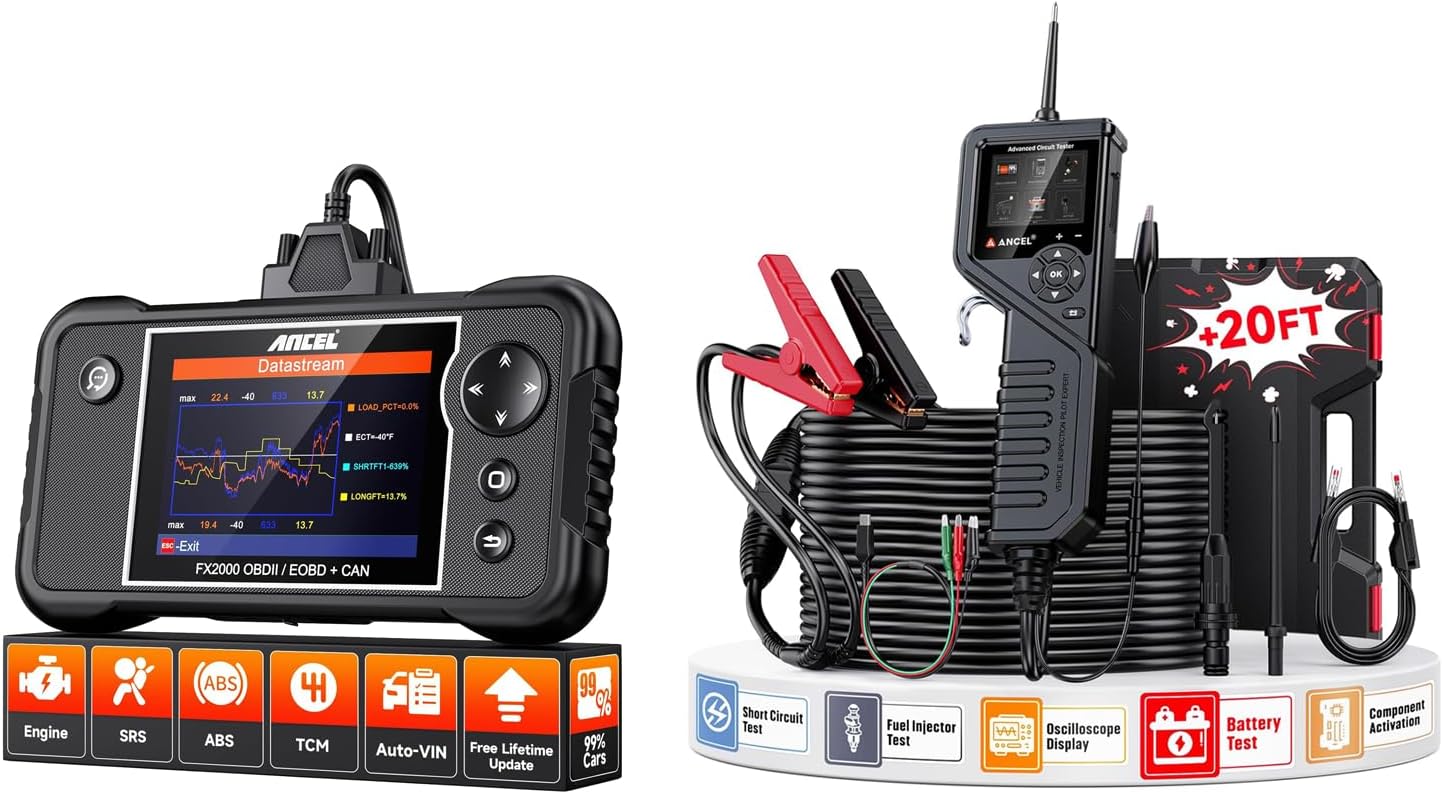

Image: The ANCEL FX2000-US OBD2 Scanner (left) and the ANCEL PB600 Power Circuit Probe Tester (right) displayed together, showcasing their compact designs and included accessories.
2. സജ്ജീകരണവും കണക്ഷനും
2.1 ANCEL FX2000-US OBD2 Scanner Setup
The ANCEL FX2000-US is designed for plug-and-play operation, making it easy to connect and use for vehicle diagnostics.
- Step 1: Plug into OBD-II Port - Locate your vehicle's OBD-II port, typically found under the dashboard on the driver's side. Plug the diagnostic tool's cable into this port.
- Step 2: Turn on the Car - Turn the vehicle's ignition to the "ON" position, or start the engine.
- Step 3: Access Scanner - The scanner will power on automatically. Navigate the menu to begin diagnosis.
No additional tools are required for installation. The device connects via a standard OBD2 cable and features a user-friendly interface for ease of use. Diagnostic reports can be saved and shared.
Image: A visual guide demonstrating the three simple steps to connect and use the ANCEL FX2000-US OBD2 Scanner: plugging into the OBD-II port, turning on the car, and accessing the diagnostic scanner.
2.2 ANCEL PB600 Power Circuit Probe Tester Setup
The PB600 connects directly to the vehicle's battery for power and operation. Connect the red clamp പോസിറ്റീവ് (+) ബാറ്ററി ടെർമിനലിലേക്കും കറുത്ത clamp to the negative (-) battery terminal. The device will power on and be ready for use.
Image: The ANCEL PB600 Power Circuit Probe Tester, showing its main unit, long cable, battery clamps, and various testing accessories, ready for automotive electrical diagnostics.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
3.1 ANCEL FX2000-US OBD2 Scanner Operation
The FX2000-US provides comprehensive diagnostic capabilities for various vehicle systems.
- 4-System Diagnostics: This tool can diagnose issues within the Engine, Anti-lock Braking System (ABS), Supplemental Restraint System (SRS) Airbag, and Transmission (A/T). It can pinpoint problem components and turn off warning lights once issues are resolved.
- Auto-VIN Technology: For compatible models, the scanner can automatically identify vehicle information, streamlining the diagnostic process. Manual model selection is also available.
- തത്സമയ ഡാറ്റ സ്ട്രീം: View real-time sensor data in both text and graphical formats. This includes parameters such as Engine RPM, Engine Oil Temperature, Fluid Temperature, Vehicle Speed, and Cylinder Balance Rates. Graphical displays, data logging, and DTC tips assist in quickly determining the cause of trouble codes.
- I/M സന്നദ്ധത: Check your vehicle's readiness for annual inspection.
- രോഗനിർണ്ണയ റിപ്പോർട്ട്: Generate and print diagnostic reports for detailed analysis or sharing.
Image: An illustration depicting the ANCEL FX2000-US scanner's ability to diagnose four key vehicle systems: Engine, Airbag (SRS), ABS, and A/T Transmission, with the scanner connected to a car.
Image: A close-up of the ANCEL FX2000-US screen showing a 4-in-1 live data stream, displaying real-time graphs for various sensor parameters like engine RPM, oil temperature, and fluid temperature.
3.2 ANCEL PB600 Power Circuit Probe Tester Operation
The PB600 is a versatile tool for testing various electrical components and circuits in automotive systems.
- Circuit Tester: വോളിയത്തിനായുള്ള ടെസ്റ്റ്tage, continuity, and ground in circuits.
- ബാറ്ററി ടെസ്റ്റർ: Perform battery health checks.
- Injector Tester: Test fuel injectors for proper operation. This function is compatible with over 99% of vehicles.
- Oscilloscope Tester: Display waveforms for electrical signals, useful for diagnosing complex electrical issues.
- Additional Tests: Includes DC/AC Voltage Test, Frequency Test, Cranking Test, Duty Cycle Test, Relay Test, Resistance & Diode Test, Injector Signal Test, Component Activation, and Charging Test.
Image: The ANCEL PB600 highlighting its four primary functions: Circuit Tester, Battery Tester, Injector Tester, and Oscilloscope Tester, with corresponding visual examples of each test in action.
Image: A detailed graphic illustrating the extensive testing capabilities of the ANCEL PB600, including DC/AC Voltage, Battery, Frequency, Cranking, Duty Cycle, Relay, Resistance & Diode, Injector Signal, Component Activation, and Charging tests.
4. പരിപാലനം
4.1 സോഫ്റ്റ്വെയർ അപ്ഡേറ്റുകൾ
The ANCEL FX2000-US OBD2 Scanner offers free lifetime software updates. To update the device, connect it to a PC using a USB cable. You may need to use a card reader and SD card to transfer update files. Refer to the ANCEL official website for the latest update instructions and software.
Image: A composite image illustrating various features of the ANCEL FX2000-US, including its ability to print reports via PC connection, its robust TPU protective case, handheld design, and the process for free lifetime software updates.
4.2 പൊതു പരിചരണം
- Keep both devices clean and free from dust and moisture.
- ഉപയോഗത്തിലില്ലാത്തപ്പോൾ തണുത്തതും ഉണങ്ങിയതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക.
- The FX2000-US features a robust TPU protective case for durability.
5. പ്രശ്നപരിഹാരം
5.1 Common Issues with FX2000-US
- ഉപകരണം പവർ ചെയ്യുന്നില്ല: Ensure the OBD-II cable is securely connected to both the vehicle's port and the scanner. Verify the vehicle's ignition is in the "ON" position or the engine is running.
- വാഹനവുമായി ആശയവിനിമയം പാടില്ല: Check the vehicle's OBD-II port for damage. Ensure the vehicle is compatible with the scanner (refer to specifications). Try connecting to a different compatible vehicle if possible to rule out scanner issues.
- തെറ്റായ റീഡിംഗുകൾ/ഡിടിസികൾ: Ensure the software is up to date. Verify the vehicle information (VIN, make, model) is correctly entered or automatically detected.
5.2 Common Issues with PB600
- ഉപകരണം പവർ ചെയ്യുന്നില്ല: Ensure the red and black clamps are securely connected to the correct battery terminals (red to positive, black to negative). Check battery voltage to ensure it's within the operating range (8-35V).
- കൃത്യമല്ലാത്ത വായനകൾ: Ensure good contact between the probe tip and the circuit/component being tested. Clean any corrosion from battery terminals or test points.
For persistent issues, refer to the technical support section.
6 സ്പെസിഫിക്കേഷനുകൾ
6.1 ANCEL FX2000-US OBD2 Scanner
| ഫീച്ചർ | വിവരണം |
|---|---|
| Diagnostic Systems | Engine, ABS, SRS (Airbag), Transmission (A/T) |
| അനുയോജ്യത |
|
| ഡാറ്റ ഡിസ്പ്ലേ | Live data stream (text and graph), DTC definitions |
| അപ്ഡേറ്റുകൾ | Free lifetime software updates |
| അധിക സവിശേഷതകൾ | Auto-VIN, I/M Readiness, Diagnostic Report Printing/Sharing, Hand-held design, Robust TPU protective case |
6.2 ANCEL PB600 Power Circuit Probe Tester
| ഫീച്ചർ | വിവരണം |
|---|---|
| ഓപ്പറേറ്റിംഗ് വോളിയംtage | 8-35 വി ഡിസി |
| പ്രവർത്തനങ്ങൾ | Circuit Tester, Battery Tester, Injector Tester, Oscilloscope Tester |
| ടെസ്റ്റുകൾ നടത്തി | DC/AC വോളിയംtage Test, Frequency Test, Cranking Test, Duty Cycle Test, Relay Test, Resistance & Diode Test, Injector Signal Test, Component Activation, Charging Test |
| കേബിൾ നീളം | Over 20 feet (approx. 6 meters) |
7. സാങ്കേതിക പിന്തുണ
For technical assistance or inquiries, please contact ANCEL customer support. ANCEL provides 7/24 technical support to assist users with any operational or technical challenges.
Refer to the official ANCEL website or your product packaging for specific contact details.
