1. ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of the Generic Canbus Box RP5-VW-001/VW-SS-07 Adaptor. This device is designed to integrate aftermarket Android car radios with the existing Canbus system in compatible Volkswagen, Skoda, and Seat vehicles built on the PQ platform, ensuring proper communication for functions such as steering wheel controls, door status, and ignition signals.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Canbus Box RP5-VW-001/VW-SS-07 acts as an interface between your vehicle's Canbus system and an aftermarket Android head unit. It translates vehicle data into a format recognizable by the new radio, enabling seamless functionality. This adaptor is specifically compatible with Volkswagen, Skoda, and Seat vehicles utilizing the PQ platform.

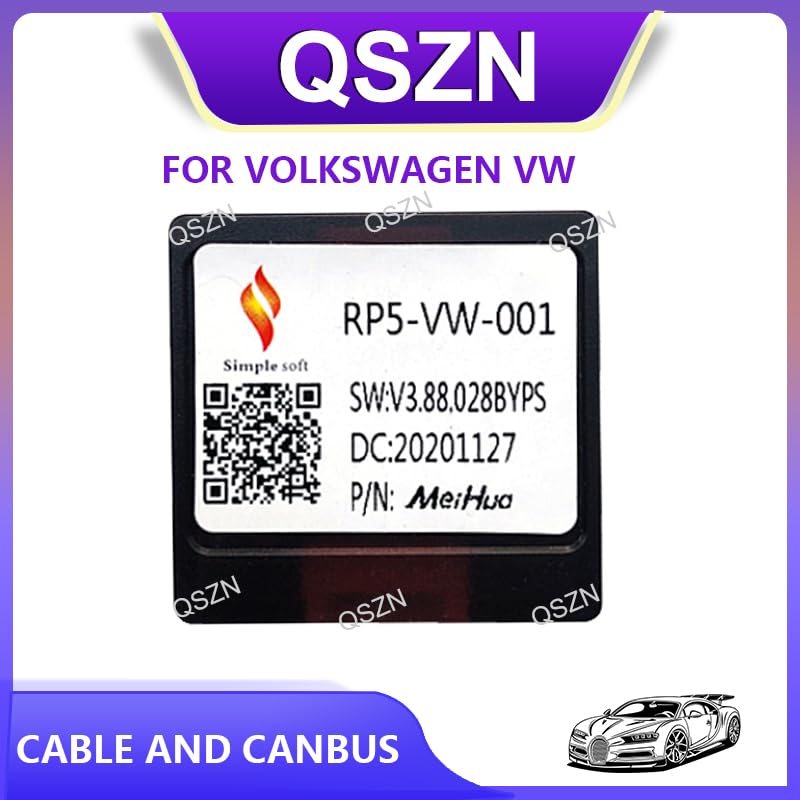

ചിത്രം 2.1: The Generic Canbus Box RP5-VW-001/VW-SS-07 Adaptor. This image displays the main unit, highlighting its compact design and the 'CABLE AND CANBUS' label, indicating its function as a wiring interface for vehicle data.

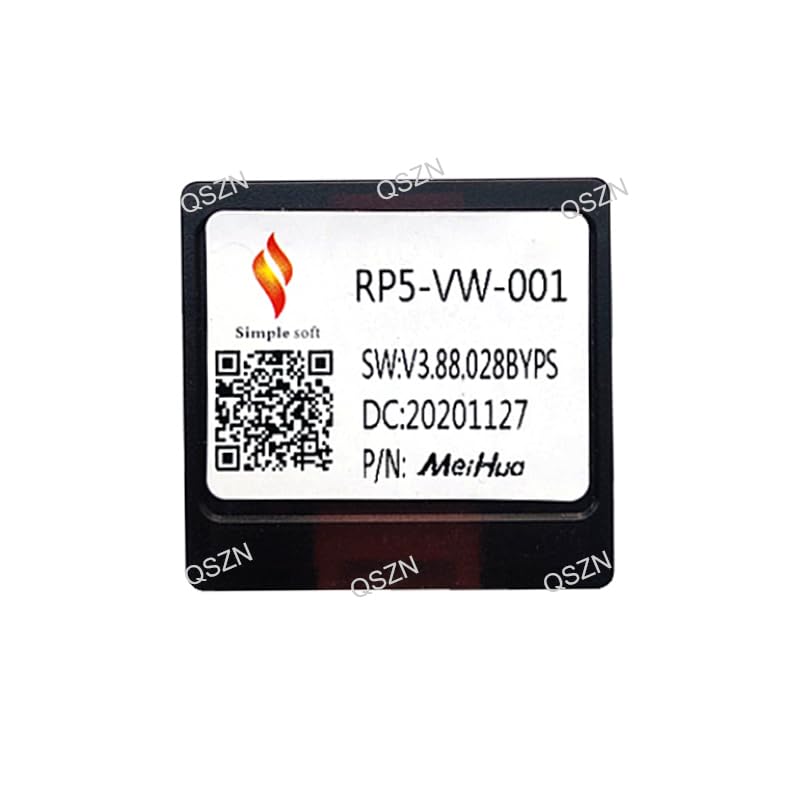

ചിത്രം 2.2: മുകളിൽ view of the Canbus Box RP5-VW-001/VW-SS-07. This perspective shows the top surface of the adaptor, including the model number RP5-VW-001, software version (SW:V3.88.028BYPS), date code (DC:20201127), and part number (P/N: MeiHua).
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the correct functioning of the Canbus adaptor. It is recommended that installation be performed by a qualified technician.
3.1 പ്രീ-ഇൻസ്റ്റലേഷൻ ചെക്ക്ലിസ്റ്റ്
- വാഹനത്തിന്റെ ഇഗ്നിഷൻ ഓഫാണെന്നും ബാറ്ററി വിച്ഛേദിക്കപ്പെട്ടിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
- Verify compatibility of the adaptor with your specific vehicle model and year (VW/Skoda/Seat PQ Platform).
- Confirm that your aftermarket Android head unit supports Canbus integration.
3.2 വയറിംഗ് കണക്ഷനുകൾ
The Canbus box connects to your vehicle's wiring harness and your new Android head unit. Refer to the wiring diagram below for pin assignments.

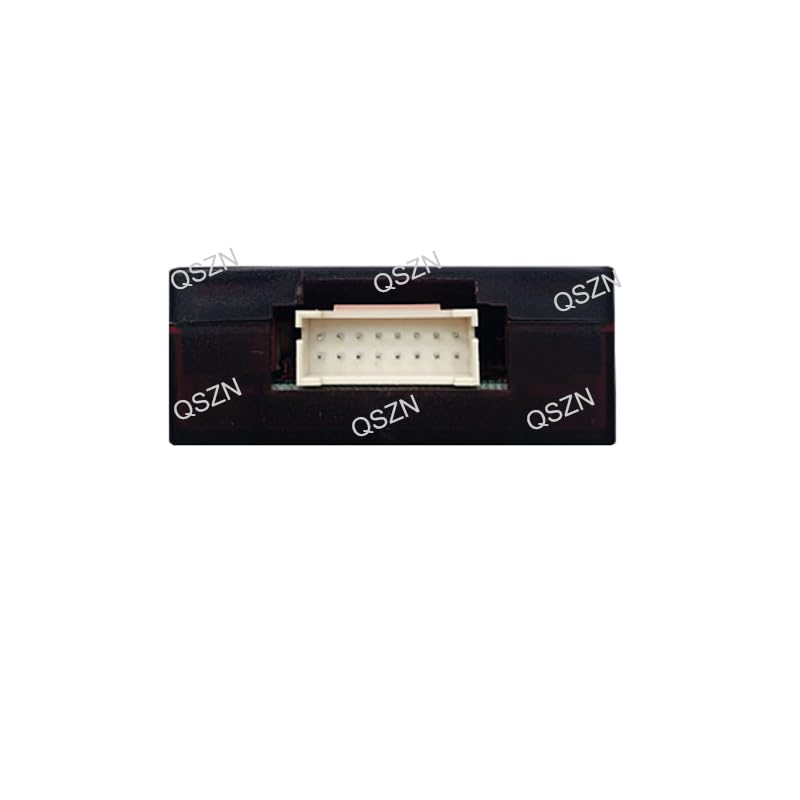

ചിത്രം 3.1: The Canbus Box RP5-VW-001/VW-SS-07 showing its multi-pin connector. This view highlights the interface where the vehicle's wiring harness connects to the adaptor, facilitating data exchange.
ചിത്രം 3.2: Detailed wiring diagram for the Canbus Box RP5-VW-001/VW-SS-07. This diagram illustrates the pin assignments for the P1 connector, including speaker outputs (FL+, FL-, FR+, FR-, RL+, RL-, RR+, RR-), reverse detecting line, ACC Key Switch, GND, ANT power, KEY1, KEY2, ILL small lights detecting, and BATT (battery power).
Pin Assignments (P1 Connector):
| പിൻ | ഫംഗ്ഷൻ |
|---|---|
| A1 | GND (ഗ്രൗണ്ട്) |
| A2 | BATT (Battery Power) |
| A3 | ACC Key Switch |
| A4 | ILL small lights detecting |
| A5 | Reverse detecting line |
| A6 | കീ2 |
| A7 | കീ1 |
| A8 | ANT power |
| A9 | Speaker Front Right FR- |
| A10 | Speaker Rear Left RL- |
| A11 | Speaker Front Right FR+ |
| A12 | Speaker Rear Right RR+ |
| A13 | Speaker Front Left FL- |
| A14 | Speaker Rear Right RR- |
| A15 | Speaker Front Left FL+ |
| A16 | Speaker Rear Left RL+ |
3.3 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ
- Carefully remove the factory radio from your vehicle, following your vehicle's specific service manual.
- Locate the vehicle's wiring harness connector.
- Connect the vehicle's wiring harness to the corresponding input on the Canbus adaptor.
- Connect the output of the Canbus adaptor to the wiring harness of your new Android head unit. Ensure all connections are secure.
- വാഹന ബാറ്ററി വീണ്ടും ബന്ധിപ്പിക്കുക.
- Turn on the ignition and test the functionality of the new head unit, including steering wheel controls, reverse camera (if applicable), and illumination.
- Securely mount the Canbus box in a safe location behind the dashboard, ensuring it does not interfere with other components.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once correctly installed, the Canbus Box RP5-VW-001/VW-SS-07 operates automatically. It continuously translates vehicle data for your Android head unit. There are no user-adjustable settings on the Canbus box itself.
4.1 പിന്തുണയ്ക്കുന്ന പ്രവർത്തനങ്ങൾ
- സ്റ്റിയറിംഗ് വീൽ നിയന്ത്രണങ്ങൾ: Enables the use of factory steering wheel buttons to control the aftermarket radio (e.g., volume, track skip, mode).
- Ignition (ACC) Signal: Provides the correct ignition signal to the radio, allowing it to power on and off with the vehicle.
- Illumination Signal: Synchronizes the radio's button illumination with the vehicle's dashboard lights.
- റിവേഴ്സ് ഗിയർ സിഗ്നൽ: Activates the reverse camera input on the radio when the vehicle is put into reverse.
- Door Open Status: May display door open warnings on compatible head units.
Specific functions supported may vary based on the vehicle's original Canbus system and the capabilities of the aftermarket Android head unit.
5. പരിപാലനം
The Canbus Box RP5-VW-001/VW-SS-07 is a sealed electronic component and requires minimal maintenance.
- Ensure the unit is kept dry and free from excessive dust or debris.
- Avoid exposing the unit to extreme temperatures or direct sunlight.
- സുരക്ഷിതമായി നിലകൊള്ളുന്നുവെന്ന് ഉറപ്പാക്കാൻ എല്ലാ വയറിംഗ് കണക്ഷനുകളും ഇടയ്ക്കിടെ പരിശോധിക്കുക.
- Do not attempt to open or repair the unit, as this will void any potential warranty and may cause damage.
6. പ്രശ്നപരിഹാരം
If you encounter issues after installation, refer to the following troubleshooting guide:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| റേഡിയോ ഓൺ ചെയ്യുന്നില്ല. | No power to the Canbus box or radio. | Check battery (BATT) and accessory (ACC) connections. Ensure vehicle battery is connected. |
| Steering wheel controls do not work. | Incorrect Canbus connection or radio settings. | Verify Canbus wiring. Check the Android radio's settings for steering wheel control configuration. Some radios require manual learning of buttons. |
| No illumination or dimming. | Illumination signal not connected or recognized. | Check ILL small lights detecting wire connection. Ensure radio settings for illumination are correct. |
| Reverse camera does not activate. | Reverse detecting line issue. | Verify the Reverse detecting line connection. Ensure the camera is properly connected to the radio. |
| ഇടയ്ക്കിടെയുള്ള പ്രവർത്തനം. | Loose connections or power fluctuations. | Inspect all wiring connections for tightness. Ensure stable 12V power supply. |
If problems persist after following these steps, consult a professional automotive electronics technician.
7 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: RP5-VW-001 / VW-SS-07
- അനുയോജ്യത: Volkswagen, Skoda, Seat vehicles (PQ Platform)
- ഇൻപുട്ട് വോളിയംtage: 12V DC
- ഇനത്തിൻ്റെ ഭാരം: 0.2 കി.ഗ്രാം
- ഇനത്തിൻ്റെ വലിപ്പം: ഏകദേശം 10 x 10 x 10 സെ.മീ (L x W x H)
- ഉത്ഭവം: മെയിൻലാൻഡ് ചൈന
8. വാറൻ്റിയും പിന്തുണയും
For warranty information and technical support, please refer to the retailer or manufacturer from whom you purchased this product. Keep your proof of purchase for any warranty claims.
