1. ആമുഖവും ഉൽപ്പന്നവും കഴിഞ്ഞുview
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the Lilianos Used BYHX DX5 Carriage Board. This board is a critical component for various large-format inkjet printers, specifically designed to work with DX5 print heads and compatible with Xuli, Allwin, and Skycolor printer models. It is available in both VB and 3.0 versions.
The BYHX DX5 carriage board facilitates communication and control between the printer's mainboard and the DX5 print heads, ensuring precise ink delivery and stable printing operations. Proper handling and installation are crucial for its optimal performance and longevity.
2. ഉൽപ്പന്ന വിവരണം
The Lilianos BYHX DX5 carriage board is a specialized electronic circuit board engineered for integration into professional inkjet printing systems. It serves as the interface for DX5 print heads, managing data transmission and power supply to ensure high-quality print output.
പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:
- Compatibility with BYHX systems.
- Support for DX5 print heads.
- Available in VB and 3.0 versions to suit different printer configurations.
- Designed for use with Xuli, Allwin, and Skycolor printers.
ചിത്രം 2.1: ഓവർview of the BYHX DX5 Carriage Board. This image displays the main components and layout of the board, including integrated circuits, capacitors, and multiple connector ports for print heads and data cables.

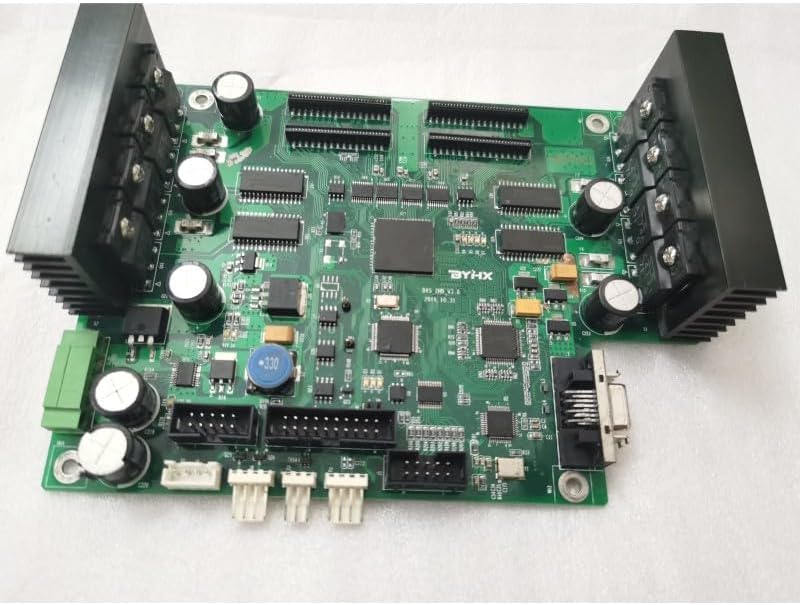

ചിത്രം 2.2: കോണാകൃതിയിലുള്ളത് view of the BYHX DX5 Carriage Board. This perspective highlights the heat sinks on either side of the board, designed to dissipate heat from critical components, along with various connection points.
3. ഇൻസ്റ്റലേഷനും സജ്ജീകരണവും
Installation of the BYHX DX5 carriage board requires careful attention and should ideally be performed by a qualified technician. Incorrect installation can lead to damage to the board, print heads, or the printer itself.
3.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ
- അനുയോജ്യത പരിശോധിക്കുക: Before installation, it is crucial to confirm the correct mainboard version (VB or 3.0) and ensure compatibility with your specific printer's mainboard and DX5 print head. Contact service for verification if unsure.
- പവർ ഓഫ്: Always ensure the printer is completely powered off and unplugged from the main power supply before beginning any installation or maintenance.
- സ്റ്റാറ്റിക് ഡിസ്ചാർജ്: സെൻസിറ്റീവ് ഇലക്ട്രോണിക് ഘടകങ്ങളെ തകരാറിലാക്കുന്ന സ്റ്റാറ്റിക് വൈദ്യുതി ഡിസ്ചാർജ് ചെയ്യുന്നതിന് ആന്റി-സ്റ്റാറ്റിക് റിസ്റ്റ് സ്ട്രാപ്പ് ധരിക്കുക അല്ലെങ്കിൽ നിലത്തുവീണ ലോഹ വസ്തുവിൽ ഇടയ്ക്കിടെ സ്പർശിക്കുക.
- ബോർഡ് പരിശോധിക്കുക: Carefully inspect the new carriage board for any visible damage during shipping.
3.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ (പൊതുവായത്)
While specific steps may vary by printer model, the general procedure involves:
- Access the Carriage Assembly: Open the printer's access panels to locate the print head carriage assembly.
- Remove Old Board (if applicable): Carefully disconnect all cables and mounting screws from the existing carriage board. Note the orientation and connection points.
- പുതിയ ബോർഡ് ഇൻസ്റ്റാൾ ചെയ്യുക: Align the new BYHX DX5 carriage board with the mounting points in the carriage assembly. Secure it with screws, ensuring it is firmly seated.
- കേബിളുകൾ ബന്ധിപ്പിക്കുക: Reconnect all ribbon cables, power cables, and data cables to their respective ports on the new board. Ensure all connections are secure and correctly oriented. Refer to your printer's specific service manual for detailed wiring diagrams.
- Close Panels: Once all connections are verified, close the printer's access panels.
ചിത്രം 3.1: മുകളിൽ നിന്ന് താഴേക്ക് view of the BYHX DX5 Carriage Board. This image provides a clear view of all connection ports, which is essential for correct cable routing during installation.
Figure 3.2: Close-up of Board Components. This detailed view shows the integrated circuits and other electronic components, emphasizing the precision required when handling the board.
4. ഓപ്പറേഷൻ
The BYHX DX5 carriage board operates as an integral part of your printer's control system. Once correctly installed, its operation is seamless and managed by the printer's main control unit and software.
4.1 പ്രാരംഭ പവർ-അപ്പ്
- പവർ ബന്ധിപ്പിക്കുക: Plug the printer back into the main power supply.
- പവർ ഓൺ: Turn on the printer using its main power switch.
- സിസ്റ്റം ഇനിഷ്യലൈസേഷൻ: Allow the printer to complete its self-test and initialization sequence. The carriage board will be detected and configured by the printer's firmware.
4.2 സാധാരണ പ്രവർത്തനം
During printing, the carriage board receives data from the mainboard and translates it into signals that control the firing of the print head nozzles. It also manages the power supply to the print heads and monitors their status. No direct user interaction with the board is required during normal operation.
5. പരിപാലനം
Proper maintenance of the BYHX DX5 carriage board, primarily through maintaining a clean and stable operating environment, will extend its lifespan and ensure reliable performance.
5.1 പരിസ്ഥിതി പരിഗണനകൾ
- പൊടി നിയന്ത്രണം: Keep the printer area clean and free of dust. Dust accumulation on electronic components can lead to overheating and short circuits.
- ഈർപ്പവും താപനിലയും: Operate the printer within the recommended humidity and temperature ranges specified by the printer manufacturer. Extreme conditions can negatively impact electronic components.
- വൈബ്രേഷൻ: Ensure the printer is placed on a stable surface to minimize vibrations, which can loosen connections over time.
5.2 വൃത്തിയാക്കൽ
- പവർ ഓഫ്: Always power off and unplug the printer before attempting any cleaning.
- ബാഹ്യ ശുചീകരണം: Use a soft, lint-free cloth to gently wipe the exterior of the carriage board if accessible.
- കംപ്രസ് ചെയ്ത വായു: For internal dust, use compressed air (designed for electronics) to gently blow away dust from the board, holding the can upright to prevent propellant discharge. Do not use excessive force.
- ദ്രാവകങ്ങൾ ഒഴിവാക്കുക: Never use liquid cleaners directly on the board. If necessary, dampen a cloth with isopropyl alcohol and gently wipe, ensuring no liquid drips onto components.
ചിത്രം 5.1: അടിവശം view of the BYHX DX5 Carriage Board. This view shows the intricate circuitry and solder points, emphasizing the delicate nature of the component and the need for careful handling during maintenance.
6. പ്രശ്നപരിഹാരം
If you experience issues with your printer after installing the BYHX DX5 carriage board, consider the following troubleshooting steps. Many problems can be resolved by checking connections and ensuring proper installation.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Printer not recognizing print heads / No print output | Loose or incorrect cable connections; Incompatible board version; Damaged print head or board. |
|
| Error messages related to carriage or print head | Firmware incompatibility; Board malfunction; Sensor issues. |
|
| Intermittent printing issues / Poor print quality | Loose connections; Dust or debris on connectors; Power fluctuations. |
|
പ്രധാന കുറിപ്പ്: If troubleshooting steps do not resolve the issue, or if you suspect a malfunction of the board, it is recommended to contact professional technical support. Do not attempt complex repairs yourself unless you are a qualified technician.
7 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ഉൽപ്പന്നത്തിൻ്റെ പേര് | BYHX DX5 Carriage Board |
| മോഡൽ നമ്പർ | LLA-52DB1EA9AA3B0D698F2E5D0050067153 |
| ബ്രാൻഡ് | ജനറിക് |
| അനുയോജ്യത | DX5 Print Heads, Xuli, Allwin, Skycolor Printers |
| ലഭ്യമായ പതിപ്പുകൾ | VB and 3.0 Type |
| നിറം | Cn / Double Dx5 3.0 Type (as per variant) |
| നിർമ്മാതാവ് | ജനറിക് |
| ASIN | B0F2FFLRLP |
| ആദ്യം ലഭ്യമായ തീയതി | 25 മാർച്ച് 2025 |
8. വാറൻ്റിയും പിന്തുണയും
The Lilianos BYHX DX5 Carriage Board comes with a 1 വർഷത്തെ വാറൻ്റി from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal operating conditions.
8.1 വാറന്റി ക്ലെയിം നടപടിക്രമം
If you encounter any problems with the board within the warranty period, please follow these steps:
- ബന്ധപ്പെടാനുള്ള സേവനം: Before returning the product, please contact our customer service. It is essential to confirm the mainboard version and the specific print head it is used for. Our service team will guide you through initial troubleshooting and verification.
- Return for Repair: If a defect is confirmed, you will be instructed to send the board back to China for repair. Repairs under warranty are free of charge.
- പാക്കേജിംഗ്: Ensure the board is securely packaged in anti-static material and a sturdy box to prevent damage during transit.
കുറിപ്പ്: The warranty does not cover damage caused by improper installation, misuse, accidents, unauthorized modifications, or natural disasters. Always ensure to contact service before attempting any returns or repairs.
