1. ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your Tuya Smart Video Doorbell Camera. This device offers 1080P full HD video, two-way audio, and smart features like PIR motion detection and compatibility with smart home ecosystems such as Google Assistant and Amazon Echo Show.
The doorbell is designed for low power consumption, featuring a built-in 4400mAh lithium battery, and supports local recording to a Micro SD card up to 64GB.
2 സുരക്ഷാ വിവരങ്ങൾ
- ഉപകരണത്തെ ദീർഘനേരം തീവ്രമായ താപനിലയിലോ നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിലോ തുറന്നുകാട്ടരുത്.
- Ensure the device is installed securely to prevent accidental falls.
- Use only the specified charging method (Micro-USB) for the built-in battery.
- Keep the device away from water and moisture to prevent damage, despite its waterproof design.
- Do not attempt to disassemble or repair the device yourself. Contact support for assistance.
3. പാക്കേജ് ഉള്ളടക്കം
നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- Tuya Smart Video Doorbell Camera
- മൌണ്ടിംഗ് ബ്രാക്കറ്റ്
- യുഎസ്ബി ചാർജിംഗ് കേബിൾ
- ഉപയോക്തൃ മാനുവൽ
- Chime (USB version, black)

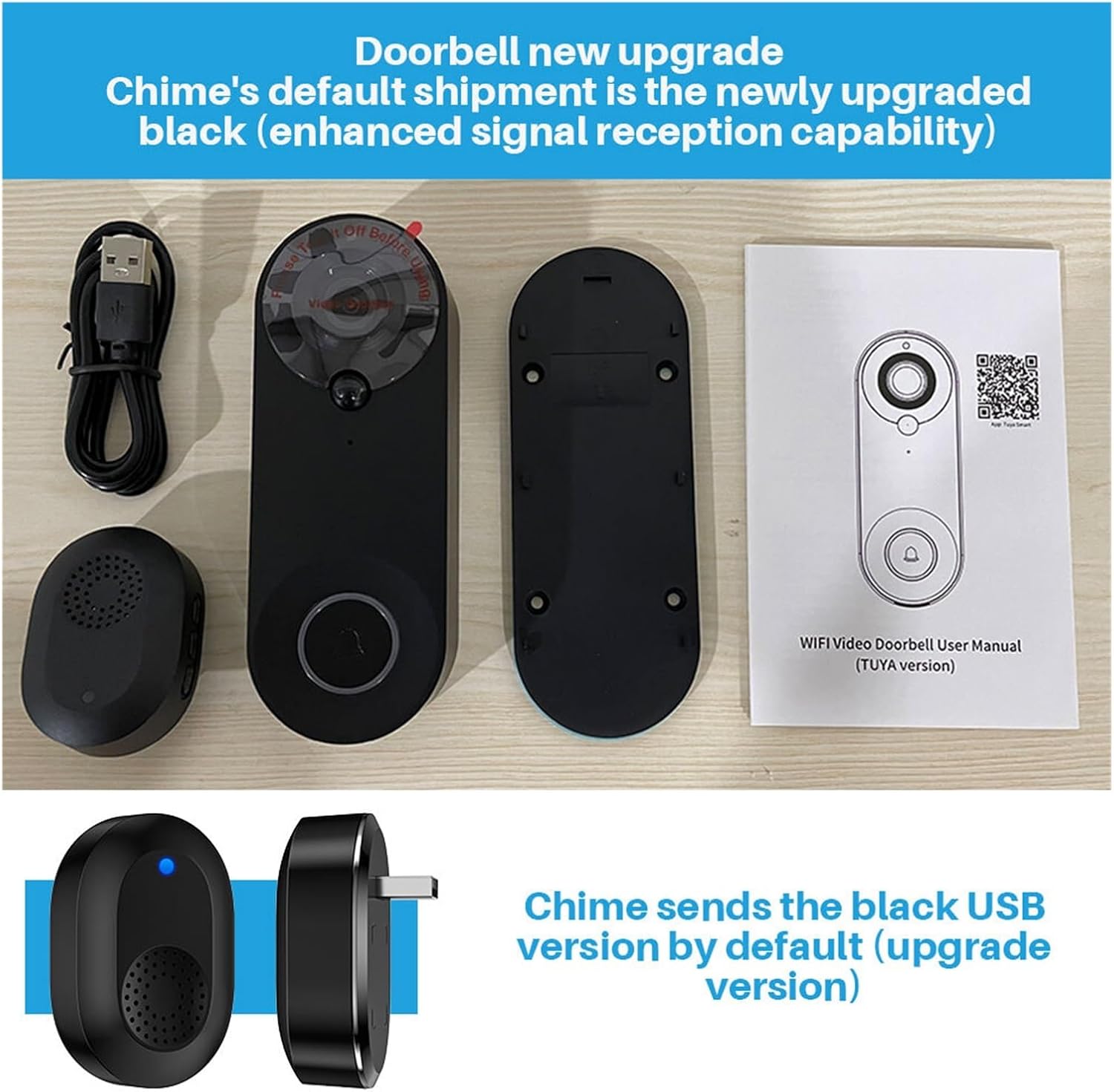

Image: Contents of the product package, showing the doorbell unit, mounting plate, USB charging cable, user manual, and the included black USB chime.
4. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Tuya Smart Video Doorbell Camera features a 1080P COMS sensor, a 150-degree wide-angle lens, and infrared LEDs for night vision. It includes a built-in speaker and microphone for two-way audio communication.
ചിത്രം: മുൻഭാഗം view of the doorbell, highlighting the camera lens, PIR sensor, and the main doorbell button with an illuminated ring.

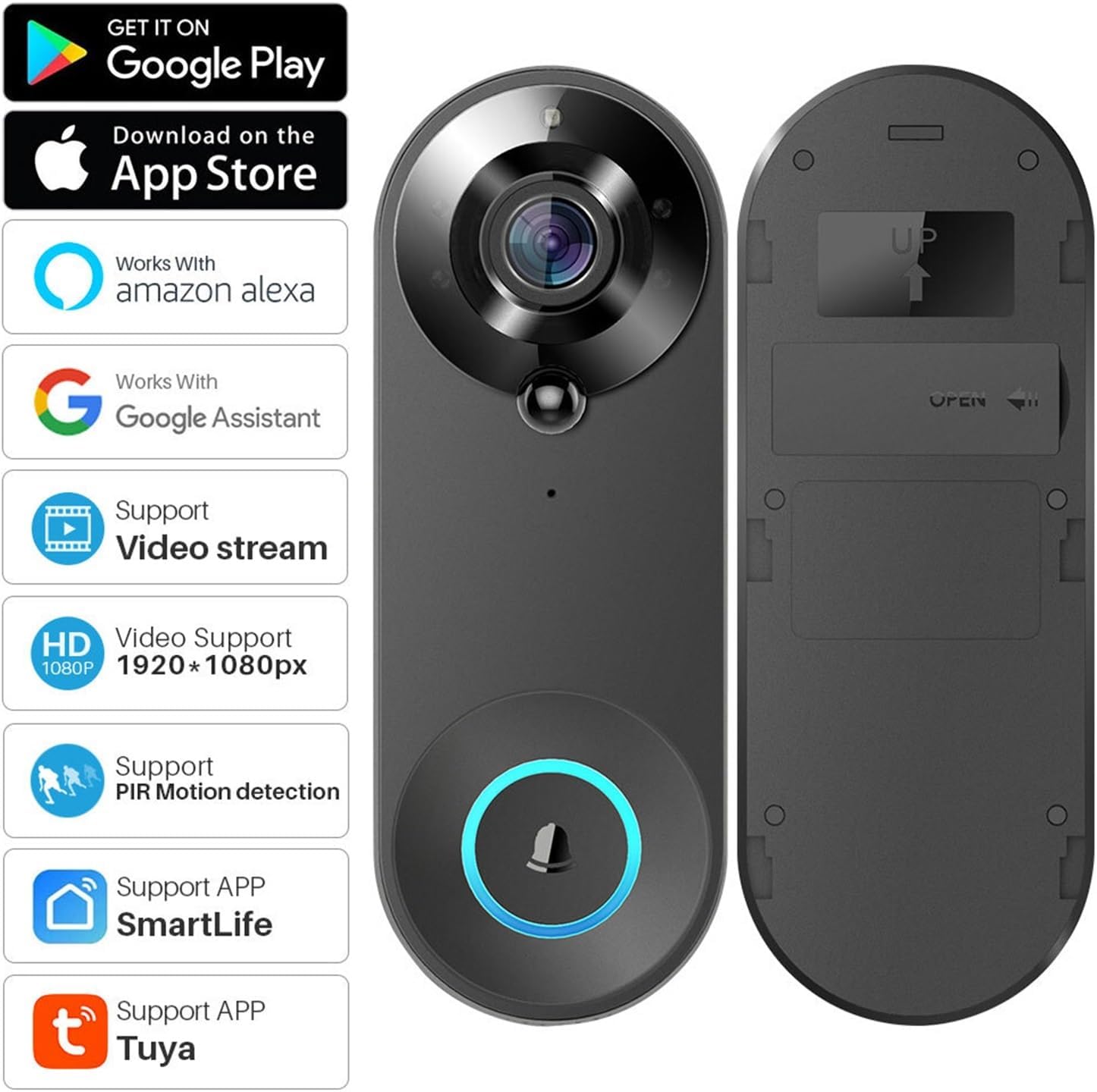

ചിത്രം: മുന്നിലും പിന്നിലും views of the doorbell, illustrating its compatibility with various smart home platforms and features.
5. സജ്ജീകരണം
5.1 ബാറ്ററി ചാർജ് ചെയ്യുന്നു
Before first use, fully charge the doorbell's built-in 4400mAh lithium battery using the provided Micro-USB cable. Connect the cable to the doorbell and a 5V/1A USB power adapter (not included). The charging indicator will show the charging status.
5.2 അപ്ലിക്കേഷൻ ഇൻസ്റ്റാളേഷൻ
Download either the തുയ സ്മാർട്ട് അപ്ലിക്കേഷൻ അല്ലെങ്കിൽ സ്മാർട്ട് ലൈഫ് app from the Google Play Store or Apple App Store. These apps are required for device setup and remote control.
5.3 ഉപകരണ ജോടിയാക്കൽ
- Ensure your smartphone is connected to a 2.4 GHz Wi-Fi network (IEEE 802.11 b/g/n).
- Open the Tuya Smart or Smart Life app and create an account or log in.
- Follow the in-app instructions to add a new device. Select 'Security & Video Surveillance' > 'Smart Doorbell'.
- Power on the doorbell. The app will guide you to scan a QR code displayed on your phone with the doorbell's camera to establish a connection.
- Once connected, you can name your doorbell and complete the setup process.
5.4 ഫിസിക്കൽ ഇൻസ്റ്റലേഷൻ
Mount the doorbell at your desired location using the provided mounting bracket and screws. Ensure the camera has a clear view of the area you wish to monitor. The doorbell is designed to be weather-resistant.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
6.1 ടു-വേ ഓഡിയോ
When a visitor presses the doorbell, you will receive a notification on your smartphone. Open the app to view the live feed and engage in two-way communication with the visitor using the built-in microphone and speaker.
Image: Illustration of the remote visual two-way intercom feature, allowing communication with visitors via the app.
6.2 പിഐആർ മോഷൻ ഡിറ്റക്ഷൻ
The doorbell features Passive Infrared (PIR) motion detection. When motion is detected, the doorbell will trigger an alarm and push a notification to your mobile phone. You can adjust the sensitivity (High/Medium/Low/Off) in the app settings.
6.3 നൈറ്റ് വിഷൻ
Equipped with 4pcs infrared LEDs (850mm) and an IRCUT double filter, the doorbell automatically switches to night vision mode in low-light conditions, providing clear images even in complete darkness.
6.4 റെക്കോർഡിംഗും സംഭരണവും
The doorbell supports local recording to a Micro SD card (8GB/16GB/32GB/64GB, sold separately). You can configure recording settings in the app, including optional recording time between 15s-45s once the doorbell is triggered. Recorded videos can be played back from your smartphone.
6.5 വോയ്സ് കൺട്രോൾ ഇന്റഗ്രേഷൻ
The doorbell is compatible with Google Assistant and Amazon Echo Show. You can use voice commands to view അനുയോജ്യമായ സ്മാർട്ട് ഡിസ്പ്ലേകളിലെ തത്സമയ ഫീഡ്.
Image: Demonstrates voice control functionality with Amazon Echo Show, allowing users to view the doorbell feed hands-free.
6.6 Remote Access and Notifications
Receive instant mobile notifications when someone presses your doorbell or when motion is detected. You can access the live view and recordings remotely from anywhere using your smartphone.

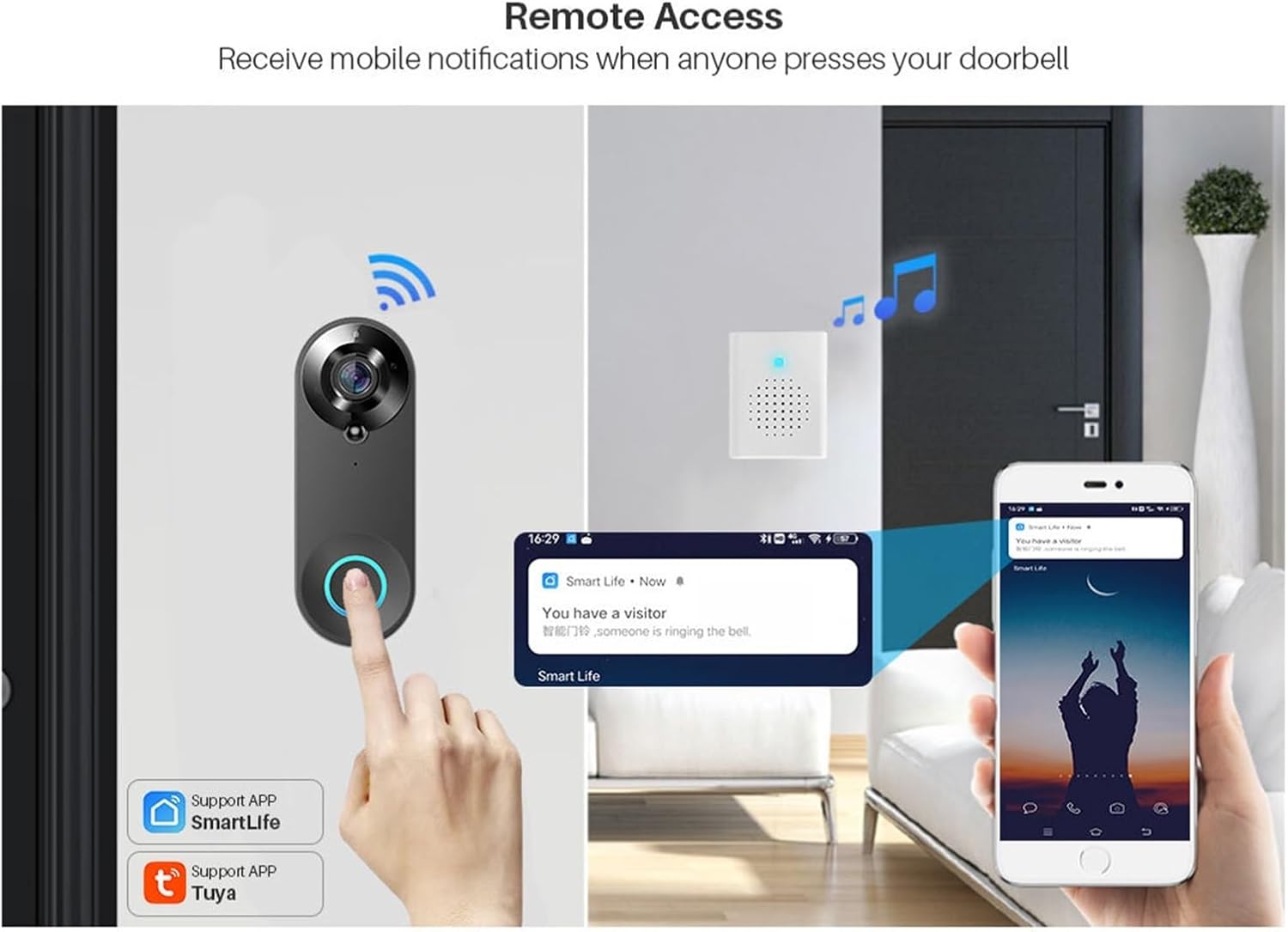

Image: Shows how the doorbell sends mobile notifications for remote access when a visitor arrives.
6.7 ഉപകരണം പങ്കിടൽ
You can share access to your doorbell with family members or trusted individuals through the app's QR code sharing feature. The system supports a maximum of 7 authenticated users, with up to 3 users viewഒരേസമയം.
7. പരിപാലനം
7.1 ബാറ്ററി മാനേജ്മെൻ്റ്
The built-in 4400mAh battery provides approximately 30 days of standby time with 10 awakenings per day (15 seconds each). Recharge the doorbell when the battery level is low, indicated by the app or a specific LED indicator on the device.
7.2 വൃത്തിയാക്കൽ
ഡോർബെല്ലിന്റെ പുറംഭാഗം മൃദുവായ, d ഉപയോഗിച്ച് തുടയ്ക്കുകamp cloth. Do not use harsh chemicals or abrasive cleaners, as they may damage the finish or electronic components.
7.3 SD കാർഡ് മാനേജ്മെന്റ്
Periodically check the status of your Micro SD card in the app. If the card is full, older recordings may be overwritten. You can format the SD card through the app if needed.
8. പ്രശ്നപരിഹാരം
- ഉപകരണം വൈഫൈയിലേക്ക് കണക്റ്റുചെയ്യുന്നില്ല: Ensure your Wi-Fi is 2.4 GHz. Check Wi-Fi password. Move the doorbell closer to the router.
- അറിയിപ്പുകളൊന്നുമില്ല: Check app notification settings on your phone and within the doorbell app. Ensure the app has necessary permissions.
- മോശം വീഡിയോ നിലവാരം: നിങ്ങളുടെ വൈഫൈ സിഗ്നൽ ശക്തി പരിശോധിക്കുക. ക്യാമറ ലെൻസ് വൃത്തിയുള്ളതാണെന്നും തടസ്സങ്ങളില്ലെന്നും ഉറപ്പാക്കുക.
- ബാറ്ററി വേഗത്തിൽ തീർന്നു: Reduce PIR motion detection sensitivity or frequency of awakenings. Ensure the doorbell is not in an area with constant motion.
- ടു-വേ ഓഡിയോ പ്രശ്നങ്ങൾ: Check your phone's microphone and speaker settings. Ensure the doorbell's microphone and speaker are not obstructed.
9 സ്പെസിഫിക്കേഷനുകൾ
| റെസലൂഷൻ | 1080 പി (1920 * 1080) |
| സെൻസർ | GC1054 COMS Sensor |
| View ആംഗിൾ | 150 degrees Horizontal |
| ഓഡിയോ | Two-way voice, Built-in speaker, Built-in Microphone |
| നൈറ്റ് വിഷൻ | 4pcs infrared LED 850mm, IRCUT double filter |
| Wi-Fi കണക്റ്റിവിറ്റി | 2.4 GHz, IEEE 802.11 b/g/n |
| സംഭരണം | Micro SD card (8G/16G/32G/64G) |
| ബാറ്ററി | 2*18650 Lithium battery (4400mAh built-in) |
| Power Supply (Chime) | 5V/1A USB |
| മോഷൻ ഡിറ്റക്ഷൻ | PIR (High/Medium/Low/Off sensitivity) |
| അനുയോജ്യത | Tuya APP, SmartLife APP, Google Assistant, Amazon Echo Show |
10. വാറൻ്റിയും പിന്തുണയും
This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the seller directly.
For technical support, troubleshooting assistance, or any inquiries regarding your Tuya Smart Video Doorbell Camera, please contact the seller or manufacturer through the platform where you purchased the product.
