LQT Professional Hair Clipper and Trimmer Set (Model LQT-300) Instruction Manual

ആമുഖം

This manual provides detailed instructions for the safe and effective use of your LQT Professional Hair Clipper and Trimmer Set. This kit is designed for versatile hair grooming, including professional haircuts, beard trimming, and detailing, featuring a vintage design and digital display for convenience.

എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്

Your LQT Professional Hair Clipper and Trimmer Set includes the following components:

• 1 x Main Hair Clipper (LQT-300)
• 1 x Detail Trimmer
• 1 x ഇലക്ട്രിക് ഷേവർ
• 4 x Guide Combs for Hair Clipper (3mm, 6mm, 10mm, 13mm)
• 4 x Guide Combs for Detail Trimmer (1.5mm, 2mm, 3mm, 4mm)
• 1 x Barber Cape (fabric)
• 3 x Cleaning Brushes
• 3 x USB ചാർജിംഗ് കേബിളുകൾ
• 1 x Barber's Comb
• 1 x Small Bottle of Blade Oil
• 1 x Instruction Manual for Hair Clipper
• 1 x Instruction Manual for Hair Trimmer
• 1 x ഹാർഡ് സ്റ്റോറേജ് കേസ്

ചിത്രം: കഴിഞ്ഞുview of the LQT Hair Clipper and Trimmer Set components, including the main clipper, detail trimmer, guide combs, charging cables, and cleaning tools.

ഉൽപ്പന്ന സവിശേഷതകൾ

• വിൻtagഇ ഡിസൈൻ: Metal embossed body with unique patterns and a distinctive scissors logo, offering a stylish and rugged aesthetic.
• ഡിജിറ്റൽ ഡിസ്പ്ലേ: Clear LED screen indicates remaining battery power, ensuring you know when to recharge.
• ശക്തമായ മോട്ടോർ: Equipped with a robust motor for efficient and smooth cutting, even through thick hair.
• ദീർഘകാല ബാറ്ററി: The main clipper provides 180 minutes of use after 3 hours of charging. The detail trimmer offers 160 minutes of use after 1.5 hours of charging.
• USB ചാർജിംഗ്: Convenient USB charging ports allow connection to various power sources like adapters, laptops, or car chargers.
• Sharp & Skin-Friendly Blades: High-quality stainless steel blades with an R-shaped obtuse edge design ensure precise cutting while being gentle on the skin.
• Adjustable Blade Lever: The main clipper features an adjustable lever for fine-tuning cutting lengths from 0.5mm to 21.0mm.
• ബഹുമുഖ ഉപയോഗം: Suitable for various grooming needs including professional haircuts, beard trimming, detailing, and body hair removal.

ചിത്രം: ക്ലോസ്-അപ്പ് view of the main hair clipper, highlighting its digital power display and the adjustable blade lever for precise cutting lengths.

സജ്ജമാക്കുക

1. പ്രാരംഭ ചാർജ്: Before first use, fully charge both the main clipper and detail trimmer using the provided USB charging cables. The digital display will show the charging progress and remaining power.
2. ഗൈഡ് ചീപ്പുകൾ അറ്റാച്ചുചെയ്യൽ: Select the desired guide comb for your preferred hair length. Align the comb with the clipper/trimmer blade and push firmly until it snaps into place. Ensure it is securely attached before use.
3. Removing Blade Guard: For the main clipper, gently slide off the black blade guard before operation. For the detail trimmer, remove any protective caps.
4. ബ്ലേഡ് ഓയിലിംഗ്: Apply a few drops of the included blade oil to the blades before each use to ensure smooth operation and prolong blade life. Turn the device on for a few seconds to distribute the oil.

Image: The main hair clipper and detail trimmer displayed with their respective sets of guide combs, illustrating how to select and attach them for different cutting lengths.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ/ഓഫ്: Press the power button to turn the device on or off. The digital display will illuminate.
2. Hair Clipping (Main Clipper):
   • Attach the appropriate guide comb.
   • Adjust the blade lever for fine-tuning the cutting length if desired.
   • Start clipping from the bottom of the head, moving upwards against the direction of hair growth.
   • Use the barber cape to keep hair clippings off clothing.
3. Beard Trimming & Detailing (Detail Trimmer):
   • For beard length, attach the desired guide comb.
   • For precise lines and edging, remove the guide comb and use the bare blade.
   • Carefully outline beard, mustache, and sideburns.
4. Shaving & Hair Removal (Electric Shaver/Detail Trimmer):
   • Use the electric shaver for a close, smooth finish on larger areas.
   • The detail trimmer can be used for precise hair removal in smaller or sensitive areas.

Image: Demonstrates the multi-purpose functionality of the LQT set, showing the main clipper used for haircuts and the detail trimmer for beard shaping and body hair removal.

മെയിൻ്റനൻസ്

• ക്ലീനിംഗ് ബ്ലേഡുകൾ: After each use, turn off and unplug the device. Use the provided cleaning brushes to remove any trapped hair from the blades. The blades can be rinsed under running water; ensure the main body of the device does not get wet. Dry thoroughly after rinsing.
• ഓയിലിംഗ് ബ്ലേഡുകൾ: Regularly apply a few drops of blade oil to the blades to maintain their sharpness and ensure smooth, efficient operation. This should be done before or after each use, especially after cleaning.
• സംഭരണം: Store the clipper and all accessories in the provided hard storage case in a dry, cool place away from direct sunlight and moisture.

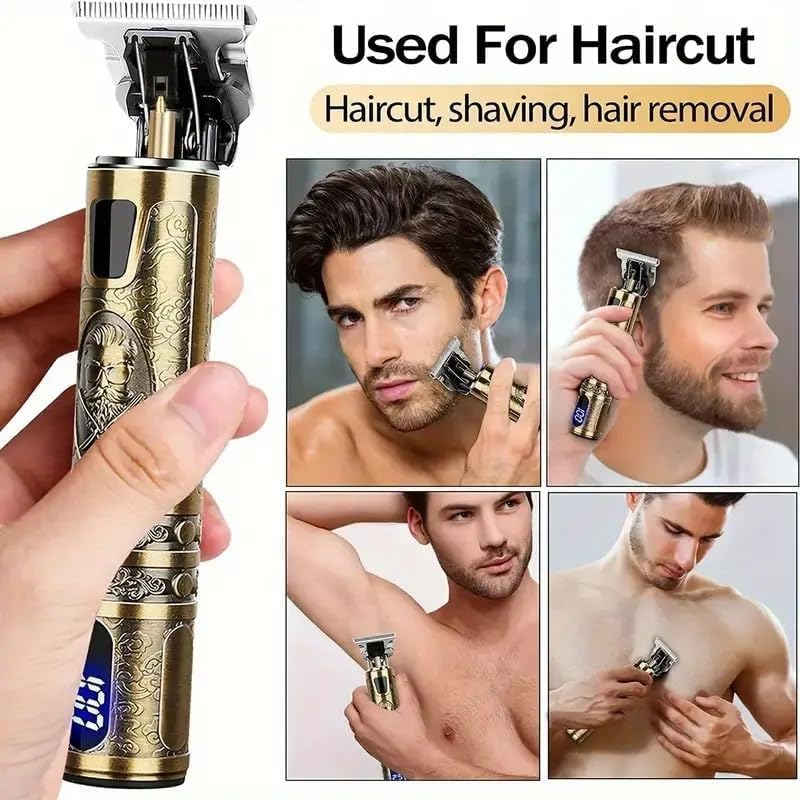

Image: The detail trimmer in action, illustrating its use for precise haircuts, shaving, and general hair removal, emphasizing its versatility and ease of handling.

സുരക്ഷാ വിവരങ്ങൾ

ഇനിപ്പറയുന്ന സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ വായിക്കുകയും പാലിക്കുകയും ചെയ്യുക:

• വൃത്തിയാക്കുന്നതിന് മുമ്പ് എപ്പോഴും ട്രിമ്മർ അൺപ്ലഗ് ചെയ്യുക.
• Keep blades and small parts away from children and pets.
• ചെറിയ ഭാഗങ്ങൾ വിഴുങ്ങുകയോ ശ്വസിക്കുകയോ ചെയ്യരുത്.
• Always supervise children when using the trimmer.
• Do not immerse the entire device in water. Only the blades are designed to be rinsed.
• Avoid using the device with damaged blades or combs, as this may cause injury.
• ഉപകരണം സ്വയം നന്നാക്കാൻ ശ്രമിക്കരുത്. സേവനത്തിനായി യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥരെ ബന്ധപ്പെടുക.

സ്പെസിഫിക്കേഷനുകൾ

ട്രബിൾഷൂട്ടിംഗ്

• ഉപകരണം ഓണാക്കുന്നില്ല: Ensure the device is fully charged. Check the digital display for battery level. If charging, ensure the USB cable is properly connected to both the device and a power source.
• മുടി വലിക്കുന്ന ബ്ലേഡുകൾ: This can occur if the blades are dull, dirty, or not properly oiled. Clean the blades thoroughly with the provided brush, apply blade oil, and ensure they are free of debris. If the issue persists, the blades may need replacement.
• കുറഞ്ഞ കട്ടിംഗ് പ്രകടനം: A low battery charge can affect performance. Recharge the device. Also, ensure the blades are clean and oiled. Overly thick or wet hair can also reduce cutting efficiency; try trimming smaller sections of dry hair.
• അമിതമായ ശബ്ദം അല്ലെങ്കിൽ വൈബ്രേഷൻ: Ensure the blades are properly aligned and secured. Apply blade oil to reduce friction. If the issue continues, discontinue use and contact support.

വാറൻ്റി & പിന്തുണ

For information regarding product warranty, returns, or technical support, please refer to the specific warranty documentation included with your purchase or contact the manufacturer, Yiwu Lingxuan Electrical Appliance Co., Ltd, directly. Protection plans are available for purchase separately to extend coverage beyond the standard warranty period.
