Generic Dishwasher Drain Pump Replacement Instruction Manual

1. ആമുഖം

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the Generic Dishwasher Drain Pump Replacement. This component is designed to replace the original drain pump in various dishwasher models from Maytag, Whirlpool, KitchenAid, Crosley, Magic Chef, and Inglis. Please read this manual thoroughly before attempting any installation or repair to ensure safety and proper function.

2 സുരക്ഷാ വിവരങ്ങൾ

• പവർ വിച്ഛേദിക്കുക: Always ensure the dishwasher's power supply is completely disconnected before beginning any repair or maintenance. Failure to do so can result in electric shock or serious injury.
• സംരക്ഷണ ഗിയർ ധരിക്കുക: Wear appropriate personal protective equipment, such as gloves and safety glasses, to prevent injury from sharp edges or chemical exposure.
• ജല അപകടങ്ങൾ: Be aware that residual water may be present in the dishwasher or drain lines. Have towels and a bucket ready to manage any spills.
• പ്രൊഫഷണൽ സഹായം: അറ്റകുറ്റപ്പണി നടത്തുമ്പോൾ എന്തെങ്കിലും ഘട്ടത്തെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ അല്ലെങ്കിൽ അസ്വസ്ഥതയുണ്ടെങ്കിൽ, യോഗ്യതയുള്ള ഒരു അപ്ലയൻസ് ടെക്നീഷ്യനെ സമീപിക്കുക.
• യഥാർത്ഥ ഭാഗങ്ങൾ: Use only genuine or approved replacement parts to ensure compatibility and safe operation.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The dishwasher drain pump is a critical component responsible for expelling water from the dishwasher tub at the end of a wash cycle. This replacement pump is designed for durability and efficient performance.

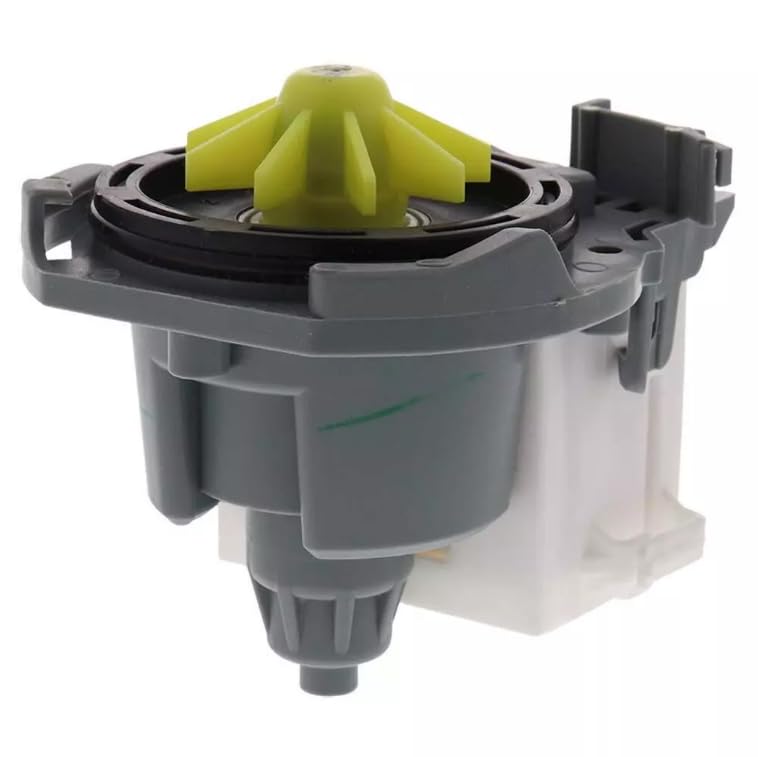

ചിത്രം 3.1: വശം view of the drain pump, showing the motor housing and the yellow impeller assembly.

ചിത്രം 3.2: കോണാകൃതിയിലുള്ളത് view of the drain pump, highlighting the electrical connections and mounting points.

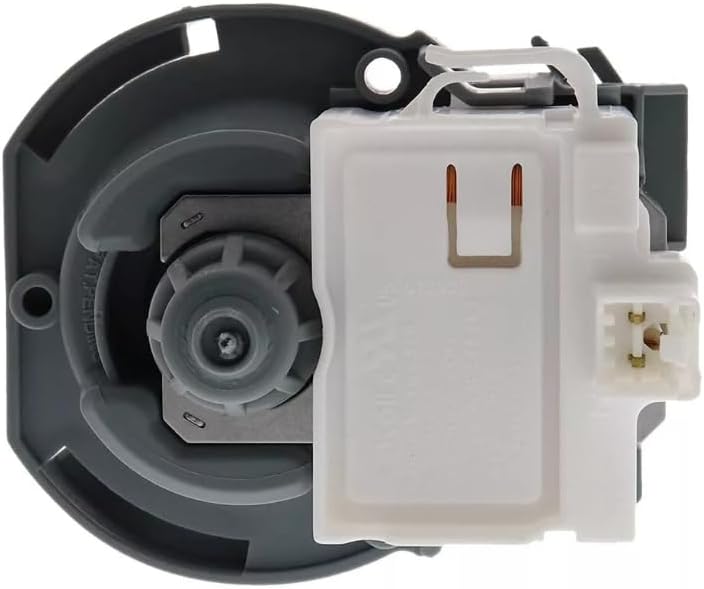

ചിത്രം 3.3: ടോപ്പ് ഡൗൺ view of the drain pump, showing the impeller and the water inlet/outlet ports.

ചിത്രം 3.4: താഴെ view of the drain pump, illustrating the motor assembly and base.

ചിത്രം 3.5: ക്ലോസ് അപ്പ് view of the yellow impeller, responsible for moving water.

4 അനുയോജ്യത

This drain pump replacement is compatible with a wide range of dishwasher models. Please verify your dishwasher's model number against the list below to ensure proper fit.

മെയ് മാസത്തിൽ അനുയോജ്യംtag മോഡലുകൾ:

• MDB8959AWB7
• MDB8959AWW1
• MDB8959AWW2
• MDB8959AWW3
• MDB8959AWW4
• MDB8959AWW5
• MDB8959AWW6
• MDB8959AWW7
• MDB8959SFE0
• MDB8959SFE1
• MDB8959SFE2
• MDB8959SFE3

അനുയോജ്യമായ ക്രോസ്ലി മോഡലുകൾ:

• CUD6710XB0, CUD6710XB1, CUD6710XB2, CUD6710XB3, CUD6710XQ0, CUD6710XQ1, CUD6710XQ2, CUD6710XQ3

Compatible KitchenAid Models:

• KDFE104DBL3, KDFE104DWH0, KDFE104DWH1, KDFE104DWH2, KDFE104DWH3, KDFE104DSS3, KDFE204EBL0, KDFE204EBL2, KDFE204ESS1, KDFE204ESS2, KDFE204EWH0, KDFE204EWH1, KDFE204EWH2, KDTE104DBL0, KDTE104DBL1, KDTE104EBL0, KDTE104EBL1, KDTE104EBL2, KDTE104EBS1, KDTE104EBS2, KDTE104ESS2, KDTE104EWH0, KDTE104EWH1, KDTE104EWH2, KDTE204EBL0, KDTE204EBL2, KDTE204EPA2, KDTE204ESS2, KDTE204EWH0, KDTE204EWH1, KDTE204EWH2, KUDS30IVBS4

Compatible Magic Chef Models:

• CDB7000AWB1, CDB7000AWB2, CDB7000AWB3, CDB7000AWB4, CDB7000AWB5, CDB7000AWS1, CDB7000AWS2, CDB7000AWS3, CDB7000AWS4, CDB7000AWS5, CDB7000AWW1, CDB7000AWW2, CDB7000AWW3, CDB7000AWW4, CDB7000AWW5

Compatible Inglis Models:

• IPU98666, IWU98660, IWU98661, IWU98663, IWU98664, IWU98665, IWU98760, IWU98761

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Replacing a dishwasher drain pump typically involves accessing the pump from the bottom or front of the dishwasher. The exact steps may vary slightly depending on your specific dishwasher model. Always refer to your dishwasher's service manual for model-specific instructions.

1. ഇൻസ്റ്റാളേഷനായി തയ്യാറെടുക്കുക:
   • Disconnect the dishwasher from its electrical power supply.
   • ഡിഷ്വാഷറിലേക്കുള്ള ജലവിതരണം ഓഫാക്കുക.
   • Carefully pull the dishwasher out from its cabinet enclosure.
   • Lay the dishwasher on its back or side to access the bottom components, placing towels underneath to catch any water.
2. Locate the Old Drain Pump: The drain pump is usually located at the bottom of the dishwasher, often connected to the drain hose and the wash motor assembly.
3. Disconnect Wiring and Hoses:
   • Carefully disconnect the electrical wiring harness from the old pump. Note the orientation for reinstallation.
   • cl നീക്കം ചെയ്യുകamps securing the drain hoses to the pump and detach the hoses. Be prepared for residual water.
4. Remove the Old Pump: Unfasten any screws, clips, or mounting brackets holding the old drain pump in place. Remove the pump.
5. Install the New Drain Pump:
   • Position the new drain pump in the same location as the old one.
   • Secure it with the appropriate screws, clips, or brackets.
   • Reconnect the drain hoses, ensuring they are properly seated and secured with clampചോർച്ച തടയാൻ എസ്.
   • Reconnect the electrical wiring harness to the new pump, matching the original connections.
6. Test and Reassemble:
   • Carefully return the dishwasher to its upright position.
   • Reconnect the water supply and check for leaks.
   • വൈദ്യുത വൈദ്യുതി വിതരണം വീണ്ടും ബന്ധിപ്പിക്കുക.
   • Run a short wash cycle to test the new drain pump for proper operation and to check for any leaks.
   • Once confirmed operational and leak-free, slide the dishwasher back into its cabinet enclosure.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The drain pump operates automatically as part of your dishwasher's wash cycle. No manual intervention is required for its operation. Ensure your dishwasher is loaded correctly and detergent is added as per your dishwasher's user manual. The pump will activate during the drain phases of the cycle to remove wastewater.

7. പരിപാലനം

Regular maintenance can extend the life of your dishwasher and its components, including the drain pump.

• ഡിഷ്‌വാഷർ ഫിൽട്ടർ വൃത്തിയാക്കുക: Regularly clean your dishwasher's filter to prevent food particles and debris from reaching the drain pump, which can cause blockages or damage.
• വിദേശ വസ്തുക്കൾ ഒഴിവാക്കുക: Ensure no foreign objects (e.g., broken glass, small utensils) enter the dishwasher tub, as these can damage the pump impeller.
• ഡ്രെയിൻ ഹോസ് പരിശോധിക്കുക: ജലപ്രവാഹത്തെ തടസ്സപ്പെടുത്തുന്ന തരത്തിൽ കിങ്കുകൾ, തടസ്സങ്ങൾ അല്ലെങ്കിൽ കേടുപാടുകൾ എന്നിവയ്ക്കായി ഡ്രെയിൻ ഹോസിൽ ഇടയ്ക്കിടെ പരിശോധിക്കുക.
• ശുപാർശ ചെയ്യുന്ന ഡിറ്റർജൻ്റുകൾ ഉപയോഗിക്കുക: Use only dishwasher detergents recommended by your dishwasher manufacturer to prevent residue buildup that could affect pump performance.

8. പ്രശ്‌നപരിഹാരം

If your dishwasher is experiencing draining issues, consult the following troubleshooting guide before considering further repairs.

If these steps do not resolve the issue, professional service may be required.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the seller directly. Specific warranty terms and support channels are typically provided by the retailer or manufacturer at the time of purchase.
