User Manual for 50 Inch Fireplace Insert 5022 CR

1. ആമുഖവും അവസാനവുംview

വാങ്ങിയതിന് നന്ദി.asing the Generic 50 Inch Fireplace Insert 5022 CR. This electric fireplace insert is designed to provide a realistic flame effect and supplemental heating for your living space. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new fireplace insert. Please read this manual thoroughly before installation and use, and retain it for future reference.

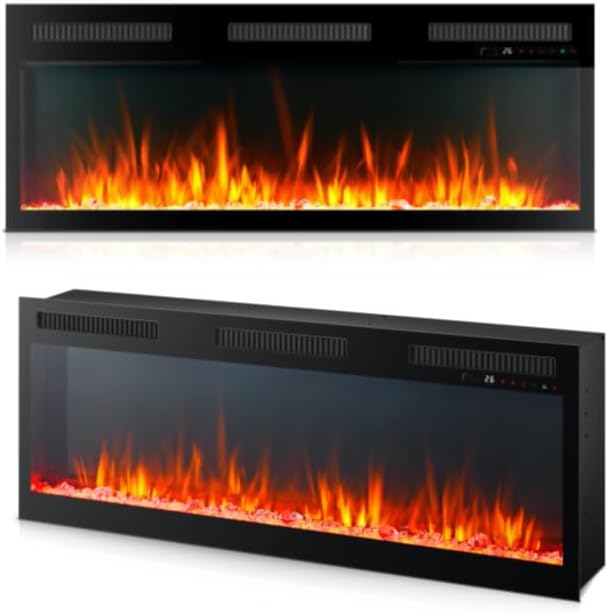

ചിത്രം 1.1: മുൻഭാഗം view of the 50 Inch Fireplace Insert 5022 CR, showcasing its sleek black design and vibrant, realistic flame effect.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

The 50 Inch Fireplace Insert 5022 CR comes equipped with several advanced features to enhance your experience:

• Infinity Flame Effect: Experience a vivid, bright, and lifelike flame for a beautiful fireplace ambiance.
• Crystal Option: The included crystal media adds beautiful sophistication and highlights the colored lighting effects.
• Accent Colors: The unit cycles between a series of color options to customize your experience. Available color themes include White, Red, Blue, Purple, Green, Midnight Mode, and Prism Mode.
• ചൂടാക്കൽ യൂണിറ്റ്: Features a forced fan heating system capable of heating areas up to 1000 square feet.
• നിയന്ത്രണ ഓപ്ഷനുകൾ: Operable via both remote control and integrated touch controls.
• ടൈമർ പ്രവർത്തനം: Set the operational duration from 0.5 hours up to 8 hours.

Image 2.1: This image provides a comprehensive overview of the fireplace insert's features, including a close-up of the digital display, control panel, and the remote control. It also highlights the various flame color options and key specifications.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

This fireplace insert is designed for easy integration into a suitable opening or media console. Ensure the installation area meets the required dimensions and electrical specifications.

3.1 സുരക്ഷാ മുൻകരുതലുകൾ

• Always ensure the unit is unplugged before any installation or maintenance.
• Do not install the unit directly below a fixed electrical outlet.
• Maintain proper clearances from combustible materials as per local building codes.
• Ensure the surface where the fireplace is installed is stable and level.

3.2 സൈറ്റ് തയ്യാറാക്കൽ

Before installation, verify that your chosen location can accommodate the fireplace insert's dimensions:

• ഉൽപ്പന്ന അളവുകൾ (L x W x H): 50.25 x 7.25 x 19.5 ഇഞ്ച്
• Firebox Dimensions (W x D x H): 50-1/4" x 7-1/4" x 19-3/8"

Ensure the electrical outlet is easily accessible and meets the following requirements:

• വാല്യംtage: 120 വോൾട്ട്
• വാട്ട്tage: 1230 വാട്ട്സ്
• BTU: 5000 ബി.ടി.യു

3.3 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. Carefully unpack the fireplace insert and remove all packaging materials.
2. Place the fireplace insert into the prepared opening. Ensure it fits snugly and is level.
3. ഒരു ഗ്രൗണ്ടഡ് 120V ഔട്ട്ലെറ്റിലേക്ക് പവർ കോർഡ് പ്ലഗ് ചെയ്യുക.
4. Test the unit by pressing the power button on the control panel or remote control.

Image 3.1: The fireplace insert seamlessly integrated into a media console, demonstrating a common installation scenario.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Your fireplace insert can be operated using the touch controls on the unit or the provided remote control.

4.1 നിയന്ത്രണ പാനലും റിമോട്ട് പ്രവർത്തനങ്ങളും

• പവർ ബട്ടൺ: യൂണിറ്റ് ഓൺ/ഓഫ് ചെയ്യുന്നു.
• Flame Speed Button: Adjusts the speed of the flame effect.
• തെളിച്ച ബട്ടൺ: Controls the intensity of the flame brightness.
• വർണ്ണ ബട്ടൺ: Cycles through the available flame and accent lighting colors (White, Red, Blue, Purple, Green, Midnight Mode, Prism Mode).
• താപനില ബട്ടൺ: Adjusts the thermostat setting for the heating function.
• ടൈമർ ബട്ടൺ: Sets the automatic shut-off timer (0.5 to 8 hours).
• ഹീറ്റ് ബട്ടൺ: Activates or deactivates the heating function. The unit has a forced fan heating system.
• Flame Only Without Heat: This option is available for ambiance without heating.
• Fan Only Without Heat: This option is available for air circulation without heating.

4.2 Adjusting Flame Colors

Press the 'Color' button on the control panel or remote to cycle through the various flame and accent lighting options. Each press will change the color theme, allowing you to customize the ambiance to your preference.

Image 4.1: A visual representation of the diverse flame color options available, including shades of orange, blue, purple, green, and red, demonstrating the customizable lighting effects.

5. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your fireplace insert.

5.1 വൃത്തിയാക്കൽ

• വൃത്തിയാക്കുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും യൂണിറ്റ് അൺപ്ലഗ് ചെയ്യുക.
• ഒരു സോഫ്റ്റ് ഉപയോഗിക്കുക, ഡിamp പുറംഭാഗങ്ങൾ തുടയ്ക്കാൻ തുണി ഉപയോഗിക്കുക. അബ്രാസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• Gently dust the air intake and exhaust vents to prevent accumulation.
• Clean the glass panel with a soft cloth and a non-abrasive glass cleaner.

5.2 സംഭരണം

If storing the unit for an extended period, unplug it and store it in a dry, dust-free location, preferably in its original packaging.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your fireplace insert, refer to the following common solutions:

• ശക്തിയില്ല: Ensure the power cord is securely plugged into a working 120V outlet. Check the circuit breaker.
• No Flame Effect: Verify the unit is powered on. If the flame effect is off, press the flame button on the control panel or remote.
• ചൂടില്ല: Ensure the heating function is activated. Check the thermostat setting; it may be set lower than the ambient room temperature. Ensure the air vents are not obstructed.
• റിമോട്ട് പ്രവർത്തിക്കുന്നില്ല: Check the batteries in the remote control and replace if necessary. Ensure there are no obstructions between the remote and the unit's sensor.

For issues not resolved by the above steps, please contact customer support.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please contact the manufacturer, QiMaieeUSA, or your place of purchase. Keep your purchase receipt as proof of purchase.

Manufacturer: QiMaieeUSA
