NOMA C9 LED String Lights (Model Z31-6180-6) User Manual

1. ആമുഖം

This manual provides instructions for the safe and efficient use of your NOMA C9 LED String Lights, Model Z31-6180-6. These 4.9-meter (16-foot) string lights feature 24 pure white and blue C9 LED bulbs, designed for both indoor and outdoor applications. The bulbs have a crystalline diamond pattern for enhanced light effects. Please read this manual thoroughly before installation and operation.

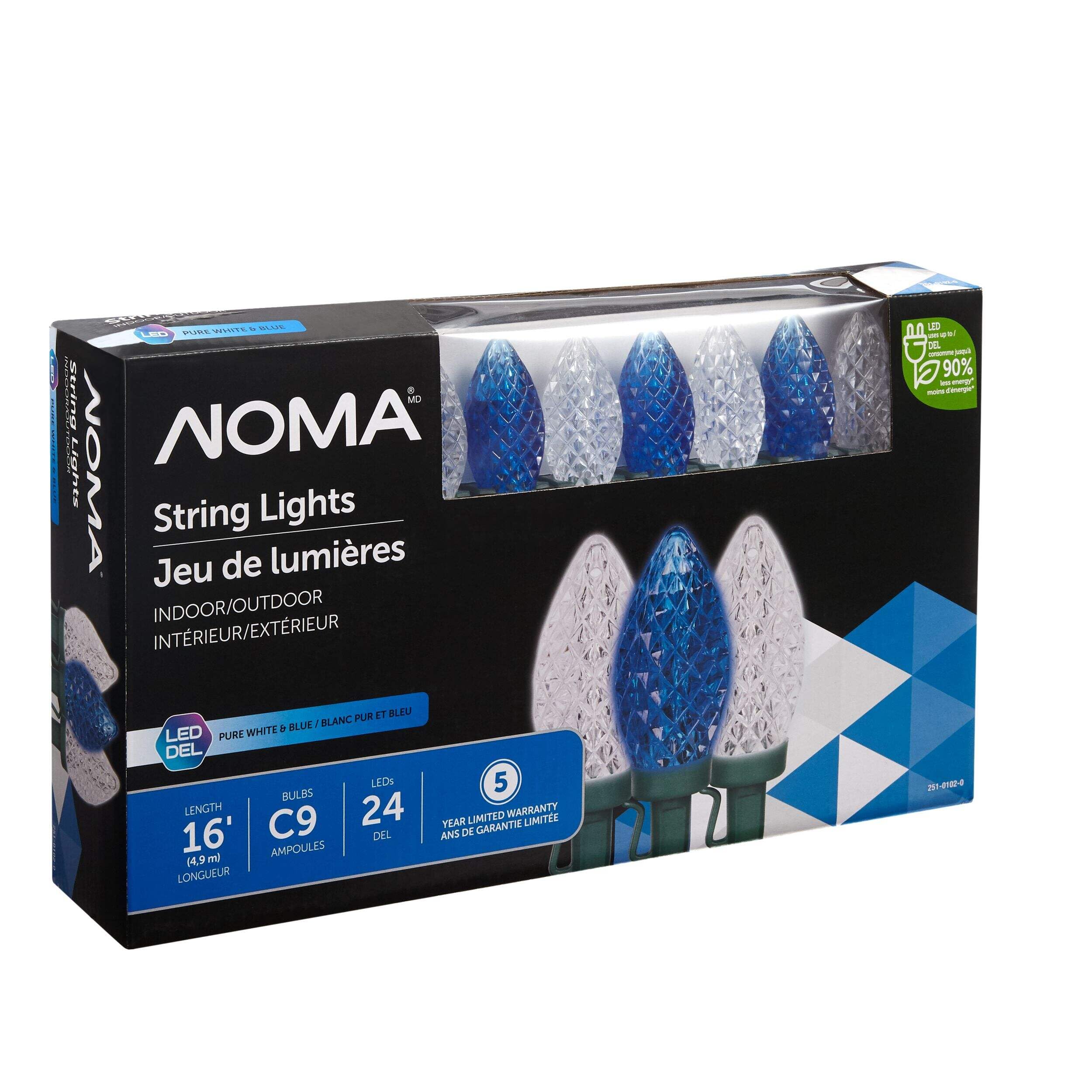

Figure 1: NOMA C9 LED String Lights (Model Z31-6180-6)

2 സുരക്ഷാ വിവരങ്ങൾ

Adhere to the following safety precautions to prevent injury or damage to the product:

• വൈദ്യുത അനുയോജ്യത: Use only on a 120 V electrical circuit. Do not connect these LED lights with incandescent light strings.
• കണക്ഷൻ പരിധി: Do not connect more than 36 sets of these string lights to one outlet. Exceeding this limit can cause electrical overload.
• പരിശോധന: Before each use, inspect the string lights for any damage to the wire, bulbs, or plugs. Do not use if damaged.
• ഇൻസ്റ്റലേഷൻ: Ensure all connections are secure. Do not mount or place near gas or electric heaters, fireplaces, candles, or other similar sources of heat.
• ഔട്ട്ഡോർ ഉപയോഗം: Although designed for outdoor use, ensure plugs and connections are protected from direct water exposure where possible.
• ഉപയോഗത്തിലില്ലാത്തപ്പോൾ അൺപ്ലഗ് ചെയ്യുക: Always unplug the string lights from the power source when not in use or before performing any maintenance.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep out of reach of children and pets to prevent entanglement or accidental ingestion of small parts.

Figure 2: Product packaging with safety information and specifications.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x NOMA C9 LED String Lights (4.9 m / 16 ft, 24 LEDs)
• 1 x സ്പെയർ ഫ്യൂസ്
• 2 x സ്പെയർ C9 LED ബൾബുകൾ
• Installation Hardware (e.g., clips or ties, if included)

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

ശരിയായ സജ്ജീകരണത്തിനും ഇൻസ്റ്റാളേഷനും ഈ ഘട്ടങ്ങൾ പാലിക്കുക:

1. അൺപാക്ക് ചെയ്ത് പരിശോധിക്കുക: Carefully remove the string lights from the packaging. Uncoil the string and inspect all bulbs, wires, and plugs for any signs of damage. Do not plug in if any damage is found.
2. പ്ലാൻ പ്ലേസ്മെൻ്റ്: Determine the desired location for your string lights. Consider the length (4.9 m / 16 ft) and the proximity to a 120 V power outlet.
3. ഒന്നിലധികം സെറ്റുകൾ ബന്ധിപ്പിക്കുന്നു: These string lights are designed to connect multiple sets end-to-end. Locate the male plug on one end and the female receptacle on the other. Connect the male plug of one set into the female receptacle of another. Remember the limit of 36 sets per outlet.
4. മൗണ്ടിംഗ്: Use appropriate installation hardware (e.g., clips, hooks, or zip ties) to secure the string lights. Ensure the lights are hung securely and the wire is not strained or pinched. Avoid hanging the lights in a way that could cause tripping hazards.
5. പവർ കണക്ഷൻ: Once securely installed, plug the string lights into a standard 120 V electrical outlet.

Installation Planning Guide

Refer to the following guidelines for estimating the number of lights needed for common applications:

Figure 3: Installation planning guide for various applications.

• Traditional Shaped Tree: For C9 bulbs, approximately 25 lights per foot of tree height.
• Roofline: A general rule is 16 feet for a standard single car garage and an additional 10-12 feet per awning.
• Railing: Measure the length end-to-end of the railing. For a standard railing, consider purchasing double the measured length to allow for wrapping.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Operating your NOMA C9 LED String Lights is straightforward:

1. പവർ ഓൺ: Once the string lights are properly installed and plugged into a 120 V outlet, they will illuminate.
2. പവർ ഓഫ്: To turn off the lights, simply unplug them from the electrical outlet.
3. നിയന്ത്രണ രീതി: The lights are controlled by plugging and unplugging the cord. There is no integrated switch.

6. പരിപാലനം

പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ സ്ട്രിംഗ് ലൈറ്റുകളുടെ ദീർഘായുസ്സും മികച്ച പ്രകടനവും ഉറപ്പാക്കുന്നു.

ബൾബ് മാറ്റിസ്ഥാപിക്കൽ

If a bulb burns out, replace it with one of the provided spare C9 LED bulbs. Ensure the string is unplugged before attempting replacement.

1. പവർ ഉറവിടത്തിൽ നിന്ന് ലൈറ്റ് സ്ട്രിംഗ് അൺപ്ലഗ് ചെയ്യുക.
2. Carefully twist the old bulb counter-clockwise to remove it from its socket.
3. Insert a new spare C9 LED bulb into the socket and twist clockwise until secure.
4. Plug the string back in to test the new bulb.

ഫ്യൂസ് മാറ്റിസ്ഥാപിക്കൽ

If the entire string of lights fails to illuminate, the fuse in the plug may need replacement.

1. പവർ ഉറവിടത്തിൽ നിന്ന് ലൈറ്റ് സ്ട്രിംഗ് അൺപ്ലഗ് ചെയ്യുക.
2. Slide open the fuse compartment cover on the plug (usually a small sliding door on the side or top).
3. പഴയ ഫ്യൂസ് ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
4. Insert the new spare fuse into the compartment.
5. Close the fuse compartment cover.
6. Plug the string back in to test.

വൃത്തിയാക്കലും സംഭരണവും

• വൃത്തിയാക്കൽ: Ensure the lights are unplugged. Wipe bulbs and wires with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• സംഭരണം: When not in use, carefully coil the string lights to prevent tangling and damage. Store in a cool, dry place, away from direct sunlight and extreme temperatures.

7. പ്രശ്‌നപരിഹാരം

If your NOMA C9 LED String Lights are not functioning as expected, consult the following table:

8 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the NOMA C9 LED String Lights (Model Z31-6180-6):

Figure 4: Detail of the C9 LED bulbs with crystalline texture.

9. വാറൻ്റിയും പിന്തുണയും

വാറൻ്റി വിവരങ്ങൾ

Your NOMA C9 LED String Lights come with a 5 വർഷത്തെ പരിമിത വാറൻ്റി against defects in workmanship and materials. Noma Canada agrees to replace a defective product, within the stated warranty period, when returned to the place of purchase with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.

ഉപഭോക്തൃ പിന്തുണ

For further assistance, questions, or warranty claims, please contact Noma Customer Service. Refer to the contact information provided on the product packaging or the retailer's webസൈറ്റ്.
