SonicWall NSa3800 Next-Generation Firewall Instruction Manual

1. ആമുഖം

The SonicWall NSa3800 Next-Generation Firewall is designed to provide advanced security and network performance for large enterprises and distributed networks. This appliance offers robust threat prevention, secure SD-WAN capabilities, and high throughput to protect your network infrastructure.

പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:

• High firewall throughput and threat prevention capabilities.
• Multiple Ethernet and SFP+ interfaces for flexible connectivity.
• Support for a large number of concurrent connections and VPN tunnels.
• Integration with SonicWall services like Capture ATP sandboxing, intrusion prevention, and TLS 1.3 inspection.

Figure 1: SonicWall NSa3800 Next-Generation Firewall, front view.

2. സജ്ജീകരണം

This section outlines the steps for physically setting up your SonicWall NSa3800 appliance.

2.1 അൺപാക്കിംഗും പരിശോധനയും

Carefully unpack the NSa3800 appliance and its accessories. Inspect all components for any signs of damage. If any items are damaged or missing, contact SonicWall support immediately.

2.2 ഫ്രണ്ട് പാനൽ ഓവർview

Familiarize yourself with the front panel ports and indicators.

Figure 2: Front panel of the SonicWall NSa3800, showing 1 GbE Management port, Console port, 2 USB 3.0 ports, 10x10G SFP+ interfaces, 24x1GE Cu interfaces, and Power button.

2.3 പിൻ പാനൽ ഓവർview

Understand the rear panel connections, including power and optional redundant power.

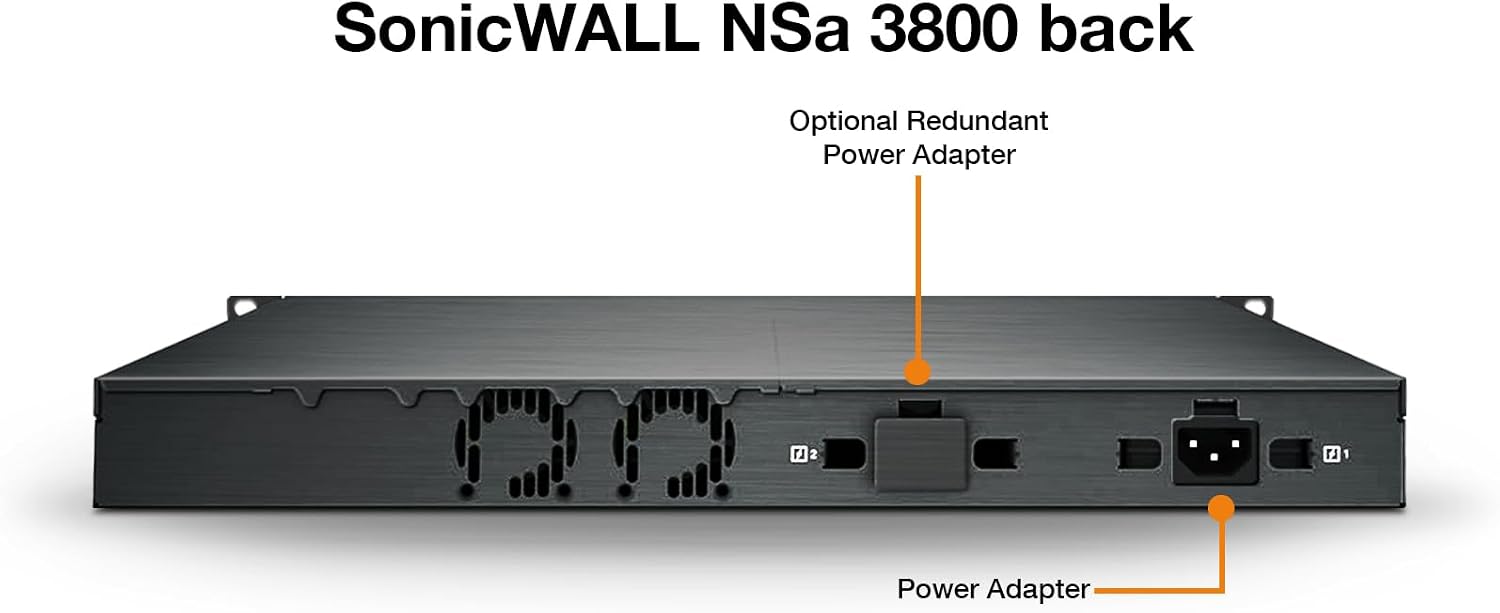

Figure 3: Rear panel of the SonicWall NSa3800, indicating the Power Adapter input and an Optional Redundant Power Adapter slot.

2.4 റാക്ക് മൗണ്ടിംഗ്

The NSa3800 is designed for rack installation. Secure the appliance in a standard 19-inch rack using the provided rack-mount kit. Ensure adequate ventilation around the unit.

Figure 4: SonicWall NSa3800 appliance securely mounted in a server rack.

2.5 Initial Power-On and Connectivity

1. Connect the power cable to the appliance and a grounded power outlet.
2. മുൻ പാനലിലെ പവർ ബട്ടൺ അമർത്തുക.
3. Connect the 1 GbE Management port to your network for initial configuration.
4. For advanced configuration, connect a console cable to the Console port and use a terminal emulator.
5. The NSa3800 supports zero-touch deployment, simplifying initial setup and configuration.

3. Operating the NSa3800

The SonicWall NSa3800 operates on SonicOS, providing a comprehensive suite of security and networking features. This section covers general operational aspects.

3.1 Core Functionality

The NSa3800 functions as a Next-Generation Firewall, offering:

• Firewall Inspection: Stateful packet inspection and deep packet inspection for network traffic.
• Threat Prevention: Intrusion Prevention System (IPS), anti-malware, and Capture ATP sandboxing.
• Secure SD-WAN: Optimizes network performance and security for distributed environments.
• VPN: Supports IPSec VPN and SSL VPN for secure remote access and site-to-site connectivity.
• TLS 1.3 Inspection: Decrypts and inspects encrypted traffic for hidden threats.

3.2 Performance Metrics

The NSa3800 is engineered for high performance in demanding network environments.

Figure 5: Performance metrics for the SonicWall NSa3800, including IPS Throughput, Anti-Malware Inspection Throughput, Threat Protection Throughput, Firewall Inspection Throughput, TLS/SSL inspection and encryption throughput, and IPSec VPN Throughput.

3.3 Deployment Scenarios

The NSa3800 can be deployed in various network architectures, including Internet Edge and Campus/Private Edge Network configurations.

Figure 6: Deployment options for the NSa Series, showing how the NGFW integrates into Internet Edge and Campus/Private Edge Network setups.

4. പരിപാലനം

Regular maintenance ensures optimal performance and security of your NSa3800 appliance.

• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: Regularly check for and apply the latest SonicOS firmware updates to ensure you have the most current security features and bug fixes.
• കോൺഫിഗറേഷൻ ബാക്കപ്പുകൾ: Periodically back up your appliance configuration. This allows for quick recovery in case of unforeseen issues.
• സിസ്റ്റം മോണിറ്ററിംഗ്: Monitor system logs and performance metrics through the SonicOS interface to identify and address potential issues proactively.
• ശാരീരിക പരിശോധന: Ensure the appliance has adequate airflow and that all cables are securely connected. Keep the environment clean and free of dust.

5. പ്രശ്‌നപരിഹാരം

പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള അടിസ്ഥാന ട്രബിൾഷൂട്ടിംഗ് ഘട്ടങ്ങൾ ഈ വിഭാഗം നൽകുന്നു.

• ശക്തിയില്ല: Verify the power cable is securely connected to both the appliance and the power outlet. Check the power button status.
• നെറ്റ്‌വർക്ക് കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure Ethernet cables are properly connected to the correct ports. Check network configurations in SonicOS. Verify upstream network devices (modems, switches) are functioning.
• മന്ദഗതിയിലുള്ള പ്രകടനം: Review system logs for high resource utilization. Check for active threats or misconfigured security policies that might be impacting performance.
• മാനേജ്മെന്റ് ഇന്റർഫേസ് ആക്സസ് ചെയ്യുന്നു: Confirm your computer's IP address is in the same subnet as the management interface. Clear browser cache or try a different browser.
• Consult Documentation: For detailed troubleshooting, refer to the comprehensive SonicWall NSa3800 administration guide available on the official SonicWall support portal.

6 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the SonicWall NSa3800 Next-Generation Firewall.

7. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the official SonicWall warranty policy available on their website or contact your authorized SonicWall reseller. SonicWall provides comprehensive technical support for its products.

7.1 സാങ്കേതിക പിന്തുണ

If you encounter issues that cannot be resolved using this manual or the online documentation, please contact SonicWall Technical Support. Have your product serial number and a detailed description of the issue ready.

You can find support resources, including knowledge bases, forums, and contact information, on the official SonicWall support portal: www.sonicwall.com/support
