ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your OBDPEAK D80 4-Channel 4K Rear View Mirror Camera. Please read this manual thoroughly before using the device to ensure proper functionality and safety.
ബോക്സിൽ എന്താണുള്ളത്
പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- പിൻഭാഗംview Mirror with 3 cameras (Main Unit)
- Rear camera with 6M Cable
- 64G TF കാർഡ്
- സിഗരറ്റ് ലൈറ്റർ ചാർജർ
- 24-Hour Parking Monitoring Hardware Kit
- ഉപയോക്തൃ മാനുവൽ
- Rubber Strips (for mounting)
Image: Package contents for the OBDPEAK D80 dash cam system.
ഉൽപ്പന്ന സവിശേഷതകൾ
1. 11" Touchscreen Display & 4K Front Camera
The device features an 11-inch full touchscreen display for intuitive control and a 4K (2160p) front camera for high-resolution video recording. The large display enhances visibility, reducing blind spots compared to standard rearview കണ്ണാടികൾ.
Image: The 11-inch touchscreen display of the D80 mirror camera.

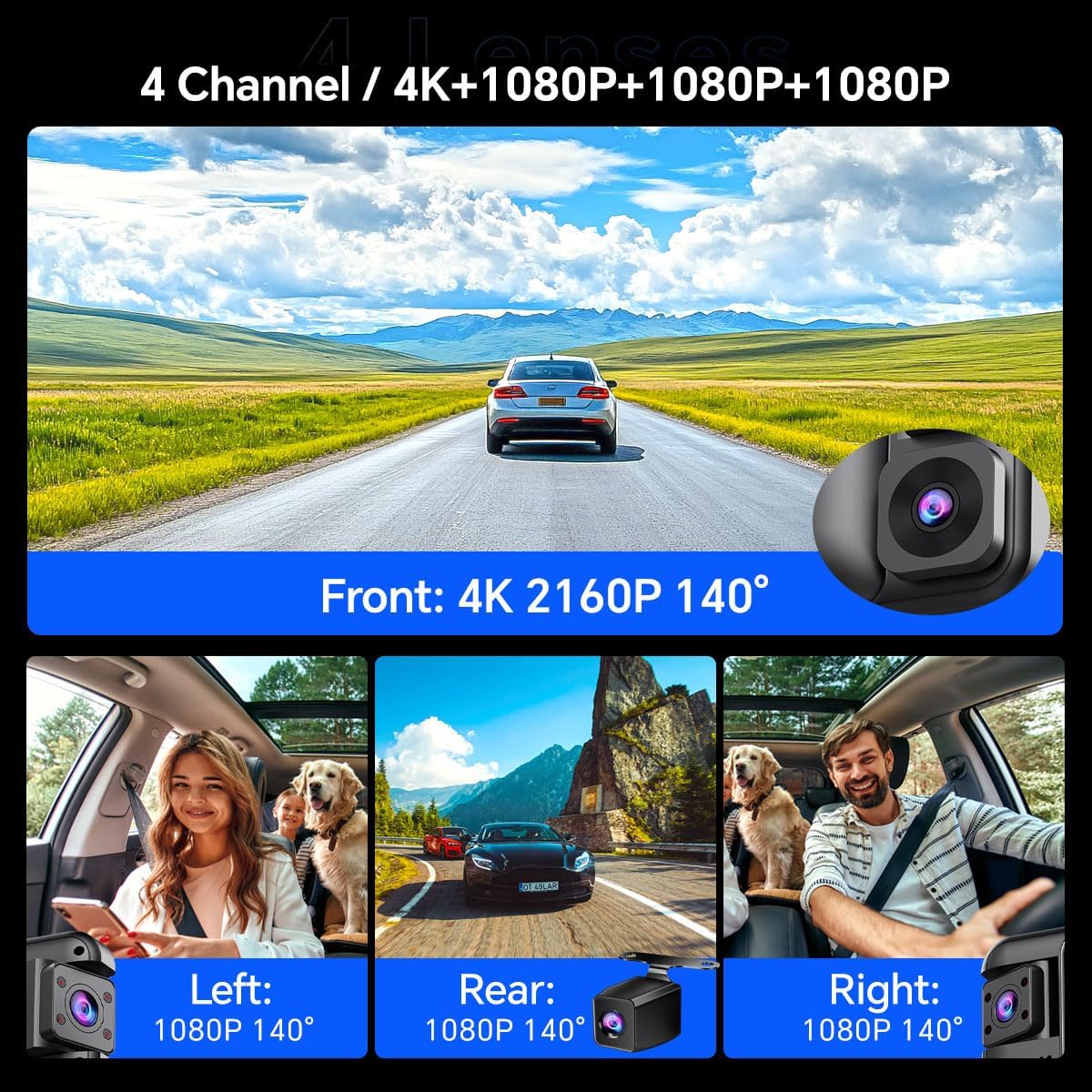

2. 4-Channel Comprehensive Coverage
Equipped with four cameras (Front 4K, Rear 1080P, Left 1080P, Right 1080P), the system provides a complete 360-degree recording of your vehicle's surroundings. This ensures comprehensive evidence capture for various incidents.
Image: Visual representation of the 4-channel camera system providing 360-degree coverage.
3. Smart ADAS (Advanced Driver Assistance System)
The integrated ADAS technology provides voice alerts for critical driving situations, including front vehicle start, lane departure, forward collision, and pedestrian collision warnings. This system assists in maintaining driver awareness and safety.
ചിത്രം: ഉദാamples of ADAS warnings for various road hazards.
4. BSD (Blind Spot Detection) Algorithm
The BSD system monitors blind spots not visible in standard mirrors. It detects vehicles in these areas and provides alerts to the driver, aiding in safer lane changes and preventing potential collisions.
Image: Illustration of the Blind Spot Detection system in action.
5. Rotating + Infrared Car Interior Lenses
The two internal cameras are equipped with infrared functionality, ensuring clear recording even in low-light conditions inside the vehicle. These lenses are rotatable, allowing adjustment to different angles or away from the interior for privacy.
Image: Detail of the rotatable interior cameras with infrared capability.
6. 64GB Memory Card Included
A 64GB memory card is included, providing ample storage for recordings and eliminating the need for a separate purchase. The dash cam supports memory cards up to 256GB.
7. 24-മണിക്കൂർ പാർക്കിംഗ് നിരീക്ഷണം
With the included hardware kit, the D80 offers 24-hour parking monitoring. This feature utilizes all four cameras to provide continuous surveillance of your vehicle, even when parked, with ultra-low power consumption.
ചിത്രം: കഴിഞ്ഞുview of 24-hour parking monitoring features.
8. Multiple Display Modes
The touchscreen supports various display modes, including single-screen, three-screen (1:1:1), and four-screen (1:1:1:1) views, allowing you to customize your monitoring preference.
ചിത്രം: ഉദാamples of multiple camera display modes on the mirror screen.
9. Backup Camera Assist
When reversing, the system automatically displays the high-definition rear camera feed on the IPS screen with guidelines, assisting in safe parking and maneuvering.
Image: Full-screen reversing display with parking assist lines.
10. ലൂപ്പ് റെക്കോർഡിംഗ്
The device supports automatic seamless loop recording, which overwrites the oldest unlocked footage when the memory card is full. This ensures continuous recording without manual intervention.
Image: Explanation of loop recording process.
11. ജി-സെൻസർ
The built-in G-sensor automatically detects sudden impacts or collisions. Upon detection, it locks the current video footage to prevent it from being overwritten by loop recording, preserving critical evidence.
Image: G-Sensor function locking video during an incident.
12. Super Night Vision (HDR Display)
The D80 features Super Night Vision with HDR (High Dynamic Range) display technology, providing enhanced clarity and detail in low-light conditions, improving visibility during nighttime driving and parking monitoring.
Image: Comparison of normal night vision and Super Night Vision with HDR.
13. In-App Video Download & Real-time Viewing (Wi-Fi)
The device supports both iOS and Android systems, allowing users to view and download videos in real-time via the dash cam's built-in Wi-Fi. Emergency videos are automatically locked to prevent overwriting.
Image: In-app video management via Wi-Fi.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for optimal performance. It is recommended to have this device professionally installed if you are unfamiliar with vehicle electrical systems.
1. Main Unit Installation (Rearview Mirror)
- Secure the main unit over your existing rearview mirror using the provided rubber straps. Ensure it is firmly attached and does not obstruct your view.
- Adjust the angle of the main unit's front camera to capture the road ahead clearly.
Image: Main unit dimensions and mounting overview.
2. പിൻ ക്യാമറ ഇൻസ്റ്റാളേഷൻ
- Mount the rear camera at the back of your vehicle, typically above the license plate or inside the rear window. Ensure a clear, unobstructed view.
- Route the 6-meter rear camera cable to the main unit, tucking it neatly along the vehicle's interior trim.
- Connect the rear camera cable to the designated port on the main unit.
3. പവർ കണക്ഷൻ
- Connect the cigarette lighter charger to the main unit's power input.
- Plug the charger into your vehicle's 12V cigarette lighter socket.
- For 24-hour parking monitoring, install the provided hardware kit by connecting it directly to your vehicle's fuse box. Refer to the hardware kit's specific instructions for detailed wiring.
4. മെമ്മറി കാർഡ് ചേർക്കൽ
- Insert the provided 64GB TF card into the memory card slot on the main unit. Ensure it is inserted correctly until it clicks into place.
- Format the memory card through the device's settings menu before first use to ensure compatibility and optimal performance.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
1. പവർ ഓൺ/ഓഫ്
- The device will automatically power on and begin recording when your vehicle's ignition is turned on.
- ഇഗ്നിഷൻ ഓഫാക്കുമ്പോൾ അത് യാന്ത്രികമായി ഓഫാകും.
- To manually power on/off, press and hold the power button located on the side of the unit.
2. ടച്ച്സ്ക്രീൻ പ്രവർത്തനം
- Tap the screen to access menus and settings.
- Swipe left/right on the screen to switch between different camera views (front, rear, left, right, or combined viewഎസ്).
- Swipe up/down to adjust brightness or switch between display modes.
3. റെക്കോർഡിംഗ് മോഡുകൾ
- Driving Recording: ഉപകരണം ഓണാക്കുമ്പോൾ തുടർച്ചയായ ലൂപ്പ് റെക്കോർഡിംഗ് യാന്ത്രികമായി ആരംഭിക്കും.
- പാർക്കിംഗ് നിരീക്ഷണം: Activates when the vehicle is parked and ignition is off (requires hardware kit installation). Records events like impacts or motion detection.
- അടിയന്തര റെക്കോർഡിംഗ് (ജി-സെൻസർ): വീഡിയോ സ്വയമേവ ലോക്ക് ചെയ്യുന്നു files upon detecting a collision or sudden movement, preventing them from being overwritten.
4. ADAS and BSD Functions
- ADAS and BSD systems are enabled by default. Voice alerts will be provided for detected hazards.
- These functions can be configured or disabled in the system settings if desired.
5. വൈ-ഫൈ, ആപ്പ് കണക്റ്റിവിറ്റി
- Download the dedicated mobile application (search for "OBDPEAK" or refer to the manual for app name) from your device's app store.
- Enable Wi-Fi on the dash cam via the settings menu.
- Connect your smartphone to the dash cam's Wi-Fi network (SSID and password typically displayed on the dash cam screen).
- ഇതിനായി ആപ്പ് ഉപയോഗിക്കുക view തത്സമയംtage, റെക്കോർഡ് ചെയ്ത വീഡിയോകൾ പ്ലേബാക്ക് ചെയ്യുക, ഡൗൺലോഡ് ചെയ്യുക files to your phone, and adjust settings.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the screen and camera lenses. Avoid abrasive cleaners or solvents.
- മെമ്മറി കാർഡ്: Regularly format the memory card (at least once a month) to maintain optimal performance and prevent data corruption. Back up important fileഫോർമാറ്റ് ചെയ്യുന്നതിന് മുമ്പ് എസ്.
- ഫേംവെയർ അപ്ഡേറ്റുകൾ: നിർമ്മാതാവ് പരിശോധിക്കുക website periodically for firmware updates. Updates can improve performance and add new features.
- താപനില: Avoid exposing the device to extreme temperatures for extended periods, as this can affect battery life and component longevity.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ പരിഹാരം |
|---|---|
| ഉപകരണം പവർ ഓണാക്കുന്നില്ല. |
|
| റെക്കോർഡിംഗ് നിർത്തുകയോ മരവിപ്പിക്കുകയോ ചെയ്യുന്നു. |
|
| മോശം വീഡിയോ നിലവാരം. |
|
| ADAS/BSD alerts are not working. |
|
| വൈഫൈ കണക്ഷൻ പ്രശ്നങ്ങൾ. |
|
സ്പെസിഫിക്കേഷനുകൾ
- മോഡലിൻ്റെ പേര്: D80
- ബ്രാൻഡ്: ഒബിഡിപീക്ക്
- ഫ്രണ്ട് ക്യാമറ റെസല്യൂഷൻ: 4K (2160p)
- പിൻ ക്യാമറ റെസല്യൂഷൻ: 1080p
- Interior Camera Resolution: 1080p (Left & Right)
- ഡിസ്പ്ലേ: 11 ഇഞ്ച് ടച്ച്സ്ക്രീൻ
- ഫീൽഡ് View: Front 170 Degrees, Other cameras 140 Degrees
- പ്രത്യേക സവിശേഷതകൾ: ADAS, BSD, 360 Degree Coverage, Automatic Incident Detection, Blind Spot Detection, Built-In Display, Parking Monitor, Super Night Vision, Loop Recording, G-Sensor, Wi-Fi
- സംഭരണം: 256GB വരെ TF കാർഡ് പിന്തുണയ്ക്കുന്നു (64GB ഉൾപ്പെടുത്തിയിരിക്കുന്നു)
- കണക്റ്റിവിറ്റി: USB, Wireless (Wi-Fi)
- ഊർജ്ജ സ്രോതസ്സ്: 1 Lithium Ion battery (included), Car Charger (12V)
- ഉൽപ്പന്ന അളവുകൾ: 0.8 x 12.28 x 2.9 ഇഞ്ച്
- ഇനത്തിൻ്റെ ഭാരം: 2.97 പൗണ്ട്
വാറൻ്റിയും പിന്തുണയും
For warranty information and technical support, please refer to the contact details provided in the packaging or visit the official OBDPEAK webസൈറ്റ്. വാറൻ്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
