Ledlenser TT3R Tactical Flashlight User Manual

ആമുഖം

Thank you for choosing the Ledlenser TT3R Tactical Flashlight. This manual provides essential information for the safe and efficient use of your device. Please read it thoroughly before operation and retain it for future reference.

സുരക്ഷാ വിവരങ്ങൾ

• നേത്ര സുരക്ഷ: Do not look directly into the light beam or shine it into the eyes of others. The high intensity light can cause temporary vision impairment or permanent eye damage.
• കുട്ടികൾ: ഫ്ലാഷ്‌ലൈറ്റ് കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• ചൂട്: The flashlight head may become hot during prolonged use at high power settings. Handle with care.
• ബാറ്ററി: Use only the specified rechargeable battery. Do not attempt to open, crush, or expose the battery to extreme temperatures or fire.
• പരിപാലനം: Do not attempt to disassemble or modify the flashlight. Refer all servicing to qualified personnel.

പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Ledlenser TT3R Tactical Flashlight
• Rechargeable Lithium-ion Battery (pre-installed)
• USB-C ചാർജിംഗ് കേബിൾ
• ഹോൾസ്റ്റർ
• സ്ട്രാപ്പ്
• ഉപയോക്തൃ മാനുവൽ

Image: The Ledlenser TT3R Tactical Flashlight and its included accessories, neatly arranged next to its packaging.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Ledlenser TT3R is a robust and powerful tactical flashlight designed for demanding environments. It features a compact design, high light output, and multiple specialized light modes.

പ്രധാന സവിശേഷതകൾ:

• ഉയർന്ന തെളിച്ചം: ശക്തമായ പ്രകാശത്തിനായി 1900 ല്യൂമൻ വരെ നൽകുന്നു.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: IP68 waterproof and dustproof, tested to withstand drops from up to 2 meters.
• Tactical Light Modes: Includes white, red, blue, and strobe light functions for various tactical applications.
• Advanced Focus System: Allows for instant switching between a wide flood beam for close-range work and a focused spot beam for long-distance visibility up to 300 meters.
• റീചാർജ് ചെയ്യാവുന്നത്: Convenient USB-C charging with a 4600mAh lithium-ion battery providing up to 50 hours of runtime.

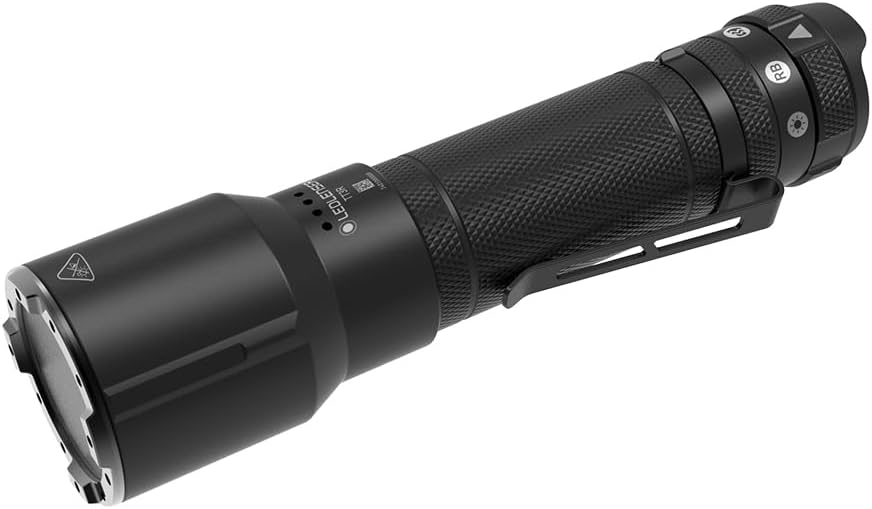

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the Ledlenser TT3R Tactical Flashlight, showcasing its textured grip and robust design.

Image: A composite image showing the Ledlenser TT3R emitting white, red, and blue light, demonstrating its multi-color capabilities.

സജ്ജമാക്കുക

പ്രാരംഭ ബാറ്ററി ചാർജ്:

Before first use, fully charge the flashlight battery. Refer to the 'Charging' section for detailed instructions.

സ്ട്രാപ്പ് ഘടിപ്പിക്കുന്നു:

Thread the included strap through the loop at the tail cap of the flashlight to prevent accidental drops.

Using the Holster:

Insert the flashlight into the provided holster for secure carrying and easy access. The holster can be attached to a belt or gear.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The TT3R features an intuitive mode selection ring and an end-cap switch for quick access to various light functions.

പവർ ഓൺ/ഓഫ്:

• Press the end-cap switch firmly until it clicks to turn the flashlight ON or OFF.

മോഡ് തിരഞ്ഞെടുക്കൽ:

Rotate the mode selection ring near the tail cap to choose between different primary functions:

1. വൈറ്റ് ലൈറ്റ് മോഡുകൾ: Offers multiple brightness levels (Low, Medium, High, Boost). With the flashlight on, half-press the end-cap switch to cycle through brightness levels. A full press will turn it off.
2. Red/Blue Light Modes: Provides red light for night vision preservation and blue light for forensic or signaling purposes. Half-press to cycle through steady red, flashing red, steady blue, flashing blue.
3. സ്ട്രോബ് മോഡ്: Activates a high-frequency strobe light for signaling or disorienting.
4. ലോക്ക് മോഡ്: Prevents accidental activation during transport or storage. In this mode, the end-cap switch will not activate the light.

Advanced Focus System:

The TT3R utilizes an Advanced Focus System to seamlessly transition between a wide flood beam and a focused spot beam. This adjustment is typically made by sliding the head of the flashlight forward or backward, or by an internal mechanism that adjusts the beam without external movement of the head.

Image: A hand firmly gripping the Ledlenser TT3R flashlight, demonstrating its ergonomic design and textured surface for secure handling.

Image: A person in tactical gear demonstrating the red and blue light modes of the Ledlenser TT3R flashlight in a low-light environment.

ചാർജിംഗ്

The Ledlenser TT3R is equipped with a USB-C charging port for convenient recharging.

ചാർജിംഗ് നടപടിക്രമം:

1. Locate the USB-C charging port on the flashlight body. It is typically covered by a rubber seal for water protection.
2. Gently open the rubber seal to expose the USB-C port.
3. Connect the provided USB-C cable to the flashlight and to a compatible USB power source (e.g., wall adapter, power bank, computer USB port).
4. The battery indicator lights (usually green LEDs) will illuminate to show the charging progress.
5. A full charge from empty typically takes approximately 3.5 hours. The indicator lights will show a solid green when charging is complete.
6. Once charging is complete, disconnect the USB-C cable and ensure the rubber seal is securely closed to maintain IP68 rating.

Image: A close-up of the Ledlenser TT3R flashlight showing the USB-C charging port, typically covered by a protective rubber flap.

Image: A close-up of the Ledlenser TT3R showing a series of green LED indicator lights, which display the battery charge level.

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and optimal performance of your Ledlenser TT3R flashlight.

• വൃത്തിയാക്കൽ: ഫ്ലാഷ്‌ലൈറ്റ് ബോഡി മൃദുവായ, ഡി ഉപയോഗിച്ച് തുടയ്ക്കുക.amp തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• ത്രെഡുകളും ഓ-റിംഗുകളും: Periodically clean and lightly lubricate the screw threads and O-rings (if accessible) with silicone grease to maintain water resistance.
• ബാറ്ററി സംഭരണം: If storing the flashlight for an extended period, charge the battery to approximately 50-70% and store it in a cool, dry place. Recharge every 3-6 months to prevent deep discharge.
• ജല പ്രതിരോധം: Always ensure the USB-C port cover is securely closed to maintain the IP68 waterproof rating.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

The Ledlenser TT3R Tactical Flashlight comes with a comprehensive warranty to ensure your peace of mind.

7 വർഷത്തെ വാറൻ്റി:

This product is covered by a 7-year warranty. To activate the full 7-year warranty, online product registration is required. Please visit the official Ledlenser webസൈറ്റിൽ പോയി ഉൽപ്പന്ന രജിസ്ട്രേഷനുള്ള നിർദ്ദേശങ്ങൾ പാലിക്കുക.

Image: The Ledlenser 7-Year Warranty logo, indicating extended coverage upon online product registration.

ഉപഭോക്തൃ പിന്തുണ:

For technical assistance, warranty claims, or general inquiries, please contact Ledlenser customer support through their official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന ഡോക്യുമെന്റേഷനോടൊപ്പം നൽകിയിരിക്കുന്ന ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ.
