Aoxun 20' x 10' Wall-Mounted Gazebo Pergola Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

This manual provides instructions for the Aoxun 20' x 10' Wall-Mounted Gazebo Pergola. This product is designed to provide a shaded and protected outdoor space for patios, decks, or backyards. Key features include a sloped roof for efficient water drainage, a durable carbon steel frame, and polycarbonate panels offering UV protection.

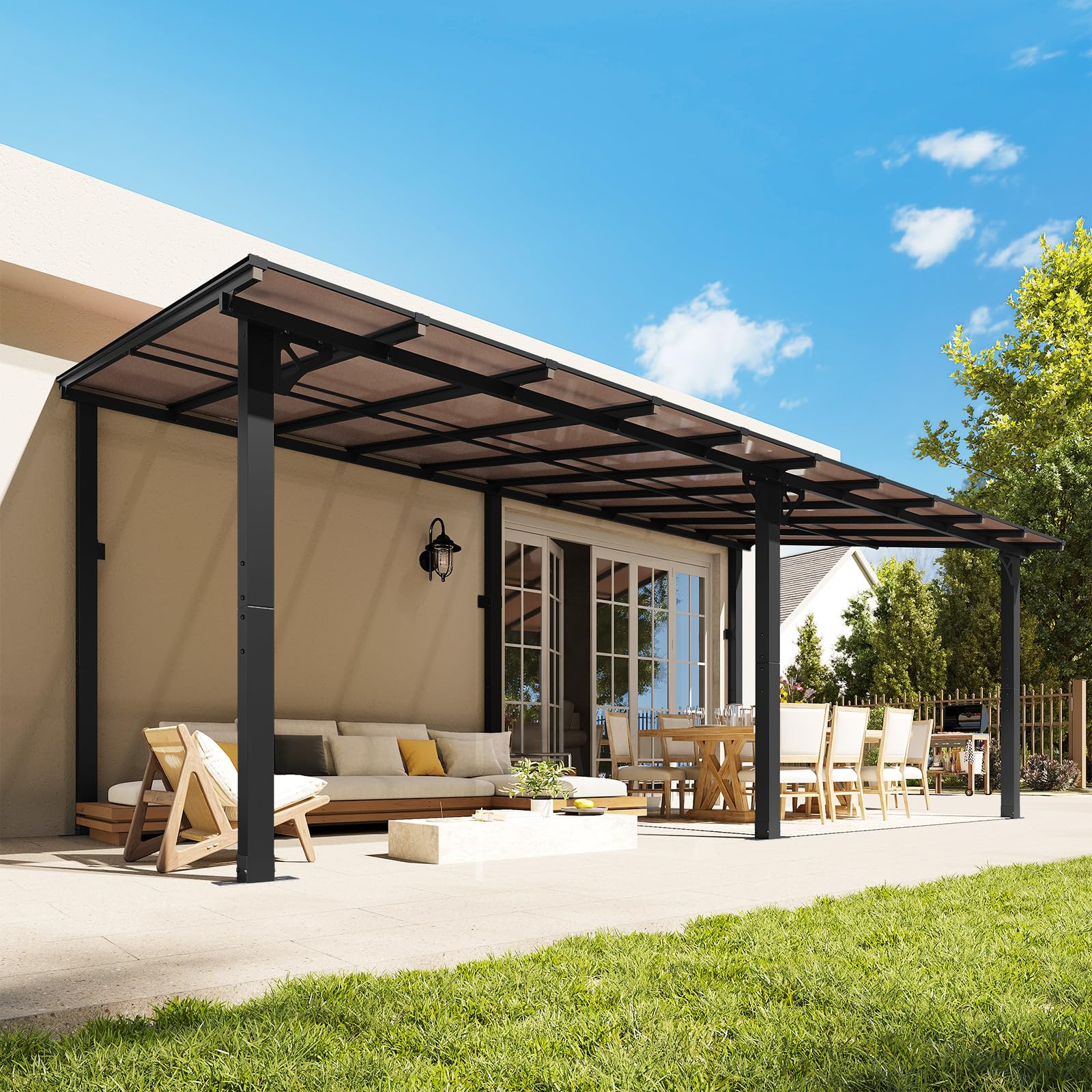

Figure 1: Aoxun 20'x10' Wall-Mounted Gazebo Pergola installed on a patio.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read and understand all safety warnings before assembly and use of the gazebo.

• Always follow the provided assembly instructions carefully.
• Use expansion bolts and ground nails to secure the gazebo to the wall and ground. Proper anchoring is crucial for stability.
• Do not attempt to assemble or disassemble the gazebo alone; always work with at least one other person. A team of 2-3 persons is recommended.
• പരിക്കുകൾ ഒഴിവാക്കാൻ കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അസംബ്ലി ഏരിയയിൽ നിന്ന് അകറ്റി നിർത്തുക.
• Do not use the gazebo in high winds or heavy snow until it is properly secured. The maximum wind resistant grade is 7 (31-38mph) and the maximum snow loading depth is 4 inches after proper installation.

3. അസംബ്ലി നിർദ്ദേശങ്ങൾ

Assembly typically requires 2-3 persons and takes approximately 3-4 hours. Refer to the detailed step-by-step instructions included in your product packaging for specific component identification and assembly order.

3.1 Key Structural Components

• Carbon Steel Frames: Ensure all frame pieces are correctly aligned and securely fastened.
• Triangular Metal Structure: These supports enhance durability and stability.
• Polycarbonate Top: Install panels carefully to ensure proper fit and UV protection.
• Wall-Mounted Hardware: This gazebo is designed to be wall-mounted. Ensure the wall is suitable and use appropriate expansion bolts.

Figure 2: Product detail showing triangular support, pre-drilled metal support, top multiple column support, and wall-mounted hardware.

3.2 ആങ്കറിംഗ്

The gazebo must be securely anchored to both the wall and the ground. Use the provided expansion bolts for wall mounting and ground nails for securing the base to the ground. This ensures the structure's stability against wind and other environmental factors.

Figure 3: Illustration of the anchoring structure for stability.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Aoxun Gazebo Pergola is designed to enhance your outdoor living space by providing shade and protection.

• തണലും യുവി സംരക്ഷണവും: The polycarbonate top reflects 99% of UV rays, providing a comfortable shaded area.
• വാട്ടർ ഡ്രെയിനേജ്: The sloped roof design facilitates smooth rainwater runoff, preventing accumulation. Gap drainage further assists in water management.
• ബഹുമുഖ ഉപയോഗം: Ideal for various outdoor activities such as dining, relaxation, or as a cover for hot tubs or pools.

Figure 4: Gazebo providing shade in summer and illustrating snow load capacity in winter.

Figure 5: Drainage system of the sloped roof.

5. പരിപാലനം

Regular maintenance will prolong the life and appearance of your gazebo.

• വൃത്തിയാക്കൽ: Clean the polycarbonate panels and metal frame with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish or material.
• പരിശോധന: എല്ലാ ബോൾട്ടുകളും കണക്ഷനുകളും ഇറുകിയതാണെന്ന് ഉറപ്പാക്കാൻ ഇടയ്ക്കിടെ പരിശോധിക്കുക. ആവശ്യമെങ്കിൽ വീണ്ടും മുറുക്കുക.
• മഞ്ഞ് നീക്കം ചെയ്യൽ: While the gazebo has a snow loading capacity of 4 inches, it is recommended to remove heavy snow accumulation promptly to prevent excessive stress on the structure.
• കാലാവസ്ഥാ സാഹചര്യങ്ങൾ: In anticipation of extreme weather conditions (e.g., hurricanes, severe blizzards), consider disassembling the roof panels or taking additional precautions to secure the structure.

6. പ്രശ്‌നപരിഹാരം

നിങ്ങളുടെ ഗസീബോയിൽ പ്രശ്നങ്ങൾ നേരിടുകയാണെങ്കിൽ, ഇനിപ്പറയുന്ന പൊതുവായ പരിഹാരങ്ങൾ പരിഗണിക്കുക:

• ചലിക്കൽ/അസ്ഥിരത: Ensure all anchoring bolts and ground nails are properly installed and tightened. Verify that the gazebo is installed on a level surface.
• വെള്ളം ചോർച്ച: Check the installation of the polycarbonate panels and ensure all seals are correctly in place. The sloped roof and gap drainage are designed to prevent accumulation, but improper panel installation can lead to leaks.
• അസംബ്ലി സമയത്ത് ബുദ്ധിമുട്ട്: Refer back to the step-by-step instructions. Ensure all parts are correctly identified and oriented. Do not force components together.

7 സ്പെസിഫിക്കേഷനുകൾ

Figure 6: Product dimensions for the 10ft x 20ft hardtop gazebo.

8. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the documentation included with your purchase or contact Aoxun customer service directly. If you require assistance with assembly, parts, or have any questions, please reach out to the manufacturer's support team.

Aoxun Direct Customer Support: Refer to your purchase receipt or the Aoxun official webബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങൾക്കുള്ള സൈറ്റ്.
