Yuwell YH-680A Automatic CPAP Machine with Humidifier and YF02 Oronasal Mask User Manual

1. ആമുഖം

This manual provides essential information for the safe and effective use of the Yuwell YH-680A Automatic CPAP Machine with Humidifier and the YF02 Oronasal Mask. Please read all instructions carefully before operating the device. This system is designed for the treatment of Obstructive Sleep Apnea (OSA) in adult patients.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Yuwell YH-680A is an advanced automatic Continuous Positive Airway Pressure (CPAP) device featuring intelligent respiratory event detection, an intuitive touch screen, and an integrated humidifier. It is designed for both home and hospital use. The included YF02 Oronasal Mask provides a comfortable and leak-free fit, suitable for users who breathe through their mouth.

ചിത്രം 1: Yuwell YH-680A CPAP machine with humidifier chamber and touch screen display. This image shows the main unit from an angled perspective, highlighting the integrated humidifier on the right and the touch screen interface on the left.

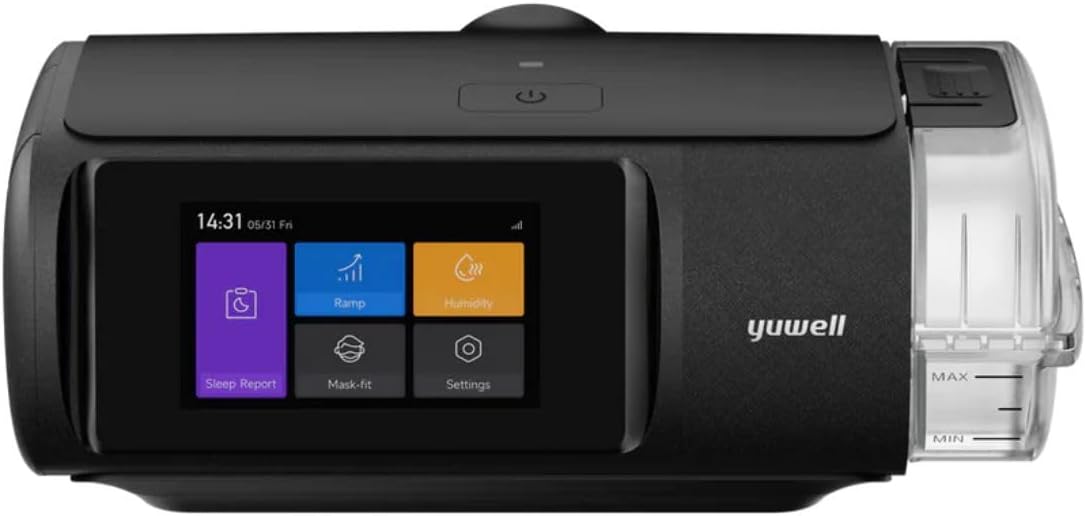

ചിത്രം 2: ഫ്രണ്ട് view of the Yuwell YH-680A CPAP machine, showing the touch screen interface with options for Sleep Report, Ramp, Humidity, Mask-fit, and Settings. The Yuwell brand logo is visible on the device body.

3 സുരക്ഷാ വിവരങ്ങൾ

• Always consult your physician before starting or changing CPAP therapy.
• ഉപകരണം കേടായതായി തോന്നുകയോ ശരിയായി പ്രവർത്തിക്കുന്നില്ലെങ്കിലോ അത് ഉപയോഗിക്കരുത്.
• ഉപകരണം വെള്ളത്തിൽ നിന്നും ഉയർന്ന താപനിലയിൽ നിന്നും അകറ്റി നിർത്തുക.
• Use only accessories and parts recommended by Yuwell.
• Ensure the power cord is properly connected and not a tripping hazard.
• Regularly clean and maintain the device and mask as instructed to prevent infection and ensure optimal performance.

4. സജ്ജീകരണം

1. ഉപകരണം അൺപാക്ക് ചെയ്യുക: Carefully remove the CPAP machine, humidifier chamber, power adapter, tubing, and YF02 oronasal mask from the packaging.
2. പവർ ബന്ധിപ്പിക്കുക: Plug the power adapter into the CPAP machine and then into a suitable electrical outlet.
3. Fill Humidifier: Open the humidifier chamber and fill it with distilled water up to the maximum fill line (MAX). Do not overfill. Close the chamber securely and insert it into the CPAP machine.
4. ട്യൂബ് അറ്റാച്ചുചെയ്യുക: Connect one end of the CPAP tubing to the air outlet port on the machine and the other end to the YF02 oronasal mask.
5. Fit the Mask: Place the YF02 oronasal mask over your nose and mouth. Adjust the headgear straps to achieve a comfortable and secure seal without overtightening.
6. പ്രാരംഭ ക്രമീകരണങ്ങൾ: Turn on the device. The touch screen will guide you through initial setup, including language selection and basic therapy parameters.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The YH-680A features an intuitive touch screen for easy operation.

• പവർ ഓൺ/ഓഫ്: Press the power button on the top of the device to start or stop therapy.
• ടച്ച് സ്‌ക്രീൻ നാവിഗേഷൻ: The main screen displays options such as 'Sleep Report', 'Ramp', 'Humidity', 'Mask-fit', and 'Settings'. Tap an icon to access its functions.
• Ramp പ്രവർത്തനം: Select 'Ramp' to gradually increase pressure to your prescribed therapy level, allowing you to fall asleep more comfortably. The intelligent ramp function adapts to your breathing.
• ഈർപ്പം ക്രമീകരണം: Tap 'Humidity' to select from 6 levels of humidification or choose the automatic function to prevent dryness and enhance comfort.
• Mask Fit Test: Use the 'Mask-fit' option to check for leaks and ensure an optimal seal before starting therapy.
• ക്രമീകരണങ്ങൾ: Access 'Settings' to adjust therapy modes (fixed or automatic CPAP), pressure range (4 to 20 cmH2O), screen brightness, and other advanced parameters.
• ഉറക്ക റിപ്പോർട്ട്: View your therapy data, including Apnea-Hypopnea Index (AHI) and Central Apnea Score (ACS), by selecting 'Sleep Report'.

6. പരിപാലനം

Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your CPAP system.

• Daily Cleaning (Mask & Humidifier Chamber): Disassemble the YF02 mask components and wash them with mild soap and warm water. Rinse thoroughly and air dry. Empty and rinse the humidifier chamber daily with distilled water.
• Weekly Cleaning (Tubing): Wash the CPAP tubing with mild soap and warm water. Rinse thoroughly and hang to air dry completely before reattaching.
• എയർ ഫിൽട്ടർ: Check the air filter monthly for dust and debris. Replace the disposable filter every 1-3 months, or more frequently if needed. Non-disposable filters should be washed and air-dried.
• ഉപകരണത്തിന്റെ പുറംഭാഗം: Wipe the exterior of the CPAP machine with a damp തുണി. ഉപകരണം വെള്ളത്തിൽ മുക്കരുത്.

7. പ്രശ്‌നപരിഹാരം

• Mask Leakage: Adjust headgear straps. Ensure the mask is correctly sized and positioned. Perform a mask fit test.
• Dry Mouth/Nose: Increase the humidifier setting. Ensure the humidifier chamber is filled with distilled water.
• അപര്യാപ്തമായ മർദ്ദം: Check tubing for kinks or blockages. Ensure the mask is sealed correctly. Consult your physician if the prescribed pressure feels too low.
• ഉപകരണം ഓണാക്കുന്നില്ല: Verify the power cord is securely connected to both the device and the electrical outlet. Check the power adapter for damage.
• അസാധാരണമായ ശബ്ദം: Check for loose components or blockages in the air filter or tubing. If the noise persists, contact customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Yuwell customer service directly. Keep your purchase receipt as proof of purchase.
