GENIE RC 08 Plus A4 Rotary Paper Trimmer Instruction Manual

ആമുഖം

The GENIE RC 08 Plus rotary paper trimmer is designed for precise cutting of paper, photos, and craft cardboard up to A4 size. With a cutting capacity of up to 10 sheets (80 g/m²), it is suitable for office, school, or creative crafting tasks. This manual provides essential information for safe and efficient use of your device.

Image: The GENIE RC 08 Plus rotary paper trimmer, showcasing its compact design and metal work table with dimensions.

സുരക്ഷാ വിവരങ്ങൾ

• Always keep fingers away from the cutting blade. The enclosed cutting head minimizes risk, but caution is advised.
• Ensure the trimmer is placed on a stable, flat surface before use.
• Do not attempt to cut materials thicker than the specified capacity (10 sheets of 80 g/m² paper).
• ഉപകരണം കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• Use only original replacement blades for maintenance.

സജ്ജമാക്കുക

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the trimmer from its packaging. Inspect for any damage.
2. പ്ലേസ്മെൻ്റ്: Place the trimmer on a stable, level work surface. The rubber feet will help secure it.
3. പരിചിതമാക്കൽ: Identify the cutting head, the transparent clamping rail, and the measurement guides on the metal table.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The GENIE RC 08 Plus offers four cutting functions: straight cut, wavy cut, perforation, and creasing (folding). These functions are selected by rotating the cutting head.

Image: The cutting head showing indicators for straight cut, wavy cut, perforation, and creasing functions.

Selecting a Cutting Function:

To change the cutting function, gently lift and rotate the cutting head until the desired function (straight, wavy, perforation, or creasing) aligns with the indicator.

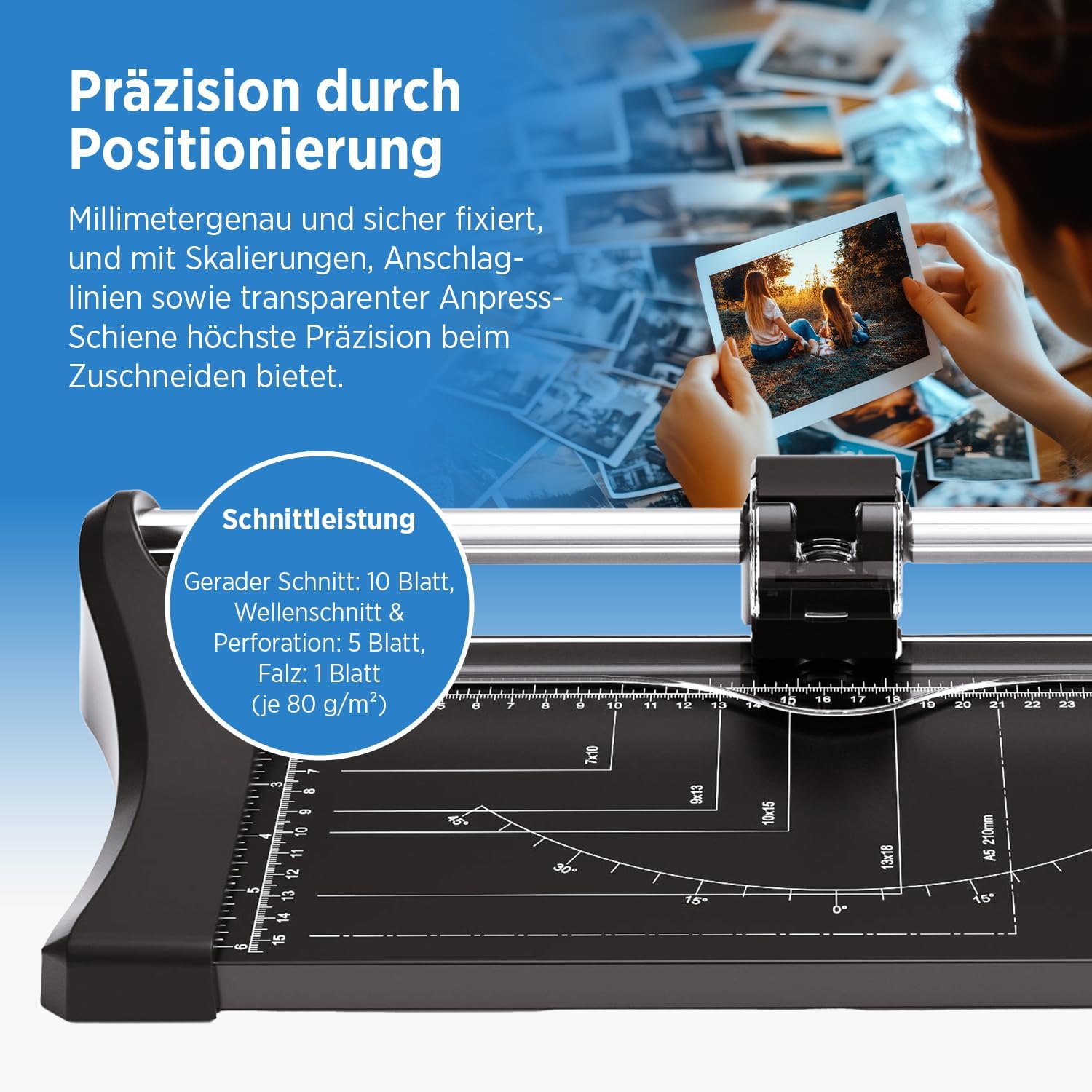

Image: Close-up of the cutting area, highlighting measurement guides and the transparent clamping rail for precise positioning.

Performing a Cut:

1. മെറ്റീരിയൽ തയ്യാറാക്കുക: Place the paper, photo, or cardboard under the transparent clamping rail.
2. സ്ഥാനനിർണ്ണയം: Align the material using the integrated measurement guides (DIN and photo formats, angles) on the metal table. Ensure the edge to be cut is directly under the cutting line.
3. സുരക്ഷിത മെറ്റീരിയൽ: Press down the transparent clamping rail firmly to hold the material in place. This prevents shifting during the cut.
4. Execute Cut: Hold the cutting head and slide it along the rail from one end to the other with even pressure.
5. മെറ്റീരിയൽ നീക്കം ചെയ്യുക: Once the cut is complete, release the clamping rail and remove the cut material.

കട്ടിംഗ് ശേഷി:

• Straight Cut: Up to 10 sheets (80 g/m²)
• Wavy Cut: Up to 5 sheets (80 g/m²)
• സുഷിരം: Up to 5 sheets (80 g/m²)
• ക്രെasing (Folding): 1 sheet (80 g/m²)

മെയിൻ്റനൻസ്

Regular maintenance ensures the longevity and performance of your trimmer.

Image: Icons representing enclosed cutting head, easy blade change, and ergonomic operation.

• വൃത്തിയാക്കൽ: Wipe the metal table and plastic components with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• ബ്ലേഡ് മാറ്റിസ്ഥാപിക്കൽ: The cutting head is designed for easy blade replacement. When cuts become less precise or ragged, it's time to replace the blade. Refer to the specific instructions for blade replacement provided with replacement blades. Ensure the replacement blade is compatible with the RC 08 Plus model.
• സംഭരണം: Store the trimmer in a clean, dry place when not in use.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

Image: Diagram illustrating the construction and design elements of the GENIE RC 08 Plus, including measurement lines and metal cutting table.

• മോഡൽ: RC 08 പ്ലസ്
• ബ്രാൻഡ്: ജീനി
• കട്ടിംഗ് തരം: Rotary Trimmer
• Cutting Functions: Straight, Wavy, Perforation, Creasing
• Max. Cutting Capacity (80 g/m² paper):
  • Straight Cut: 10 sheets
  • Wavy Cut: 5 sheets
  • Perforation: 5 sheets
  • ക്രെasing: 1 sheet
• Max. Paper Size: A4 (up to 320 mm cutting length)
• Work Table Material: ലോഹം
• Work Table Dimensions: 16 x 32 cm (or 320 x 160 mm)
• ഉൽപ്പന്ന അളവുകൾ (L x W x H): 45 x 19 x 7.3 സെ.മീ
• ഭാരം: 900 ഗ്രാം
• നിർമ്മാതാവ്: യൂറോപ്പിലേക്ക് പോകുക GmbH
• മാതൃരാജ്യം: ചൈന

വാറൻ്റി

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in the original packaging for specific terms, conditions, and duration. Keep your proof of purchase for any warranty claims.

പിന്തുണ

For technical assistance, replacement parts, or further inquiries, please contact Genie customer support. Contact information can typically be found on the manufacturer's webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.

നിർമ്മാതാവ്: യൂറോപ്പിലേക്ക് പോകുക GmbH

Webസൈറ്റ്: www.genie-europe.de (ഉദാampലിങ്ക്, യഥാർത്ഥ ലിങ്ക് വ്യത്യാസപ്പെടാം)
