LAUSAINT HOME 10' x 13' Outdoor Retractable Pergola Instruction Manual

1. ആമുഖം

Thank you for choosing the LAUSAINT HOME 10' x 13' Outdoor Retractable Pergola. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new outdoor structure. Please read these instructions thoroughly before beginning assembly or use to ensure proper function and longevity of your pergola.

A lifestyle image showcasing the pergola providing shade over a patio seating area, demonstrating its aesthetic appeal and functional use in an outdoor setting.

2 സുരക്ഷാ വിവരങ്ങൾ

അസംബ്ലി ചെയ്യുമ്പോഴും ഉപയോഗിക്കുമ്പോഴും എപ്പോഴും സുരക്ഷയ്ക്ക് മുൻഗണന നൽകുക. ഈ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് ഉൽപ്പന്നത്തിന് പരിക്കോ കേടുപാടുകളോ ഉണ്ടാക്കാം.

• എല്ലാ നിർദ്ദേശങ്ങളും വായിക്കുക: Ensure all users read and understand the entire manual before assembly or operation.
• രണ്ട് പേരുടെ അസംബ്ലി: അസംബ്ലിക്ക് കുറഞ്ഞത് രണ്ട് മുതിർന്നവരുടെയെങ്കിലും പങ്കാളിത്തം ആവശ്യമാണ്. ഒറ്റയ്ക്ക് ഒത്തുകൂടാൻ ശ്രമിക്കരുത്.
• സുരക്ഷിത ഇൻസ്റ്റാളേഷൻ: Ensure the pergola is securely anchored to a stable, level surface. Use appropriate hardware for your specific ground type.
• കാലാവസ്ഥാ സാഹചര്യങ്ങൾ: Retract the canopy during heavy rain, strong winds, or snow to prevent damage to the canopy and frame. Do not use the pergola in extreme weather conditions.
• വിസ്തൃതമായ പ്രദേശം: Keep the assembly area clear of children and pets.
• പതിവായി പരിശോധിക്കുക: എല്ലാ ബോൾട്ടുകളും, നട്ടുകളും, കണക്ഷനുകളും ഇറുകിയതും സുരക്ഷിതവുമാണെന്ന് ഉറപ്പാക്കാൻ ഇടയ്ക്കിടെ പരിശോധിക്കുക.
• കയറ്റം ഇല്ല: Do not climb on the pergola structure.

3. സജ്ജീകരണവും അസംബ്ലിയും

The LAUSAINT HOME Retractable Pergola is designed for straightforward assembly. A complete, well-organized kit with clear, easy-to-follow instructions is provided. No complicated tools or expertise are needed for installation.

3.1 Structural Components

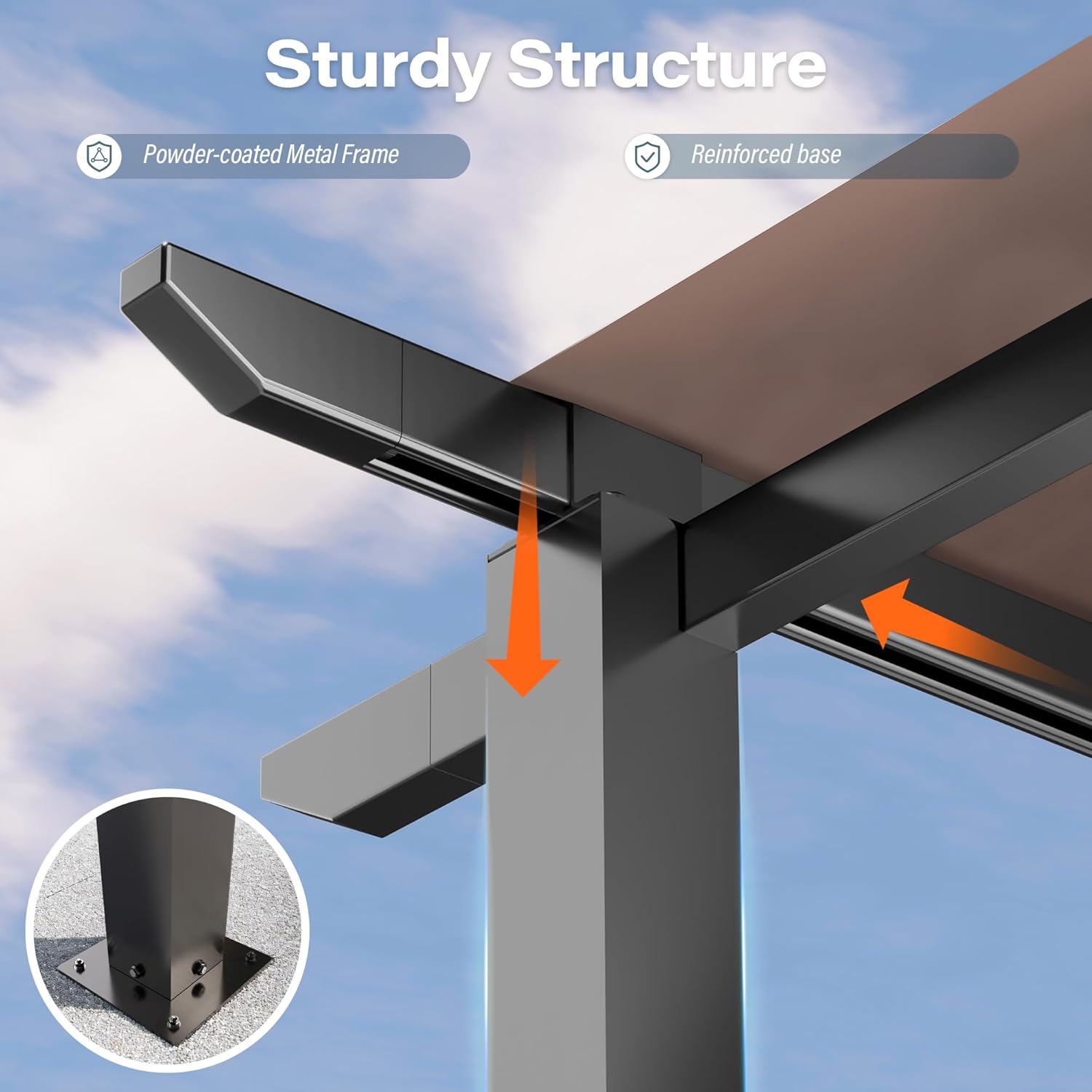

This image highlights the robust construction of the pergola, featuring a powder-coated metal frame for durability and a reinforced base for stable installation.

എ വിശദമായി view of the premium-grade aluminum frame, showcasing its powder-coated finish which provides high resistance to rust and corrosion.

This image focuses on the reinforced base of a pergola post, featuring four pre-drilled holes designed for secure and stable installation on various surfaces.

3.2 അളവുകൾ

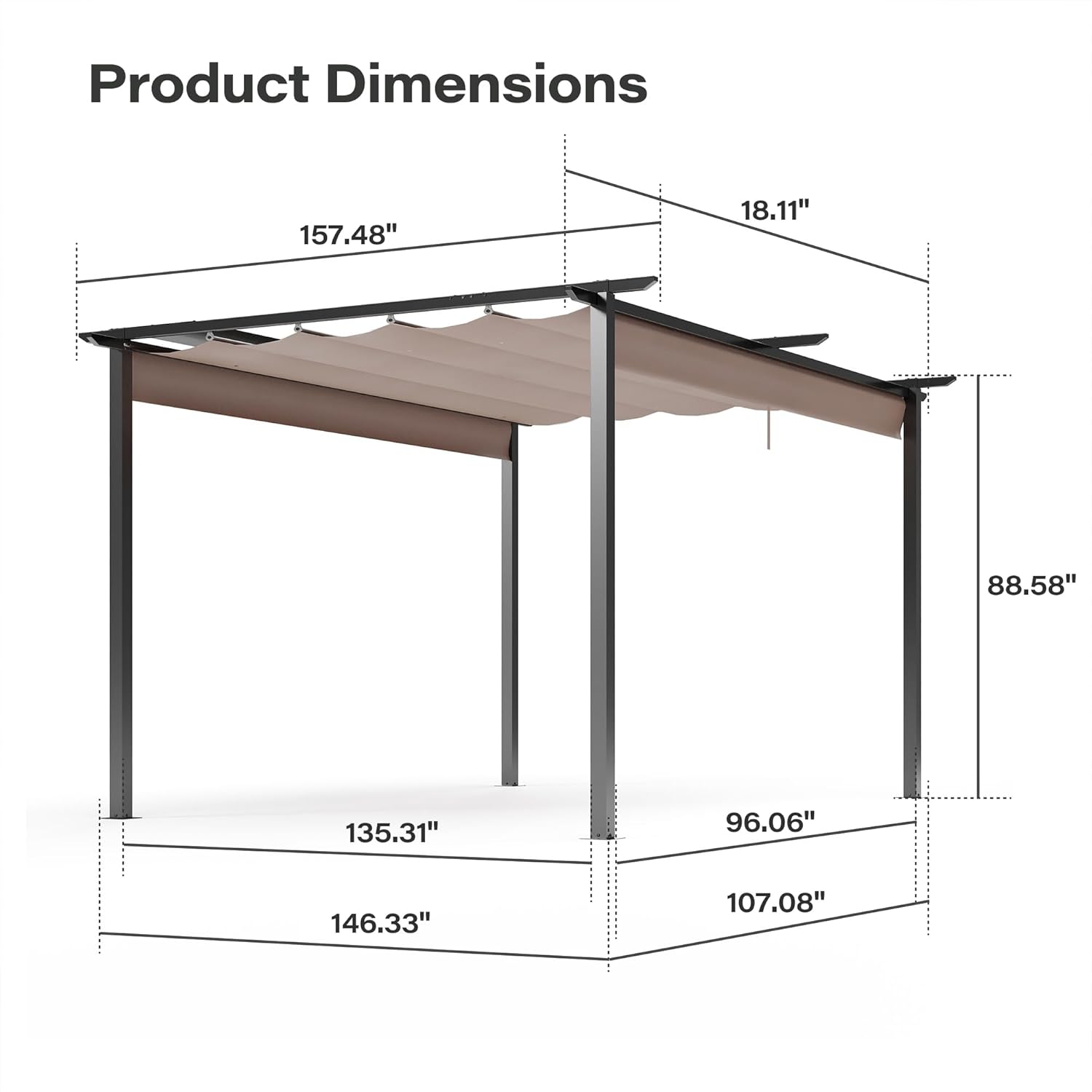

This diagram provides detailed measurements of the pergola, including its length, width, and height, to assist with planning and installation.

Refer to the included assembly manual for step-by-step instructions and a complete list of parts. Ensure all components are present before starting assembly.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The retractable canopy allows for flexible shade control, adapting to your needs throughout the day.

4.1 മേലാപ്പ് പിൻവലിക്കലും നീട്ടലും

The canopy glides smoothly along the frame, allowing you to effortlessly switch between full sun and cool shade. Use the integrated drawstring mechanism to adjust the canopy.

This diagram illustrates the simple drawstring mechanism that allows users to easily adjust the shade area by opening or closing the retractable canopy.

ഈ വിശദമായ view demonstrates the pulley system that allows for smooth and effortless retraction and extension of the canopy, ensuring ease of use.

4.2 മേലാപ്പ് സുരക്ഷിതമാക്കൽ

When fully extended, magnets and hooks prevent the canopy from swinging in the wind, ensuring it remains firmly in place.

Magnets and hooks are integrated into the design to securely hold the canopy in place, preventing it from swinging or being displaced by wind when fully extended.

An illustration showing how the canopy is firmly locked into position using magnets and hooks, preventing movement from wind.

5. പരിപാലനം

ശരിയായ പരിചരണം നിങ്ങളുടെ പെർഗോളയുടെ ആയുസ്സും രൂപവും വർദ്ധിപ്പിക്കും.

• മേലാപ്പ് പരിചരണം: The canopy is made from thick 180g/m² polyester fabric, which is UV-resistant, waterproof, anti-fade, and wear-resistant. Clean the canopy with mild soap and water. Rinse thoroughly and allow to air dry completely before retracting for storage.
• കാലാവസ്ഥ സംരക്ഷണം: We recommend retracting the canopy during heavy rain, strong winds, or snow to extend its lifespan and prevent damage.
• ഫ്രെയിം ക്ലീനിംഗ്: Clean the aluminum frame with a soft cloth and mild detergent. Avoid abrasive cleaners or tools that could scratch the powder-coated finish.
• ഹാർഡ്‌വെയർ പരിശോധന: Periodically inspect all nuts, bolts, and connections. Tighten any loose hardware to maintain structural integrity.

The canopy is made from thick 180g/m² polyester fabric, offering excellent waterproof, UV-resistant, anti-fade, and wear-resistant qualities for long-lasting outdoor use.

എ വലുതാക്കി view of the canopy fabric, emphasizing its UV-resistant, waterproof, fade-resistant, abrasion-resistant, durable, and long-lasting properties.

6. പ്രശ്‌നപരിഹാരം

നിങ്ങളുടെ പെർഗോളയുമായി ബന്ധപ്പെട്ട് നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങളെയാണ് ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നത്.

6.1 Water Accumulation on Canopy

If water accumulates on the canopy, it may lead to sagging or potential material damage.

• കാരണം: Insufficient slope or failure to retract the canopy during heavy rainfall.
• പരിഹാരം: Ensure the canopy is properly tensioned and that the sloped top roof design is correctly installed to channel water away. Always retract the canopy during heavy rain to prevent water pooling.

The sloped top roof design ensures that the folded canopy is protected from sun and rain, extending its lifespan and maintaining its appearance.

This comparison highlights the benefit of the extra sloped top roof, which protects the canopy and prevents water accumulation, unlike flat designs.

6.2 Canopy Not Sliding Smoothly

• കാരണം: Debris in the tracks or worn pulleys.
• പരിഹാരം: Inspect the tracks for any obstructions and clean them. Check the pulleys for wear and tear.

6.3 Pergola Instability

• കാരണം: Loose connections or improper anchoring.
• പരിഹാരം: Re-tighten all bolts and ensure the base is securely anchored to the ground. Verify the installation surface is level.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

8.1 റിട്ടേൺ പോളിസി

This product is eligible for a 30-day easy return policy. Please refer to the retailer's return guidelines for detailed information.

8.2 ഉപഭോക്തൃ പിന്തുണ

For any questions, concerns, or assistance with your LAUSAINT HOME pergola, please contact the seller, YIZE-US, through the platform where you made your purchase. They can provide support and guidance regarding your product.
