LOKLNEYK Mastervac Wet Dry Vacuum Filter Instruction Manual

1. ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of your LOKLNEYK Mastervac Wet Dry Vacuum Filter. Designed for compatibility with most 5-gallon and larger Shop-Vac wet/dry vacuum cleaners, this filter kit ensures efficient debris capture and motor protection. Please read these instructions carefully before use.

2. പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 5 x Paper Plate Filters
• 5 x Rubber Bands
• 5 x Sponge Filters
• 1 x ക്ലീനിംഗ് ബ്രഷ്

3. സവിശേഷതകൾ

• Versatile Filtration: The filter kit is designed to meet both wet and dry vacuuming needs, suitable for collecting damp garbage, sawdust, drywall dust, and other particles.
• ഉയർന്ന കാര്യക്ഷമത: Captures at least 99.97% of particles, effectively preventing debris from entering and damaging the vacuum motor.
• കഴുകി വീണ്ടും ഉപയോഗിക്കാവുന്ന: Both the foam sleeve and dry filter are designed for easy installation, removal, washing, and reuse, extending product life and reducing waste.

4 അനുയോജ്യത

This filter kit is specifically designed to fit most 5-gallon and larger Shop-Vac wet/dry vacuum cleaners. It is compatible with the following Shop-Vac models:

• Shop-Vac 90304, 90350, 90585, 90107, 90333 cartridge filters
• Shop-Vac 90340 SL16-575A, SS11-450, SS12-300A, SS14-350A, SS16-650C, 16RT500A, and similar models.

കുറിപ്പ്: This product is an independently designed and manufactured compatible accessory, not an official Shop-Vac product.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps to install the filter into your wet/dry vacuum cleaner:

1. വാക്വം ക്ലീനർ തയ്യാറാക്കുക: Ensure your vacuum cleaner is unplugged from the power source before beginning installation. Remove the motor head from the collection tank.
2. പഴയ ഫിൽട്ടർ നീക്കം ചെയ്യുക (ബാധകമെങ്കിൽ): Carefully remove any existing filter or foam sleeve from the filter cage. Dispose of the old filter responsibly.
3. Install Foam Sleeve (for wet pickup): For wet vacuuming, slide a sponge filter (foam sleeve) over the filter cage until it is fully seated. Ensure it covers the cage completely.
4. Install Paper Plate Filter (for dry pickup): For dry vacuuming, center a paper plate filter over the filter cage. Secure it in place with a rubber band around the base of the filter cage. Ensure a tight seal to prevent dust from bypassing the filter.
5. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Place the motor head back onto the collection tank and secure it with the latches.

Important: Do not use both the paper plate filter and the foam sleeve simultaneously. Use the appropriate filter for either wet or dry applications.

Image: Filter Installation. This image shows the process of installing the paper plate filter onto the vacuum's filter cage.

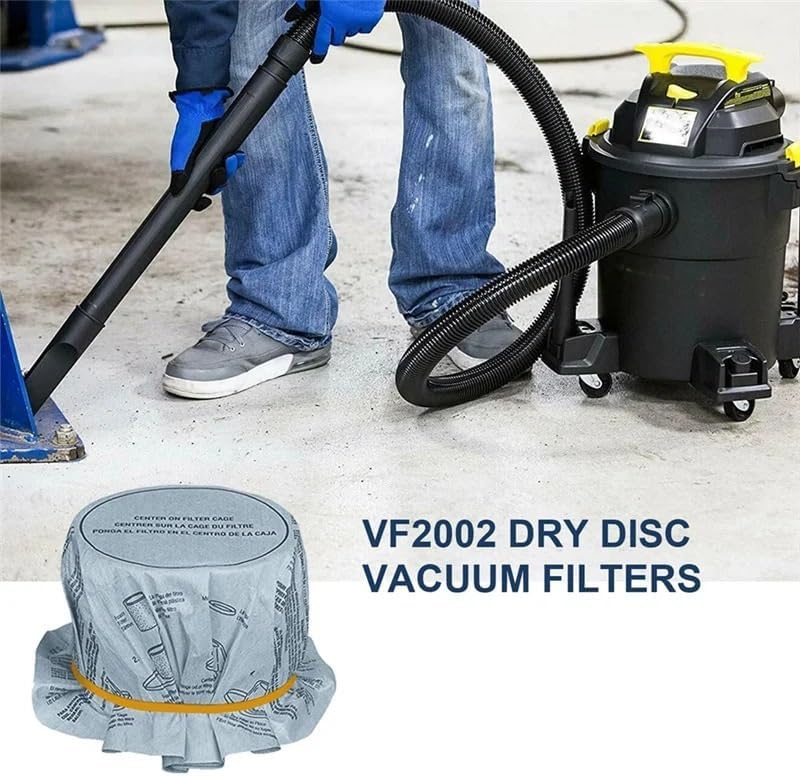

Image: Vacuum in Use with Filter. This image demonstrates the vacuum cleaner in operation, highlighting the filter's role in the system.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the correct filter is installed for your task (wet or dry), operate your wet/dry vacuum cleaner according to its manufacturer's instructions. Ensure the vacuum is properly assembled and sealed before turning it on.

• ഡ്രൈ പിക്കപ്പിനായി: Use the paper plate filter. This is suitable for sawdust, drywall dust, and general dry debris.
• നനഞ്ഞ പിക്കപ്പിനായി: Use the sponge filter (foam sleeve). This is suitable for liquids and damp materials. Remove the paper filter before wet pickup.

7. പരിപാലനം

Regular cleaning of your filters will maintain optimal vacuum performance and extend the life of both the filters and your vacuum cleaner.

1. ഫിൽട്ടർ നീക്കംചെയ്യൽ: Unplug the vacuum. Remove the motor head and carefully detach the filter (paper or sponge) from the filter cage.
2. Cleaning Paper Plate Filters: Gently tap the paper filter against a hard surface to dislodge dry debris. Use the provided cleaning brush to remove stubborn dust from the pleats. For heavily soiled filters, a gentle rinse under running water may be performed, but ensure the filter is completely dry before reinstallation to prevent mold or damage.
3. Cleaning Sponge Filters: Rinse the sponge filter thoroughly under running water until all debris is removed. Squeeze out excess water.
4. ഉണക്കൽ: Allow both types of filters to air dry completely before reinstallation. Do not use heat to dry, as this can damage the filter material.
5. പുനഃസ്ഥാപിക്കൽ: Once dry, reinstall the filter as described in the Setup and Installation section.

Image: Washing a Sponge Filter. This image illustrates the process of cleaning the reusable sponge filter under running water.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your vacuum's performance after installing the filter, consider the following:

• കുറച്ച സക്ഷൻ: Check if the filter is clogged. Clean or replace the filter as necessary. Ensure the filter is correctly seated and sealed.
• പൊടി രക്ഷപ്പെടൽ: Verify that the filter is properly installed and secured with the rubber band (for paper filters). Check for any tears or damage to the filter material.
• മോട്ടോർ അമിത ചൂടാക്കൽ: A severely clogged filter can cause the motor to work harder. Clean or replace the filter immediately.

For further troubleshooting, refer to your specific wet/dry vacuum cleaner's instruction manual.

9 സ്പെസിഫിക്കേഷനുകൾ

Image: Filter Dimensions. This image provides visual details of the filter components' measurements.

10. വാറൻ്റിയും പിന്തുണയും

For specific warranty information or customer support regarding your LOKLNEYK Mastervac Wet Dry Vacuum Filter, please refer to the seller's information on the platform where the product was purchased. Keep your proof of purchase for any warranty claims.
