VOCIC AX25 Electric Lift Chair User Manual

1. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

Read all instructions carefully before using the VOCIC AX25 Electric Lift Chair. Failure to follow these instructions may result in injury or damage to the product.

• Always use the device with the assistance of a caregiver if the user is unable to stand up on their own.
• പരമാവധി ലോഡ് കപ്പാസിറ്റി കവിയരുത് 160 കി.ഗ്രാം (352 പൗണ്ട്). Overloading the device can cause instability and damage.
• ഉപയോഗിക്കുന്നതിന് മുമ്പ് കസേര സ്ഥിരതയുള്ളതും നിരപ്പായതുമായ പ്രതലത്തിൽ സ്ഥാപിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• ജോലി ചെയ്യുമ്പോൾ കൈകളും കാലുകളും ചലിക്കുന്ന ഭാഗങ്ങളിൽ നിന്ന് അകറ്റി നിർത്തുക.
• Do not allow children or pets near the chair during operation.
• Regularly inspect the chair for any signs of wear or damage. Do not use if damaged.

Fall Recovery Sequence

This image illustrates the steps for safe recovery after an accidental fall using the VOCIC AX25 Electric Lift Chair. It shows a person on the floor, then being assisted by the chair to a standing position.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The VOCIC AX25 Electric Lift Chair is designed to provide safe and effortless assistance for individuals needing help to rise from a seated position, especially from the floor. Its lightweight, compact, and mobile design makes it suitable for various home and care environments.

പ്രധാന സവിശേഷതകൾ:

• Effortless Rising: Equipped with professional dual-drive motors for smooth and safe lifting.
• Mobile and Lightweight: Weighs only 14.5 kg (32 lbs) with large 10 cm rear wheels for easy positioning.
• ലളിതമായ പ്രവർത്തനം: One-button control for ascent and descent, with an emergency stop function.
• Secure Transfer: Liftable armrests provide lateral support, and a wide safety belt ensures double protection against slipping.
• കോംപാക്റ്റ് ഡിസൈൻ: സ്ഥലം ലാഭിക്കുന്ന സംഭരണത്തിനായി മടക്കാവുന്നവ.

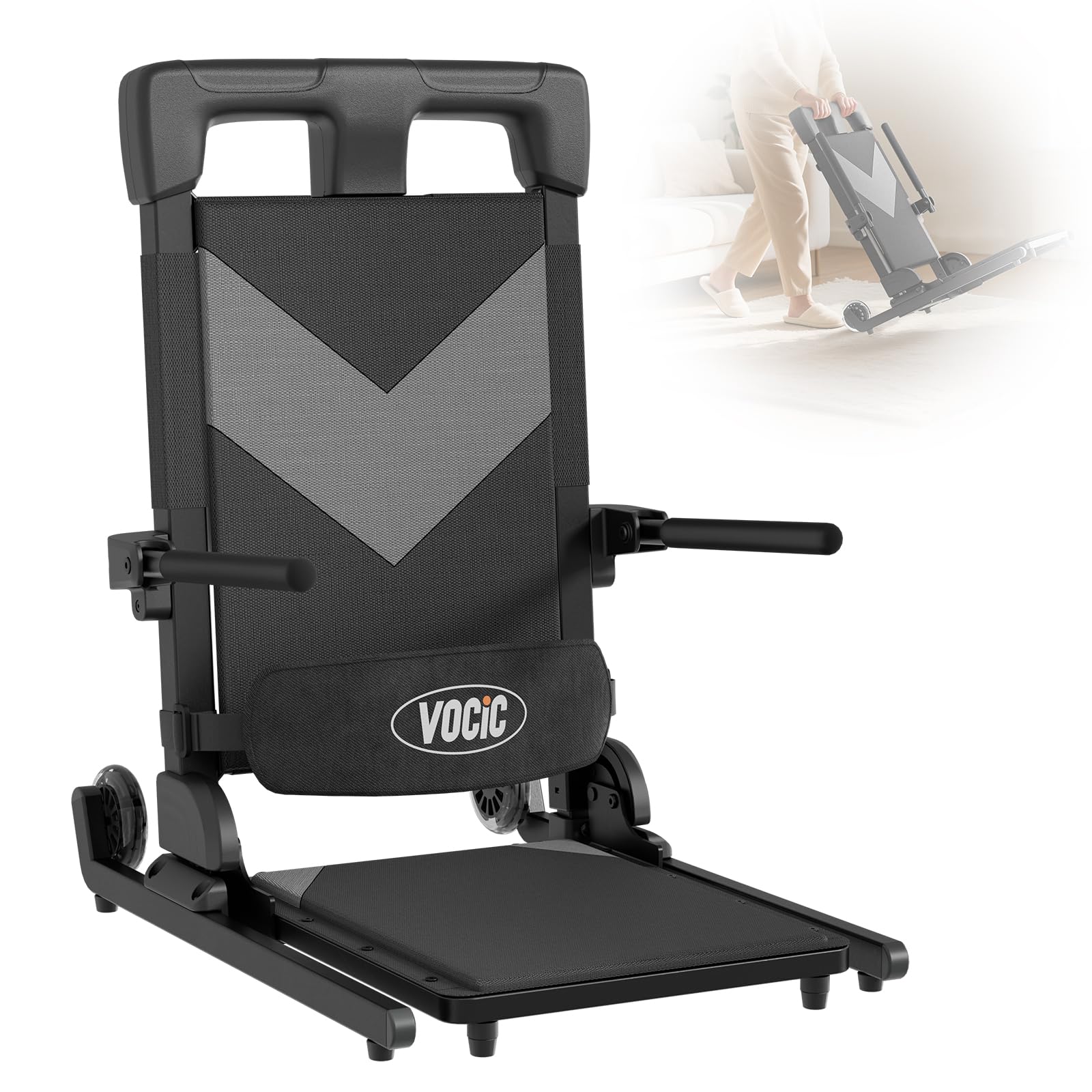

ക്രമീകരിക്കാവുന്നതും മടക്കാവുന്നതുമായ ഡിസൈൻ

This image highlights the adjustable and foldable nature of the AX25 chair, along with its maximum load capacity of 160 kg, net weight of 14.5 kg, and adjustable height range of 5-51 cm.

ഉപയോഗ സാഹചര്യങ്ങൾ

This image demonstrates where the VOCIC AX25 can be used (living room, bedroom, floor) and for whom it is intended (elderly, disabled, caregivers).

3. സജ്ജീകരണവും അസംബ്ലിയും

The VOCIC AX25 Electric Lift Chair is designed for quick and easy assembly, typically completed in one step.

Package Contents and Installation Steps

This image displays the items included in the box: Main AX25 unit, base feet (x2), manual remote control (x1), charger (x1), hexagonal wrench (x1), and screws (x4). It also illustrates the simple two-step installation process: 1. Install the feet, 2. Installation complete.

അസംബ്ലി നടപടിക്രമം:

1. അൺപാക്ക്: Carefully remove all components from the packaging. Verify that all parts listed in the package contents are present.
2. Install the Feet: Attach the base feet to the main unit using the provided screws and hexagonal wrench. Ensure all screws are tightened securely.
3. പവർ ബന്ധിപ്പിക്കുക: Plug the charger into the chair and then into a standard electrical outlet to charge the battery.
4. ഉപയോഗത്തിന് തയ്യാറാണ്: Once the feet are securely attached and the battery is charged, the chair is ready for operation.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The VOCIC AX25 Electric Lift Chair features intuitive controls for easy and safe operation.

Effortless Rising from the Floor

This image demonstrates how the electric lift chair smoothly assists a user in rising from the floor, reducing strain on knees and back.

Simple One-Button Remote Control

The remote control features a single button for upward and downward movement, along with an emergency stop function. It can be conveniently hung on the backrest or stored securely.

കസേര നീക്കുന്നു

The chair is equipped with large 10 cm rear wheels, allowing it to be easily moved across hard floors, tiles, or carpets by simply tilting it. No need to lift the entire unit.

Secure Lateral Transfer

The liftable armrests provide lateral support during transfers, and the wide safety belt offers double protection against slipping or falling forward, ensuring stable and secure transfers.

പ്രവർത്തന ഘട്ടങ്ങൾ:

1. കസേര സ്ഥാപിക്കുക: Place the chair near the user, ensuring the large rear wheels are positioned for easy movement if needed.
2. Assist User to Seat: Help the user to sit on the chair. Ensure they are properly seated and balanced.
3. Secure User (Optional): If necessary, fasten the wide safety belt for added security.
4. ലിഫ്റ്റ് പ്രവർത്തനം: Use the remote control. Press the UP button to raise the chair. Press the താഴേക്ക് button to lower it.
5. അടിയന്തരമായി നിർത്തുക: In case of an emergency or unexpected movement, press the large നിർത്തുക ഉടനെ ബട്ടൺ.
6. കൈമാറ്റം: Once at the desired height, the liftable armrests can be adjusted to facilitate lateral transfers to another seat or standing position.

5. പരിപാലനം

Proper maintenance ensures the longevity and safe operation of your VOCIC AX25 Electric Lift Chair.

വൃത്തിയാക്കലും തുണി പരിചരണവും

The chair features breathable Oxford fabric, which is resistant and comfortable for daily use.

• വൃത്തിയാക്കൽ: Wipe down the frame and fabric surfaces with a damp തുണിയും വീര്യം കുറഞ്ഞ സോപ്പും ഉപയോഗിക്കുക. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഒഴിവാക്കുക.
• തുണി: The breathable Oxford fabric can be spot cleaned. Allow to air dry completely before use.
• ഇലക്ട്രിക്കൽ ഘടകങ്ങൾ: Keep the motor and electrical connections dry. Do not immerse any part of the chair in water.

പരിശോധനയും സംഭരണവും

• പതിവ് പരിശോധന: Periodically check all screws, bolts, and connections to ensure they are tight. Inspect the power cord and remote control for any damage.
• ബാറ്ററി കെയർ: Ensure the battery is charged regularly, especially if the chair is not used for extended periods.
• സംഭരണം: When not in use, fold the chair for compact storage. Store in a dry, cool place away from direct sunlight.

Practical Storage Design

The chair features a practical storage design with a rear pocket and hook, allowing easy access to the remote control and keeping it secure.

6. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your VOCIC AX25 Electric Lift Chair, refer to the following common troubleshooting steps:

• Chair Not Responding:
  • Check if the power cord is securely plugged into both the chair and the wall outlet.
  • Ensure the battery is charged. Connect the charger and allow sufficient time for charging.
  • Verify that the remote control cable is properly connected to the chair.
• Chair Movement is Jerky or Inconsistent:
  • Ensure the chair is not overloaded beyond its 160 kg capacity.
  • ലിഫ്റ്റിംഗ് മെക്കാനിസത്തിന് ചുറ്റും എന്തെങ്കിലും തടസ്സങ്ങളുണ്ടോ എന്ന് പരിശോധിക്കുക.
  • കസേര പരന്നതും സുസ്ഥിരവുമായ പ്രതലത്തിലാണെന്ന് ഉറപ്പാക്കുക.
• റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല:
  • Check the connection of the remote control cable.
  • If the remote control has a battery, ensure it is properly installed and charged (if applicable).
• അസാധാരണമായ ശബ്ദങ്ങൾ:
  • Stop using the chair immediately.
  • Inspect for any loose parts or obstructions.
  • Contact customer support if the noise persists or if you cannot identify the cause.

If these steps do not resolve the issue, please contact VOCIC customer support for further assistance.

7 സാങ്കേതിക സവിശേഷതകൾ

Detailed specifications for the VOCIC AX25 Electric Lift Chair.

This image provides a visual summary of the technical specifications for the AX25 model.

8. വാറൻ്റിയും പിന്തുണയും

VOCIC is committed to providing high-quality products and excellent customer service.

കസ്റ്റമർ അഷ്വറൻസ്

This image outlines VOCIC's commitment to customer satisfaction, including return policies, support, and certifications.

• 30 ദിവസത്തെ റിട്ടേണുകൾ: If you are not satisfied with your purchase, you may be eligible for a return within 30 days. Please refer to the retailer's return policy for details.
• Long-Term Support: VOCIC offers long-term support for its products.
• Professional After-Sales Care: Our dedicated customer service team is available to assist you with any questions or concerns.
• CE സർട്ടിഫിക്കേഷൻ: The VOCIC AX25 Electric Lift Chair meets European safety standards.

ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ:

For support, warranty claims, or any inquiries, please contact VOCIC customer service:

• ഇമെയിൽ: support@vocic.com
• Webസൈറ്റ്: www.vocic.com
• Please have your model number (AX25) and purchase date ready when contacting support.
