Bellemave Twin XL Over Twin XL Metal Bunk Bed Instruction Manual

ആമുഖം

This manual provides detailed instructions for the assembly, operation, and maintenance of your Bellemave Twin XL Over Twin XL Metal Bunk Bed. Designed for durability and space-saving, this bunk bed features a robust metal frame suitable for various room settings. Please read all instructions carefully before assembly and use to ensure safety and proper function.

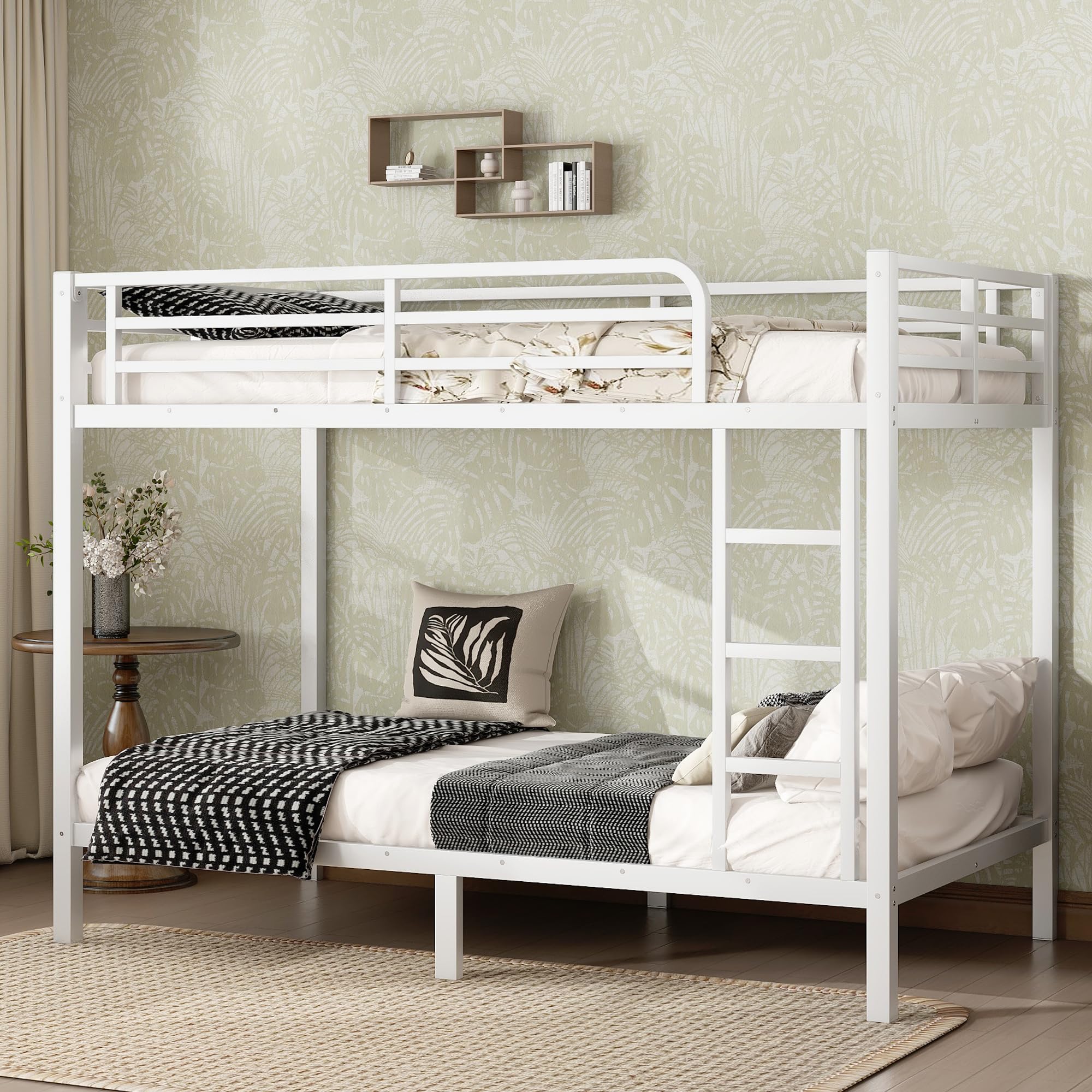

Figure 1: Bellemave Twin XL Over Twin XL Metal Bunk Bed (White)

This image shows the complete Bellemave Twin XL Over Twin XL Metal Bunk Bed in white, featuring its sturdy metal frame, integrated ladder, and full-length guardrails on the top bunk. The design is clean and modern, suitable for various room aesthetics.

സുരക്ഷാ വിവരങ്ങൾ

Adherence to these safety guidelines is crucial for preventing injury and ensuring the longevity of your bunk bed.

• ഭാരം ശേഷി: The top bunk supports a maximum of 250 lbs (113 kg). The lower bunk supports a maximum of 400 lbs (181 kg). Do not exceed these limits.
• ഗാർഡ്‌റെയിലുകൾ: The top bunk is equipped with full-length guardrails. These must always be in place to prevent falls.
• ഗോവണി ഉപയോഗം: Always use the integrated ladder for accessing the top bunk. Do not jump on or off the bunk bed.
• മെത്ത ആവശ്യകതകൾ: Use only Twin XL mattresses that fit snugly within the bed frame to prevent entrapment. The mattress thickness for the top bunk should be compatible with the guardrail height to ensure safety.
• അസംബ്ലി: Ensure all connections are securely tightened during assembly and periodically checked thereafter.
• കുട്ടികൾ: Children under 6 years of age should not be allowed on the top bunk.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation around the bunk bed.

പാക്കേജ് ഉള്ളടക്കം

Before beginning assembly, verify that all components are present and undamaged. The bunk bed ships in one box and includes all necessary parts and tools for assembly.

• Metal frame components (headboards, footboards, side rails, support beams)
• Integrated ladder sections
• Full-length guardrails
• Slats (40 pieces for both bunks)
• Anti-noise plastic stoppers
• അസംബ്ലി ഹാർഡ്‌വെയർ (ബോൾട്ടുകൾ, നട്ടുകൾ, വാഷറുകൾ)
• അസംബ്ലി ഉപകരണങ്ങൾ (ഉദാ. അലൻ റെഞ്ച്)
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

If any parts are missing or damaged, please contact Bellemave customer support immediately.

സജ്ജീകരണവും അസംബ്ലിയും

Assembly is designed to be straightforward. Follow the numbered parts and detailed instructions provided in the included assembly guide. It is recommended to have two adults for assembly.

1. തയ്യാറാക്കൽ: Clear a spacious area for assembly. Lay out all parts and hardware, matching them against the parts list in your separate assembly guide.
2. ഫ്രെയിം അസംബ്ലി: Begin by assembling the headboards and footboards, connecting them with the main side rails. Ensure all bolts are finger-tightened initially.
3. Lower Bunk Slats: Install the slats for the lower bunk, securing them with the anti-noise plastic stoppers. Ensure each slat is properly seated.
4. Upper Bunk Support: Attach the support beams for the upper bunk.
5. Upper Bunk Slats and Guardrails: Install the slats for the upper bunk, followed by the full-length guardrails.
6. ഗോവണി അറ്റാച്ച്മെന്റ്: Securely attach the integrated ladder to the bunk bed frame.
7. അന്തിമ മുറുക്കൽ: Once all components are in place, systematically tighten all bolts and connections using the provided tools. Do not overtighten.
8. മെത്ത സ്ഥാപിക്കൽ: Place Twin XL mattresses on both bunks. No box spring is required.

Figure 2: Key Dimensions of the Bellemave Twin XL Over Twin XL Bunk Bed

This diagram illustrates the overall dimensions of the bunk bed, including length (82.7"), width (41.7"), and height (64.6"). It also shows the clearance between bunks (40"), under-bed clearance (9.8"), and guardrail height (13" from slat to top of guardrail, 14.6" from top of guardrail to top of lower bunk). These measurements are important for planning room placement and mattress selection.

Figure 3: Detail of Ladder and Slat Construction

ഈ ചിത്രം ഒരു ക്ലോസ്-അപ്പ് നൽകുന്നു view of the integrated ladder and the metal slat system for the bunk bed. It highlights the secure attachment points for the ladder and the spacing of the slats designed to support mattresses without a box spring.

പ്രവർത്തന മാർഗ്ഗനിർദ്ദേശങ്ങൾ

To ensure safe and proper use of your bunk bed, please observe the following guidelines:

• Always use the ladder to access the top bunk.
• Do not allow more than one person on the top bunk at a time.
• മുകളിലെ ബങ്കിൽ ഗാർഡ്‌റെയിലുകൾ എല്ലായ്പ്പോഴും സ്ഥാപിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• എല്ലാ ബോൾട്ടുകളും കണക്ഷനുകളും ഇറുകിയതാണെന്ന് ഉറപ്പാക്കാൻ ഇടയ്ക്കിടെ പരിശോധിക്കുക.
• Avoid rough play on or around the bunk bed.
• Do not hang items from the bunk bed frame or guardrails.

മെയിൻ്റനൻസ്

Regular maintenance will help preserve the condition and safety of your bunk bed.

• വൃത്തിയാക്കൽ: മെറ്റൽ ഫ്രെയിം ഒരു സോഫ്റ്റ്, ഡി ക്ലീനർ ഉപയോഗിച്ച് തുടയ്ക്കുക.amp തുണി. ഫിനിഷിന് കേടുവരുത്തുന്ന ഉരച്ചിലുകൾ നിറഞ്ഞ ക്ലീനറുകളോ കഠിനമായ രാസവസ്തുക്കളോ ഒഴിവാക്കുക.
• ഹാർഡ്‌വെയർ പരിശോധന: Every 3-6 months, inspect all bolts, screws, and connections. Tighten any that have become loose.
• സ്ലാറ്റ് പരിശോധന: Ensure all plastic stoppers holding the slats are intact and the slats are properly seated to prevent noise and maintain support.
• തുരുമ്പ് തടയൽ: The frame has a rust-resistant finish. Avoid prolonged exposure to moisture.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Bellemave is committed to providing quality products. While specific warranty details are not included in this manual, please retain your proof of purchase for any warranty claims.

For assistance with assembly, missing parts, or any product-related inquiries, please contact Bellemave customer support. Refer to the contact information provided with your purchase documentation or visit the official Bellemave webപിന്തുണാ ഓപ്ഷനുകൾക്കായുള്ള സൈറ്റ്.

ഓൺലൈൻ പിന്തുണ: Visit the Bellemave Store on Amazon
