ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of the Moen 1224 Replacement Faucet Cartridge Kit. This cartridge is designed to restore proper function to most double-handle Moen faucets and tub/showers, addressing issues such as leaks or inconsistent water flow.
സുരക്ഷാ വിവരങ്ങൾ
- Always turn off the main water supply to the faucet before beginning any work.
- Wear appropriate personal protective equipment, such as safety glasses, to prevent injury.
- Ensure all tools are used correctly to avoid damage to the faucet or personal injury.
- ഏതെങ്കിലും ഘട്ടത്തെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ, യോഗ്യതയുള്ള ഒരു പ്ലംബറെ സമീപിക്കുക.
പാക്കേജ് ഉള്ളടക്കം
The Moen 1224 Replacement Faucet Cartridge Kit typically includes:
- One (1) Moen 1224 Replacement Cartridge
- One (1) Cartridge Removal/Installation Tool (may vary by kit)
The Moen 1224 cartridge kit, including the replacement cartridge and a specialized tool for removal and installation.
ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
Follow these steps to replace the faucet cartridge:
- ജലവിതരണം ഓഫാക്കുക: Locate the main water shut-off valve for your home or the specific shut-off valves for the faucet (hot and cold). Turn them off completely.
- Relieve Water Pressure: Open the faucet handles to drain any remaining water and relieve pressure in the lines. Close the handles once water stops flowing.
- ഫ്യൂസറ്റ് ഹാൻഡിൽ നീക്കം ചെയ്യുക: Depending on your faucet model, you may need to pry off a decorative cap to expose a set screw. Use an Allen wrench or screwdriver to loosen and remove the set screw, then pull the handle off the faucet stem.

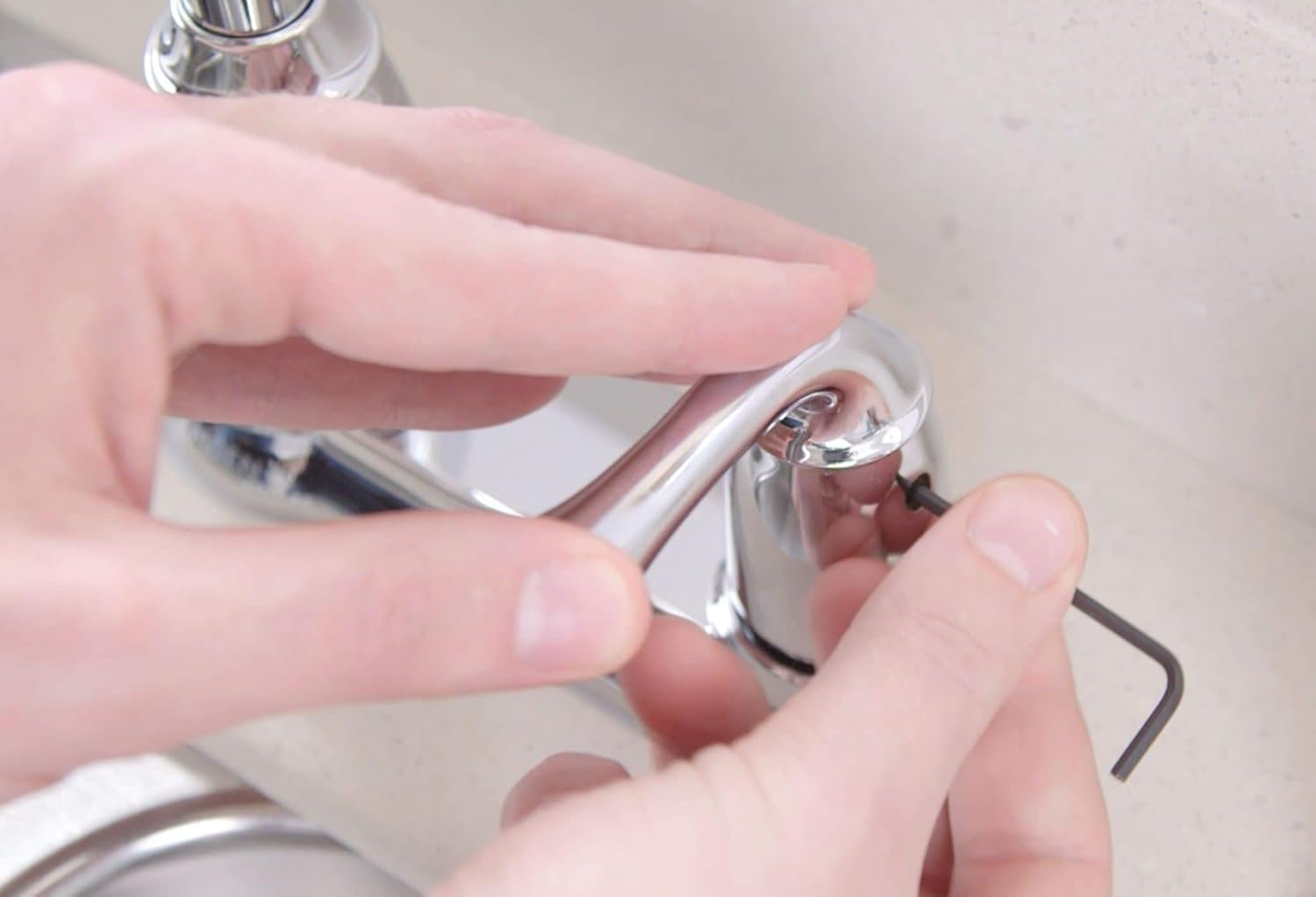

A close-up of a hand using an Allen wrench to remove the set screw from a faucet handle.
A hand lifting the faucet handle off the stem after the set screw has been loosened.
- റീറ്റൈനിംഗ് നട്ട്/ക്ലിപ്പ് നീക്കം ചെയ്യുക: You will see a brass retaining nut or a metal retaining clip holding the cartridge in place. Use adjustable pliers to unscrew the nut or a screwdriver to carefully remove the clip.
Pliers being used to unscrew the brass retaining nut that secures the cartridge in the faucet body.
- പഴയ കാട്രിഡ്ജ് നീക്കം ചെയ്യുക: Use the specialized Moen tool (if included) or adjustable pliers to grip the top of the old cartridge and pull it straight out. It may require some force if it's stuck due to mineral buildup.
A hand using the specialized Moen tool to extract the old cartridge from the faucet body.
The old faucet cartridge fully removed from the faucet body, ready for replacement.
- പുതിയ കാട്രിഡ്ജ് ഇടുക: Ensure the new Moen 1224 cartridge is oriented correctly. There is typically a small tab or notch on the cartridge that aligns with a slot in the faucet body. Push the new cartridge firmly into place.
A hand pushing the new cartridge into the faucet body, ensuring it is fully seated.
A hand carefully placing the new Moen 1224 cartridge into the faucet body, ensuring proper alignment.
- സുരക്ഷിത കാട്രിഡ്ജ്: Reinstall the retaining nut or clip, tightening the nut with pliers or securing the clip until the cartridge is firmly held in place.
Pliers being used to tighten the brass retaining nut, securing the new cartridge in place.
- ഹാൻഡിൽ വീണ്ടും ഘടിപ്പിക്കുക: Place the faucet handle back onto the cartridge stem, align it, and tighten the set screw.
A hand placing the faucet handle back onto the cartridge stem.
- ജലവിതരണം പുനഃസ്ഥാപിക്കുക: പ്രധാന ജലവിതരണം പതുക്കെ വീണ്ടും ഓണാക്കുക.
- ടെസ്റ്റ് ഫ്യൂസെറ്റ്: Check for leaks and verify proper water flow and temperature control.
ഫ്യൂസറ്റ് പ്രവർത്തിപ്പിക്കുന്നു
The Moen 1224 cartridge restores proper water flow and temperature control to your double-handle Moen faucet. Once installed, operate your faucet as usual by turning the handles to control water flow and temperature.
മെയിൻ്റനൻസ്
The Moen 1224 cartridge is designed for durability. Regular maintenance involves:
- Periodically checking for leaks around the faucet base and handles.
- Cleaning the faucet exterior with a soft cloth and mild soap to prevent mineral buildup.
- If leaks or flow issues recur, re-evaluate the installation or consider replacing the cartridge again.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Faucet leaks from handle or spout | Cartridge not seated correctly, retaining nut loose, or cartridge seals damaged. | Ensure cartridge is fully inserted and oriented correctly. Tighten retaining nut. If problem persists, inspect cartridge for damage or replace. |
| ജലപ്രവാഹമില്ല അല്ലെങ്കിൽ ഒഴുക്ക് കുറഞ്ഞു | Water supply off, cartridge clogged, or improperly installed. | Check water supply valves. Remove and inspect cartridge for debris. Ensure cartridge is installed with correct orientation. |
| തെറ്റായ ജല താപനില | Cartridge installed incorrectly (e.g., rotated 180 degrees). | Remove cartridge and re-install, ensuring proper orientation according to manufacturer guidelines. |
സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: മോയിൻ
- മോഡൽ: 1224
- മെറ്റീരിയൽ: Acrylonitrile Butadiene Styrene (Plastic) with Brass components
- ശുപാർശ ചെയ്യുന്ന ഉപയോഗങ്ങൾ: Kitchen, Bathroom (for compatible double-handle Moen faucets)
- ഹാൻഡിലുകളുടെ എണ്ണം: Designed for 1-handle operation within a double-handle faucet system
- ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ: Replacement Parts or Service Kit
- പ്രത്യേക സവിശേഷത: മോടിയുള്ള
- ഇനത്തിൻ്റെ ഭാരം: ഏകദേശം 0.8 ഔൺസ് (22.68 ഗ്രാം)
- ഉൽപ്പന്ന അളവുകൾ: 1"D x 1"W x 1"H (ഏകദേശം)
വാറൻ്റിയും പിന്തുണയും
The Moen 1224 Replacement Faucet Cartridge Kit is backed by Moen’s Limited Lifetime Warranty. For detailed warranty information or technical support, please refer to the official Moen webസൈറ്റ് അല്ലെങ്കിൽ മോയൻ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക.
മോയിൻ ഉപഭോക്തൃ സേവനം: സഹായത്തിന്, സന്ദർശിക്കുക www.moen.com/customer-support or consult your product packaging for contact details.
