Tasco Specialty 5x20 Golf Scope Monocular User Manual

1. ആമുഖം

Thank you for choosing the Tasco Specialty 5x20 Golf Scope Monocular. This compact and lightweight optical instrument is designed specifically for golfers, providing 5x magnification to help you observe the course and a built-in rangefinding reticle to assist in estimating distances to the flag or other targets.

This manual provides detailed instructions on how to set up, operate, and maintain your golf scope to ensure optimal performance and longevity. Please read it thoroughly before using your device.

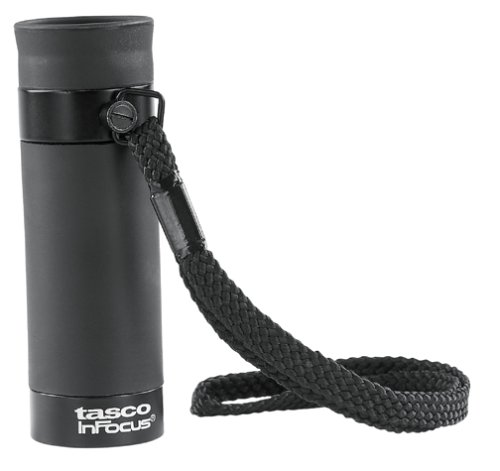

Image 1: Tasco Specialty 5x20 Golf Scope Monocular. This image displays the compact design of the monocular, highlighting its portability and ease of handling.

2. സജ്ജീകരണം

The Tasco Specialty 5x20 Golf Scope Monocular is designed for immediate use with minimal setup. It features a fixed focus system, meaning no manual focusing adjustments are required.

2.1 അൺപാക്കിംഗ്

Carefully remove the monocular from its packaging. Inspect the device for any signs of damage. Retain the packaging for future storage or transport.

2.2 മോണോക്കുലർ പിടിക്കൽ

Hold the monocular firmly in one hand. Bring the eyepiece (the smaller lens) to your eye. Ensure a steady grip to minimize image shake, especially when using the rangefinding reticle.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

3.1 Viewing Through the Monocular

1. Hold the monocular to your eye, ensuring the eyepiece is comfortably positioned.
2. Look through the monocular at your desired target. The 5x magnification will make objects appear five times closer than with the naked eye.
3. Since the focus is fixed, the image should be clear for objects at typical golf course distances.

3.2 Using the Rangefinding Reticle

The Tasco Specialty 5x20 Golf Scope features a rangefinding reticle designed to help estimate distances to objects of known height, such as a golf flagstick. While specific markings may vary, the general principle involves aligning the reticle with the target.

1. Look through the monocular and locate the target (e.g., a golf flagstick).
2. Position the reticle over the target. The reticle will have a series of horizontal lines or markings.
3. Align the base of the target (e.g., the bottom of the flagstick) with the lowest line of the reticle.
4. Note where the top of the target (e.g., the top of the flagstick) intersects with the reticle's markings.
5. Refer to the specific rangefinding scale or instructions provided with your monocular (often printed on the device or its packaging) to convert this reading into an estimated distance. For example, if a standard flagstick (approximately 7 feet tall) aligns between two specific marks, the distance can be read directly or calculated.

Note: The accuracy of the rangefinding reticle depends on the user's ability to estimate the target's height and steady observation. It is an estimation tool, not a precise laser rangefinder.

4. പരിപാലനവും പരിചരണവും

4.1 ലെൻസുകൾ വൃത്തിയാക്കൽ

• Use only a soft, lint-free cloth or a specialized lens cleaning cloth.
• For stubborn smudges or dirt, apply a small amount of lens cleaning fluid to the cloth, not directly to the lens.
• Gently wipe the lens in a circular motion. Avoid excessive pressure.
• Never use abrasive cloths, paper towels, or household cleaners, as these can scratch the lens coatings.

4.2 പൊതുവായ പരിചരണവും സംഭരണവും

• Store the monocular in a cool, dry place when not in use.
• Protect the lenses from dust and scratches by keeping the lens caps on.
• Avoid exposing the monocular to extreme temperatures or direct sunlight for extended periods.
• Do not attempt to disassemble the monocular, as this will void any warranty and may cause damage.

5. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Tasco Specialty 5x20 Golf Scope Monocular, please refer to the following common solutions:

• ചിത്രം മങ്ങിയതായി തോന്നുന്നു:
  • Ensure the lenses are clean. Refer to Section 4.1 for cleaning instructions.
  • Verify that you are holding the monocular steadily. Image blur can occur from hand shake.
  • The monocular has a fixed focus. If objects at typical viewing distances (e.g., 10-100 yards) appear blurry, there might be an issue with the optics.
• Difficulty using the rangefinding reticle:
  • Practice using the reticle on objects of known height and distance to become familiar with its operation.
  • Ensure sufficient light for clear visibility of both the target and the reticle markings.
• ശാരീരിക ക്ഷതം:
  • If the monocular has been dropped or sustained impact, inspect for cracks, loose parts, or misaligned optics.
  • Do not attempt to repair the device yourself. Contact customer support or the retailer for assistance.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റി വിവരങ്ങൾ

Specific warranty terms and conditions for the Tasco Specialty 5x20 Golf Scope Monocular are provided by the manufacturer, Bushnell, or the retailer at the time of purchase. Please refer to the warranty card included with your product or visit the official Bushnell webവാറന്റി കവറേജ്, ദൈർഘ്യം, ക്ലെയിം നടപടിക്രമങ്ങൾ എന്നിവയെക്കുറിച്ചുള്ള വിശദമായ വിവരങ്ങൾക്ക് സൈറ്റ് സന്ദർശിക്കുക.

Note: Retain your proof of purchase for any warranty claims.

8. ഉപഭോക്തൃ പിന്തുണ

For technical assistance, troubleshooting beyond this manual, or inquiries regarding your Tasco Specialty 5x20 Golf Scope Monocular, please contact:

• നിങ്ങളുടെ ചില്ലറ വ്യാപാരി: The store or online platform where you purchased the product.
• Bushnell Customer Service: Visit the official Bushnell webസൈറ്റ് (www.bushnell.com) for contact information, FAQs, and support resources.

When contacting support, please have your product model number (1954841-20) and proof of purchase readily available.
