VDO 340 001 Speedometer/Tachometer Generator Sender Instruction Manual

ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of your VDO 340 001 Speedometer/Tachometer Generator Sender. This device is designed to generate electrical pulses corresponding to rotational speed, which are then interpreted by compatible speedometer or tachometer gauges.

Please read these instructions thoroughly before installation and keep this manual for future reference.

ഉൽപ്പന്നം കഴിഞ്ഞുview

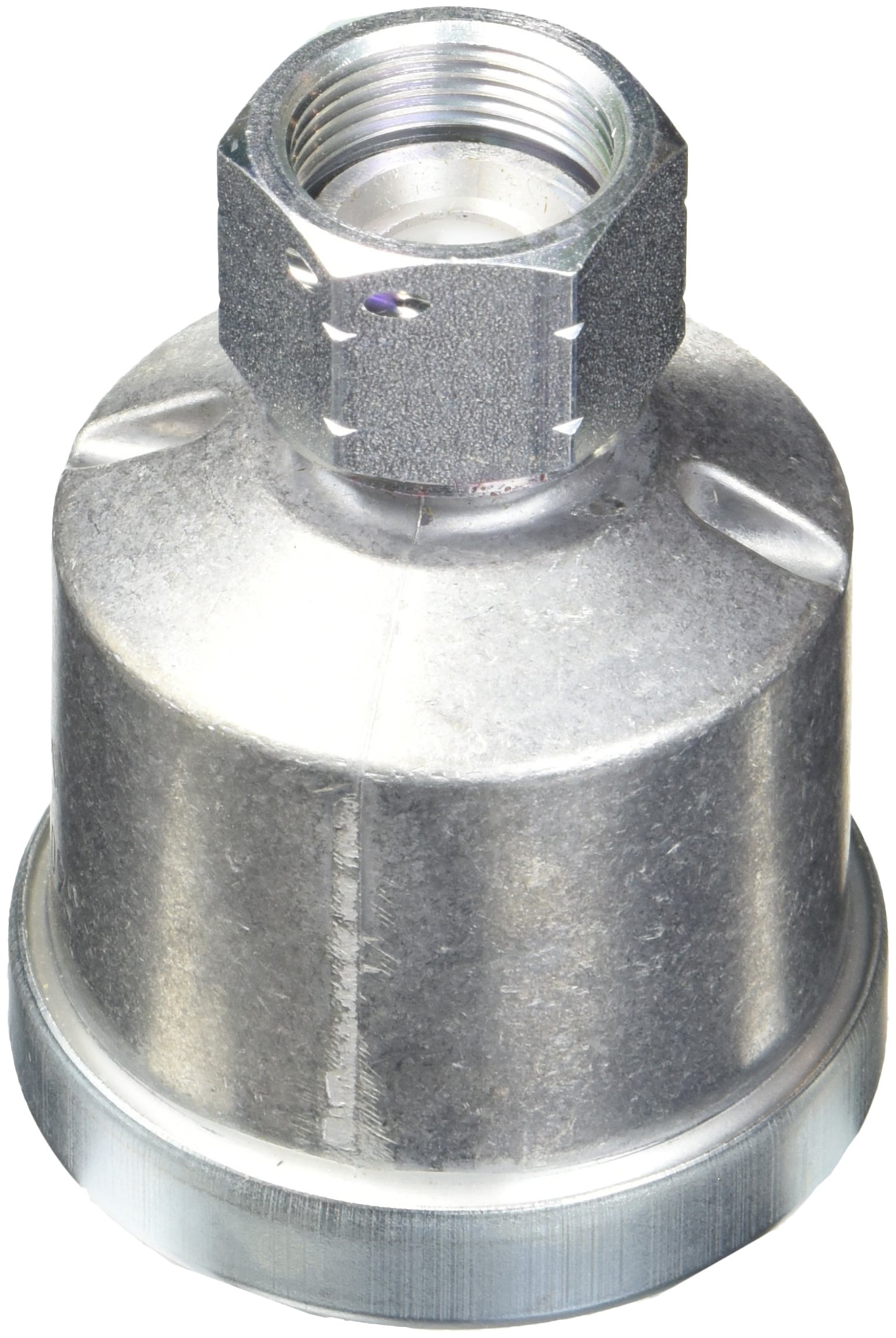

ചിത്രം 1: VDO 340 001 Speedometer/Tachometer Generator Sender. This image shows the sender unit with its threaded body and electrical connector.

The VDO 340 001 is a pulse generator sender unit. It features a 7/8-18 thread for secure mounting and is designed to operate with a 12-volt electrical system. Its primary function is to convert mechanical rotation into an electrical signal for accurate speed or RPM measurement.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the accurate and reliable operation of the VDO 340 001 sender. Consult your vehicle or equipment service manual for specific mounting locations and wiring diagrams.

ആവശ്യമായ ഉപകരണങ്ങളും മെറ്റീരിയലുകളും:

• Wrench (appropriate size for 7/8-18 thread)
• വയർ സ്ട്രിപ്പറുകൾ/ക്രിമ്പറുകൾ
• Electrical connectors (as needed)
• Multimeter (for testing connections)
• Thread sealant (optional, for watertight seal)

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:

1. മൗണ്ടിംഗ് സ്ഥലം തിരിച്ചറിയുക: Locate the designated mounting point for the speedometer/tachometer sender on your transmission, engine, or other rotating component. Ensure the area is clean and free of debris.
2. ത്രെഡ് ഇടപഴകൽ: Carefully thread the VDO 340 001 sender into the mounting hole. Ensure it engages smoothly without cross-threading.
3. സുരക്ഷിതമായി മുറുക്കുക: Using an appropriate wrench, tighten the sender firmly. Do not overtighten, as this can damage the sender or the mounting point. If using thread sealant, apply it according to the sealant manufacturer's instructions.
4. ഇലക്ട്രിക്കൽ കണക്ഷൻ:
   • Connect the sender's output wire to the signal input of your compatible speedometer or tachometer.
   • Connect the sender's ground wire to a reliable chassis ground.
   • Ensure all electrical connections are secure and properly insulated to prevent short circuits and corrosion.
5. വൈദ്യുതി വിതരണം: Verify that the connected gauge receives a stable 12-volt power supply. The sender itself is typically passive, generating a signal based on rotation, but the gauge requires power.
6. ടെസ്റ്റ് പ്രവർത്തനം: After installation, perform a functional test to ensure the sender is providing an accurate signal to the gauge.

ജാഗ്രത: Incorrect wiring can damage the sender, the gauge, or other electrical components. If you are unsure about any step, consult a qualified automotive technician.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The VDO 340 001 Speedometer/Tachometer Generator Sender operates automatically once installed and connected to a compatible gauge. It does not require manual user interaction for its primary function.

• As the connected mechanical component rotates, the sender generates electrical pulses.
• These pulses are transmitted to the speedometer or tachometer gauge.
• The gauge interprets the frequency of these pulses to display speed or RPM.

Ensure that the gauge is properly calibrated according to its own instruction manual to match the pulse output of the VDO 340 001 sender for accurate readings.

മെയിൻ്റനൻസ്

The VDO 340 001 sender is designed for durability and typically requires minimal maintenance. Regular inspection can help ensure its longevity and reliable performance.

• വിഷ്വൽ പരിശോധന: Periodically check the sender unit for any signs of physical damage, corrosion, or loose connections.
• വയറിംഗ് സമഗ്രത: Ensure that all wiring connected to the sender is intact, free from fraying, and securely attached.
• ശുചിത്വം: Keep the area around the sender free from excessive dirt, grease, or debris that could interfere with its operation or cause premature wear.

No internal user-serviceable parts are present. Do not attempt to disassemble the sender unit.

ട്രബിൾഷൂട്ടിംഗ്

If you experience issues with your speedometer or tachometer readings, consider the following troubleshooting steps related to the sender unit:

പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും:

• No Reading on Gauge:
  • Check all electrical connections to the sender and the gauge for looseness or corrosion.
  • Verify that the gauge is receiving proper power and ground.
  • Inspect the sender's wiring for breaks or short circuits.
  • Ensure the sender is securely mounted and engaging with the rotating component.
• Erratic or Inaccurate Reading:
  • Check for intermittent electrical connections or damaged wiring.
  • Ensure the sender is not loose in its mounting, which could cause inconsistent signal generation.
  • Verify the gauge's calibration settings.
  • Inspect the sender for physical damage or obstruction that might affect its pulse generation.

If troubleshooting steps do not resolve the issue, the sender unit may be faulty and require replacement, or the issue may lie with the connected gauge or vehicle wiring system. Consult a qualified technician for further diagnosis.

സ്പെസിഫിക്കേഷനുകൾ

The following are the technical specifications for the VDO 340 001 Speedometer/Tachometer Generator Sender:

വാറൻ്റിയും പിന്തുണയും

For information regarding warranty coverage, technical support, or replacement parts for your VDO 340 001 Speedometer/Tachometer Generator Sender, please contact VDO customer service directly or refer to the official VDO webസൈറ്റ്.

ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
