ആമുഖം
The Miele Active AirClean 30 Filter is designed to enhance the air filtration performance of compatible Miele vacuum cleaners. This filter is particularly beneficial for households with pets or smokers, as it effectively traps unpleasant odors and fine dust particles.
It combines two Super AirClean filters with a thick layer of activated charcoal, providing heavy-duty filtration and excellent odor control. The completely sealed systems of compatible Miele vacuum cleaners (such as S142 to S168 Universal and Little Giant uprights) ensure outstanding filtration when equipped with this exhaust filter.

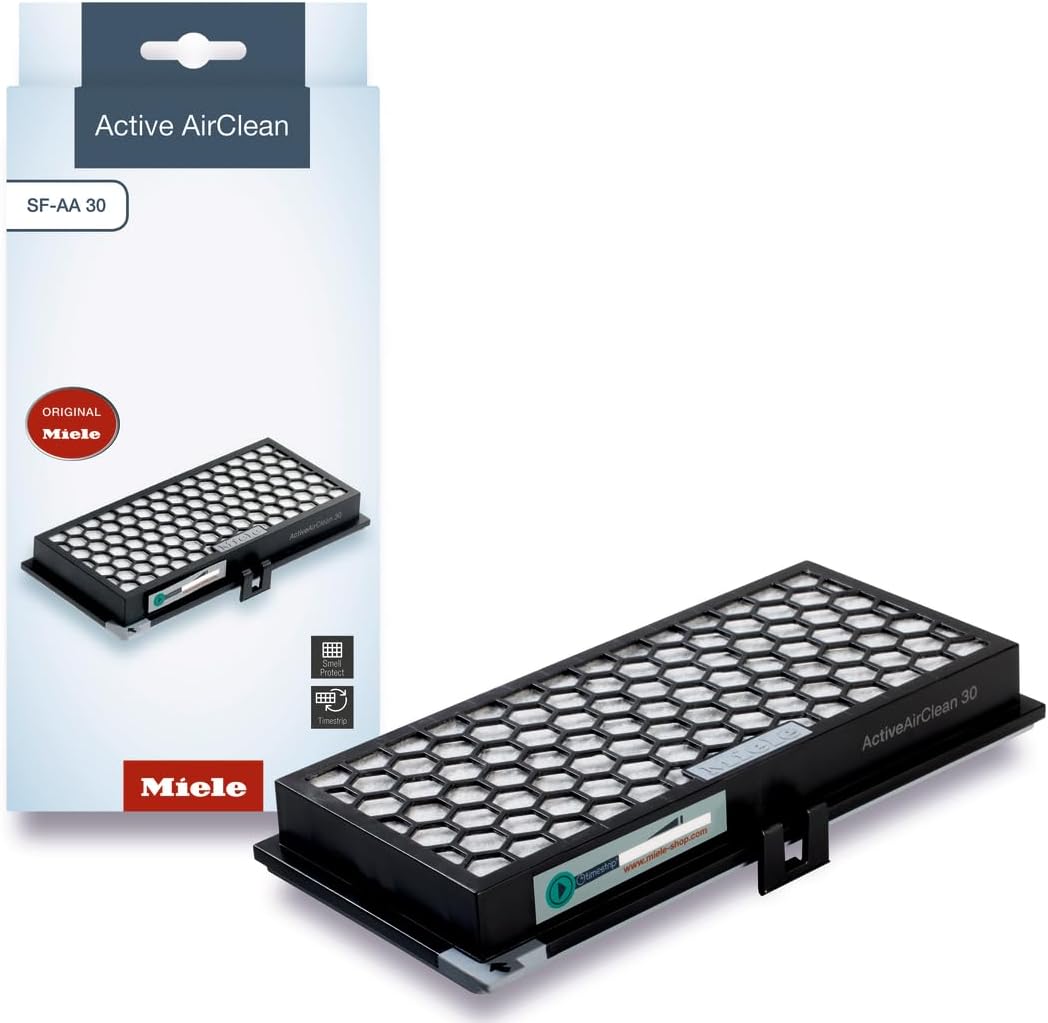

Figure 1: Miele Active AirClean 30 Filter. This filter features a honeycomb-like structure and a built-in Timestrip indicator.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installing the Miele Active AirClean 30 Filter is a straightforward process. Ensure your vacuum cleaner is unplugged before proceeding with the installation.
- Locate the filter compartment on your Miele vacuum cleaner. This is typically found near the exhaust vent.
- ഫിൽട്ടർ കമ്പാർട്ട്മെന്റ് കവർ തുറക്കുക.
- Remove the old filter, if present. Dispose of the old filter responsibly.
- Unpack the new Miele Active AirClean 30 Filter.
- Before inserting the new filter, activate the Timestrip indicator by firmly pressing the green "Timestrip" button located on the side of the filter. This will initiate the indicator, which will gradually fill with red as the filter ages.
- Align the new filter with the guides in the compartment and gently push it into place until it clicks securely. Ensure the filter is seated correctly to maintain the sealed system of your vacuum.
- ഫിൽട്ടർ കമ്പാർട്ട്മെന്റ് കവർ അടയ്ക്കുക.
Figure 2: The Miele Active AirClean 30 Filter shown partially installed in a compatible Miele vacuum cleaner, demonstrating its fit within the appliance.
ഫിൽറ്റർ പ്രവർത്തിപ്പിക്കുന്നു
Once installed, the Active AirClean 30 Filter operates automatically with your Miele vacuum cleaner. Its active charcoal layer works to absorb odors while the filter media captures dust and other airborne particles, ensuring cleaner exhaust air.
The integrated Timestrip indicator provides a visual cue for when the filter needs replacement. After activation, the indicator will slowly change color from green to red. When the red color completely fills the indicator window, it signifies that the filter's active charcoal is saturated and its filtration capacity is diminished, indicating it's time for a replacement.
മെയിൻ്റനൻസ്
Regular maintenance of your Miele Active AirClean 30 Filter is crucial for optimal performance of your vacuum cleaner and for maintaining clean indoor air quality. The primary maintenance task is timely replacement of the filter.
- ഫിൽട്ടർ മാറ്റിസ്ഥാപിക്കൽ ഷെഡ്യൂൾ: To maintain appliance performance and effective odor control, it is recommended to change the filter once a year, or when the Timestrip indicator is completely red.
- Timestrip Indicator: The Timestrip indicator serves as a convenient visual reminder. Once activated during installation, it will progressively turn red, signaling the filter's remaining lifespan. A fully red indicator means the filter should be replaced immediately.
- നീക്കം ചെയ്യൽ: ഉപയോഗിച്ച ഫിൽട്ടറുകൾ പ്രാദേശിക മാലിന്യ നിർമാർജന ചട്ടങ്ങൾ അനുസരിച്ച് നശിപ്പിക്കുക.

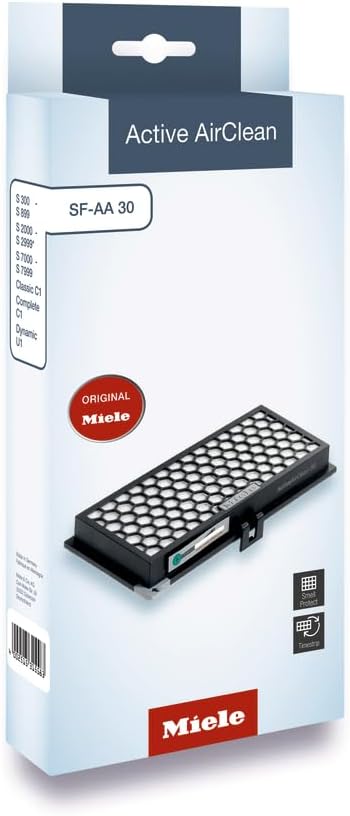

Figure 3: The Miele Active AirClean 30 Filter in its original packaging, ready for replacement.
ട്രബിൾഷൂട്ടിംഗ്
If you experience issues with your Miele vacuum cleaner's air quality or performance, consider the following troubleshooting steps related to the Active AirClean 30 Filter:
- സ്ഥിരമായ ദുർഗന്ധം: If unpleasant odors persist despite using the Active AirClean filter, check the Timestrip indicator. A fully red indicator means the charcoal is saturated and the filter needs immediate replacement. Ensure the vacuum bag is also changed regularly, especially in households with pets or smokers, as odors can originate from accumulated debris in the bag.
- Reduced Suction/Performance: While less directly related to the exhaust filter, a severely clogged exhaust filter can contribute to reduced airflow and suction. If suction is diminished, check the filter's condition via the Timestrip. Also, inspect other filters (e.g., motor protection filter) and ensure the dustbag is not full.
- ശരിയായി ഇരിപ്പിടം ഫിൽട്ടർ ചെയ്യുക: If the filter does not fit correctly, ensure it is the correct model (SF-AA30) for your specific Miele vacuum cleaner. Refer to your vacuum cleaner's manual for compatible filter types.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| നിർമ്മാതാവ് | മൈലെ |
| ഭാഗം നമ്പർ | 09616080 |
| ഇനത്തിൻ്റെ ഭാരം | 3.87 ഔൺസ് |
| ഉൽപ്പന്ന അളവുകൾ | 10 x 4 x 2 ഇഞ്ച് |
| ഇനം മോഡൽ നമ്പർ | ആക്ടീവ് എയർ ക്ലീൻ ഫിൽറ്റർ |
| നിറം | കറുപ്പ് |
| മെറ്റീരിയൽ | പ്ലാസ്റ്റിക് |
| വോളിയം | 0.74 ലിറ്റർ |
| ഇനത്തിൻ്റെ പാക്കേജ് അളവ് | 1 |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | SF-AA30 ActiveAirClean Filter |
| പുനരുപയോഗം | Reusable (filter housing, not the filter media) |
Figure 4: Dimensions of the Miele Active AirClean 30 Filter.
വാറൻ്റി
According to the product information, there is no specific warranty provided for the Miele Active AirClean 30 Filter.
പിന്തുണ
For further assistance, technical support, or inquiries regarding the Miele Active AirClean 30 Filter, please contact Miele customer service directly. You can find contact information on the official Miele website or through the documentation provided with your Miele vacuum cleaner.
Visit the official Miele Store for more information: ആമസോണിലെ മൈലെ സ്റ്റോർ
