1. ആമുഖം
1.1 ഉൽപ്പന്നം കഴിഞ്ഞുview

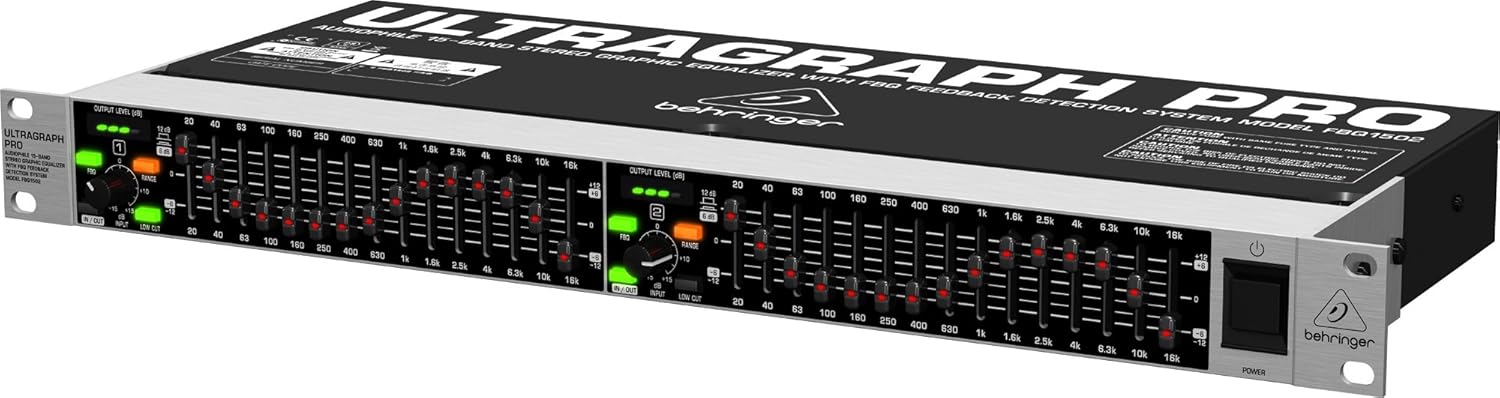

The Behringer ULTRAGRAPH PRO FBQ1502 is a professional, ultra-musical 15-band stereo graphic equalizer designed for both live and studio applications. It enhances audio quality by bringing out the best parts of your sound and effectively eliminating feedback. This unit integrates advanced features such as the FBQ Feedback Detection System and a dedicated mono subwoofer output.
1.2 പ്രധാന സവിശേഷതകൾ
- Professional 15-band stereo Graphic Equalizer for both live and studio applications.
- Revolutionary FBQ Feedback Detection System instantly reveals critical frequencies and can also be used as an Audio Analyzer.
- Dedicated mono subwoofer output with adjustable crossover frequency.
- Ultra low-noise audio operational amplifiers for outstanding sound performance.
- Shielded toroidal power transformer for ultra low-noise performance.
2. സജ്ജീകരണ ഗൈഡ്
2.1 അൺപാക്കിംഗ്
Carefully remove the ULTRAGRAPH PRO FBQ1502 from its packaging. Retain all packaging materials for future transport or storage. Inspect the unit for any signs of damage that may have occurred during shipping. If damage is present, contact your dealer immediately.
2.2 കണക്ഷനുകൾ
The FBQ1502 features electronic servo-balanced inputs and outputs, supporting both 1/4" TRS and gold-plated XLR connectors. The servo function automatically adjusts for unbalanced signals, ensuring consistent signal levels. Connect your audio source (e.g., mixer, preamplifier) to the inputs and your audio destination (e.g., power amplifier, active speakers) to the outputs.
- പ്രധാന ഇൻപുട്ടുകൾ: Connect your stereo audio source to the main left and right inputs using balanced XLR or 1/4" TRS cables.
- പ്രധാന p ട്ട്പുട്ടുകൾ: Connect the main left and right outputs to your ampലൈഫയർ അല്ലെങ്കിൽ പവർഡ് സ്പീക്കറുകൾ.
- സബ് വൂഫർ putട്ട്പുട്ട്: Use the dedicated mono subwoofer output to connect to your subwoofer's input. This output has an adjustable crossover frequency.
- പവർ കണക്ഷൻ: Connect the supplied power cable to the unit and a suitable AC power outlet. Ensure the correct voltage is used as specified on the unit.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
3.1 പവർ ഓൺ/ഓഫ്
Locate the power switch on the front panel, typically on the right side. Press the switch to turn the unit ON. The power indicator will illuminate. To turn OFF the unit, press the switch again.
3.2 Graphic Equalization
The FBQ1502 features two 15-band graphic equalizer sections, one for each stereo channel. Each band corresponds to a specific frequency, allowing you to boost or cut that frequency's level. The faders provide precise control over the audio spectrum.
- ഫ്രീക്വൻസി ഫേഡറുകൾ: Adjust individual faders to boost (move up) or cut (move down) specific frequencies.
- റേഞ്ച് സ്വിച്ച്: Select between +/-6dB or +/-12dB equalization range using the RANGE switch. The +/-12dB setting provides a wider range of adjustment.
- In/Out Switch: Use the IN/OUT switch to bypass the equalizer section, allowing for A/B comparison of the processed and unprocessed signal.
3.3 FBQ ഫീഡ്ബാക്ക് ഡിറ്റക്ഷൻ സിസ്റ്റം
The patented FBQ Feedback Detection System is a key feature of the FBQ1502. When activated, the LEDs on the frequency faders illuminate to indicate frequencies that are causing feedback. This allows for quick identification and elimination of problematic frequencies.
- FBQ Button: Press the FBQ button to activate the feedback detection system.
- Feedback Indication: The brightest LED on a fader indicates the most critical feedback frequency. Lower the fader for that frequency to reduce or eliminate feedback.
- Audio Analyzer Mode: In normal operation (FBQ not active), the fader LEDs can also indicate frequency ranges with the highest energy levels, effectively functioning as an audio analyzer.
3.4 സബ്വൂഫർ put ട്ട്പുട്ട്
The dedicated mono subwoofer output allows for easy integration of a subwoofer into your audio system. The adjustable crossover frequency control enables you to set the upper frequency limit for the subwoofer output.
- Crossover Frequency Knob: Rotate this knob to adjust the crossover point for the subwoofer output, ensuring optimal bass management.
3.5 ലോ കട്ട് ഫിൽട്ടർ
The low cut filter removes unwanted low frequencies, such as floor rumble or hum, that can degrade audio quality. This helps to clean up the signal and improve clarity.
- LOW CUT Button: Press this button to engage the low cut filter.
3.6 Input Gain and Output Level
The FBQ1502 provides controls for adjusting input gain and monitoring output levels to ensure proper signal flow and prevent clipping.
- INPUT Gain Knob: Adjust this knob to set the input level of the signal entering the equalizer.
- OUTPUT LEVEL (dB) Meters: The 4-digit LED meters provide visual indication of the output signal level for each channel. Aim for levels that are strong but do not consistently peak into the red.
4. പരിപാലനം
To ensure the longevity and optimal performance of your Behringer ULTRAGRAPH PRO FBQ1502, follow these maintenance guidelines:
- വൃത്തിയാക്കൽ: Regularly wipe the unit with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as they may damage the finish or internal components.
- വെൻ്റിലേഷൻ: Ensure adequate ventilation around the unit. Do not block the ventilation openings. Operating the unit in a well-ventilated area helps dissipate heat and prevents overheating, which can affect performance and lifespan.
- സംഭരണം: When not in use for extended periods, store the unit in a cool, dry place, ideally in its original packaging or a protective case.
- പവർ കേബിൾ: Periodically check the power cable for any signs of damage. Do not use a damaged power cable.
5. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your ULTRAGRAPH PRO FBQ1502.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No sound or low output level | Incorrect connections; Input gain too low; EQ bypass engaged; Faulty cables. | Check all audio cable connections; Increase INPUT gain; Ensure IN/OUT switch is disengaged (EQ active); Test with different cables. |
| ഫീഡ്ബാക്ക് (ഓലിക്കുന്ന ശബ്ദം) | Microphone too close to speakers; Specific frequencies are resonating. | Activate FBQ Feedback Detection System and lower the faders indicated by illuminated LEDs; Reposition microphones or speakers. |
| വികലമായ ഓഡിയോ | Input or output levels too high (clipping); Faders set too high. | Reduce INPUT gain or OUTPUT level; Adjust faders to avoid excessive boosting; Check signal chain for other clipping points. |
| യൂണിറ്റിന് ചൂട് അനുഭവപ്പെടുന്നു | സാധാരണ പ്രവർത്തനം; അപര്യാപ്തമായ വായുസഞ്ചാരം. | Ensure adequate airflow around the unit; Do not stack other equipment directly on top of it; This unit is designed to run warm. |
| One or more fader LEDs not illuminating | LED പരാജയം. | This is typically a cosmetic issue and does not affect the unit's audio performance. If it impacts functionality, contact support. |
6 സാങ്കേതിക സവിശേഷതകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ഇനത്തിൻ്റെ ഭാരം | 1.32 പൗണ്ട് (0.6 കി.ഗ്രാം) |
| ഉൽപ്പന്ന അളവുകൾ | 20.87 x 4.21 x 12.01 ഇഞ്ച് (53 x 10.7 x 30.5 സെ.മീ) |
| മോഡൽ നമ്പർ | FBQ1502 (also referred to as FBQ150) |
| നിറം | വെള്ളി/കറുപ്പ് |
| ബോഡി മെറ്റീരിയൽ | ലോഹം |
| ഇക്വലൈസർ ബാൻഡുകൾ | 15 bands per channel (stereo) |
| ഇൻപുട്ട്/ഔട്ട്പുട്ട് കണക്ടറുകൾ | 1/4" TRS and Gold-plated XLR (servo-balanced) |
| പ്രത്യേക സവിശേഷതകൾ | FBQ Feedback Detection System, Dedicated Mono Subwoofer Output with Adjustable Crossover, Low Cut Filter |
| ആദ്യം ലഭ്യമായ തീയതി | ഒക്ടോബർ 2, 2001 |
| യു.പി.സി | 750408387103, 723856367287, 705105159782, 033172750831 |
7. വാറൻ്റിയും പിന്തുണയും
Behringer products are designed and manufactured to high standards. For detailed information regarding the warranty period and terms for your ULTRAGRAPH PRO FBQ1502, please refer to the warranty card included with your product or visit the official Behringer webസൈറ്റ്.
സാങ്കേതിക പിന്തുണ, സേവനം അല്ലെങ്കിൽ സ്പെയർ പാർട്സ് എന്നിവയ്ക്കായി, ദയവായി Behringer ഉപഭോക്തൃ പിന്തുണയെ അവരുടെ ഔദ്യോഗിക വിലാസത്തിൽ ബന്ധപ്പെടുക. website or authorized service centers. Ensure you have your product model number and serial number available when seeking support.
കൂടുതൽ വിവരങ്ങളും പിന്തുണാ ഉറവിടങ്ങളും നിങ്ങൾക്ക് ഇവിടെ കണ്ടെത്താനാകും ആമസോണിലെ ബെഹ്രിംഗർ സ്റ്റോർ അല്ലെങ്കിൽ ഔദ്യോഗിക ബെഹ്രിംഗർ webസൈറ്റ്.
