Enersys (Hawker) Cyclon 0809-0012 X-Cell 6 Volt/5 Amp Hour Sealed Lead Acid Battery User Manual

1. ആമുഖം

This manual provides essential information for the safe and effective use of your Enersys (Hawker) Cyclon 0809-0012 X-Cell 6 Volt/5 Amp Hour Sealed Lead Acid Battery. This 6-volt, 5 Ah pure lead sealed lead-acid battery is designed for general applications such as emergency lighting, UPS systems, and various electronic equipment. Please read this manual thoroughly before installation and operation.

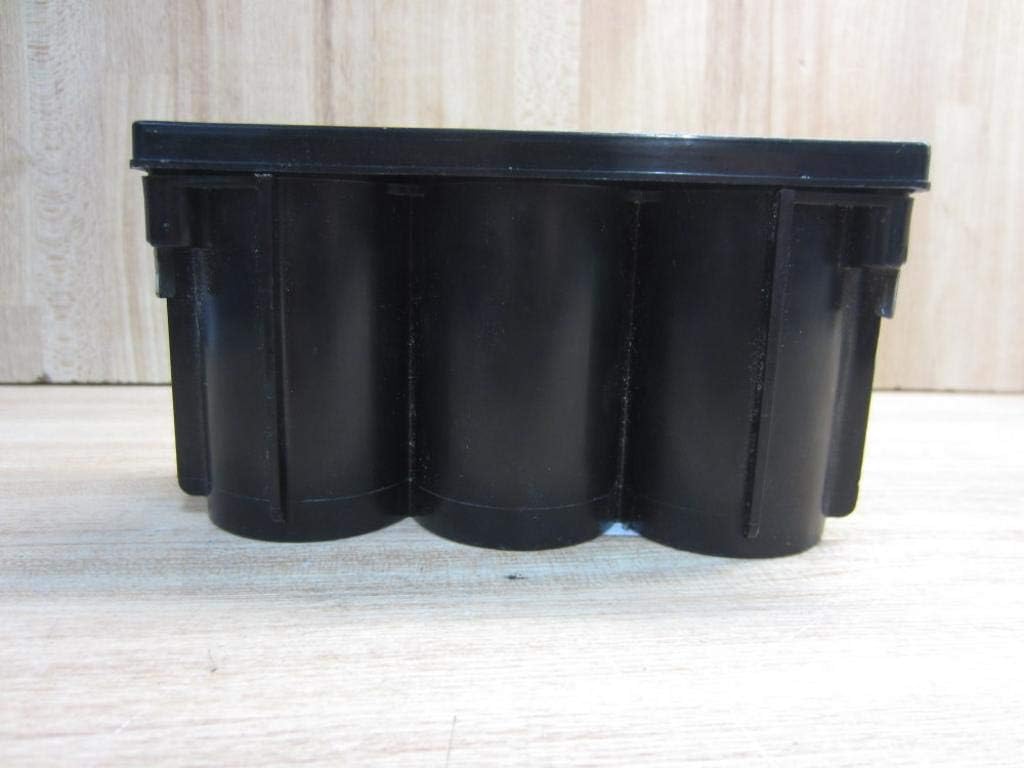

Figure 1: Enersys Cyclon 0809-0012 X-Cell 6V 5Ah Sealed Lead Acid Battery, front view.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

The Enersys Cyclon 0809-0012 battery offers several key advantages:

• പവർ ഡെൻസിറ്റി: Provides high-rate power density per unit weight, allowing for more energy-supporting features.
• സൈക്കിൾ ജീവിതം: Delivers up to 300 cycles (100% Depth of Discharge, C/5 rate), offering significantly greater full cycle capability compared to conventional lead products.
• ഫ്ലോട്ട് ലൈഫ്: Designed for a ten-year life in standby applications at 25°C (C/5 rate) to 80% of rated capacity.
• ഉയർന്ന സ്ഥിരതയുള്ള വോളിയംtagഇ-ഡെലിവറി: Features a low internal resistance, resulting in a flat discharge voltagഇ പ്രോfile similar to Nickel Cadmium batteries.
• സുരക്ഷ: Minimal to no gassing under normal charging conditions, making it safe for installation in various environments including offices, aircraft cabins, and hospitals.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these guidelines for proper setup and installation:

1. പരിശോധന: Before installation, visually inspect the battery for any signs of damage.
2. ഓറിയൻ്റേഷൻ: The battery can be installed in any orientation except inverted (terminals facing downwards).
3. കണക്ഷനുകൾ: Ensure all connections are clean, tight, and correctly polarized. Connect the positive (+) terminal of the battery to the positive terminal of the load/charger, and the negative (-) terminal to the negative terminal. Incorrect polarity can damage the battery and connected equipment.
4. വെൻ്റിലേഷൻ: While minimal gassing occurs, ensure adequate ventilation in the installation area.
5. പരിസ്ഥിതി വ്യവസ്ഥകൾ: Install the battery in a cool, dry place, away from direct sunlight, heat sources, and flammable materials.

ചിത്രം 2: ക്ലോസപ്പ് view of a battery terminal, showing the connection point.

Figure 3: Another close-up view of a battery terminal, illustrating the robust design.

4. ഓപ്പറേഷൻ

This sealed lead-acid battery is designed for reliable power delivery. For optimal performance and longevity, adhere to the following operational guidelines:

• ചാർജിംഗ്: Always use approved charging methods and chargers specifically designed for sealed lead-acid batteries. Overcharging or undercharging can significantly reduce battery life. Refer to the charger's manual for specific instructions.
• ഡിസ്ചാർജ്: Avoid deep discharges whenever possible to maximize cycle life. The battery provides a stable voltage output throughout its discharge cycle.
• താപനില: Operate the battery within its specified temperature range. Extreme temperatures can affect performance and lifespan.

5. പരിപാലനം

The Enersys Cyclon battery is a low-maintenance unit. However, proper care ensures maximum service life:

• വൃത്തിയാക്കൽ: Keep the battery terminals and casing clean and free from dirt or corrosion. Use a dry cloth for cleaning. Do not use solvents or abrasive cleaners.
• സംഭരണം: If storing the battery for an extended period, ensure it is fully charged and stored in a cool, dry place. Periodically check the voltage and recharge if necessary to prevent sulfation.
• പുനരുപയോഗം: This battery contains lead and must be recycled. Do not dispose of it in household waste. Contact your local recycling center for proper disposal instructions.

Figure 4: Label indicating the battery is nonspillable and must be recycled.

6. പ്രശ്‌നപരിഹാരം

നിങ്ങളുടെ ബാറ്ററിയിൽ പ്രശ്നങ്ങൾ നേരിടുകയാണെങ്കിൽ, ഇനിപ്പറയുന്ന പൊതുവായ ട്രബിൾഷൂട്ടിംഗ് ഘട്ടങ്ങൾ പരിഗണിക്കുക:

• ബാറ്ററി ഹോൾഡിംഗ് ചാർജ്ജ്: Ensure the charger is functioning correctly and is compatible with sealed lead-acid batteries. Check for loose or corroded connections. The battery may have reached the end of its service life.
• കുറഞ്ഞ വോളിയംtagഇ Outട്ട്പുട്ട്: Verify that the battery is fully charged. Check for any excessive load that might be drawing too much current.
• അമിത ചൂടാക്കൽ: Disconnect the battery immediately if it becomes excessively hot during charging or discharge. This could indicate an internal short circuit or improper charging.
• ശാരീരിക ക്ഷതം: Inspect the battery for any swelling, cracks, or leaks. A damaged battery should be replaced and recycled properly.

For persistent issues, consult a qualified technician or contact Enersys customer support.

7 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the Enersys Cyclon 0809-0012 battery:

ചിത്രം 5: മുകളിൽ view of the battery, displaying the product label with model number and key specifications.

8 സുരക്ഷാ വിവരങ്ങൾ

ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ പാലിക്കുക:

• പൊതുവായ മുന്നറിയിപ്പ്: Do not short circuit or put the battery in fire. It may explode or leak.
• ചാർജിംഗ്: Use only approved charging methods. Short circuit protection is required during transportation.
• രാസവസ്തുക്കൾ: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Always wash hands after handling the battery.
• Nonspillable: This battery is nonspillable, but care should still be taken to avoid physical damage.
• പുനരുപയോഗം: Batteries must be recycled. Do not dispose of with general waste.

9. വാറണ്ടിയും പിന്തുണയും

For specific warranty details and customer support, please refer to the documentation provided at the time of purchase or contact Enersys directly through their official website or customer service channels. Ensure you have your model number (0809-0012) and purchase information available when seeking support.
