dbx ഡ്രൈവ്റാക്ക് 260 ഉപയോക്തൃ മാനുവൽ
Model: DriveRack 260 | Brand: dbx
1. ആമുഖം
The dbx DriveRack 260 is a comprehensive 2x6 I/O Loudspeaker Management System designed to optimize and protect your loudspeakers in live sound applications. It integrates essential audio processing functions such as crossover, graphic EQ, parametric EQ, Auto-EQ, and limiting into a single unit, simplifying system setup and enhancing sound quality.
2 പ്രധാന സവിശേഷതകൾ
- All-in-One Loudspeaker System Management: Two-channel input with six-output architecture provides full bandpass, crossover, EQ, compression, and limiting—delivering pristine, customizable sound for any venue setup.
- Advanced Feedback Suppression (AFS): Patent-pending AFS actively eliminates feedback in real time—perfect for live sound engineers managing unpredictable stagഇ പരിതസ്ഥിതികൾ.
- Professional-Grade Input Tools: Features a 28-band graphic EQ, dbx compressor, subharmonic synthesizer, and feedback eliminator—ensuring optimal sound shaping and signal integrity before ampലിഫിക്കേഷൻ.
- PeakStopPlus Limiting & Alignment Delay: Protect your speakers with built-in limiting, and time-align your system with delay controls—ideal for safeguarding gear and improving phase accuracy.
- Intuitive Setup with Wizard + DriveWare GUI: Easy-to-use setup wizard and software GUI simplify complex configurations—saving time for contractors and FOH engineers during installs or soundchecks.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview

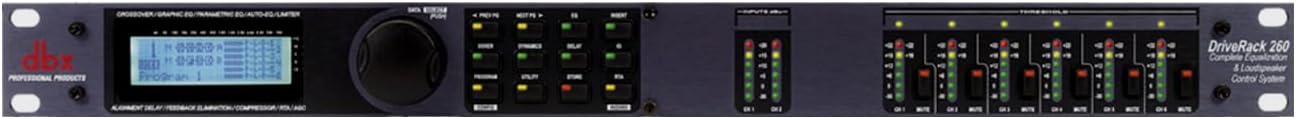

ചിത്രം 3.1: മുൻഭാഗം view of the dbx DriveRack 260 loudspeaker management system, showcasing its display, control knob, and various buttons.
ചിത്രം 3.2: വിശദമായി view of the front panel, highlighting the input and output metering, function buttons, and the RTA mic input.
Figure 3.3: Rear panel of the DriveRack 260, showing the power input, PC connection, DriveRack controller port, and the XLR input/output connectors.
Figure 3.4: Side perspective of the dbx DriveRack 260, illustrating its rack-mountable design and ventilation.
4. സജ്ജീകരണം
Setting up the DriveRack 260 involves connecting it to your audio system and configuring its settings. The unit features a built-in setup Wizard to guide you through the process, or you can use the intuitive DriveWare software for computer-based control.
4.1 പ്രാരംഭ കണക്ഷനുകൾ
- Ensure all audio equipment (mixers, amplifiers, loudspeakers) is powered off before making connections.
- Connect your audio source (e.g., mixer output) to the ഇൻപുട്ടുകൾ (XLR) on the rear panel of the DriveRack 260.
- ബന്ധിപ്പിക്കുക ഔട്ട്പുട്ടുകൾ (XLR) of the DriveRack 260 to the inputs of your power amplifiers, ensuring correct channel assignment (e.g., Low, Mid, High).
- If using the Auto-EQ function, connect an RTA (Real-Time Analyzer) microphone to the RTA MIC INPUT മുൻ പാനലിൽ.
- For computer control, connect an Ethernet cable from the DriveRack 260 to your network router or directly to your computer.
- Connect the power cable to the unit and a suitable power outlet.
4.2 System Configuration (Wizard)
The DriveRack 260's setup Wizard simplifies system configuration:
- Power on the DriveRack 260. The display will guide you through initial setup.
- Select your speaker configuration (e.g., Full Range, 2-Way, 3-Way) and speaker types.
- Follow the on-screen prompts to perform Auto-EQ, which automatically adjusts equalization for optimal room response.
- The Advanced Feedback Suppression (AFS) algorithm can be configured to identify and eliminate feedback frequencies.
- Adjust crossover points and limiter settings as recommended by the Wizard or to suit your specific system requirements.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once set up, the DriveRack 260 provides various controls for fine-tuning your sound system.
5.1 ഫ്രണ്ട് പാനൽ നിയന്ത്രണങ്ങൾ
- ഡിസ്പ്ലേ സ്ക്രീൻ: Shows current settings, menus, and metering.
- നാവിഗേഷൻ വീൽ: മെനുകളിലൂടെ സ്ക്രോൾ ചെയ്യാനും പാരാമീറ്റർ മൂല്യങ്ങൾ ക്രമീകരിക്കാനും ഉപയോഗിക്കുന്നു.
- ഫംഗ്ഷൻ ബട്ടണുകൾ: Dedicated buttons for direct access to key functions like EQ, Crossover, Compressor, Limiter, AFS, and Delay.
- Input/Output Meters: Provide visual indication of signal levels.
5.2 DriveWare Software Control
For advanced control and visual feedback, connect the DriveRack 260 to a computer via Ethernet and use the DriveWare software. This allows for comprehensive system management from a graphical user interface.
Note: No official product videos from the seller were found for this model. Please refer to the user manual for detailed operational procedures.
6. പരിപാലനം
To ensure the longevity and optimal performance of your dbx DriveRack 260, follow these maintenance guidelines:
- Keep the unit clean by wiping it with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- Ensure proper ventilation around the unit to prevent overheating. Do not block the ventilation slots.
- Store the unit in a cool, dry environment when not in use.
- Regularly check all cable connections for secure fit and signs of wear.
- Perform firmware updates as recommended by dbx to ensure access to the latest features and performance enhancements.
7. പ്രശ്നപരിഹാരം
This section provides solutions to common issues you might encounter with your DriveRack 260.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഓഡിയോ ഔട്ട്പുട്ട് ഇല്ല | Incorrect cabling; Mute engaged; Incorrect input/output routing. | Check all XLR connections. Ensure no channels are muted. Verify routing in the DriveWare software or via front panel. |
| Feedback issues | Microphone too close to speakers; AFS not properly configured. | Reposition microphones. Run the AFS Wizard to re-analyze and suppress feedback frequencies. |
| വികലമായ ശബ്ദം | Input/output levels too high; Limiter settings incorrect. | Reduce input or output gain. Check PeakStopPlus Limiter settings to ensure they are not over-compressing the signal. |
| Cannot connect via Ethernet | Network configuration issue; Incorrect IP settings. | Ensure the Ethernet cable is securely connected. Verify network settings (DHCP/Static IP) on both the DriveRack and your control device. Consult your network administrator if necessary. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | DriveRack 260 |
| സ്പീക്കർ തരം | പ്രോസസ്സർ |
| ശുപാർശ ചെയ്യുന്ന ഉപയോഗങ്ങൾ | Loudspeaker management, audio processing, sound system control |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Amplifiers, Ears, Loudspeakers |
| യൂണിറ്റ് എണ്ണം | 1.0 എണ്ണം |
| നിറം | കറുപ്പ് |
| ഇനത്തിൻ്റെ ഭാരം | 8.6 പൗണ്ട് (3.9 കി.ഗ്രാം) |
| പവർ ഉറവിടം | കോർഡഡ് ഇലക്ട്രിക് |
| ഇൻപുട്ട് വോളിയംtage | 120 വോൾട്ട് |
| മൗണ്ടിംഗ് തരം | റാക്ക് മൌണ്ട് |
| മെറ്റീരിയൽ | ലോഹം |
| ഉൽപ്പന്ന അളവുകൾ | 22.5 x 11.5 x 3.5 ഇഞ്ച് (57.15 x 29.21 x 8.89 സെ.മീ) |
| കണക്റ്റിവിറ്റി ടെക്നോളജി | XLR |
| യു.പി.സി | 600599649071, 691991400483 |
9. വാറൻ്റിയും പിന്തുണയും
The dbx DriveRack 260 comes with a Limited Warranty. For specific warranty terms, duration, and claim procedures, please refer to the warranty card included with your product or visit the official dbx webസൈറ്റ്.
For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact dbx customer support through their official website or authorized service centers. Keep your purchase receipt and product serial number handy for faster service.
