മാസ്റ്റർ ലോക്ക് കീ ലോക്ക് ബോക്സ് 5400EC ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖവും അവസാനവുംview

The Master Lock 5400EC Set Your Own Combination Portable Lock Box is designed for secure storage of keys, offering durability and convenience. Its portable design allows for easy installation over door knobs. Users can set their own four-digit combination for keyless access and enhanced security. A protective shutter door shields the combination dials from environmental elements like weather, dirt, and grime. The molded body and vinyl-coated shackle are engineered to prevent scratching of door surfaces.

Figure 1: Master Lock 5400EC Key Lock Box

2 പ്രധാന സവിശേഷതകൾ

• വലിയ ശേഷി: Securely stores up to five standard (2-inch) house keys.
• ഇഷ്ടാനുസൃതമാക്കാവുന്ന കോമ്പിനേഷൻ: Features a four-digit combination lock that can be set and reset to thousands of personalized code options.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Built with a metal body for enhanced durability, suitable for both indoor and outdoor use.
• ഉപരിതല സംരക്ഷണം: Includes a vinyl-coated shackle to prevent scratching of door surfaces and a shutter door to protect combination dials from weather and debris.
• പോർട്ടബിൾ ഡിസൈൻ: Offers removable "over the knob" installation, fitting most ball, biscuit, and tulip door knob styles.
• Pre-set Combination: The lock box combination is initially preset to 0-0-0-0. Instructions for resetting the combination are included.

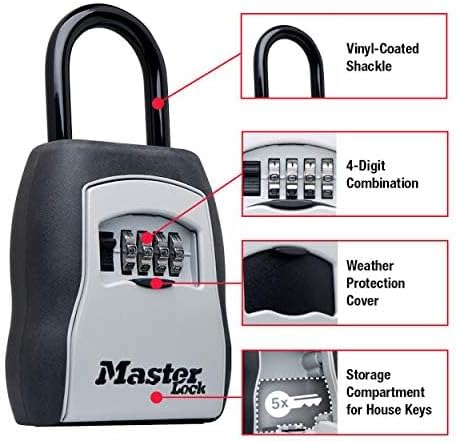

Figure 2: Key features of the lock box including vinyl-coated shackle, 4-digit combination, weather protection cover, and storage compartment.

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

3.1 Setting Your Combination

1. Open the lock box by setting the dials to the default combination (0-0-0-0) and pulling down the cover.
2. Locate the reset lever inside the lock box. Push the reset lever into position 'A' (towards the shackle).
3. Rotate the combination dials to your desired four-digit combination. Ensure the numbers are clearly aligned.
4. Push the reset lever back to position 'B' (away from the shackle).
5. Scramble the combination dials to lock the box. Your new combination is now set.

Figure 3: Visual guide for setting the lock box combination.

3.2 Installation (Over-the-Knob Design)

1. Ensure the lock box is open and the shackle is released.
2. Begin installing with the lock box facing away from the door.
3. Turn the lock box around to face you once it is over the door knob or handle.
4. Close the shackle securely onto the lock box and close the compartment door.

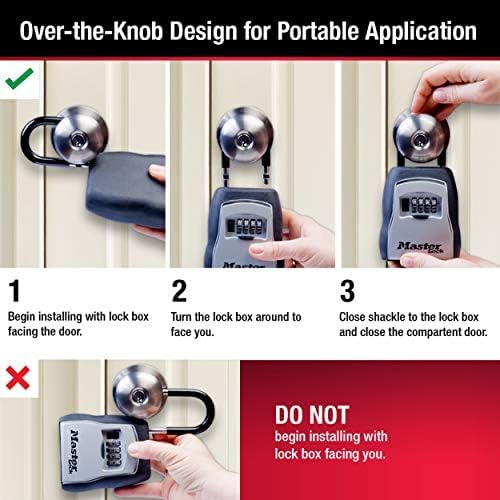

Figure 4: Proper installation method for the portable lock box.

Figure 5: The lock box is compatible with most knobs and handles, but not levers.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Opening the Lock Box

1. Rotate the combination dials to your set four-digit code.
2. Pull down the shutter door to reveal the key compartment.
3. Retrieve or place keys as needed.

4.2 Closing and Securing the Lock Box

1. Ensure all keys are securely placed within the compartment.
2. Close the shutter door firmly.
3. Scramble the combination dials to prevent unauthorized access.

Figure 6: The lock box provides a secure alternative to traditional key hiding spots.

5. പരിപാലനം

To ensure the longevity and proper functioning of your Master Lock Key Lock Box, follow these maintenance guidelines:

• പതിവ് വൃത്തിയാക്കൽ: Periodically wipe down the exterior with a soft, damp അഴുക്കും പൊടിയും നീക്കം ചെയ്യാൻ തുണി ഉപയോഗിക്കുക. ഉരച്ചിലുകൾ ഉള്ള ക്ലീനറുകൾ ഒഴിവാക്കുക.
• Shutter Door Care: Keep the shutter door free of debris to ensure smooth operation and proper protection of the combination dials.
• ലൂബ്രിക്കേഷൻ: If the dials become stiff, apply a small amount of graphite lubricant to the moving parts. Do not use oil-based lubricants.
• കാലാവസ്ഥ സംരക്ഷണം: While designed for outdoor use, extreme weather conditions may affect performance over time. Ensure the shutter door is always closed when not in use.

6. പ്രശ്‌നപരിഹാരം

• ഡയലുകൾ കടുപ്പമുള്ളതാണ്: Apply graphite lubricant to the dials. Ensure no foreign objects are obstructing movement.
• Cannot Open with Correct Combination: Double-check that each number is precisely aligned. Ensure the reset lever is in the correct position (B) after setting the combination.
• Shackle is Stuck: Ensure the combination is correctly entered and the release mechanism is fully engaged. Check for any obstructions.

7 സ്പെസിഫിക്കേഷനുകൾ

Figure 7: Internal dimensions and key capacity of the lock box.

8. വാറൻ്റിയും പിന്തുണയും

The Master Lock 5400EC Key Lock Box comes with a പരിമിതമായ ആജീവനാന്ത വാറൻ്റി, providing peace of mind regarding its durability and performance.

For additional support, user guides, or troubleshooting assistance, please refer to the official Master Lock website or contact their customer service. Digital versions of the user guide and manual are also available:

• ഉപയോക്തൃ ഗൈഡ് (PDF)
• ഉപയോക്തൃ മാനുവൽ (PDF)
