1. ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your MSD 8241 Blaster DIS Tower Coil Pack. This high-performance ignition coil is designed to enhance the ignition system of compatible vehicles, providing a strong and consistent spark.
പ്രധാന സവിശേഷതകൾ:
- Designed for use with late model Ford waste spark ignition systems.
- Features an 83:1 turns ratio and lower primary resistance for high voltagഇ outputട്ട്പുട്ട്.
- Secondary towers are designed for snap-on spark plug terminals.
- Primary terminals require a Ford style connector.
- CARB E.O. Approved for specific applications.
2. ബോക്സിൽ എന്താണുള്ളത്?
പാക്കേജ് തുറക്കുമ്പോൾ, എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക.
- One (1) MSD 8241 Blaster DIS Tower Coil Pack
- Installation hardware (if applicable, may include longer allen screws with riser standoffs, though not explicitly listed in product features)
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the optimal performance and longevity of your MSD 8241 Coil Pack. If you are unsure about any step, consult a qualified automotive technician.
സുരക്ഷാ മുൻകരുതലുകൾ:
- ഏതെങ്കിലും വൈദ്യുത ജോലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും വാഹനത്തിന്റെ ബാറ്ററി വിച്ഛേദിക്കുക.
- Ensure the engine is cool to the touch to prevent burns.
- കയ്യുറകൾ, കണ്ണ് സംരക്ഷണം എന്നിവയുൾപ്പെടെ ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ ധരിക്കുക.
ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:
- Locate the Existing Coil Pack: Identify the current ignition coil pack on your vehicle. The MSD 8241 is designed as a direct fit replacement for late model Ford waste spark ignition systems.
- വയറിംഗ് വിച്ഛേദിക്കുക: Carefully disconnect the primary electrical connector from the existing coil pack. Note that the primary terminals on the MSD 8241 require a Ford style connector.
- Remove Spark Plug Wires: Detach the spark plug wires from the secondary towers of the old coil pack. Note the routing of each wire to ensure correct reinstallation.
- Unmount Old Coil Pack: Remove the bolts or fasteners securing the old coil pack to its mounting bracket. The MSD 8241 is a bolt-on installation type.
- Mount New Coil Pack: Position the MSD 8241 Blaster DIS Tower Coil Pack in the same location. Secure it using the appropriate bolts. Some applications may require the included longer allen screws with riser standoffs for proper fitment, especially if mounted over a valve cover.
- Connect Spark Plug Wires: Connect the spark plug wires to the secondary towers of the new MSD 8241 coil pack. The secondary towers are designed for snap-on spark plug terminals, ensuring a secure connection. Ensure each wire is connected to its correct cylinder.
- Connect Primary Wiring: Reconnect the primary electrical connector to the new coil pack. Ensure it clicks securely into place.
- ബാറ്ററി വീണ്ടും ബന്ധിപ്പിക്കുക: വാഹനത്തിന്റെ ബാറ്ററി വീണ്ടും ബന്ധിപ്പിക്കുക.
- ടെസ്റ്റ് സിസ്റ്റം: Start the engine and check for proper operation. Listen for any unusual noises or signs of misfire.

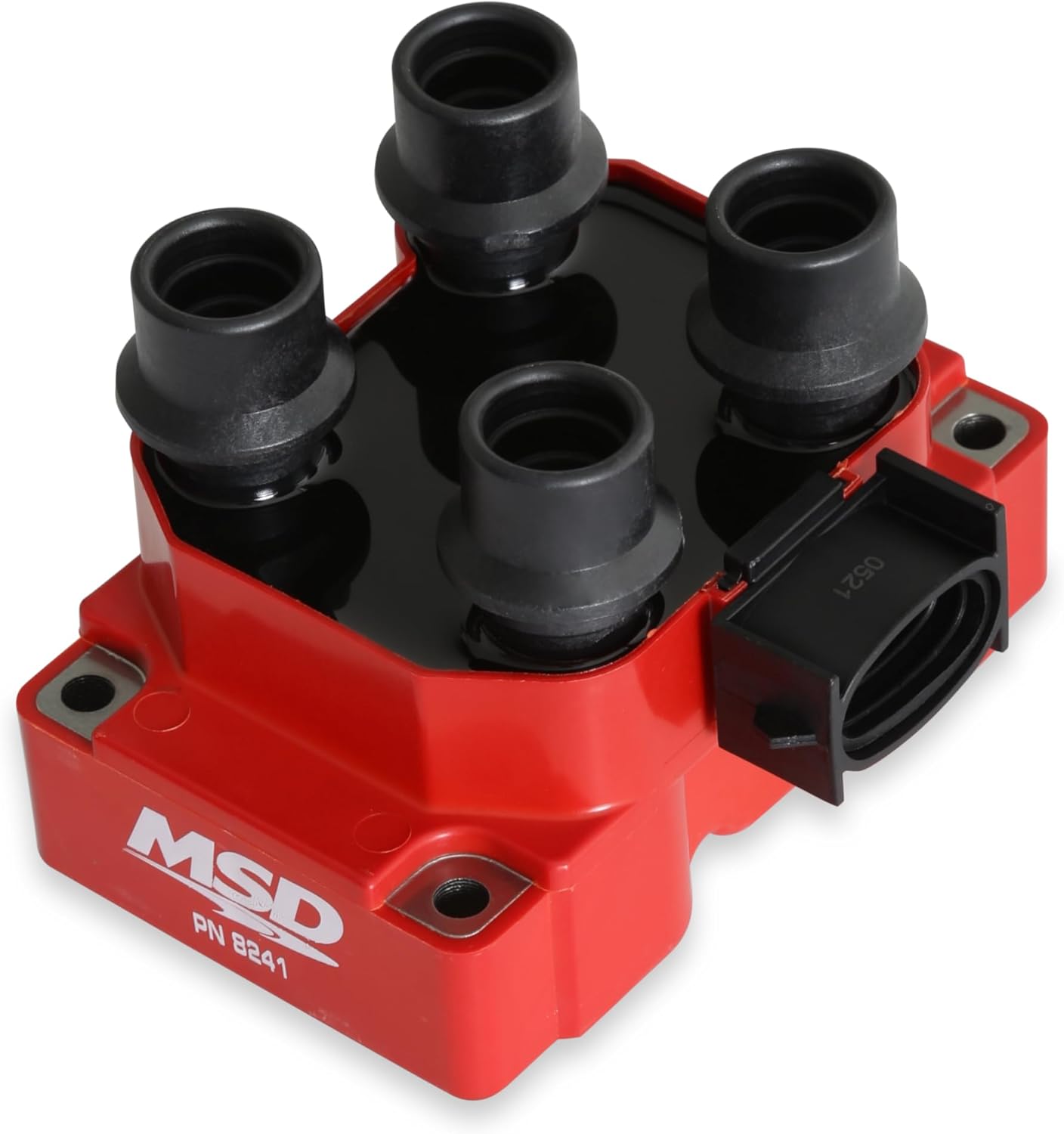

ചിത്രം 1: മുകളിൽ-മുൻവശം view of the MSD 8241 DIS 4 Tower Coil Pack, showing the red housing, black coil towers, and electrical connector.
ചിത്രം 2: മുകൾഭാഗം view of the MSD 8241 DIS 4 Tower Coil Pack, highlighting the four coil towers and the MSD logo on the red casing.
ചിത്രം 3: താഴെ view of the MSD 8241 DIS 4 Tower Coil Pack, showing the underside of the coil and the electrical connector.
4. ഓപ്പറേഷൻ
The MSD 8241 Blaster DIS Tower Coil Pack functions as a critical component of your vehicle's ignition system. It receives a low-voltage signal from the engine control unit (ECU) and transforms it into a high-voltage pulse. This high-voltage pulse is then sent through the spark plug wires to the spark plugs, creating a powerful spark that ignites the air-fuel mixture in the engine's cylinders.
Once installed, the coil pack operates automatically as part of the engine's normal function. No user intervention is required for its operation. The advanced design ensures a consistent and strong spark, contributing to improved combustion efficiency.
5. പരിപാലനം
The MSD 8241 Blaster DIS Tower Coil Pack is designed for durability and requires minimal maintenance. However, periodic inspection can help ensure its optimal performance.
- വിഷ്വൽ പരിശോധന: Periodically check the coil pack for any signs of physical damage, cracks, or corrosion on the terminals.
- വയറിംഗ് കണക്ഷനുകൾ: Ensure all electrical connectors and spark plug wires are securely attached and free from corrosion. Loose connections can lead to intermittent performance issues.
- ശുചിത്വം: Keep the coil pack free from excessive dirt, oil, and debris. A clean, dry cloth can be used for wiping the exterior.
- സ്പാർക്ക് പ്ലഗ് വയറുകൾ: Regularly inspect spark plug wires for wear, fraying, or damage, as faulty wires can impact coil performance.
No internal user-serviceable parts are present. Do not attempt to disassemble the coil pack.
6. പ്രശ്നപരിഹാരം
If you experience issues with your vehicle's ignition system after installing the MSD 8241 Coil Pack, consider the following troubleshooting steps:
- എഞ്ചിൻ തകരാറ് അല്ലെങ്കിൽ റഫ് ഐഡൽ:
- Check all spark plug wire connections to ensure they are fully seated on the coil towers and spark plugs.
- Inspect spark plug wires for damage or improper routing.
- Verify the primary electrical connector is securely attached to the coil pack.
- Ensure spark plugs are in good condition and correctly gapped.
- No Start Condition:
- Confirm the battery is fully charged and connections are clean and tight.
- Check all wiring to the coil pack for continuity and proper connection.
- Verify that the coil pack is receiving power from the vehicle's electrical system.
- എഞ്ചിൻ ലൈറ്റ് (CEL) പരിശോധിക്കുക:
- If a CEL illuminates, retrieve diagnostic trouble codes (DTCs) using an OBD-II scanner. These codes can help pinpoint the specific issue.
- Common codes related to ignition coils include P030x (misfire in cylinder x) or P035x (ignition coil primary/secondary circuit malfunction).
If troubleshooting steps do not resolve the issue, it is recommended to consult a professional automotive technician for diagnosis and repair.
7 സ്പെസിഫിക്കേഷനുകൾ
| മോഡലിൻ്റെ പേര് | MSD 8241 Blaster DIS Tower Coil Pack |
| ഭാഗം നമ്പർ | എംഎസ്ഡി-8241 |
| ബ്രാൻഡ് | എം.എസ്.ഡി |
| ഇൻസ്റ്റലേഷൻ തരം | ബോൾട്ട്-ഓൺ |
| കണക്റ്റർ ലിംഗഭേദം | ആൺ-പെൺ |
| ഇനത്തിൻ്റെ ഭാരം | 730 ഗ്രാം (ഏകദേശം 1.6 പൗണ്ട്) |
| പാക്കേജ് ഭാരം | 2.25 പൗണ്ട് |
| ഇനത്തിൻ്റെ പാക്കേജ് അളവുകൾ (L x W x H) | 7.5 x 4.6 x 3.9 ഇഞ്ച് |
| മെറ്റീരിയൽ | പ്ലാസ്റ്റിക് |
| വാഹന സേവന തരം | കാർ |
| യു.പി.സി | 085132082414 |
| OEM ഭാഗം നമ്പർ | 8241 |
8. വാറൻ്റി വിവരങ്ങൾ
The MSD 8241 Blaster DIS Tower Coil Pack comes with a manufacturer's warranty. For specific details regarding the warranty period, coverage, and claims process, please refer to the warranty documentation included with your product or visit the official MSD webസൈറ്റ്. വാറന്റി ആവശ്യങ്ങൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
9. പിന്തുണയും കോൺടാക്റ്റും
For technical assistance, installation questions, or warranty inquiries, please contact MSD customer support.
- നിർമ്മാതാവ്: എം.എസ്.ഡി
- Webസൈറ്റ്: www.msdperformance.com
- പ്രൊഫഷണൽ സഹായം: If you are uncomfortable performing any installation or troubleshooting steps, it is recommended to seek assistance from a certified automotive professional.
