Schlage F10VACC619 Accent Passage Door Lever Instruction Manual

1. ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of your Schlage F10VACC619 Accent Passage Door Lever. This lever is designed for interior hall and closet doors where a locking mechanism is not required. Its durable construction and elegant satin nickel finish ensure long-lasting performance and aesthetic appeal.

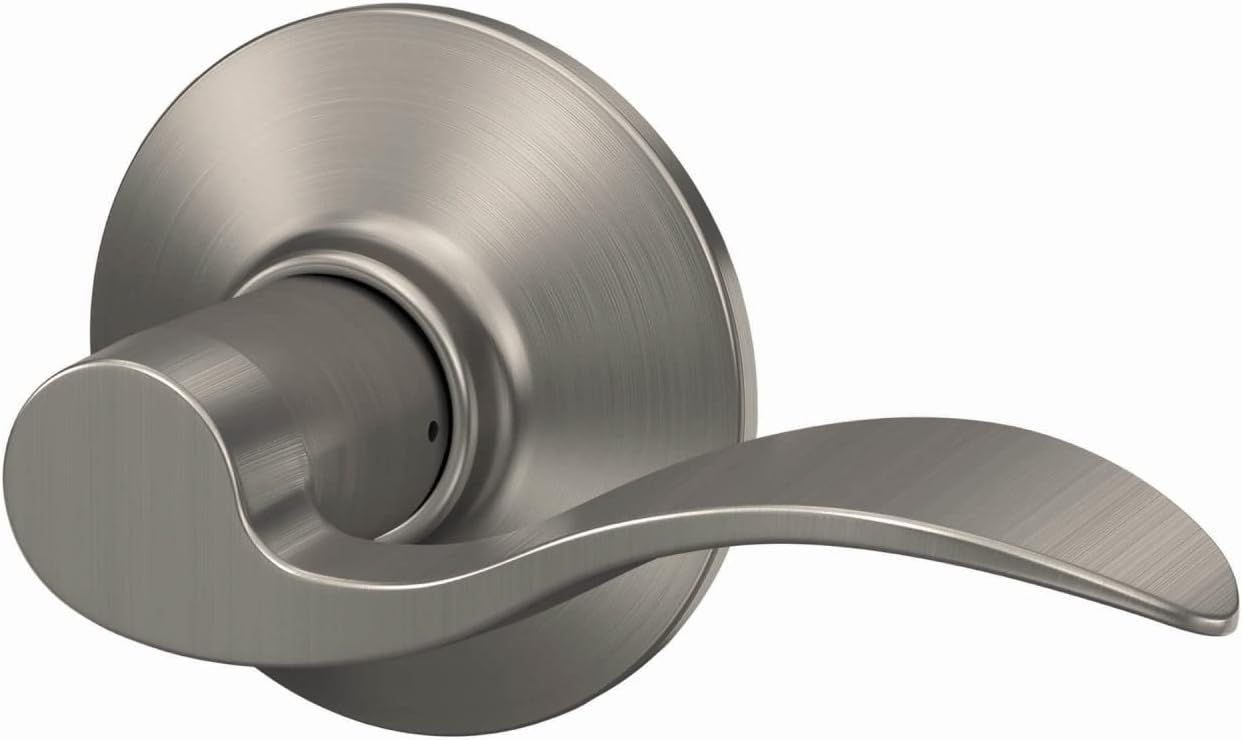

Figure 1: Schlage F10VACC619 Accent Passage Door Lever, Satin Nickel finish.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• അനുയോജ്യമായ ഉപയോഗം: Passage function, perfect for interior hall and closet doors where locking is not needed. Can be paired with a deadbolt on exterior doors.
• എളുപ്പമുള്ള ഇൻസ്റ്റാളേഷൻ: Features self-aligning screw holes for hassle-free setup. All necessary hardware is included for upgrading existing single bore hole doors in minutes with only a screwdriver. Fits both right and left-handed doors.
• Certified Durability: Constructed from premium metal with quality craftsmanship, ensuring everyday strength and peace of mind. Achieves Grade 2/AAA certified BHMA rating for Security, Durability, and Finish.
• Hassle-Free Fit: Universal latch slides easily into place without tools, accommodating standard doors with 2-3/8" or 2-3/4" backset. Fits door thickness from 1-3/8" to 1-3/4". Includes both radius and drive-in faceplate for flexibility.

3 ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ

The following components are typically included with your Schlage F10VACC619 Accent Passage Door Lever:

• Interior Lever Assembly
• Exterior Lever Assembly
• Latch Mechanism (Universal, fits 2-3/8" or 2-3/4" backset)
• സ്ട്രൈക്ക് പ്ലേറ്റ്
• മൗണ്ടിംഗ് സ്ക്രൂകൾ
• ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ (ഈ മാനുവൽ)

ചിത്രം 2: ഉദാample of lever assemblies. The F10VACC619 is a passage function, meaning it does not have a locking button.

4. ഇൻസ്റ്റലേഷൻ

Installation of the Schlage F10VACC619 Accent Passage Door Lever is designed to be straightforward and can typically be completed with a Phillips head screwdriver. For detailed, step-by-step instructions, please refer to the printed installation guide included in your product packaging. Below are general guidelines and key considerations:

1. വാതിൽ തയ്യാറാക്കുക: Ensure your door has a standard single bore hole and the correct backset (2-3/8" or 2-3/4"). The universal latch is adjustable to fit both.
2. ലാച്ച് ഇൻസ്റ്റാൾ ചെയ്യുക: Insert the latch mechanism into the edge of the door. Secure it with screws. The latch is reversible for both radius and drive-in faceplate options.
3. എക്സ്റ്റീരിയർ ലിവർ ഇൻസ്റ്റാൾ ചെയ്യുക: Position the exterior lever assembly, ensuring the spindle aligns with the latch mechanism.
4. ഇന്റീരിയർ ലിവർ ഇൻസ്റ്റാൾ ചെയ്യുക: Place the interior lever assembly over the spindle, aligning the screw holes.
5. Secure the Levers: Use the provided mounting screws to firmly attach both lever assemblies. Self-aligning screw holes simplify this step.
6. സ്ട്രൈക്ക് പ്ലേറ്റ് ഇൻസ്റ്റാൾ ചെയ്യുക: Attach the strike plate to the door frame, aligning it with the latch bolt.
7. ടെസ്റ്റ് ഓപ്പറേഷൻ: Verify that the lever operates smoothly and the latch retracts and extends correctly when the lever is pressed.

ചിത്രം 3: ക്ലോസപ്പ് view of the lever mechanism, showing the smooth design.

5. ഓപ്പറേഷൻ

The Schlage F10VACC619 Accent Passage Door Lever is designed for simple, non-locking operation. To open the door, simply press down on the lever handle. The latch bolt will retract, allowing the door to open. Release the lever, and the latch bolt will extend, securing the door in the closed position.

This passage function is ideal for areas where privacy or security is not a primary concern, such as hallways, closets, or connecting rooms.

Figure 4: Schlage Accent Passage Door Lever in a typical hall or closet application.

6. പരിപാലനം

To ensure the longevity and appearance of your Schlage Accent Passage Door Lever, follow these simple maintenance guidelines:

• വൃത്തിയാക്കൽ: Clean the lever with a soft, damp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the satin nickel finish.
• ലൂബ്രിക്കേഷൻ: If the lever mechanism becomes stiff over time, a small amount of silicone-based lubricant can be applied to the latch bolt and internal moving parts. Do not use oil-based lubricants, as they can attract dust and debris.
• മുറുകുന്ന സ്ക്രൂകൾ: Periodically check and tighten any loose mounting screws to maintain stability and proper function.

7. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your door lever, consider the following common troubleshooting steps:

• ലിവർ അയഞ്ഞതാണ്: Check and tighten the mounting screws on both the interior and exterior sides of the door.
• Latch Does Not Retract/Extend Smoothly: Ensure the latch mechanism is properly aligned and not obstructed. Apply a silicone-based lubricant if necessary.
• Door Does Not Latch: Verify that the strike plate on the door frame is correctly aligned with the latch bolt. Adjust the strike plate position if needed.
• Lever is Stiff: Lubricate the internal mechanism with a silicone-based spray.

If problems persist after attempting these steps, contact Schlage customer support for further assistance.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

വാറൻ്റി: Schlage locks are backed by a limited lifetime mechanical and finish warranty, and a 3-year electronics warranty. Please refer to the official Schlage warranty documentation for full details and terms. Warranty is valid only on purchases from authorized sellers.

ഉപഭോക്തൃ പിന്തുണ: For technical assistance, troubleshooting, or warranty claims, please visit the official Schlage website or contact their customer service department. Contact information can typically be found on the product packaging or the Schlage webസൈറ്റ്.
