1. ആമുഖം
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of the CURT 52028 Soft-Trac 2 Trailer Breakaway Switch Kit System. This system is designed to enhance towing safety by automatically activating electric trailer brakes if the trailer accidentally separates from the tow vehicle. Please read all instructions carefully before installation and use to ensure proper function and safety.
2. ഉൽപ്പന്ന ഘടകങ്ങൾ
The CURT 52028 Soft-Trac 2 Trailer Breakaway Switch Kit System includes the following components:
- 12-വോൾട്ട്, 5-amp ബാറ്ററി
- Battery Case (top-load, durable plastic)
- Nylon Breakaway Switch with 48" Lanyard
- 12-volt Battery Charger

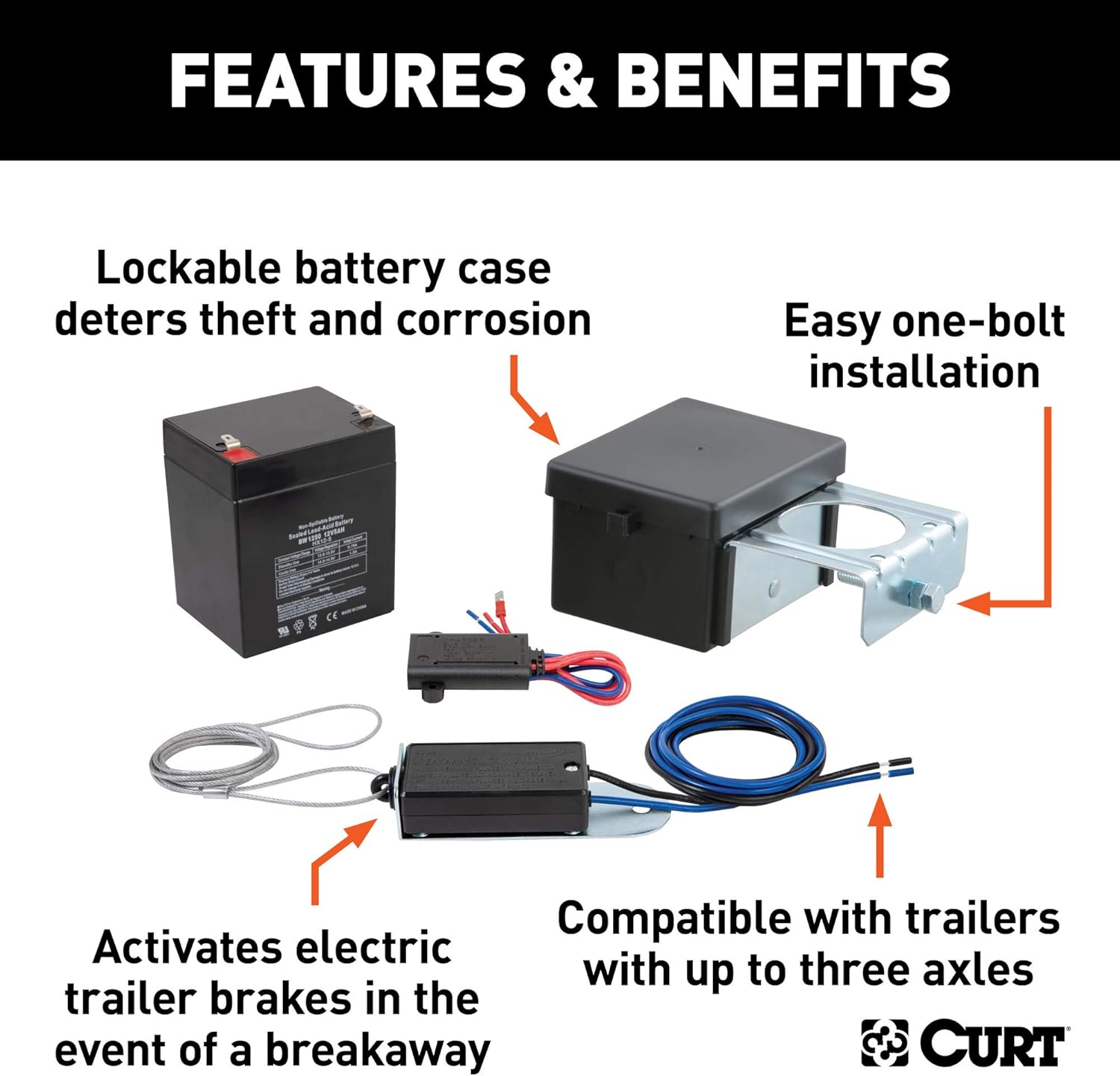

ചിത്രം 1: All components of the CURT Soft-Trac 2 Trailer Breakaway Kit, including the battery, battery case, breakaway switch, and charger.
3 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | 52028 |
| ബാറ്ററി തരം | 12-വോൾട്ട്, 5-amp |
| Breakaway Switch Lanyard Length | 48 ഇഞ്ച് |
| ബാറ്ററി കേസ് മെറ്റീരിയൽ | Durable Plastic (rust-free) |
| അനുയോജ്യത | Trailers with up to 3 axles |
| പാലിക്കൽ | Meets DOT requirements |
| ഇനത്തിൻ്റെ ഭാരം | 4.91 പൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 9 x 6 x 6 ഇഞ്ച് |
ചിത്രം 2: Detailed diagram showing the approximate dimensions of the battery, battery case, and breakaway switch for the CURT Soft-Trac 2 system.
4 സുരക്ഷാ വിവരങ്ങൾ
Always prioritize safety when installing and operating towing equipment.
- ഷോർട്ട് സർക്യൂട്ടുകൾ തടയുന്നതിന് എല്ലാ വൈദ്യുത കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
- Regularly inspect the breakaway switch lanyard for wear or damage. Replace immediately if any issues are found.
- Verify the battery is sufficiently charged before each trip.
- Mount the battery case in a location that protects it from road debris and weather, but is still accessible for maintenance.
- This kit is designed for trailers with electric brakes. Do not use with trailers that do not have electric brakes.
- Adhere to all local and federal Department of Transportation (DOT) requirements for towing safety.
5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the effective operation of your CURT Soft-Trac 2 Breakaway System.
5.1 Mounting the Breakaway System
- ഒരു മൗണ്ടിംഗ് ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Choose a secure location on the trailer frame, near the hitch, that is protected from road debris and moisture. The battery case features a metal mounting bracket with a 3-1/8" hole for easy attachment to the trailer tongue or a jack post.
- ബാറ്ററി കേസ് സുരക്ഷിതമാക്കുക: Use appropriate hardware (not included) to firmly attach the battery case to the selected location. Ensure it is stable and will not vibrate loose during travel.
- Install the Breakaway Switch: Mount the breakaway switch to the trailer frame in a position where the 48-inch lanyard can be easily connected to the tow vehicle's hitch or a dedicated attachment point, allowing for a straight pull if separation occurs.
ചിത്രം 3: The CURT Soft-Trac 2 Breakaway System shown installed on a trailer hitch, demonstrating how it activates electric trailer brakes in the event of a breakaway.
5.2 വയറിംഗ് നിർദ്ദേശങ്ങൾ
Connect the breakaway system to your trailer's electrical system as follows:
- ബ്ലാക്ക് വയർ: Connect to the positive (+) terminal of the 12-volt trailer battery.
- വൈറ്റ് വയർ: Connect to a clean, secure ground point on the trailer frame.
- നീല വയർ: Connect to the electric brake wire of your trailer's wiring harness.
- Breakaway Switch Wires: Connect the two wires from the breakaway switch to the breakaway system's control unit as per the included wiring diagram.
ചിത്രം 4: ക്ലോസ് അപ്പ് view of the breakaway cable lanyard, illustrating its connection between the tow vehicle and the trailer's breakaway system for emergency braking.
വീഡിയോ 1: Official product video demonstrating the CURT 52028 Soft-Trac 2 Trailer Breakaway Switch Kit System. This video provides a visual guide to the system's components and basic functionality.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed, the system operates automatically.
6.1 Connecting the Lanyard
Before each trip, attach the breakaway switch lanyard to a secure point on your tow vehicle's hitch or frame. Ensure the lanyard has enough slack to allow for turns but is taut enough to pull the pin if the trailer separates.
6.2 സിസ്റ്റം സജീവമാക്കൽ
In the event of a trailer separation from the tow vehicle, the lanyard will pull the pin from the breakaway switch. This action will send a signal to the trailer's electric brakes, applying them immediately to bring the trailer to a safe stop.
7. പരിപാലനം
Regular maintenance ensures the reliability of your breakaway system.
- ബാറ്ററി പരിശോധന: The 12-volt battery should be checked and sufficiently charged prior to every trip. The included charger helps maintain the battery's charge.
- ലാൻയാർഡ് പരിശോധന: Inspect the breakaway lanyard and pin for any signs of fraying, corrosion, or damage before each use. Replace if necessary.
- സ്വിച്ച് പ്രവർത്തനം: Periodically test the breakaway switch by pulling the pin to ensure the trailer brakes activate. Reinsert the pin to disengage the brakes.
- വയറിംഗ് പരിശോധന: Check all wiring connections for corrosion, loose terminals, or damaged insulation. Repair as needed.
- ബാറ്ററി കേസ്: Ensure the battery case is securely mounted and free from cracks or damage that could expose the battery to elements.
ചിത്രം 5: The CURT Soft-Trac 2 Breakaway System showing the test button and LED indicators for battery status.
ചിത്രം 6: The 12-volt battery charger included with the CURT Soft-Trac 2 system, used to recharge the breakaway battery.
8. പ്രശ്നപരിഹാരം
If you encounter issues with your breakaway system, refer to the following common problems and solutions:
- Brakes not activating:
- ബാറ്ററി ചാർജ് നില പരിശോധിക്കുക.
- Inspect all wiring connections for looseness or corrosion.
- Ensure the breakaway pin is fully inserted and can be pulled freely.
- ബാറ്ററി ചാർജ്ജുചെയ്യുന്നില്ല:
- Verify the tow vehicle's charging system is functioning correctly.
- Check the connection of the black wire to the battery's positive terminal.
- Ensure the charger is properly connected and receiving power.
- False brake activation:
- Ensure the lanyard is not too short or improperly routed, causing accidental pin removal during normal driving or turning.
- Check for damaged wiring that might be causing a short circuit.
9. വാറൻ്റിയും പിന്തുണയും
The CURT 52028 Soft-Trac 2 Trailer Breakaway Switch Kit System is backed by CURT's manufacturer warranty. For specific warranty details, product support, or to purchase replacement parts, please visit the official CURT webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി ബന്ധപ്പെടുക.
You can also find more information and products from CURT at their Amazon store: ആമസോണിലെ CURT സ്റ്റോർ.
