1. ആമുഖം
This manual provides essential information for the installation, operation, and maintenance of the Bosch 67166 Fuel Pump Module Assembly. This state-of-the-art turbine fuel pump is designed to offer reliable performance, near silent operation, and improved drivability for your vehicle. Its core components are engineered to significantly reduce wear, contributing to a longer service life. The Bosch 67166 is designed for a precise fit, being nearly identical in dimension and appearance to the original units it replaces.

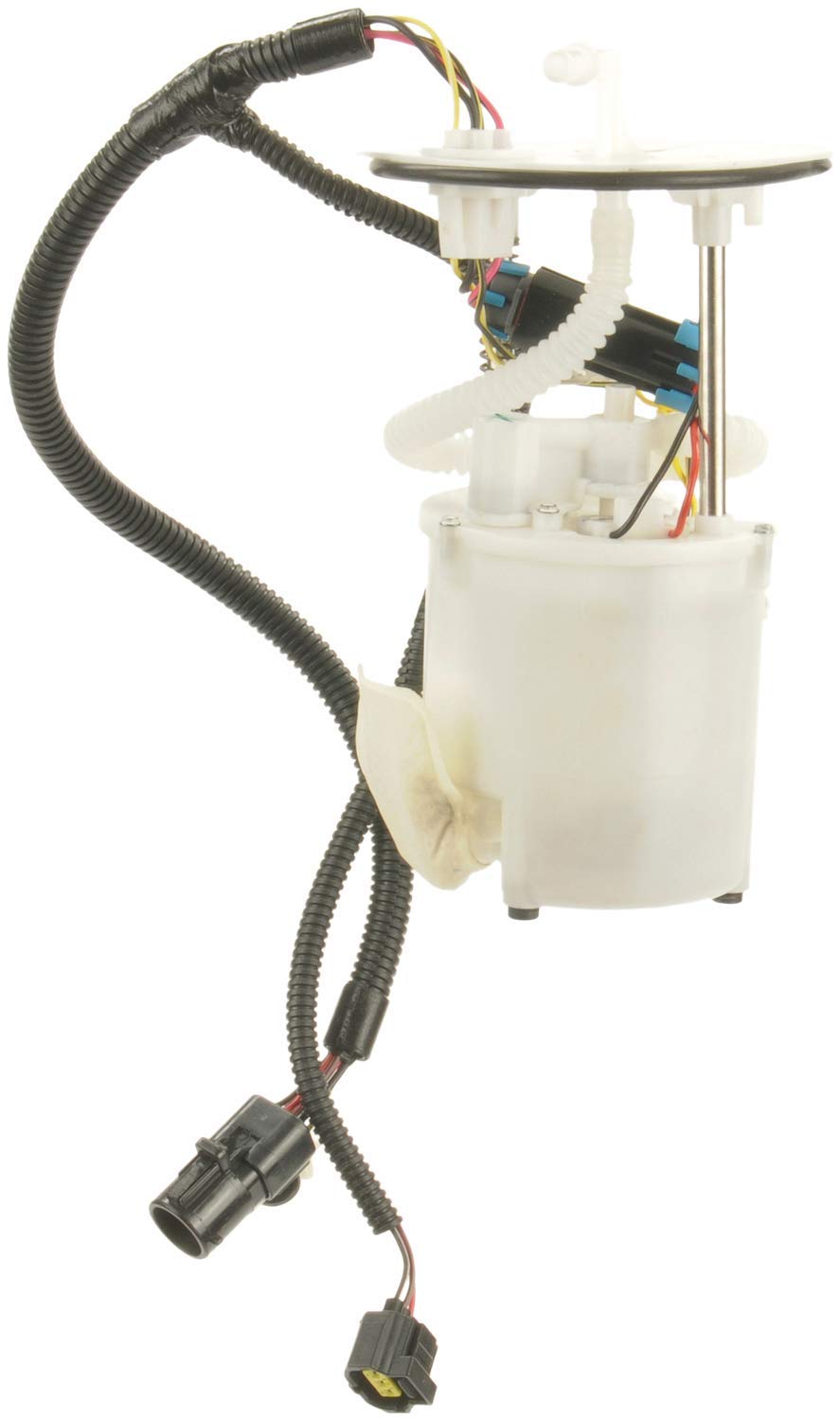

Figure 1: Bosch 67166 Fuel Pump Module Assembly, side view.
2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
Always observe the following safety precautions when working on your vehicle's fuel system:
- Disconnect the vehicle's battery before beginning any work to prevent electrical hazards.
- സുരക്ഷാ ഗ്ലാസുകളും കയ്യുറകളും ഉൾപ്പെടെയുള്ള ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ ധരിക്കുക.
- Ensure adequate ventilation in your work area. Fuel vapors are flammable and hazardous.
- തുറന്ന തീജ്വാലകൾ, തീപ്പൊരികൾ, മറ്റ് ജ്വലന സ്രോതസ്സുകൾ എന്നിവ ജോലിസ്ഥലത്ത് നിന്ന് അകറ്റി നിർത്തുക.
- ഏതെങ്കിലും ഇന്ധന ലൈനുകൾ വിച്ഛേദിക്കുന്നതിന് മുമ്പ് ഇന്ധന സംവിധാനത്തിലെ മർദ്ദം കുറയ്ക്കുക. നിർദ്ദിഷ്ട നടപടിക്രമങ്ങൾക്ക് നിങ്ങളുടെ വാഹനത്തിന്റെ സർവീസ് മാനുവൽ പരിശോധിക്കുക.
- Handle fuel with extreme care. Clean up any spills immediately.
- Dispose of old fuel and components according to local environmental regulations.
3. പാക്കേജ് ഉള്ളടക്കം
Verify that all components are present and undamaged before proceeding with installation:
- Bosch 67166 Fuel Pump Module Assembly
- Fuel Strainer (pre-installed or included separately)
- Application-specific installation instructions (may be included with the product or available online)
4 സ്പെസിഫിക്കേഷനുകൾ
Key specifications for the Bosch 67166 Fuel Pump Module Assembly:
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | ബോഷ് |
| മോഡൽ നമ്പർ | 67166 |
| ഉൽപ്പന്ന അളവുകൾ (L x W x H) | 50.29 x 20.57 x 15.49 സെ.മീ (19.8 x 8.1 x 6.1 ഇഞ്ച്) |
| ഇനത്തിൻ്റെ ഭാരം | 1.27 കി.ഗ്രാം (2.8 പൗണ്ട്) |
| മെറ്റീരിയൽ | Alloy Steel (Body) |
| ഫിറ്റ് തരം | Vehicle Specific Fit (2000-03 Ford Taurus) |
| ലിഫ്റ്റ് തരം | ഇലക്ട്രിക് |
| OEM ഭാഗം നമ്പർ | YF1Z9H307EG |
| സ്പെസിഫിക്കേഷൻ മെറ്റ് | OE (ഒറിജിനൽ ഉപകരണങ്ങൾ) |
Figure 2: Superior Turbine Pump Design - Internal components for optimal performance and durability.
Figure 3: OE Product Specification requirements for Bosch Premium Fuel Pumps.
5. ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
5.1 പ്രീ-ഇൻസ്റ്റലേഷൻ ചെക്ക്ലിസ്റ്റ്
Before starting the installation, ensure you have the following:
- Appropriate tools for fuel tank removal and fuel line disconnection.
- New fuel tank gasket/seal (recommended for replacement).
- Clean rags and a suitable container for draining fuel.
- Fire extinguisher nearby.
- Access to your vehicle's specific service manual for detailed steps.
5.2 പൊതു ഇൻസ്റ്റലേഷൻ മാർഗ്ഗനിർദ്ദേശങ്ങൾ
Replacing a fuel pump module assembly is a complex procedure that typically requires specialized tools and automotive knowledge. It is highly recommended that installation be performed by a qualified automotive technician. If you choose to perform the installation yourself, carefully follow the vehicle-specific, illustrated step-by-step instructions provided with the Bosch fuel pump or refer to your vehicle's official service manual.
The Bosch 67166 Fuel Pump Module Assembly is designed as a direct, plug-and-play replacement, ensuring an exact fit and simplifying the installation process when compared to universal alternatives.
Figure 4: Bosch 67166 Fuel Pump Module Assembly, ready for installation.
6. ഓപ്പറേഷൻ
The Bosch 67166 Fuel Pump Module Assembly utilizes advanced turbine pump technology. This design offers several operational advantages:
- Near Silent Operation: The turbine design virtually eliminates the fuel pulsation and noise often associated with older roller-cell and inner-gear pump designs, contributing to a quieter driving experience.
- Improved Drivability: Consistent fuel delivery and pressure contribute to smoother engine performance and enhanced vehicle response.
- ഒപ്റ്റിമൽ പ്രകടനം: Engineered to operate reliably in extreme temperatures and under low fuel conditions, ensuring consistent fuel supply when needed most.
- വിപുലീകരിച്ച സേവന ജീവിതം: The robust design and quality materials significantly reduce wear on internal components, leading to a longer operational lifespan for the pump.
7. പരിപാലനം
The Bosch 67166 Fuel Pump Module Assembly is designed for long-term reliability with minimal maintenance. However, proper fuel system hygiene is crucial for its longevity:
- Fuel Strainer: The included fuel strainer is critical for preventing contaminants from entering the pump, which is a primary cause of pump failure. Ensure the strainer is properly installed and consider inspecting it during major fuel system service.
- ഇന്ധന നിലവാരം: Always use high-quality, clean fuel. Contaminated fuel can clog the strainer and damage the pump.
- ഇന്ധന ഫിൽട്ടർ: Regularly replace your vehicle's in-line fuel filter (if applicable) according to the manufacturer's recommendations to protect the entire fuel system, including the pump.
- കുറഞ്ഞ ഇന്ധനത്തിൽ ഓടുന്നത് ഒഴിവാക്കുക: While the pump is designed to operate under low fuel conditions, consistently running the fuel tank near empty can expose the pump to higher temperatures and potentially shorten its lifespan.
8. പ്രശ്നപരിഹാരം
If you experience issues after installation or during vehicle operation, consider the following common troubleshooting steps. For complex issues, consult a qualified automotive technician.
| ലക്ഷണം | സാധ്യമായ കാരണം | ആക്ഷൻ |
|---|---|---|
| എഞ്ചിൻ ക്രാങ്ക് ചെയ്യുന്നു, പക്ഷേ സ്റ്റാർട്ട് ആകുന്നില്ല | No fuel pressure, electrical issue, clogged fuel filter | Check fuel pump fuse/relay. Verify electrical connections to the pump. Check fuel pressure at the rail. Inspect fuel filter. |
| എഞ്ചിൻ തകരാറിലാകുന്നു അല്ലെങ്കിൽ തകരാറിലാകുന്നു | Inconsistent fuel pressure, contaminated fuel, clogged injectors | Check fuel pressure. Inspect fuel for contaminants. Consider fuel system cleaner or injector service. |
| Whining noise from fuel tank | Fuel pump working harder than usual, low fuel level, clogged strainer | Ensure adequate fuel level. Inspect fuel strainer for clogs. |
| ഇന്ധന ഗേജ് കൃത്യമല്ല. | Fuel level sender issue (part of module assembly) | Verify electrical connection to the sender. If new pump, ensure float arm moves freely. |
9. വാറൻ്റി വിവരങ്ങൾ
Bosch Fuel Pumps are backed by a Limited Lifetime Warranty. This warranty covers defects in materials and workmanship under normal use and service. For specific terms, conditions, and claim procedures, please refer to the official Bosch warranty documentation provided with your product or visit the official Bosch Automotive Aftermarket webസൈറ്റ്.
10. ഉപഭോക്തൃ പിന്തുണ
For further assistance, technical support, or inquiries regarding the Bosch 67166 Fuel Pump Module Assembly, please contact Bosch customer service. You can typically find contact information on the official Bosch webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്നം വാങ്ങിയ റീട്ടെയിലർ വഴി.
ഓൺലൈൻ ഉറവിടങ്ങൾ: Visit the official Bosch Automotive Aftermarket website for product information, technical bulletins, and frequently asked questions.
