1. ആമുഖം
This instruction manual provides essential information for the proper handling, installation, and maintenance of the Continental 62118 Molded Radiator Hose. Adhering to these guidelines will help ensure the longevity and optimal performance of the product within your vehicle's cooling system. Please read this manual thoroughly before installation or use.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Continental 62118 Molded Radiator Hose is engineered to facilitate the transfer of glycol-based coolants within a vehicle's coolant system. Its molded design ensures full flow through tight bends, simplifies application, and reduces stress on radiator connections. This hose is designed to meet or exceed SAE 20R4EC Class D1 specifications and many Original Equipment (OE) specifications, offering resistance to Electrochemical Degradation (ECR).
പ്രധാന സവിശേഷതകൾ:
- Designed for optimal fit and performance, matching OE configurations.
- Constructed with EPDM tube and cover, reinforced with synthetic knit for durability.
- Compatible with most coolants, including ethylene glycol- and propylene glycol-based coolants, and organic acid modified, long-life coolants.
- Maintains full flow and features high heat resistance.
- Temperature range: -40°F to 275°F (-40°C to 135°C).
- Highly durable and ensures maximum performance.

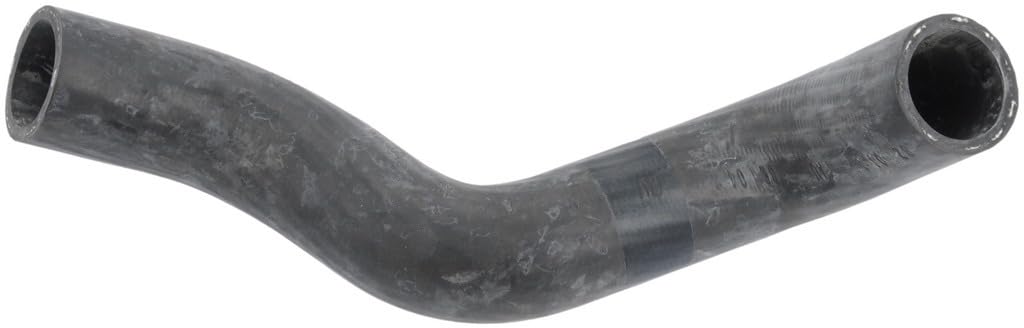

Image 1: Continental 62118 Molded Radiator Hose. This image displays the Continental 62118 Molded Radiator Hose. It is a dark gray, flexible hose with a pre-formed, curved shape designed for specific vehicle applications. The ends are open, revealing the interior diameter.
3 സുരക്ഷാ വിവരങ്ങൾ
Always prioritize safety when working on a vehicle's cooling system. Failure to follow safety precautions can result in personal injury or damage to the vehicle.
- Ensure the engine is cool before attempting any work on the cooling system to prevent burns from hot coolant or steam.
- സുരക്ഷാ ഗ്ലാസുകൾ, കയ്യുറകൾ എന്നിവയുൾപ്പെടെ ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക.
- Coolant is toxic. Avoid skin contact and ingestion. Dispose of used coolant responsibly according to local regulations.
- Refer to your vehicle's service manual for specific instructions and warnings related to your vehicle model.
- ഏതെങ്കിലും ഘട്ടത്തെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ, യോഗ്യതയുള്ള ഒരു ഓട്ടോമോട്ടീവ് ടെക്നീഷ്യനെ സമീപിക്കുക.
4. ഇൻസ്റ്റലേഷൻ
Proper installation is crucial for the performance and longevity of the radiator hose. It is recommended that installation be performed by a qualified technician.
- തയ്യാറാക്കൽ: Ensure the engine is completely cool. Drain the cooling system according to your vehicle's service manual.
- Removal of Old Hose: cl അഴിക്കുകamps securing the old radiator hose. Carefully remove the old hose, being mindful of any remaining coolant.
- പരിശോധന: Inspect the connection points on the radiator and engine for corrosion, damage, or debris. Clean as necessary.
- Installation of New Hose: Position the Continental 62118 Molded Radiator Hose onto the connection points. Ensure the hose is fully seated and aligned correctly to prevent kinks or stress.
- സുരക്ഷിത Clamps: Install new hose clamps (recommended) or reuse existing ones if they are in good condition. Tighten the clamps securely, but do not overtighten, as this can damage the hose.
- കൂളന്റ് വീണ്ടും നിറയ്ക്കുക: Refill the cooling system with the appropriate coolant type and quantity as specified by your vehicle manufacturer.
- ബ്ലീഡ് എയർ: Bleed any air from the cooling system following your vehicle's specific procedure.
- ടെസ്റ്റ്: Start the engine and allow it to reach operating temperature. Check for leaks around the hose connections. Monitor coolant levels and temperature.
5. പ്രവർത്തന തത്വങ്ങൾ
The Continental 62118 Molded Radiator Hose is an integral component of your vehicle's cooling system. Its primary function is to transport hot coolant from the engine to the radiator for cooling, and then return the cooled fluid to the engine. The molded shape is critical for maintaining optimal flow rates and preventing hose collapse or kinking, especially during temperature fluctuations and pressure changes within the system. The EPDM material provides flexibility, heat resistance, and chemical compatibility with various coolants, ensuring reliable operation under diverse conditions.
6. പരിപാലനം
Regular inspection of your radiator hoses is essential for preventing cooling system failures.
- വിഷ്വൽ പരിശോധന: Periodically check the hose for cracks, bulges, hardening, softening, or signs of leakage. Pay close attention to the areas near the clamps.
- Squeeze Test: With the engine cool, squeeze the hose. It should feel firm yet pliable. A hose that is excessively hard, brittle, or mushy indicates degradation and should be replaced.
- Clamp പരിശോധന: ഹോസ് cl ഉറപ്പാക്കുകamps are secure and free from corrosion. Replace any damaged or corroded clamps.
- കൂളന്റ് ലെവൽ: Regularly check your coolant level and ensure it is within the recommended range. Low coolant levels can indicate a leak.
It is generally recommended to replace radiator hoses every 4-5 years or as part of routine cooling system maintenance, even if they appear to be in good condition, as internal degradation may not be visible.
7. പ്രശ്നപരിഹാരം
If you experience issues with your cooling system, consider the following common hose-related problems:
- കൂളന്റ് ചോർച്ചകൾ: Check hose connections for tightness and the hose body for cracks or punctures. Leaks often appear as colored stains (e.g., green, orange, pink) around the hose or on the ground.
- Hose Collapse: If a hose collapses when the engine cools, it may indicate a faulty radiator cap or a blockage in the cooling system.
- Hose Swelling/Bulging: This can be a sign of internal damage or excessive pressure, indicating the hose is failing and needs immediate replacement.
- അമിത ചൂടാക്കൽ: While many factors can cause overheating, a failing radiator hose (e.g., collapsed, leaking) can restrict coolant flow and contribute to the problem.
If troubleshooting does not resolve the issue, or if you suspect a more complex problem, consult a professional automotive technician.
8 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | കോണ്ടിനെൻ്റൽ |
| മോഡൽ നമ്പർ | 62118 |
| ഉൽപ്പന്ന മോഡലിന്റെ പേര് | Molded Radiator Hose |
| നിർമ്മാതാവ് | Continental ContiTech |
| മെറ്റീരിയൽ | ഇ.പി.ഡി.എം |
| ഇനത്തിൻ്റെ ഭാരം | 10.4 ഔൺസ് |
| ഉൽപ്പന്ന അളവുകൾ | 19.09 x 12 x 4 ഇഞ്ച് |
| താപനില പരിധി | -40°F മുതൽ 275°F വരെ (-40°C മുതൽ 135°C വരെ) |
| ഐഡി ശ്രേണി | 1-inch to 3-inches |
| SAE Specification | SAE 20R4EC Class D1 |
9. വാറൻ്റി വിവരങ്ങൾ
For specific warranty details regarding the Continental 62118 Molded Radiator Hose, please refer to the official warranty documentation provided by Continental or the authorized seller at the time of purchase. Warranty terms typically cover manufacturing defects under normal use conditions. Keep your proof of purchase for any warranty claims.
10. പിന്തുണ
If you require further assistance, have questions about installation, or need to report a product issue, please contact Continental customer support or the retailer from whom the product was purchased.
You can visit the official Continental store for more information: Continental Store on Amazon
