BELL 5374-0 Blank Round Flat Weatherproof Cover Instruction Manual

1. ആമുഖം

The BELL 5374-0 Blank Round Flat Weatherproof Cover is designed to provide robust protection for electrical splice boxes in outdoor or damp environments. Constructed from durable metal with a powder-coated gray finish, this cover ensures maximum weatherability and scratch resistance. It is specifically designed for use with 4-inch round splice boxes and includes all necessary installation hardware and a gasket for a secure, watertight seal.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• Rugged metallic construction for enhanced durability.
• State-of-the-art powder coat finish provides maximum weatherability and scratch resistance.
• Includes gasket and mounting hardware for complete installation.
• Designed for 4-inch round splice boxes.
• NEMA 3R rated for outdoor use.

3 സുരക്ഷാ വിവരങ്ങൾ

ഇൻസ്റ്റാളേഷനും അറ്റകുറ്റപ്പണിയും നടത്തുമ്പോൾ ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ എല്ലായ്പ്പോഴും പാലിക്കുക:

• അപായം: Risk of electric shock. Turn off power at the circuit breaker or fuse box before installing or servicing.
• Ensure all electrical work complies with local and national electrical codes. If unsure, consult a qualified electrician.
• ഈ ഉൽപ്പന്നം ഉദ്ദേശിച്ച ഉപയോഗത്തിനല്ലാതെ മറ്റ് ആവശ്യങ്ങൾക്ക് ഉപയോഗിക്കരുത്.
• Inspect the cover and gasket for any damage before installation. Do not install damaged components.
• കുട്ടികളെയും അനധികൃത വ്യക്തികളെയും ജോലിസ്ഥലത്ത് നിന്ന് അകറ്റി നിർത്തുക.

4. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഇനങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x BELL 5374-0 Blank Round Flat Weatherproof Cover
• 1 x ഗാസ്കറ്റ്
• Mounting Hardware (screws)
• Multi-lingual Instructions (this manual)

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

This weatherproof cover is designed for easy installation on standard 4-inch round splice boxes. Follow these steps for proper installation:

1. പവർ ഓഫ് ചെയ്യുക: Before starting, ensure the power to the electrical box is completely turned off at the circuit breaker or fuse box. Verify with a voltagഇ ടെസ്റ്റർ.
2. പെട്ടി തയ്യാറാക്കുക: Ensure the 4-inch round splice box is clean and free of debris.
3. Position the Gasket: Place the provided gasket onto the back of the weatherproof cover, aligning the screw holes. The gasket creates a seal against moisture.
4. കവർ വിന്യസിക്കുക: Position the cover with the gasket over the 4-inch round splice box, aligning the screw holes on the cover with those on the box. The cover supports horizontal/vertical mounting.
5. കവർ സുരക്ഷിതമാക്കുക: Insert the provided mounting screws through the cover and gasket into the splice box. Tighten the screws evenly until the cover is snug and the gasket is compressed, creating a weatherproof seal. Do not overtighten.
6. ഇൻസ്റ്റാളേഷൻ പരിശോധിക്കുക: Once installed, gently attempt to move the cover to ensure it is securely fastened and does not wobble.
7. പവർ പുന ore സ്ഥാപിക്കുക: After confirming secure installation, restore power to the circuit.

ചിത്രം 5.1: മുൻഭാഗം view of the BELL 5374-0 weatherproof cover, showing its blank, round design and screw holes.

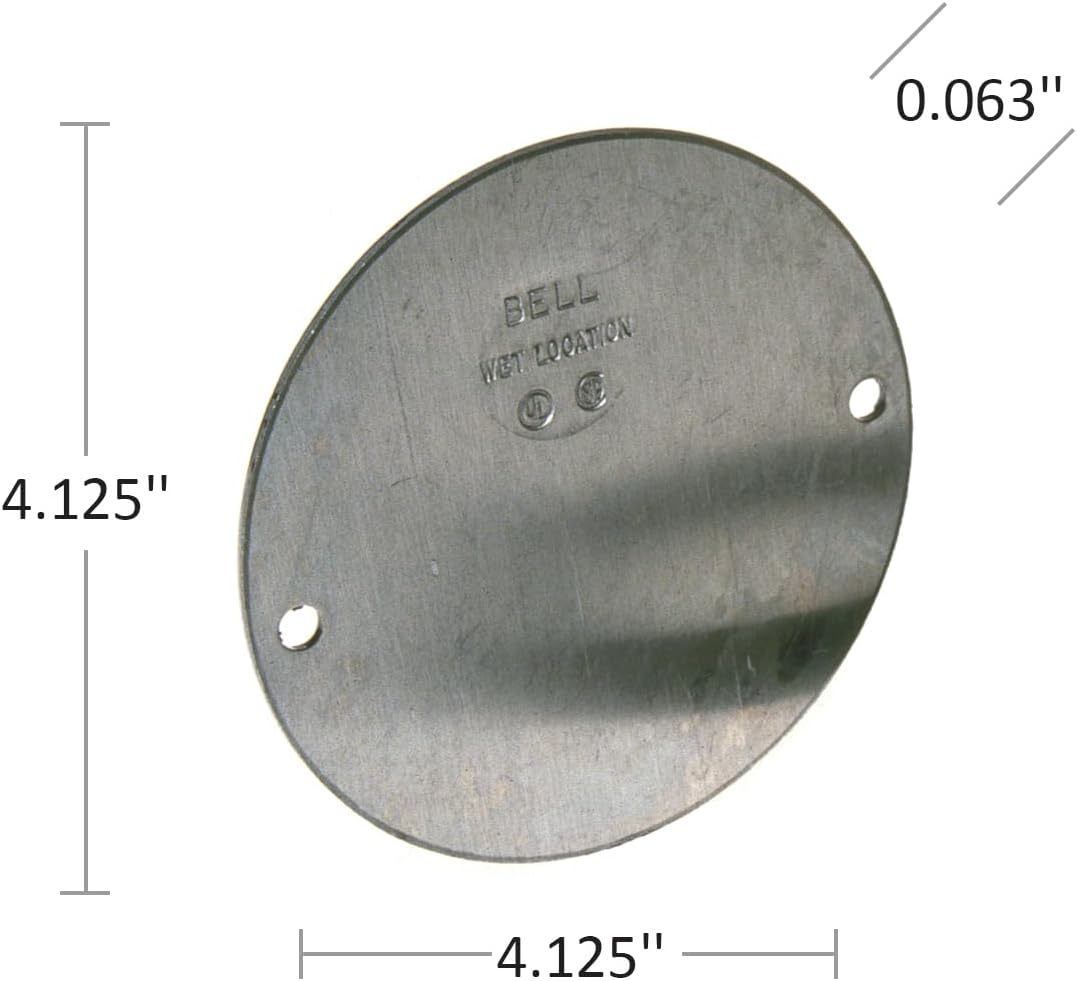

Figure 5.2: Diagram illustrating the dimensions of the BELL 5374-0 cover, showing a diameter of 4.125 inches and a thickness of 0.063 inches.

6. Operating the Cover

The BELL 5374-0 is a blank weatherproof cover designed to seal and protect the contents of a 4-inch round electrical splice box from environmental elements such as rain, dust, and debris. Once properly installed, the cover operates passively by maintaining a sealed enclosure. No active operation is required.

7. പരിപാലനം

Regular maintenance ensures the longevity and effectiveness of your weatherproof cover:

• വൃത്തിയാക്കൽ: Periodically wipe the cover with a damp cloth to remove dirt, dust, or grime. Avoid abrasive cleaners that could damage the powder-coated finish.
• പരിശോധന: Annually inspect the cover and gasket for any signs of wear, cracking, or damage. Ensure the mounting screws remain tight. If the gasket appears compromised, it should be replaced to maintain the weatherproof seal.
• വീണ്ടും പെയിന്റ് ചെയ്യുന്നു: While the powder coat finish is durable, if the cover needs to be repainted to match a new exterior color, ensure the paint is suitable for metal and outdoor use.

8. പ്രശ്‌നപരിഹാരം

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For information regarding product warranty, please refer to the documentation provided at the time of purchase or visit the official BELL (Hubbell) website. For technical support or inquiries, please contact BELL customer service directly.

നിർമ്മാതാവ്: ഹബ്ബൽ

ബ്രാൻഡ്: ബെൽ

Webസൈറ്റ്: www.hubbell.com (General Hubbell site, as specific BELL site not provided)
