1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Dorman 800-604 is a direct replacement transmission oil cooler line connector. It is engineered to match the fit and function of the original equipment connector, ensuring a precise fit and leak-free durability. This component is crucial for maintaining the integrity of your vehicle's automatic transmission cooling system.

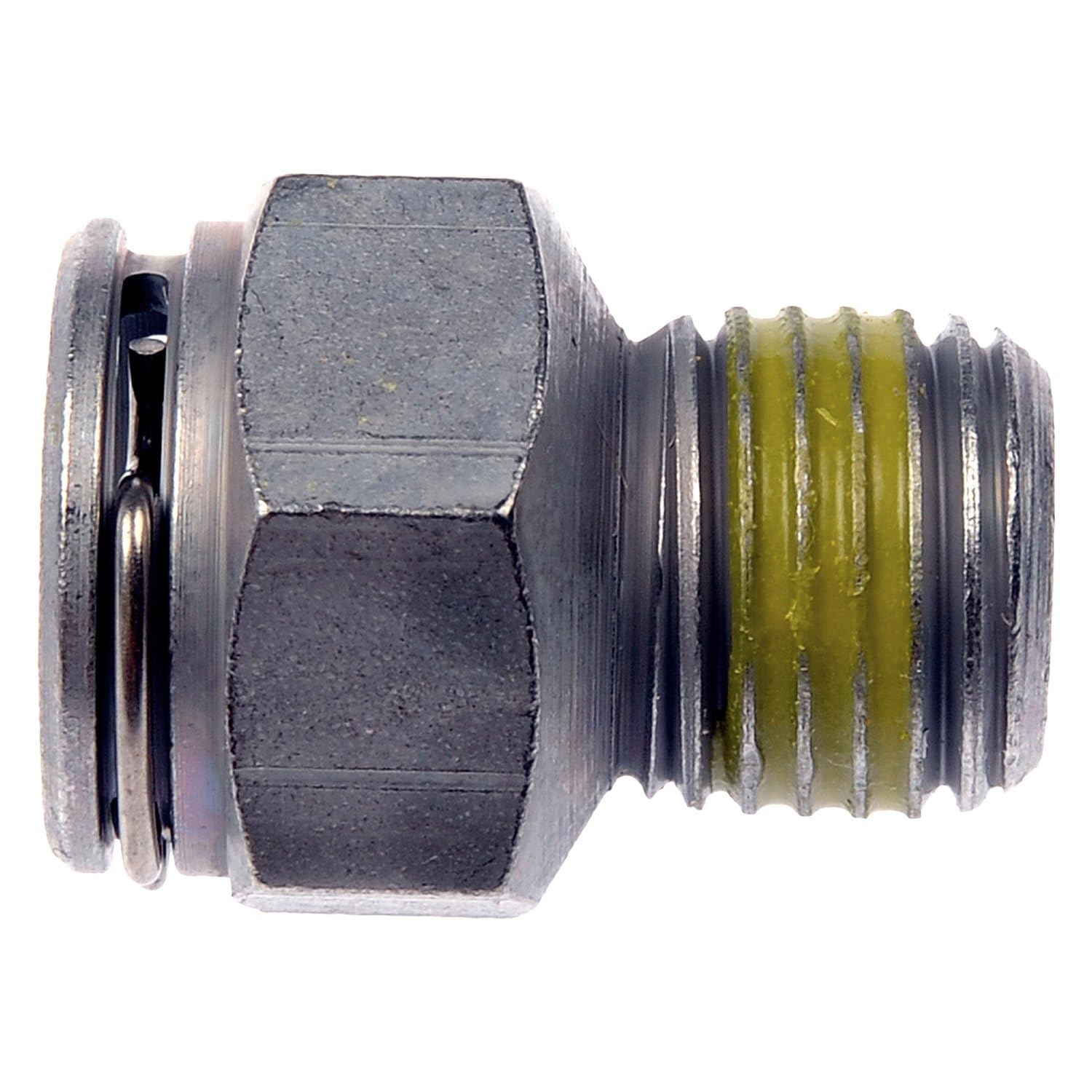

Figure 1: Dorman 800-604 Transmission Line Connector. This image shows the connector from a side view, highlighting the threaded end and the quick-connect mechanism.
2 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ഡോർമാൻ |
| മോഡൽ നമ്പർ | 800-604 |
| മെറ്റീരിയൽ | Nitrile Rubber (seals) |
| ഇനത്തിൻ്റെ ഭാരം | 0.01 ഔൺസ് |
| നാമമാത്രമായ മതിൽ കനം | 0.0625 ഇഞ്ച് |
| പുറം വ്യാസം | 0.68 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ദൈർഘ്യം | 1 ഇഞ്ച് |
| യു.പി.സി | 019495026433 |
3. ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
Proper installation is critical for ensuring a leak-free connection and optimal performance of your transmission cooling system. It is recommended to have this connector on hand when performing service on the transmission oil cooler line.
- വാഹന അനുയോജ്യത പരിശോധന: Before beginning installation, verify that the Dorman 800-604 connector is compatible with your specific vehicle model and transmission. Refer to your vehicle's service manual or use online compatibility tools.
- സുരക്ഷാ മുൻകരുതലുകൾ: Ensure the vehicle is safely lifted and supported. Disconnect the battery. Allow the transmission and engine to cool down to prevent burns from hot fluids. Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- ദ്രാവക ഡ്രെയിനേജ്: Place a drain pan beneath the transmission cooler lines to catch any residual transmission fluid that may leak during the removal process.
- പഴയ കണക്റ്റർ നീക്കം ചെയ്യുക: Carefully disconnect the existing transmission line connector. This may involve using a specialized quick-disconnect tool or a wrench, depending on the original equipment design. Be prepared for some fluid leakage.
- Inspect Mating Surfaces: Clean and inspect the mating surfaces on both the transmission and the cooler line for any debris, corrosion, or damage. Ensure these surfaces are smooth and free of imperfections that could compromise the seal.
- Install New Connector: Thread the new Dorman 800-604 connector into the transmission port. Hand-tighten first to ensure proper thread engagement, then use a wrench to tighten to the manufacturer's specified torque. അമിതമായി മുറുക്കരുത്.
- Connect Transmission Line: Insert the transmission oil cooler line into the quick-connect end of the new Dorman 800-604 connector. Push firmly until you hear or feel a positive click, indicating that the line is securely seated. Gently pull on the line to confirm it is locked in place.
- Fluid Refill and Inspection: Refill the transmission fluid to the appropriate level according to your vehicle's service manual. Start the engine and allow it to reach operating temperature. Carefully inspect the newly installed connector for any signs of leaks.
- അന്തിമ പരിശോധന: After a test drive, re-inspect the connector for leaks.
ചിത്രം 2: കോണാകൃതിയിലുള്ളത് view of the Dorman 800-604 Transmission Line Connector. This perspective highlights the quick-connect mechanism and the threaded portion, showing the yellow sealant on the threads.
4. ഓപ്പറേഷൻ
The Dorman 800-604 Transmission Line Connector is a passive component designed to provide a secure and leak-free connection between the transmission and the oil cooler line. Once correctly installed, it functions continuously as part of the transmission cooling system, ensuring proper fluid circulation and temperature regulation. No user interaction is required for its operation after installation.
5. പരിപാലനം
The Dorman 800-604 connector is designed for long-term durability and typically requires minimal maintenance. However, periodic inspection is recommended as part of routine vehicle maintenance:
- വിഷ്വൽ പരിശോധന: During oil changes or other under-vehicle inspections, visually check the connector for any signs of fluid leaks, corrosion, or physical damage.
- ശുചിത്വം: Keep the area around the connector clean from dirt, grime, and road debris, which can potentially degrade the material over time.
- ദ്രാവക അനുയോജ്യത: Ensure that only recommended transmission fluids are used in your vehicle, as incompatible fluids can affect the integrity of seals and materials.
6. പ്രശ്നപരിഹാരം
If issues arise after installation, consider the following troubleshooting steps:
- ദ്രാവക ചോർച്ച:
- കണക്ഷൻ പരിശോധിക്കുക: Ensure the transmission line is fully seated and locked into the quick-connect mechanism. A loose connection is a common cause of leaks.
- Verify Torque: Confirm that the threaded end of the connector is tightened to the vehicle manufacturer's specifications. Overtightening or undertightening can cause leaks.
- മുദ്രകൾ പരിശോധിക്കുക: If leaks persist, the internal seals (Nitrile Rubber) may be damaged or improperly seated. Re-installation or replacement of the connector may be necessary.
- Mating Surface Condition: Re-inspect the transmission port and cooler line for any burrs, scratches, or debris that could prevent a proper seal.
- തെറ്റായ ഫിറ്റ്മെന്റ്:
- If the connector does not thread properly or the line does not connect securely, double-check the part number against your vehicle's requirements. Ensure the correct size and thread pitch are used.
- Verify that the transmission line end is not damaged or deformed, which could prevent a secure connection.
7. വാറൻ്റി വിവരങ്ങൾ
The Dorman 800-604 Transmission Line Connector comes with a പരിമിതമായ ആജീവനാന്ത വാറൻ്റി. For specific terms, conditions, and to initiate a warranty claim, please refer to the official Dorman Products website or contact Dorman customer support directly. Proof of purchase may be required.
8. ഉപഭോക്തൃ പിന്തുണ
For further assistance, technical support, or inquiries regarding the Dorman 800-604 Transmission Line Connector, please contact Dorman Products customer service. You can find contact information on the official Dorman webസൈറ്റ്: www.dormanproducts.com.
