ആമുഖം
This instruction manual provides detailed guidance for the installation and maintenance of the E-Flite Main Frame Set, designed for use with Blade CX, CX2, and CX3 remote-controlled helicopters. Proper installation ensures optimal performance and longevity of your RC helicopter.
ഉൽപ്പന്നം കഴിഞ്ഞുview
The E-Flite Main Frame Set (EFLH1254) is a critical structural component for Blade CX series helicopters. It provides the primary mounting points for the motor, servos, landing gear, and other essential components. The set typically includes the main frame chassis and associated small parts required for assembly.

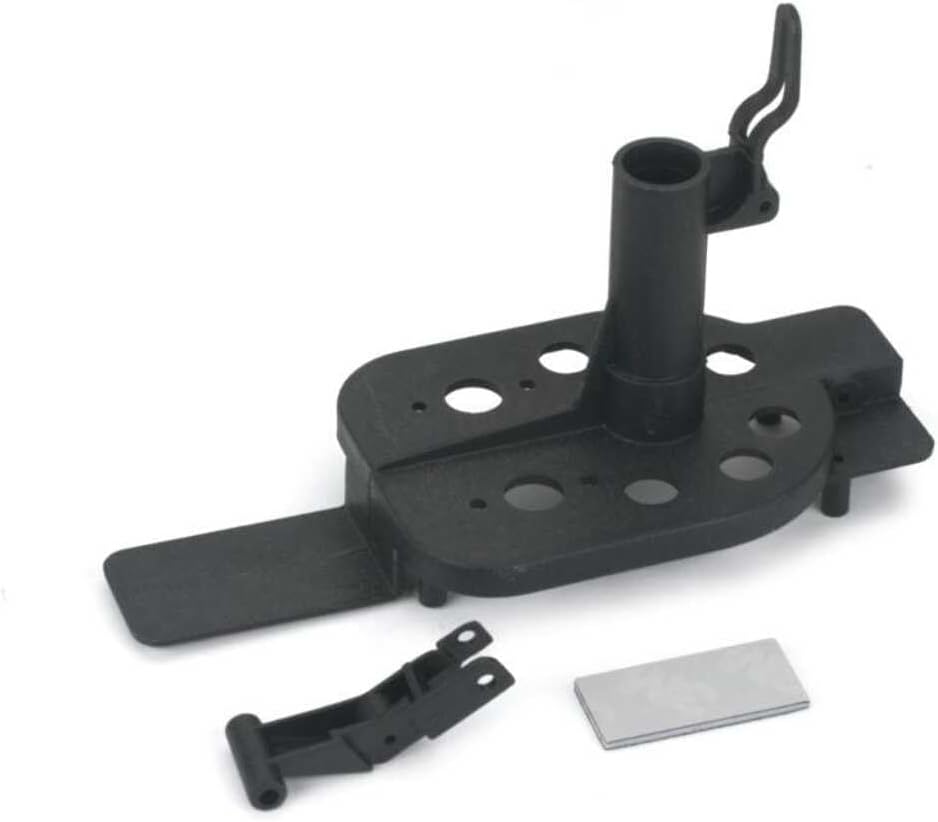

ചിത്രം 1: Components of the E-Flite Main Frame Set. This image displays the primary black plastic main frame, a smaller black plastic component (likely a landing skid mount or similar), and a small rectangular adhesive pad. These parts form the structural core for the Blade CX series helicopters.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Before beginning installation, ensure your workspace is clean and organized. Refer to your helicopter's original manual for specific disassembly instructions if replacing an existing frame.
- വേർപെടുത്തുക: Carefully remove all components from the old main frame, including motors, servos, circuit board, battery tray, and landing gear. Keep track of all screws and small parts.
- Component Transfer: Begin transferring components to the new E-Flite Main Frame.
- മോട്ടോറുകൾ: Mount the main motors securely into their designated slots on the new frame. Ensure wiring is routed correctly and not pinched.
- സെർവോസ്: Install the servos into their respective positions. Connect the pushrods to the swashplate and servo horns.
- സർക്യൂട്ട് ബോർഡ്: Attach the main control board to the frame using the appropriate mounting hardware. Ensure all connections (motors, servos, battery) are correctly made.
- ബാറ്ററി ട്രേ: Secure the battery tray to the underside of the frame.
- ലാൻഡിംഗ് ഗിയർ: Attach the landing skids to the designated mounting points on the frame.
- Rotor Head Assembly: Reattach the main shaft and rotor head assembly to the top of the main frame. Ensure all linkages are free-moving and correctly aligned.
- അന്തിമ പരിശോധനകൾ: Before powering on, double-check all screw connections for tightness. Verify that all wires are clear of moving parts and that components are securely mounted.
പോസ്റ്റ്-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ
After completing the installation, perform the following checks to ensure proper function:
- പവർ ഓൺ ടെസ്റ്റ്: Connect the battery and power on the helicopter. Observe for any unusual noises or vibrations.
- നിയന്ത്രണ ഉപരിതല പരിശോധന: Test all control inputs (elevator, aileron, rudder, throttle) to ensure servos respond correctly and smoothly.
- Rotor Blade Clearance: Confirm that rotor blades have adequate clearance from the frame and other components.
- ബാലൻസ് പരിശോധന: Ensure the helicopter feels balanced. An unbalanced helicopter can lead to unstable flight.
മെയിൻ്റനൻസ്
Regular maintenance of your helicopter's main frame can extend its lifespan and ensure consistent performance.
- വിഷ്വൽ പരിശോധന: Periodically inspect the main frame for cracks, stress marks, or deformation, especially after hard landings.
- സ്ക്രൂവിന്റെ ഇറുകിയത: Check all screws securing components to the frame. Vibrations during flight can cause screws to loosen over time.
- വൃത്തിയാക്കൽ: Keep the frame clean from dirt, dust, and debris, which can accumulate and affect component function. Use a soft brush or compressed air.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues after installing the new main frame, consider the following:
- Unusual Vibrations:
- Check for loose screws on motors or other components.
- Ensure main shaft is straight and not bent.
- Verify rotor blades are balanced and undamaged.
- നിയന്ത്രണങ്ങൾ പ്രതികരിക്കുന്നില്ല:
- Confirm all servo connections to the circuit board are secure.
- Check pushrod connections to servos and swashplate.
- Ensure battery is fully charged and connected.
- Frame Damage After Minor Impact:
- While the frame is designed for durability, severe impacts can cause damage. Inspect for cracks, especially around mounting points. Replace if structural integrity is compromised.
സ്പെസിഫിക്കേഷനുകൾ
- ഉൽപ്പന്നത്തിൻ്റെ പേര്: E-Flite Main Frame Set
- മോഡൽ അനുയോജ്യത: Blade CX, Blade CX2, Blade CX3
- ഭാഗം നമ്പർ: EFLH1254
- ഉൽപ്പന്ന അളവുകൾ: 3.7 x 1.8 x 0.7 ഇഞ്ച്
- ഇനത്തിൻ്റെ ഭാരം: 0.319 ഔൺസ്
- നിർമ്മാതാവ്: ഇ-ഫ്ലൈറ്റ്
വാറൻ്റിയും പിന്തുണയും
E-flite products are manufactured to high standards. For specific warranty information or technical support, please refer to the official E-flite webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
കൂടുതൽ സഹായത്തിന്, സന്ദർശിക്കുക ആമസോണിലെ ഇ-ഫ്ലൈറ്റ് സ്റ്റോർ.
