ritter E 16 Duo Plus Electric Universal Slicer Instruction Manual

1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Please read this instruction manual carefully before using the ritter E 16 Duo Plus electric universal slicer. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• മൂർച്ചയുള്ള ബ്ലേഡുകൾ: The slicer is equipped with very sharp blades. Always handle blades with extreme care. Keep fingers away from the blade during operation and cleaning.
• ഇലക്ട്രിക്കൽ സുരക്ഷ: Ensure the appliance is unplugged before assembly, disassembly, or cleaning. Do not immerse the motor unit in water or other liquids. Do not operate with wet hands.
• കുട്ടികളും മേൽനോട്ടവും: This appliance is not intended for use by children or persons with reduced physical, sensory, or mental capabilities unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• സ്ഥിരതയുള്ള ഉപരിതലം: Always operate the slicer on a stable, flat, and dry surface.
• ഉദ്ദേശിച്ച ഉപയോഗം: This appliance is designed for slicing food items in a household environment. Do not use it for any other purpose.
• പരമാവധി തുടർച്ചയായ പ്രവർത്തനം: The appliance is designed for a maximum continuous operation time of 5 minutes. Allow it to cool down before further use to prevent overheating.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The ritter E 16 Duo Plus is a high-quality electric universal slicer designed for efficient and precise slicing of various food items. Its inclined metal construction and powerful ECO motor ensure optimal performance.

ചിത്രം 2.1: ഫ്രണ്ട് view of the ritter E 16 Duo Plus electric universal slicer, showcasing its silver metallic finish, the circular blade, and the slice thickness adjustment knob.

പ്രധാന ഘടകങ്ങൾ:

• Circular Blade: The slicer comes with two interchangeable circular blades: one serrated blade for bread and harder items, and one smooth blade for ham, cheese, and delicate items.
• സ്ലൈസ് കനം ക്രമീകരിക്കൽ: A rotary knob allows precise adjustment of slice thickness from very thin up to approximately 20 mm.
• ഭക്ഷണ വണ്ടി: The removable food carriage holds the food item securely during slicing and has an approximate travel distance of 18 cm.
• ഭക്ഷണ ട്രേ: A collection tray is positioned beneath the blade to catch sliced food.
• സുരക്ഷാ സ്വിച്ച്: Features both momentary and continuous operation modes for enhanced safety and convenience.
• ECO Motor: An energy-efficient 65-watt motor provides sufficient power for various slicing tasks.

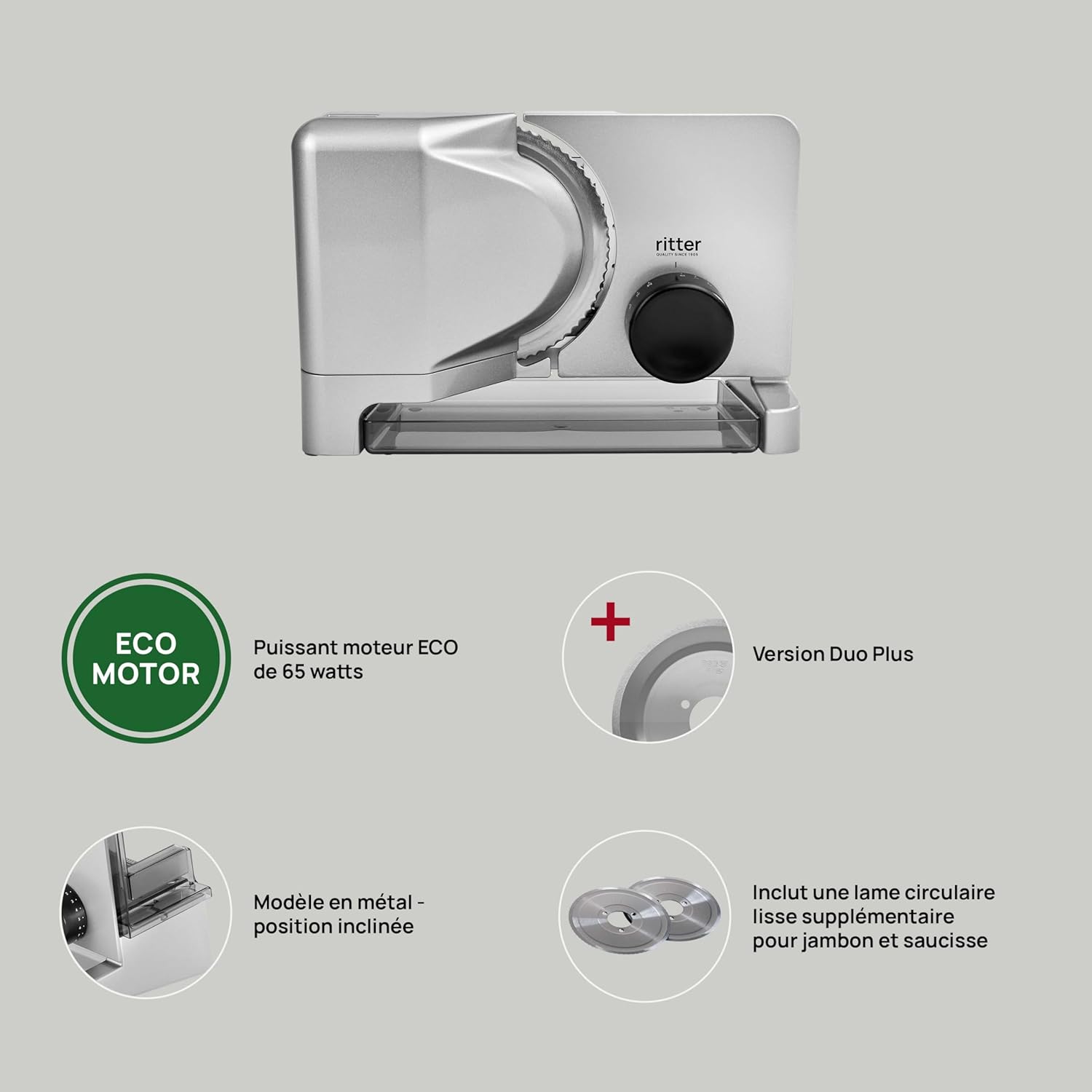

ചിത്രം 2.2: This diagram highlights the key features of the E 16 Duo Plus, including the 65-watt ECO motor, the Duo Plus version with an additional smooth blade, the metal inclined model, and the inclusion of a supplementary smooth circular blade for ham and sausage.

3. സജ്ജീകരണം

Follow these steps to set up your slicer for first use:

1. അൺപാക്ക്: എല്ലാ പാക്കേജിംഗ് വസ്തുക്കളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്ത് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
2. പ്ലേസ്മെൻ്റ്: Place the slicer on a clean, stable, and non-slip surface. Ensure there is enough space around the appliance for safe operation.
3. ബ്ലേഡ് ഇൻസ്റ്റാളേഷൻ: If not already installed, carefully attach the desired blade (serrated or smooth) according to the instructions in the cleaning section (reverse of removal). Ensure it is securely fastened.
4. Food Carriage and Tray: Position the food carriage onto its rails and place the food collection tray under the blade.
5. പവർ കണക്ഷൻ: പവർ കോർഡ് അനുയോജ്യമായ ഒരു ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിലേക്ക് (230V) പ്ലഗ് ചെയ്യുക.

ചിത്രം 3.1: The ritter E 16 Duo Plus slicer is shown positioned on a kitchen counter, ready for use. This illustrates a typical setup environment.

4. ഓപ്പറേഷൻ

Operating your ritter E 16 Duo Plus slicer is straightforward:

1. Select Blade: Choose the appropriate blade for your food item. Use the serrated blade for bread, hard cheeses, or vegetables. Use the smooth blade for ham, cold cuts, or softer cheeses.
2. സ്ലൈസ് കനം ക്രമീകരിക്കുക: Turn the slice thickness adjustment knob to your desired thickness, from very thin to approximately 20 mm.
3. സ്ഥാനം ഭക്ഷണം: Place the food item firmly against the food carriage and the slice thickness guide. Use the food holder to secure smaller items and protect your fingers.
4. Activate Slicer: Use the safety switch to turn on the slicer. You can choose between:
   • Momentary Operation: Press and hold the switch for continuous slicing as long as it's held.
   • തുടർച്ചയായ പ്രവർത്തനം: Engage the switch for continuous operation without holding. Remember the 5-minute maximum continuous operation time.
5. Slice Food: Gently push the food carriage towards the rotating blade. The inclined design helps guide the sliced food onto the collection tray.
6. Deactivate Slicer: Once slicing is complete, release or disengage the safety switch and wait for the blade to stop completely before removing food or cleaning.

ചിത്രം 4.1: The slicer is shown in operation, cutting slices from a loaf of bread. The removable food carriage and the inclined design, which aids in collecting sliced food, are clearly visible.

5. വൃത്തിയാക്കലും പരിപാലനവും

Regular cleaning and maintenance ensure the longevity and hygienic operation of your slicer.

1. അൺപ്ലഗ്: വൃത്തിയാക്കുന്നതിനുമുമ്പ് പവർ outട്ട്ലെറ്റിൽ നിന്ന് എല്ലായ്പ്പോഴും ഉപകരണം അൺപ്ലഗ് ചെയ്യുക.
2. ഘടകങ്ങൾ നീക്കം ചെയ്യുക: Carefully remove the food carriage, food holder, and the food collection tray.
3. ബ്ലേഡ് നീക്കം ചെയ്യുക: To remove the blade, turn the slicer to the side. Locate the blade locking mechanism (usually a central screw or lever). Turn it counter-clockwise to unlock and carefully remove the blade. Always hold the blade by its center, avoiding the sharp edges.
4. ശുദ്ധമായ ഘടകങ്ങൾ: Wash the food carriage, food holder, food tray, and blades with warm soapy water. Rinse thoroughly and dry immediately.
5. പ്രധാന യൂണിറ്റ് വൃത്തിയാക്കുക: പരസ്യം ഉപയോഗിച്ച് പ്രധാന യൂണിറ്റ് മായ്‌ക്കുകamp cloth. Do not use abrasive cleaning agents, rough sponges, or hard brushes, as these can damage the surface. Ensure no water enters the motor housing.
6. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Once all parts are clean and dry, carefully reattach the blade by aligning it and turning the locking mechanism clockwise until secure. Reinsert the food carriage and place the food tray.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your ritter E 16 Duo Plus slicer, refer to the following common problems and solutions:

• Slicer does not turn on:
  • പ്രവർത്തിക്കുന്ന ഒരു ഔട്ട്‌ലെറ്റിൽ പവർ കോർഡ് സുരക്ഷിതമായി പ്ലഗ് ചെയ്‌തിട്ടുണ്ടോയെന്ന് പരിശോധിക്കുക.
  • Ensure the safety switch is correctly engaged for either momentary or continuous operation.
• അസമമായ കഷ്ണങ്ങൾ:
  • Ensure the food item is firmly pressed against the food carriage and the slice thickness guide.
  • Verify that the blade is clean and free from food residue.
  • Check if the slice thickness adjustment is set correctly and has not shifted during operation.
• Slicer motor sounds strained or stops:
  • You might be applying too much pressure to the food item. Reduce pressure.
  • The appliance may have reached its 5-minute continuous operation limit. Allow it to cool down.
  • Ensure the blade is clean and rotates freely.

For issues not covered here or for further assistance, please contact ritter customer support.

7 സാങ്കേതിക സവിശേഷതകൾ

ചിത്രം 7.1: A visual representation of the ritter E 16 Duo Plus slicer with its key dimensions (length, width, height) indicated in centimeters.

8. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും

ritter products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official ritter webസൈറ്റ്.

If you require technical assistance, have questions about your product, or need to order spare parts, please contact ritter customer support. Contact details can typically be found on the official ritter webസൈറ്റിലോ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിലോ.

Please have your model number (E 16 Duo Plus, Type 515.001) and purchase date available when contacting support.
