ഉൽപ്പന്നം കഴിഞ്ഞുview
The BodyCraft X4 Multigym is a comprehensive strength training machine designed for multiple users simultaneously. It integrates traditional machine exercises with the versatility of adjustable cable training, offering a wide range of workout possibilities.
This system features a quadruple weight stack design, allowing up to four individuals to train concurrently at different stations. It is engineered for durability and performance, utilizing heavy-gauge steel tubing, fiberglass-reinforced nylon pulleys, and high-tensile strength cables.

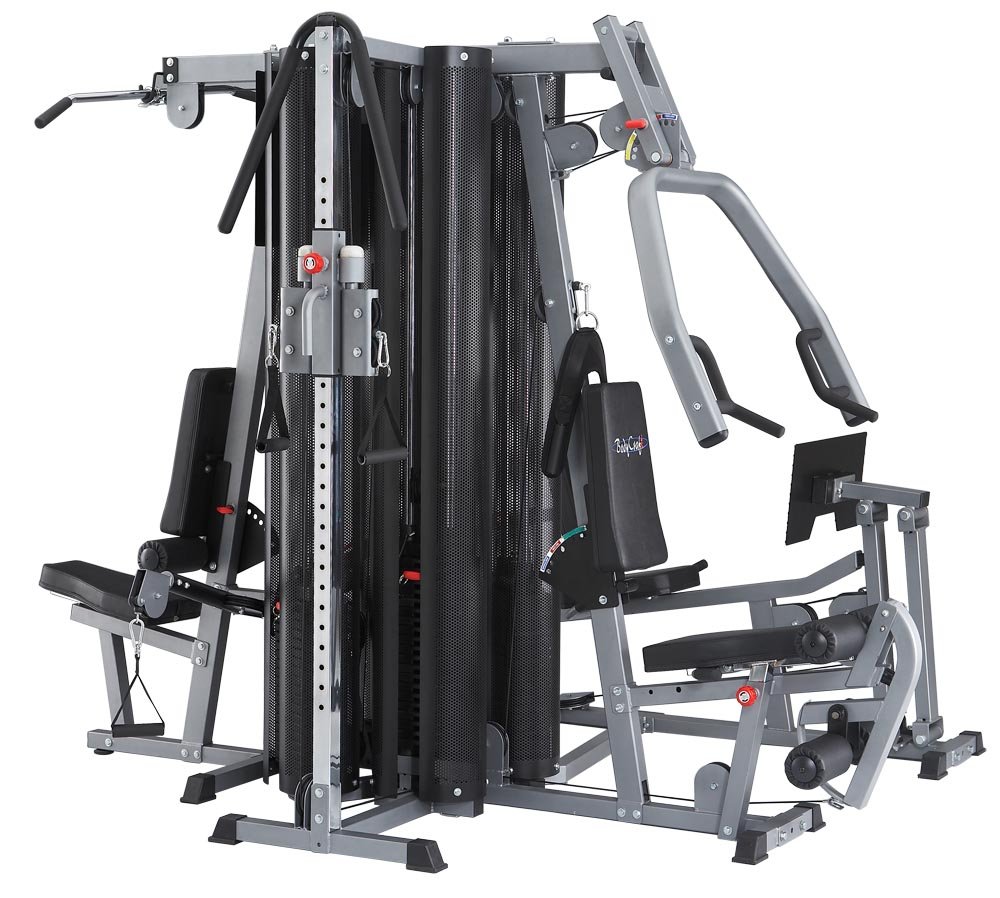

ചിത്രം: മുൻഭാഗം view of the BodyCraft X4 Multigym, showcasing its multi-station design with various pulleys, benches, and weight stacks.
സജ്ജീകരണവും അസംബ്ലിയും
Prior to assembly, ensure all components are present and undamaged. Refer to the detailed assembly instructions provided in the packaging for step-by-step guidance. It is recommended to have at least two people for assembly due to the size and weight of the components.
- അൺപാക്ക് ചെയ്യുന്നു: Carefully unpack all boxes and lay out components in an organized manner. Verify against the parts list.
- ഫൗണ്ടേഷൻ: Assemble the main frame components first, ensuring all bolts are finger-tight before final tightening.
- കേബിൾ റൂട്ടിംഗ്: Follow the cable routing diagrams precisely to ensure smooth operation and prevent premature wear.
- Weight Stacks: Install weight plates and selector pins according to instructions.
- അന്തിമ മുറുക്കൽ: Once all components are in place, systematically tighten all bolts and nuts. Do not overtighten.
- സ്ഥിരത പരിശോധന: After assembly, gently shake the machine to ensure stability. Adjust leveling feet if necessary.
ചിത്രം: വശം view of the BodyCraft X4 Multigym, highlighting the various stations and the robust frame construction.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The BodyCraft X4 offers four distinct training stations:
- Station One: Functional Training / Cable Arms & High Pulley
This station features fully adjustable training/cable arms, capable of replicating over 100 dumbbell exercises. The high pulley is suitable for lat pulldowns, tricep pushdowns, and various cable exercises. Adjust the arm height and angle using the designated pins.
- Station Two: Adjustable Dual Cable Column
Provides resistance at any angle and height. Static handles are integrated into the frame for balance during leg exercises. Adjust the pulley height by pulling the pin and sliding the carriage to the desired position.
- Station Three: Press Arm & Leg Extension/Curl
Designed for machine-style bench presses, incline presses, shoulder presses, and seated rows. Includes a self-aligning leg extension/leg curl option and a mid pulley for abdominal crunches and triceps extensions. Adjust the press arm starting position and leg attachment as needed.
- Station Four: Leg Press & Calf Raise
Supports full leg development with a dedicated leg press and calf raise station. Creative cabling doubles the resistance ratio, providing up to 400 pounds of resistance. Ensure proper foot placement and controlled movement during exercises.
ഭാരം തിരഞ്ഞെടുക്കൽ: Insert the selector pin fully into the desired weight plate. Ensure the pin is securely seated before beginning any exercise.
സുരക്ഷ: Always perform exercises with controlled movements. Do not drop weights. Consult a fitness professional for proper form and exercise routines.
മെയിൻ്റനൻസ്
Regular maintenance ensures the longevity and safe operation of your BodyCraft X4 Multigym.
- വൃത്തിയാക്കൽ: Wipe down upholstery and frame with a damp വിയർപ്പ് അടിഞ്ഞുകൂടുന്നത് തടയാനും ശുചിത്വം പാലിക്കാനും ഓരോ ഉപയോഗത്തിനു ശേഷവും തുണി ഉപയോഗിക്കുക. അബ്രാസീവ് ക്ലീനറുകൾ ഒഴിവാക്കുക.
- കേബിൾ പരിശോധന: Periodically inspect all cables for fraying, kinks, or wear. Replace damaged cables immediately.
- പുള്ളി പരിശോധന: Check pulleys for smooth rotation and ensure they are free of debris.
- ലൂബ്രിക്കേഷൻ: Apply a silicone-based lubricant to guide rods and pivot points as needed to ensure smooth movement of weight stacks and moving parts. Do not use oil-based lubricants.
- ബോൾട്ട് ഇറുകിയത: Annually check all nuts and bolts for tightness. Retighten as necessary, but do not overtighten.
- അപ്ഹോൾസ്റ്ററി: Inspect upholstery for tears or excessive wear. Repair or replace as needed to maintain comfort and safety.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Rough or sticky weight stack movement | Guide rods are dirty or dry; bent guide rod; misaligned weight plates. | Clean and lubricate guide rods with silicone spray. Check for bent rods and alignment of plates. |
| കേബിളുകൾ പൊട്ടുകയോ തേയ്മാനം സംഭവിക്കുകയോ ചെയ്യുന്നു | Improper cable routing; worn pulleys; sharp edges on frame. | Inspect cable routing for correct path. Check pulleys for damage. Smooth any sharp edges. Replace cable if severely damaged. |
| ഓപ്പറേഷൻ സമയത്ത് അമിതമായ ശബ്ദം | Loose bolts; dry pivot points; worn bushings. | Check and tighten all bolts. Lubricate pivot points. Inspect and replace worn bushings. |
| Leg extension/curl not smooth | Pivot points need lubrication; worn bearings. | Lubricate pivot points. Check and replace bearings if necessary. |
സ്പെസിഫിക്കേഷനുകൾ
| ബ്രാൻഡ് | Body Craft (ironcompany) |
| മോഡൽ | X4 |
| ടൈപ്പ് ചെയ്യുക | Strength Training Machine (Multigym) |
| മെറ്റീരിയൽ | സ്റ്റീൽ, നൈലോൺ |
| പരമാവധി ഭാരം ശുപാർശ | 907.19 കി.ഗ്രാം |
| ഇനത്തിൻ്റെ ഭാരം | 726 കി.ഗ്രാം |
| ഇനത്തിന്റെ അളവുകൾ (LxWxH) | 2.81 x 2.22 x 2.12 Meters |
| Tension Level (Leg Press) | 400 പൗണ്ട് വരെ |
| സ്ട്രാപ്പ് തരം | കേബിൾ/പുള്ളി സ്ട്രാപ്പുകൾ |
| ഹാൻഡിൽ തരം | ഫിക്സഡ് ഹാൻഡിൽ |
| യു.പി.സി | 700580621175 |
| ASIN | B000OY4BSO |
വാറൻ്റിയും പിന്തുണയും
Specific warranty details for the BodyCraft X4 Multigym are typically provided with the product documentation at the time of purchase. Please refer to your purchase receipt and the warranty card included in the original packaging for information regarding coverage period, terms, and conditions.
For technical support, parts replacement, or service inquiries, please contact the manufacturer, Body Craft, or your authorized dealer. Contact information can usually be found on the manufacturer's official webസൈറ്റിലോ ഉൽപ്പന്നത്തിന്റെ യഥാർത്ഥ ഡോക്യുമെന്റേഷനിലോ.
Note: This manual provides general information. Always refer to the specific documentation included with your product for the most accurate and up-to-date details.
