RYOBI Ridgid/Ryobi 550848002 Chip Shield Replacement Part

ആമുഖം

This manual provides detailed instructions for the installation, function, and maintenance of the RYOBI Ridgid/Ryobi 550848002 Chip Shield replacement part. This component is designed for use with specific router models, including the RE175 and R175, to enhance user safety and maintain a cleaner work environment by deflecting wood chips and debris during operation.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Always observe basic safety precautions when working with power tools and their components. Failure to follow these instructions may result in serious personal injury or property damage.

• പവർ വിച്ഛേദിക്കുക: Always unplug the router from the power source before installing, removing, or performing any maintenance on the chip shield or any other part of the tool.
• നേത്ര സംരക്ഷണം ധരിക്കുക: Always wear appropriate eye protection when operating power tools.
• ഘടകങ്ങൾ പരിശോധിക്കുക: Before each use, inspect the chip shield for any cracks, damage, or excessive wear. Replace immediately if damaged.
• ശരിയായ ഭാഗം ഉപയോഗിക്കുക: Ensure you are using the correct replacement part (550848002) for your specific router model (RE175, R175).

ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ

Follow these steps to properly install the 550848002 Chip Shield on your compatible router.

1. Prepare the Router: Ensure the router is unplugged from its power source. Place the router on a stable, clean work surface.
2. Remove Old Chip Shield (if applicable): If replacing an existing chip shield, carefully locate the attachment points. These typically involve small screws or clips. Use appropriate tools to gently remove the old shield. Dispose of the old shield responsibly.
3. Position the New Chip Shield: Align the new RYOBI Ridgid/Ryobi 550848002 Chip Shield with the mounting points on your RE175 or R175 router. The shield is designed to fit in a specific orientation to effectively deflect debris.
4. Secure the Chip Shield: Fasten the chip shield using the original screws or clips. Ensure all fasteners are tightened securely but do not overtighten, as this may damage the shield or the router housing.
5. ഇൻസ്റ്റാളേഷൻ പരിശോധിക്കുക: Gently tug on the installed chip shield to ensure it is firmly attached and does not wobble. Check that it does not obstruct any moving parts of the router.

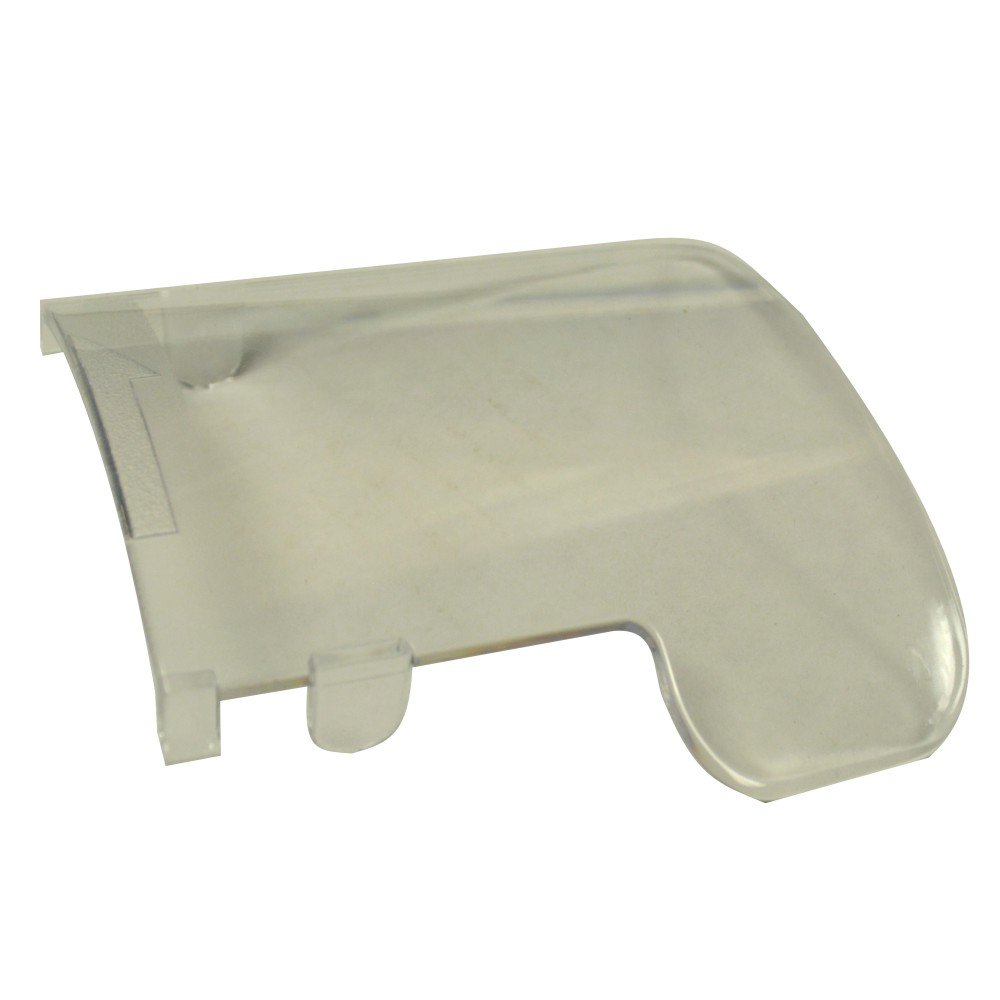

Image: The RYOBI Ridgid/Ryobi 550848002 Chip Shield. This component is crucial for deflecting wood chips and debris during router operation, ensuring a safer and cleaner workspace.

പ്രവർത്തനവും ഉദ്ദേശ്യവും

The 550848002 Chip Shield serves as a protective barrier on your RE175 or R175 router. Its primary function is to:

• Deflect Debris: Redirect wood chips, dust, and other routing debris away from the operator and the work area.
• Enhance Safety: Reduce the risk of eye injuries or skin irritation caused by flying particles.
• ദൃശ്യപരത നിലനിർത്തുക: By directing debris away, it helps maintain a clearer view of the workpiece during operation.

Ensure the chip shield is always in place and in good condition before operating the router.

മെയിൻ്റനൻസ്

Regular maintenance of your chip shield ensures its effectiveness and longevity.

• വൃത്തിയാക്കൽ: After each use, wipe down the chip shield with a clean, dry cloth to remove accumulated dust and debris. For stubborn residue, a slightly damp cloth can be used, followed by drying. Avoid harsh chemicals that may damage the material.
• പരിശോധന: Periodically inspect the chip shield for any signs of wear, cracks, or damage. Small cracks can propagate and compromise the shield's integrity.
• മാറ്റിസ്ഥാപിക്കൽ: If the chip shield becomes cracked, broken, or excessively scratched to the point where visibility is impaired or its protective function is compromised, it must be replaced immediately with a genuine RYOBI Ridgid/Ryobi 550848002 replacement part.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

• ഭാഗം നമ്പർ: 550848002
• അനുയോജ്യമായ മോഡലുകൾ: RYOBI RE175, RYOBI R175 Routers
• നിർമ്മാതാവ്: Ridgid/Ryobi
• ഉൽപ്പന്ന അളവുകൾ: ഏകദേശം 1 x 1 x 1 ഇഞ്ച്
• ഇനത്തിൻ്റെ ഭാരം: ഏകദേശം 2.08 ഔൺസ്
• മെറ്റീരിയൽ: Durable plastic (typical for chip shields)

പിന്തുണയും വാറൻ്റിയും

For further assistance, technical support, or warranty information regarding your RYOBI Ridgid/Ryobi 550848002 Chip Shield, please refer to the documentation provided with your original router or visit the official RYOBI or Ridgid webസൈറ്റ്. വാറൻ്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

കുറിപ്പ്: പ്രദേശത്തെയും റീട്ടെയിലറെയും ആശ്രയിച്ച് നിർദ്ദിഷ്ട വാറന്റി നിബന്ധനകൾ വ്യത്യാസപ്പെടാം.
