HP JetDirect 630n Gigabit Ethernet Print Server User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The HP JetDirect 630n Gigabit Ethernet Print Server is designed to enhance printing capabilities by providing high-performance network connectivity to compatible HP printers. This device enables network printing at Gigabit speeds, supports both IPv4 and IPv6 network protocols, and connects to HP printers equipped with an Enhanced Input/Output (EIO) slot.

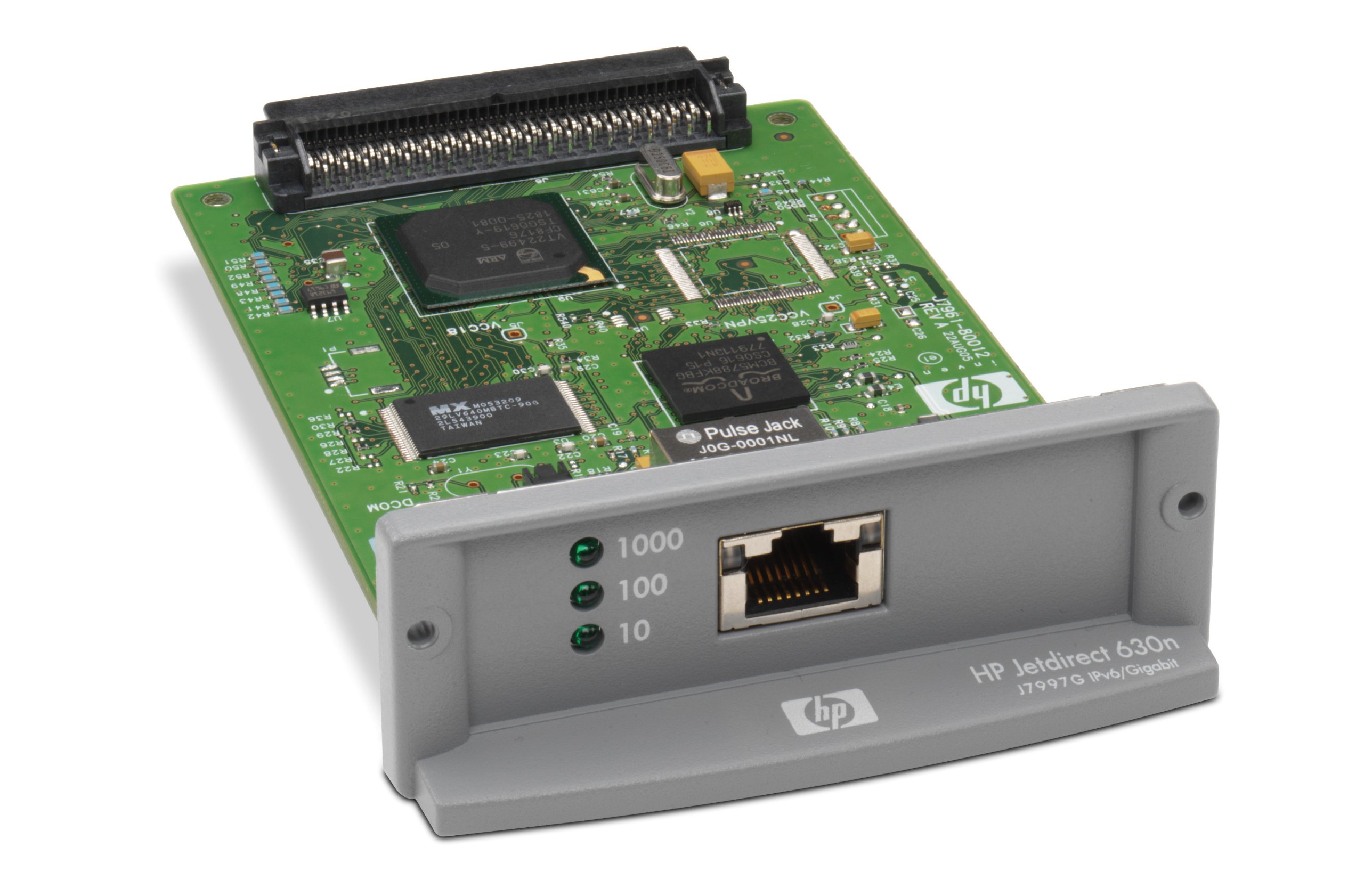

Image of the HP JetDirect 630n Gigabit Ethernet Print Server, a compact network device designed to enable network printing for compatible HP printers.

2. ബോക്സിൽ എന്താണുള്ളത്?

പാക്കേജിംഗിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• HP JetDirect 630n Gigabit Ethernet Print Server
• 1000 ഇഥർനെറ്റ് കേബിൾ
• ഡോക്യുമെന്റേഷൻ (ക്വിക്ക് സ്റ്റാർട്ട് ഗൈഡ്, വാറന്റി വിവരങ്ങൾ)

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

1. പ്രിന്റർ പവർ ഓഫ് ചെയ്യുക: Before installation, ensure the HP printer is powered off and unplugged from the electrical outlet.
2. Locate EIO Slot: Identify the Enhanced Input/Output (EIO) slot on your HP printer. Refer to your printer's user manual for the exact location.
3. Insert Print Server: Carefully insert the HP JetDirect 630n into the EIO slot. Ensure it is seated firmly.
4. ഇതർനെറ്റ് കേബിൾ ബന്ധിപ്പിക്കുക: Connect one end of the provided Ethernet cable to the print server's network port and the other end to an available port on your network router or switch.
5. പവർ ഓൺ പ്രിന്റർ: Plug the printer back into the electrical outlet and power it on. The print server will initialize with the printer.
6. Install Drivers and Configure Network: On your computer, install the appropriate printer drivers. The print server will typically obtain an IP address automatically via DHCP. For advanced network configurations (e.g., static IP), access the print server's embedded web server (EWS) using its assigned IP address.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the HP JetDirect 630n is installed and configured, it enables network printing for your compatible HP printer.

• നെറ്റ്‌വർക്ക് കണക്റ്റിവിറ്റി: The print server provides a direct network connection for your printer, allowing multiple users on the network to send print jobs.
• Printer Driver Installation: Ensure that the correct printer drivers for your specific HP printer model are installed on all client computers that will use the network printer. These drivers are typically available from the HP support webസൈറ്റ്.
• എംബഡഡ് ആക്സസ് ചെയ്യുന്നു Web സെർവർ (EWS): To manage print server settings, such as network configuration, security, and firmware updates, open a web browser and enter the IP address of the print server. The IP address can usually be found by printing a configuration page from your printer's control panel.
• Basic Printing: After driver installation and network configuration, the printer will appear as a network printer on client computers. Users can then print documents as they would to any local printer, selecting the network-connected HP printer.

5. പരിപാലനം

Proper maintenance ensures the longevity and optimal performance of your HP JetDirect 630n Gigabit Ethernet Print Server.

• വൃത്തിയാക്കൽ: Periodically clean the exterior of the print server and the printer's EIO slot area with a soft, dry cloth. Avoid using liquid cleaners directly on the device.
• വെൻ്റിലേഷൻ: Ensure that the printer and print server have adequate ventilation to prevent overheating. Do not block any vents on the printer.
• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: ഔദ്യോഗിക HP പിന്തുണ പരിശോധിക്കുക website regularly for firmware updates for the JetDirect 630n. Firmware updates can improve performance, add features, and address security vulnerabilities. Follow HP's instructions carefully when performing updates.
• കേബിൾ മാനേജുമെന്റ്: Ensure that the Ethernet cable is securely connected and not subjected to excessive bending or strain.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your HP JetDirect 630n, refer to the following common troubleshooting steps:

• നെറ്റ്‌വർക്ക് കണക്ഷൻ ഇല്ല:
  • Verify that the Ethernet cable is securely connected to both the print server and the network device (router/switch).
  • Check the network status lights on the print server and the network port. They should indicate activity.
  • Ensure your network router/switch is powered on and functioning correctly.
• നെറ്റ്‌വർക്കിൽ പ്രിന്റർ കണ്ടെത്തിയില്ല:
  • Print a configuration page from your HP printer to obtain the print server's IP address.
  • Try to ping the print server's IP address from a computer on the same network.
  • Ensure that the printer drivers are correctly installed and configured to use the network port.
  • Temporarily disable any firewalls on your computer to see if they are blocking communication.
• സ്ലോ പ്രിന്റിംഗ്:
  • Verify that your network infrastructure (cables, switches) supports Gigabit Ethernet speeds.
  • നെറ്റ്‌വർക്ക് തിരക്ക് പരിശോധിക്കുക.
  • Ensure the print server's firmware is up to date.
• Print Server Not Responding:
  • പ്രിന്റർ പവർ സൈക്കിൾ ചെയ്യുക (ഓഫാക്കുക, 30 സെക്കൻഡ് കാത്തിരിക്കുക, ഓൺ ചെയ്യുക).
  • If issues persist, consider performing a factory reset on the print server (refer to HP documentation for specific steps, as this will erase custom settings).

For more complex issues or persistent problems, refer to the comprehensive troubleshooting guides available on the official HP support website or contact HP technical support.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For detailed warranty information regarding your HP JetDirect 630n Gigabit Ethernet Print Server, please refer to the warranty documentation included with your product or visit the official HP webസൈറ്റ്.

If you require technical assistance, have questions about product functionality, or need to report a defect, please contact HP Customer Support. You can find contact information and support resources on the official HP support webസൈറ്റ്:

https://www.hp.com/support

Please have your product model number (J7997G#UUS) and serial number ready when contacting support.
