Tamiya 24275 1/24 Porsche Carrera GT Plastic Model Kit Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

This Tamiya assembly kit allows for the construction of a 1/24 scale replica of the Porsche Carrera GT. The Porsche Carrera GT was introduced to the international motoring market in 2003, featuring a 5.7 liter V10 engine, carbon-fiber monocoque chassis, and push-rod suspension.

Key features of this model kit include:

• Accurate reproduction of the monocoque chassis and front and rear suspension.
• Metal plated parts for wheels and exhaust pipe.
• Rear spoiler designed to be assembled in either an opened or closed position.
• Metal transfers included for mirrors and the Porsche emblem to enhance display quality.

Important Safety Notice: This kit contains small parts and is not suitable for children. Adult supervision is recommended for younger builders.

2. കിറ്റ് ഉള്ളടക്കം

The kit includes all necessary plastic parts for assembly. Please verify all components are present before beginning construction. Refer to the parts list provided in the box for a complete inventory.

Image: The Tamiya 1/24 Porsche Carrera GT plastic model kit box art, showing the completed model and kit details.

Image: A fully assembled Tamiya 1/24 Porsche Carrera GT model, showcasing അതിന്റെ വിശദമായ പുറംഭാഗം.

3. ശുപാർശ ചെയ്യുന്ന ഉപകരണങ്ങളും വസ്തുക്കളും

Successful assembly and finishing of this model kit require specific tools and paints, which are sold separately. Ensure you have these items before starting.

3.1. Required Paints

A variety of XF-Acrylic Paints (flat), X-Acrylic Paints (gloss), and TS-Paint-Sprays for Plastics are recommended for accurate color representation. Refer to the detailed paint chart for specific color codes and types.

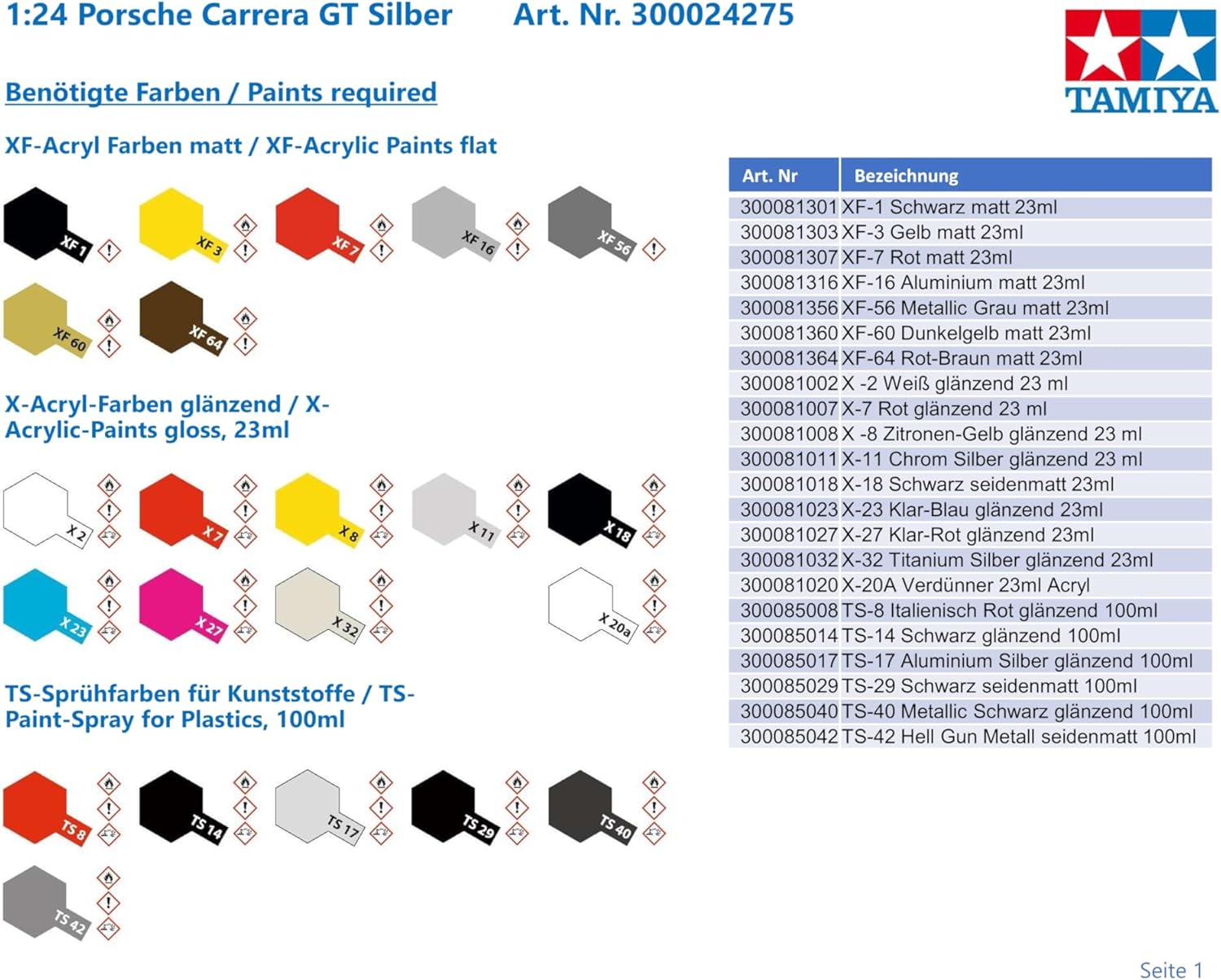

Image: A chart detailing the required Tamiya XF-Acrylic, X-Acrylic, and TS-Spray paints for the Porsche Carrera GT model, including color codes and descriptions.

3.2. ശുപാർശ ചെയ്യുന്ന ഉപകരണങ്ങൾ

The following tools are highly recommended for precise assembly and a high-quality finish:

• Angled Tweezers (Pinzette abgewinkelt)
• Cutter Knife (Cutter-Messer)
• Decal Scissors (Decal-Schere)
• Side Cutters for Plastic (Seitenschneider Spitz für Kunststoff)
• Basic Brush Set (Pinsel-Set "Basic")
• Masking Tape 10mm with Dispenser (Masking Tape 10mm mit Abroller)
• Plastic Cement (Plastikkleber 40ml Tamiya)
• Extra Thin Plastic Cement (Plastikkleber 40ml extradünn Tamiya)
• Mark Fit (Strong) Decal Softener (Dekorweichmacher 40ml)
• Decal Adhesive Soft / Haftmittel 10ml

Image: A visual guide to recommended tools for assembling the Tamiya Porsche Carrera GT model kit, including tweezers, cutters, brushes, and adhesives.

4. അസംബ്ലി നിർദ്ദേശങ്ങൾ

Follow the step-by-step diagrams and instructions provided in the kit's manual. Pay close attention to part numbers and orientation. Use appropriate plastic cement sparingly to avoid damaging parts or obscuring details.

4.1. General Tips for Assembly

• തയ്യാറാക്കൽ: Carefully remove parts from the sprues using side cutters. Clean any excess plastic (flash) with a hobby knife or sandpaper.
• ടെസ്റ്റ് ഫിറ്റ്: Always test fit parts before applying cement to ensure proper alignment.
• പെയിൻ്റിംഗ്: It is often easier to paint certain sub-assemblies before joining them to the main model. Refer to the kit's painting guide for specific color applications.
• ഡെക്കലുകൾ: Apply decals to a glossy surface for best adhesion. Use decal softener to help decals conform to irregular surfaces.

5. പരിപാലനവും പരിചരണവും

To preserve the appearance of your completed model, follow these care guidelines:

• വൃത്തിയാക്കൽ: Dust the model regularly with a soft brush or a can of compressed air. Avoid using harsh chemicals or abrasive materials.
• ഡിസ്പ്ലേ: Display the model in a cool, dry place away from direct sunlight to prevent fading and warping. A display case can protect it from dust and accidental damage.
• കൈകാര്യം ചെയ്യൽ: Handle the model by its base or sturdy sections to avoid breaking delicate parts.

6. പൊതുവായ പ്രശ്‌നങ്ങൾ പരിഹരിക്കുന്നു

While building, you might encounter minor challenges. Here are some common issues and solutions:

• യോജിക്കാത്ത ഭാഗങ്ങൾ: Ensure all excess plastic (flash) is removed. Lightly sand mating surfaces if necessary. Verify you are using the correct parts as per the instruction manual.
• Paint issues:
  • Uneven coat: Apply paint in thin, even layers. Allow each layer to dry completely before applying the next.
  • Brush marks: Use a high-quality brush and thin your paints appropriately.
• Decal silvering: This occurs when air is trapped under the decal. Ensure the surface is glossy, apply a generous amount of decal setting solution, and gently press out air bubbles.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

Specific warranty information for this Tamiya model kit is not provided in the product details. For any warranty-related inquiries or technical support, please contact Tamiya directly through their official webസൈറ്റ് അല്ലെങ്കിൽ ഉപഭോക്തൃ സേവന ചാനലുകൾ.

You can find more information and contact details on the official Tamiya webസൈറ്റ്: www.tamiya.com
