1. ആമുഖം
This instruction manual provides comprehensive guidance for the DELTA H238 Lahara Two Metal Lever Handle Kit. This handle is designed for use with compatible bidet, lavatory, and kitchen faucets, offering a chrome finish and a metal lever design. Please read these instructions thoroughly before installation and use to ensure proper function and longevity of your product.

Image 1: DELTA H238 Lahara Faucet Handle, showcasing its chrome finish and lever design.
2 സുരക്ഷാ വിവരങ്ങൾ
- Always turn off the water supply to the faucet before beginning any installation or maintenance.
- ഇൻസ്റ്റാളേഷൻ സമയത്ത് സുരക്ഷാ ഗ്ലാസുകൾ പോലുള്ള ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ ധരിക്കുക.
- ഏതെങ്കിലും ഘട്ടത്തെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ, യോഗ്യതയുള്ള ഒരു പ്ലംബറെ സമീപിക്കുക.
- ചെറിയ ഭാഗങ്ങൾ കുട്ടികളിൽ നിന്ന് അകറ്റി നിർത്തുക.
3. പാക്കേജ് ഉള്ളടക്കം
ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:
- DELTA H238 Lahara Metal Lever Handle (Quantity: 1)
- Set Screw (if applicable, typically pre-installed or included with handle)
- Base Ring/Escutcheon (if applicable)

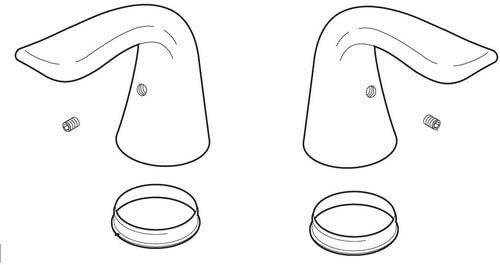

ചിത്രം 2: എക്സ്പ്ലോഡഡ് view diagram showing the handle and associated components for installation.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
This section outlines the general steps for installing the DELTA H238 Lahara faucet handle. Specific faucet models may have slight variations. Refer to your faucet's main instruction manual for detailed instructions if necessary.
- ജോലിസ്ഥലം തയ്യാറാക്കുക: Ensure the water supply to the faucet is turned off. Clear the area around the faucet for easy access.
- പഴയ ഹാൻഡിൽ നീക്കം ചെയ്യുക (ബാധകമെങ്കിൽ): If replacing an existing handle, locate the set screw (often hidden under a decorative cap) and loosen it with an appropriate Allen wrench. Carefully pull the old handle off the valve stem.
- Clean the Valve Stem: Clean any mineral deposits or debris from the faucet valve stem to ensure a smooth fit for the new handle.
- Install Base Ring (if applicable): If your faucet design includes a base ring or escutcheon, place it over the valve stem onto the faucet body.
- പുതിയ ഹാൻഡിൽ സ്ഥാപിക്കുക: Align the DELTA H238 Lahara handle onto the valve stem. Ensure it is oriented correctly for desired operation (e.g., lever pointing forward when off).
- ഹാൻഡിൽ സുരക്ഷിതമാക്കുക: Insert and tighten the set screw (usually located on the underside or back of the handle) using an Allen wrench. Do not overtighten, as this can damage the handle or stem.
- ടെസ്റ്റ് ഓപ്പറേഷൻ: Slowly turn on the water supply. Check for leaks and test the handle's movement to ensure it operates smoothly and controls water flow and temperature as expected.
5. ഓപ്പറേഷൻ
The DELTA H238 Lahara metal lever handle provides intuitive control over your faucet's water flow and temperature. The specific operation will depend on the type of faucet it is installed on (e.g., single-handle or two-handle lavatory, kitchen, or bidet faucet).
- ജലപ്രവാഹം: Typically, lifting the lever handle will increase water flow, and pushing it down will decrease or stop the flow.
- താപനില നിയന്ത്രണം: For single-handle faucets, moving the lever left or right usually adjusts the water temperature (left for hot, right for cold). For two-handle faucets, each handle controls either hot or cold water independently.
6. പരിപാലനവും പരിചരണവും
To maintain the appearance and functionality of your DELTA H238 Lahara faucet handle, follow these care guidelines:
- വൃത്തിയാക്കൽ: Clean the handle regularly with a soft, damp തുണി. മുരടിച്ച പാടുകൾക്ക്, നേരിയ സോപ്പും വെള്ളവും ലായനി ഉപയോഗിക്കുക. വെള്ളം പറ്റിപ്പിടിക്കാതിരിക്കാൻ നന്നായി കഴുകി മൃദുവായ തുണി ഉപയോഗിച്ച് ഉണക്കുക.
- കഠിനമായ ക്ലീനറുകൾ ഒഴിവാക്കുക: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or cleaners containing bleach, acids, or alcohol. These can damage the chrome finish.
- ആനുകാലിക പരിശോധന: Periodically check the handle for any looseness. If the handle feels loose, gently tighten the set screw with an Allen wrench.
7. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your faucet handle.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഹാൻഡിൽ അയഞ്ഞതാണ് | Set screw is loose. | Tighten the set screw on the handle with an Allen wrench. |
| Handle is stiff or hard to turn | Mineral buildup on the valve stem or cartridge. | Turn off water supply, remove handle, clean valve stem and cartridge area. If issue persists, the faucet cartridge may need replacement (refer to faucet manual). |
| Water leaks from base of handle | ഫ്യൂസറ്റ് കാട്രിഡ്ജിനുള്ളിൽ തേഞ്ഞുപോയ ഓ-റിംഗുകൾ അല്ലെങ്കിൽ സീലുകൾ. | This indicates an issue with the faucet's internal cartridge, not the handle itself. Refer to your faucet's instruction manual for cartridge replacement. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ഡെൽറ്റ |
| മോഡൽ നമ്പർ | H238 |
| മെറ്റീരിയൽ | Metal (Chrome) |
| നിറം/ഫിനിഷ് | Chrome |
| ഉൽപ്പന്ന അളവുകൾ | 2.25"ലിറ്റർ x 3"വാട്ട് |
| ഇനത്തിൻ്റെ ഭാരം | 1.04 പൗണ്ട് |
| ഹാൻഡിലുകളുടെ എണ്ണം | 1 |
| പ്രത്യേക ഉപയോഗങ്ങൾ | Faucet (Bidet, Lavatory, Kitchen) |
| പ്രത്യേക ഫീച്ചർ | ഇൻസ്റ്റാൾ ചെയ്യാൻ എളുപ്പമാണ് |
| യു.പി.സി | 034449571425, 783961409241 |
9. വാറൻ്റി വിവരങ്ങൾ
This DELTA product is covered by a Lifetime Faucet and Finish Lifetime Limited Warranty. For full details regarding warranty coverage, terms, and conditions, please refer to the official DELTA Faucet warranty documentation or contact DELTA customer support.
10. ഉപഭോക്തൃ പിന്തുണ
For further assistance, technical support, or to inquire about replacement parts, please contact DELTA Faucet customer service or visit their official webസൈറ്റ്.
കൂടുതൽ വിവരങ്ങളും ബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങളും നിങ്ങൾക്ക് ഇവിടെ കണ്ടെത്താനാകും ആമസോണിലെ ഡെൽറ്റ സ്റ്റോർ or the official DELTA Faucet webസൈറ്റ്.
