ACDelco ATM20 GM Original Equipment 20 Amp Automotive Mini Fuse Instruction Manual

1. ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of the ACDelco ATM20 GM Original Equipment 20 Amp Automotive Mini Fuse. This fuse is designed to protect electrical circuits in your GM vehicle from overcurrent conditions, ensuring the safety and functionality of your vehicle's electrical system.

The ACDelco ATM20 fuse is a GM-recommended replacement part, manufactured to meet GM Original Equipment specifications for fit, form, and function, offering reliable performance and durability.

2 സുരക്ഷാ വിവരങ്ങൾ

• Always disconnect the vehicle's battery before working on any electrical components to prevent electrical shock or short circuits.
• Never replace a fuse with one of a higher amperage rating. This can lead to serious damage to the electrical system or even fire.
• Ensure the replacement fuse matches the original fuse's amperage and type (mini fuse).
• If a fuse blows repeatedly, it indicates an underlying electrical problem that requires professional diagnosis and repair. Do not continuously replace blown fuses without addressing the root cause.
• Wear appropriate personal protective equipment, such as safety glasses, when working with vehicle electrical systems.

3. Installation (Fuse Replacement)

This section outlines the general procedure for replacing an automotive mini fuse. Refer to your vehicle's specific owner's manual for the exact location of fuse boxes and detailed instructions for your model.

1. ഫ്യൂസ് ബോക്സ് കണ്ടെത്തുക: Identify the fuse box in your vehicle. Common locations include under the hood, under the dashboard, or in the trunk. Consult your vehicle's owner's manual for precise locations.
2. പൊട്ടിത്തെറിച്ച ഫ്യൂസ് തിരിച്ചറിയുക: Refer to the fuse diagram, usually located on the inside of the fuse box cover, to identify the fuse corresponding to the malfunctioning component. A blown fuse typically has a broken wire filament visible through its clear casing.
3. Remove the Blown Fuse: Use a fuse puller (often found in the fuse box or vehicle toolkit) or small needle-nose pliers to carefully pull the blown fuse straight out of its socket.
4. Insert the New Fuse: Take the ACDelco ATM20 20 Amp Mini Fuse and align its blades with the empty slots in the fuse box. Push the new fuse firmly into the socket until it is fully seated. Ensure it is the correct ampകോപം (20 Amp) and type (mini fuse).
5. ഘടകം പരിശോധിക്കുക: Reconnect the vehicle's battery if it was disconnected. Turn on the ignition and test the electrical component that was previously malfunctioning to confirm the fuse replacement was successful.
6. Secure the Fuse Box: Replace the fuse box cover securely to protect the fuses from dust and moisture.

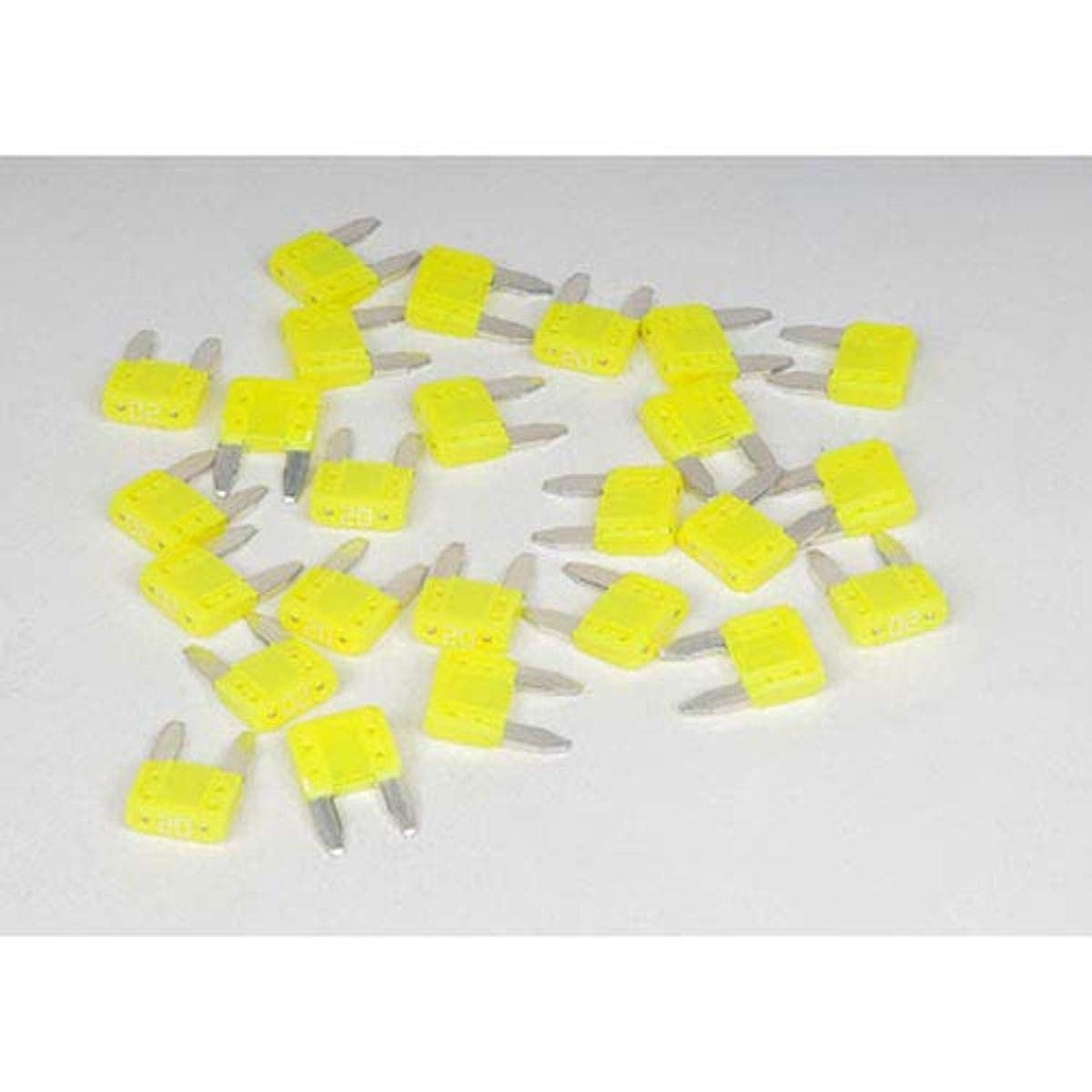

Image 1: ACDelco ATM20 20 Amp Automotive Mini Fuse. This image shows the compact design of the mini fuse, typically color-coded for its amperage rating. The fuse features two metal blades for insertion into a fuse block and a clear plastic body allowing visual inspection of the internal filament.

4. പ്രവർത്തന തത്വങ്ങൾ

An automotive fuse, such as the ACDelco ATM20, is a safety device designed to protect electrical circuits from excessive current. When the current flowing through a circuit exceeds the fuse's rated amperage (in this case, 20 Amps), the metallic filament inside the fuse melts and breaks the circuit. This prevents damage to more expensive electrical components, wiring, and reduces the risk of fire.

The ATM20 is a "mini" type fuse, characterized by its small physical size, commonly used in modern vehicles. Its color coding (often yellow for 20 Amp fuses) and imprinted amperage rating allow for easy identification.

5. പരിപാലനം

Automotive fuses are generally maintenance-free components. However, periodic inspection of the fuse box and individual fuses can help identify potential issues before they lead to failures.

• വിഷ്വൽ പരിശോധന: Occasionally open your vehicle's fuse boxes and visually inspect the fuses. Look for any signs of corrosion, discoloration, or loose connections.
• Check for Blown Fuses: If an electrical component stops working, the first step in troubleshooting is to check its corresponding fuse. A blown fuse will have a visibly broken filament.
• സ്പെയറുകൾ സൂക്ഷിക്കുക: It is advisable to keep a small assortment of common amperage fuses, including 20 Amp mini fuses, in your vehicle for emergency replacements.

6. പ്രശ്‌നപരിഹാരം

If an electrical component in your vehicle is not functioning, follow these troubleshooting steps related to the fuse:

1. ബാധിച്ച ഘടകം തിരിച്ചറിയുക: Determine which electrical system or device is not working (e.g., radio, headlights, power windows).
2. Locate the Correct Fuse: Consult your vehicle's owner's manual or the fuse box diagram to find the fuse responsible for that component.
3. ഫ്യൂസ് പരിശോധിക്കുക: Remove the fuse and visually inspect its filament. If the filament is broken, the fuse is blown.
4. Replace with Correct Ampകോപം: If the fuse is blown, replace it with a new ACDelco ATM20 20 Amp Mini Fuse (or the specific amperage required for that circuit). ഉയർന്ന ഫ്യൂസുള്ള ഫ്യൂസ് ഒരിക്കലും ഉപയോഗിക്കരുത്. ampഇറേജ് റേറ്റിംഗ്.
5. ഘടകം പരിശോധിക്കുക: After replacing the fuse, test the electrical component. If it now works, the issue was a blown fuse.
6. Repeated Blown Fuses: If the new fuse blows immediately or repeatedly, this indicates a short circuit or an overload in the electrical system. This requires professional diagnosis and repair by a qualified mechanic. Continuing to replace fuses without addressing the underlying problem can cause significant damage.

7 സ്പെസിഫിക്കേഷനുകൾ

Key specifications for the ACDelco ATM20 GM Original Equipment 20 Amp Automotive Mini Fuse:
