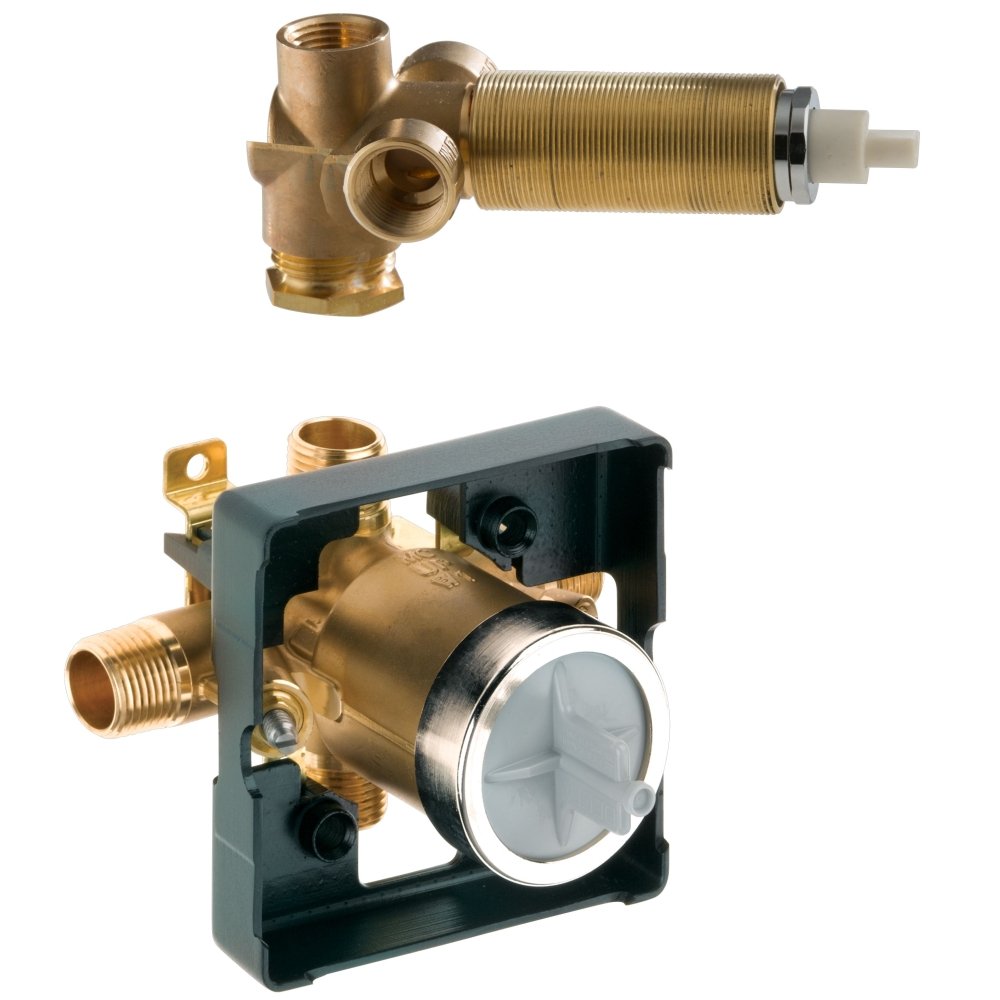

DELTA FAUCET R10700-UNWS MultiChoice Universal Valve Body with In-Wall Diverter Valve

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Delta MultiChoice Universal Valve Body (Model R10700-UNWS) is designed to provide flexibility for your shower system. Its separate rough and trim program allows for the installation of the valve body before the final trim selection, simplifying the installation process and offering future upgrade possibilities without needing to change the in-wall rough-in.

പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:

• Trim must be ordered separately.
• Cartridge ships with trim.
• Accepts single, dual, or dual thermostatic cartridges.
• Package Weight: 1.451 kilograms.

2. ഇൻസ്റ്റലേഷൻ പരിഗണനകൾ

Proper installation of the R10700-UNWS valve body is crucial for optimal performance. This valve is designed for in-wall installation and requires a separate trim kit, which includes the necessary cartridge and handles.

Compliance and Specifications:

• ഇതുമായി പൊരുത്തപ്പെടുന്നു: ASME A112.18.1 / CSA B125.1, and is cUPC certified.
• ബോഡി മെറ്റീരിയൽ: Forged brass body for durability.
• ഇൻസ്റ്റലേഷൻ ഫ്ലെക്സിബിലിറ്റി: Features back-to-back installation capabilities.
• പരിശോധന: Can be tested with air (200psi) or water (300psi) without the valve configuration or trim installed.
• Plasterguard: Square plasterguard allows for precise right-angle cuts during installation.
• Trim Compatibility: Designed for use with MultiChoice Universal single or dual function trim kits.
• കണക്ഷനുകൾ: 1/2-inch outlets and connections. Includes 1/2-inch NPT male threads with 1/2-inch C.W.T. female sweat with screwdriver stops.
• ഡൈവേർട്ടർ: Includes an in-wall diverter for dual or triple valve rough (compatible with models T13H33, T14H33, T17H33).
• Trim Components: Handles and flanges ship with the trim kit, not with the valve body.

3. ഓപ്പറേഷൻ

Specific operational instructions for the R10700-UNWS valve body are dependent on the chosen trim kit and cartridge. Please refer to the instruction manual provided with your Delta trim kit for detailed operational procedures, including temperature and flow control.

4. പരിപാലനം

Regular maintenance for the in-wall valve body itself is generally minimal once properly installed. For maintenance of the visible trim components (handles, escutcheon, showerhead, etc.), please consult the specific instructions provided with your Delta trim kit. Ensure all connections remain secure and free from leaks. In areas with hard water, periodic cleaning of the cartridge may be necessary, as detailed in your trim kit's manual.

5. പ്രശ്‌നപരിഹാരം

Troubleshooting issues related to water flow, temperature regulation, or leaks typically involve the cartridge and trim components, which are part of the trim kit. If you experience any problems, first refer to the troubleshooting guide included with your Delta trim kit. Ensure that the water supply to the valve is fully open and that no debris is obstructing the flow. For persistent issues, professional plumbing assistance is recommended.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

The DELTA FAUCET R10700-UNWS MultiChoice Universal Valve Body is covered by a Limited Commercial 5-year Limited Warranty. This warranty covers defects in material and manufacturing for a period of five years from the date of purchase for commercial installations.

For consumer installations, Delta Faucet typically offers a Lifetime Limited Warranty. Please refer to the official Delta Faucet website or contact their customer service for the most current and detailed warranty information applicable to your specific purchase and installation type.

If you require technical assistance, have questions about installation, or need to make a warranty claim, please visit the official Delta Faucet website or contact their customer support directly. You can find more information and support resources by visiting the ആമസോണിലെ ഡെൽറ്റ സ്റ്റോർ or the main Delta Faucet webസൈറ്റ്.
