ആമുഖം
The VacMaster VP210 is a robust, maintenance-free chamber vacuum sealer designed for both home and commercial use. It offers superior food preservation by creating a strong, leak-proof double seal, extending food shelf life up to 5 times longer than traditional methods. Its compact design and user-friendly controls make it an ideal solution for portioning, sous vide, and general food storage.
പ്രധാന സവിശേഷതകൾ:
- Easy To Use Control Panel and Pressure Indicator: Perfect vacuum and seal with minimal effort with one-touch controls. For a quick seal simply hit the stop button to seal the bag and the chamber will open.
- Maintenance Free Air Pump: The VacMaster VP210 uses a maintenance free air pump that is built to last and requires no oil changes.
- Quality At Home and Reliable for Your Business: Compact design perfect for crossover home and commercial use. Stands up to prolonged and continuous use.
- Leak-Proof Double Seal: Provides an extra layer of protection to extend food shelf life and ensure freshness.
- Improved Flavors: Can vacuum package a variety of liquids and liquid rich food like soups, sauces, and marinades, enhancing flavor.
- Versatile Sealing Capabilities: Compatible with 3 MIL, 4 MIL, 5 MIL, as well as 5 MIL and 7 MIL mylar bags.

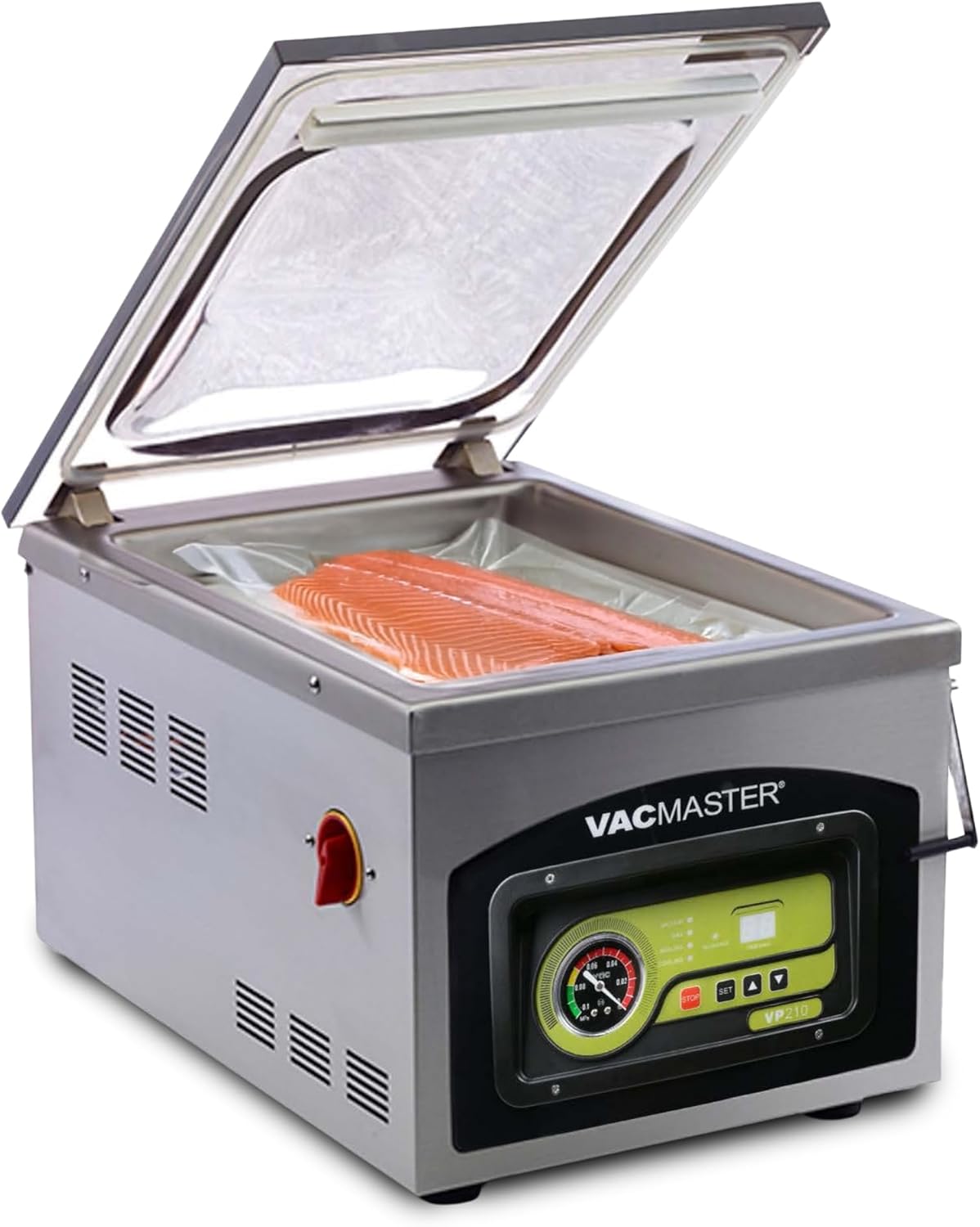

The VacMaster VP210 Maintenance-Free Chamber Vacuum Sealer.
സജ്ജമാക്കുക
Before first use, ensure the unit is placed on a stable, level surface. The VacMaster VP210 comes with a maintenance kit including spare parts and tools for future upkeep. The unit is pre-filled with the initial supply of oil for the pump, which is visible through the oil indicator window at the back of the machine. Ensure the oil level is within the recommended range (halfway full).
ഇൻ്റീരിയർ view of the VacMaster VP210 chamber with filler plates.
The unit includes two filler plates that can be placed inside the chamber. These plates reduce the amount of air that needs to be pulled, shortening vacuum time and providing a stronger vacuum, especially useful for smaller items or delicate foods. They are notched to avoid interfering with the vacuum nozzle.
Filler plates can be used to reduce chamber volume for faster vacuum cycles.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The VacMaster VP210 features an easy-to-use control panel with a pressure indicator. To begin, ensure the power switch on the side of the unit is in the 'on' position. The lid is spring-loaded; when opened, it will stay up. When closed, the vacuum cycle will automatically begin.
സീലിംഗ് പ്രക്രിയ:
- Place your food item inside a compatible vacuum bag.
- Lay the open end of the bag flat over the seal bar inside the chamber, ensuring it is smooth and free of wrinkles.
- Close the lid firmly. The vacuum cycle will automatically start.
- The unit will pull a vacuum, then seal the bag, and finally release the air, causing the lid to pop open.
Simple steps for vacuum sealing with the VP210.
ക്രമീകരണങ്ങൾ ക്രമീകരിക്കുന്നു:
The control panel allows adjustment of vacuum time, seal time, and cooling time. The default settings are suitable for most common uses. Use the 'SET' button to cycle through the settings and the arrow buttons to adjust values. For delicate items or liquids, you may need to adjust the vacuum time to prevent crushing or excessive bubbling.
- വാക്വം സമയം: Adjust based on the volume and type of food.
- സീൽ സമയം: Depends on the bag thickness (e.g., 1.5 seconds for regular 3 MIL bags, 2.6 seconds for 7 MIL Mylar bags).
- തണുപ്പിക്കൽ സമയം: Important for continuous use to prevent overheating the seal bar.
The VP210 can handle bags up to 10 inches wide and 16 inches long. It provides a double seal for enhanced protection.
The chamber supports various bag sizes for versatile use.
Benefits of using the VacMaster VP210 for different food types.
മെയിൻ്റനൻസ്
The VacMaster VP210 features a maintenance-free air pump, eliminating the need for oil changes typically required by oil-based pumps. This design helps prevent moisture buildup and extends the pump's lifespan. However, regular cleaning of the chamber and inspection of the seal bar are recommended.
Seal Bar Maintenance:
The 10.25-inch seal bar is removable and leak-proof, designed for a double seal. The unit comes with backup seal bar wires and Teflon tape. If the seal tape gets burnt off or the seal bar wire needs replacement, you can easily change them using the provided tools.
The VP210 features a maintenance-free dry pump and a removable double seal bar.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues during operation, refer to the following common problems and solutions:
- ബാഗ് ശരിയായി അടച്ചിട്ടില്ല: Check if the bag is smooth over the seal bar. Ensure the seal time setting is appropriate for the bag thickness. Replace the Teflon tape or seal bar wire if they appear damaged.
- Liquid bubbling up: If vacuuming liquids, use the 'STOP' button to manually halt the vacuum process once the desired air removal is achieved, before liquids start to boil over. Adjust vacuum time for liquid-rich foods.
- യൂണിറ്റ് ഓണാക്കുന്നില്ല: Verify the power switch on the side is in the 'on' position and the unit is properly plugged into a 110V, 20 AMP socket. Check the fuses if necessary.
- Pump noise: Oil-based pumps tend to be quieter than dry pumps. If the unit becomes excessively loud, ensure the oil level is correct (if applicable to your specific pump type, though VP210 is maintenance-free).
സ്പെസിഫിക്കേഷനുകൾ
- Overall Dimensions (WxDxH): 14” x 20” x 15”
- Chamber Size (WxDxH): 11.25” x 15.25” x 5”
- Seal Bar Size: 10.25"
- Maximum Bag Size: 10" x 13"
- പമ്പ്: Maintenance-Free Air Pump
- ഇനത്തിൻ്റെ ഭാരം: 72 പൗണ്ട്
- മെറ്റീരിയൽ: സ്റ്റെയിൻലെസ്സ് സ്റ്റീൽ
- ഊർജ്ജ സ്രോതസ്സ്: കോർഡഡ് ഇലക്ട്രിക്
- വാല്യംtage: 110 വോൾട്ട്
- വാട്ട്tage: 110 വാട്ട്സ്
- പ്രവർത്തന രീതി: ഓട്ടോമാറ്റിക്
Dimensions and key specifications of the VacMaster VP210.
വാറൻ്റി & പിന്തുണ
VacMaster offers superior customer service and over 45 years of service expertise dedicated to answering any vacuum sealer technical questions. For support, please refer to the contact information provided in your user manual or visit the official VacMaster webസൈറ്റ്.
The product is typically backed by a manufacturer's warranty. Please consult your user manual for specific warranty terms and conditions.
